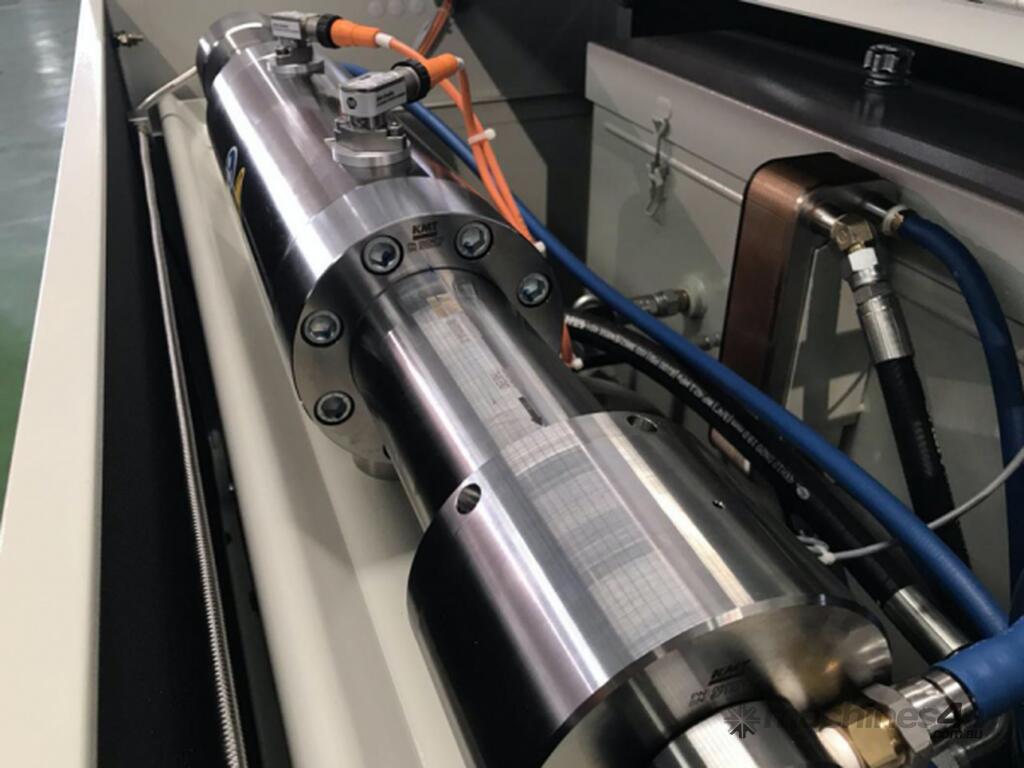

KMT Jetline 30/50 Intensifier Waterjet Pump
Technical information:
Nominal Power Rate 37kw
Power Supply 380V 50hz 3phase
Length x Width x Height 1935x914x1180mm
Max. Continuous Pressure500-3,800bar / 50-380Mpa
Max. Water Flow Rate at Max. Pressure 3.8L/min
Control Voltage & Power Supply 24VDC
Nom. Motor Current 380V/50Hz 66A
Max. Circuit Braker at 380V/50Hz 80A
Max. Circuit Braker at 380V/50Hz 80A
Control System Siemens
Pneumatic Supply Pressure Requirement 5¸9bar
Max Noise Level
