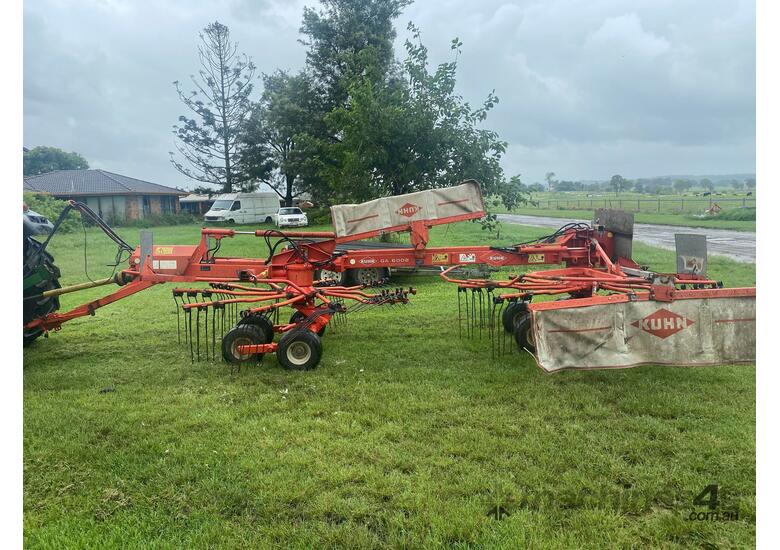

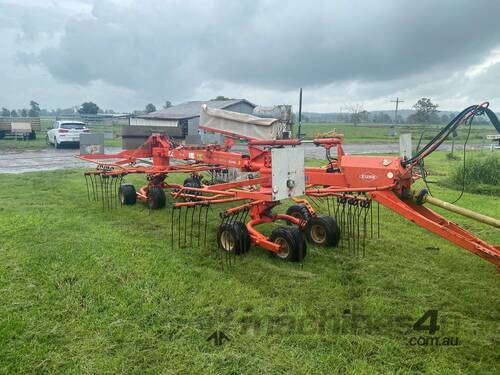

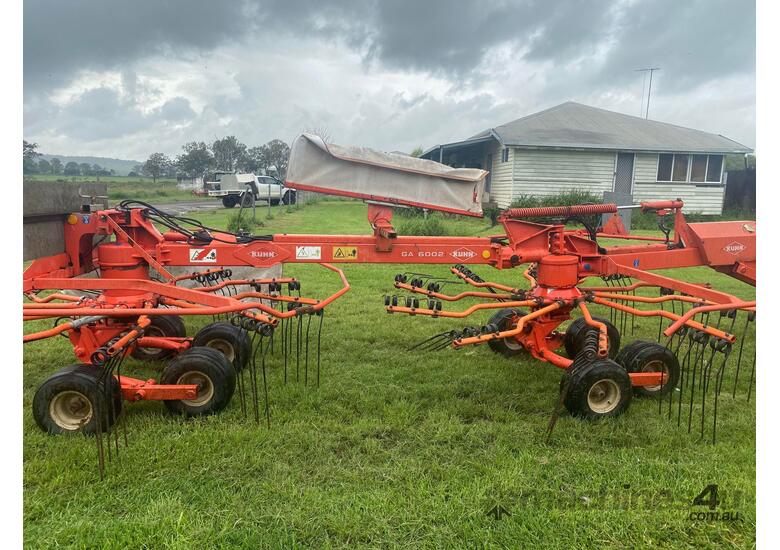

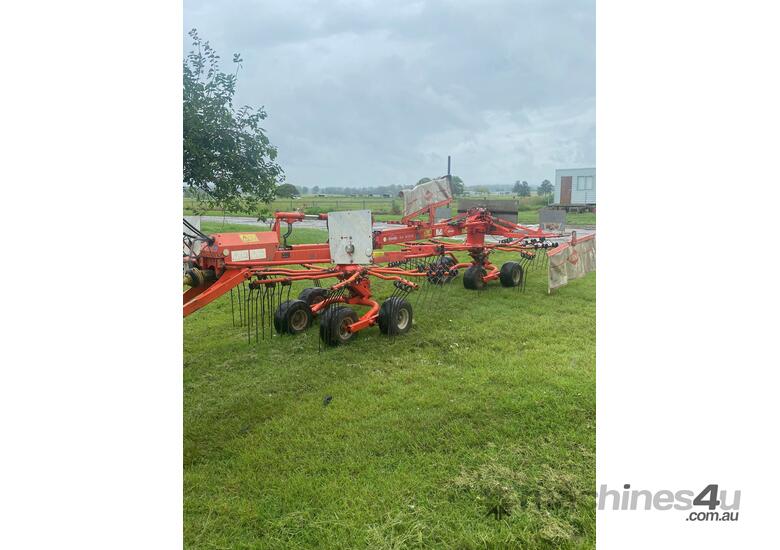

KUHN GA 6002 TWIN ROTOR RAKE

Good condition used Kuhn GA 6002 twin rotor rake. Machine located in Beaudesert, QLD. Contact Ben at FarmTech for more information

Specifications - GA 6002
Working Width: 1 Windrow 3.00m - 5.80m. 2 windrows: 5.40m
Average Windrow: 0.80m - 1.40m
Transport Width: 2.95m
Transport Length: 7.30m
Windrow Type: 1 side windrow or 2 side windrows
Windrow Delivery: To the left
Windrow Curtain Setting: As standard on rear rotor
Number Of Rotors / Rotor Diameter: 2 / 2.65m
Number Of Tine Arms Per Rotor / Number Of Tines Per Tine Arm: 10 / 3
Tine Arms: Fixed
Gearbox: Fully enclosed single reduction
Number Of Wheels Per Front Rotor: 2
Number Of Wheels Per Rear Rotor: 2
Wheels On Main Chassis: 18 x 8.50 - 8
PTO Speed - 540 RPM
Hitch: Drawbar - hitch for swinging drawbar
Power Requirement: 40HP+
Required Hydraulic Remotes: 1 SA + 1 DA
Required Electrical Connections: 1x 7-pin socket
Road Lights & Signalling: As standard
Approx Weight: 1,260kg

Contact Ben at FarmTech for more information
