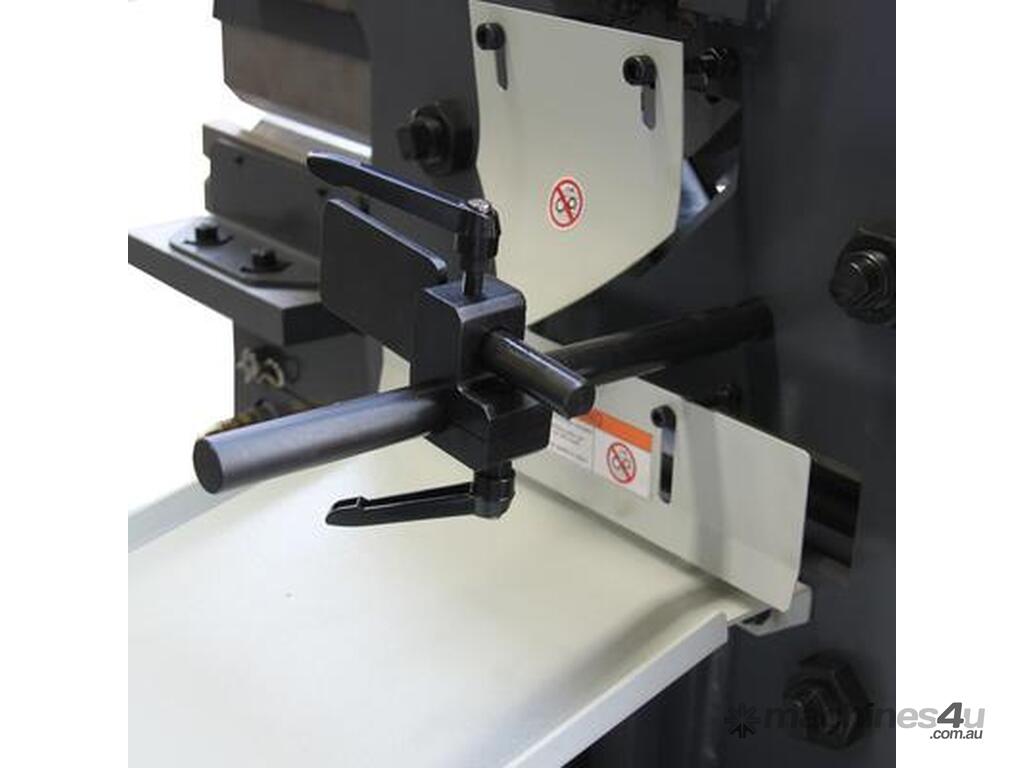

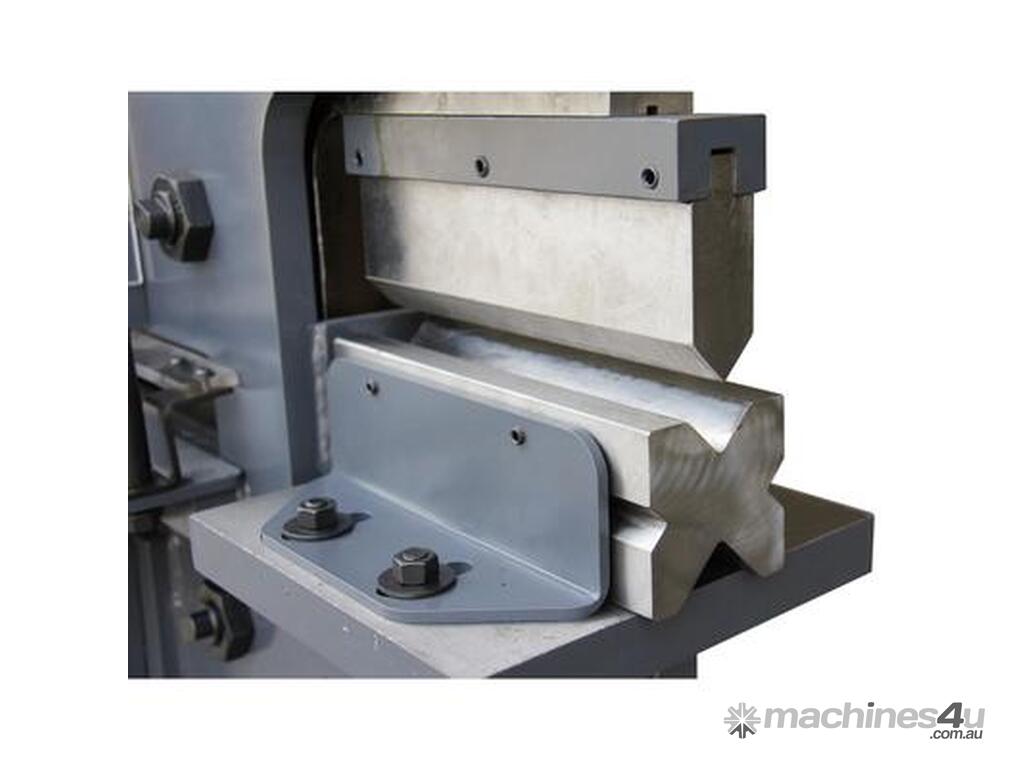

Ironworker is used for Punch,shear,notch and brake mild steel plate,bar-stock and angle.

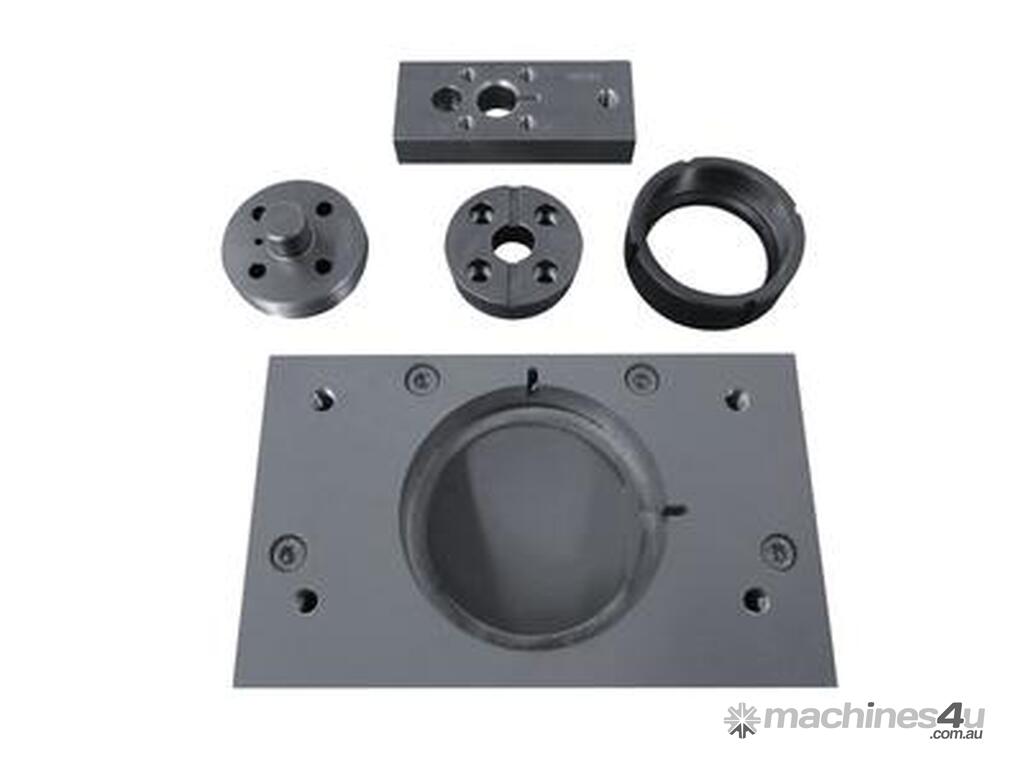

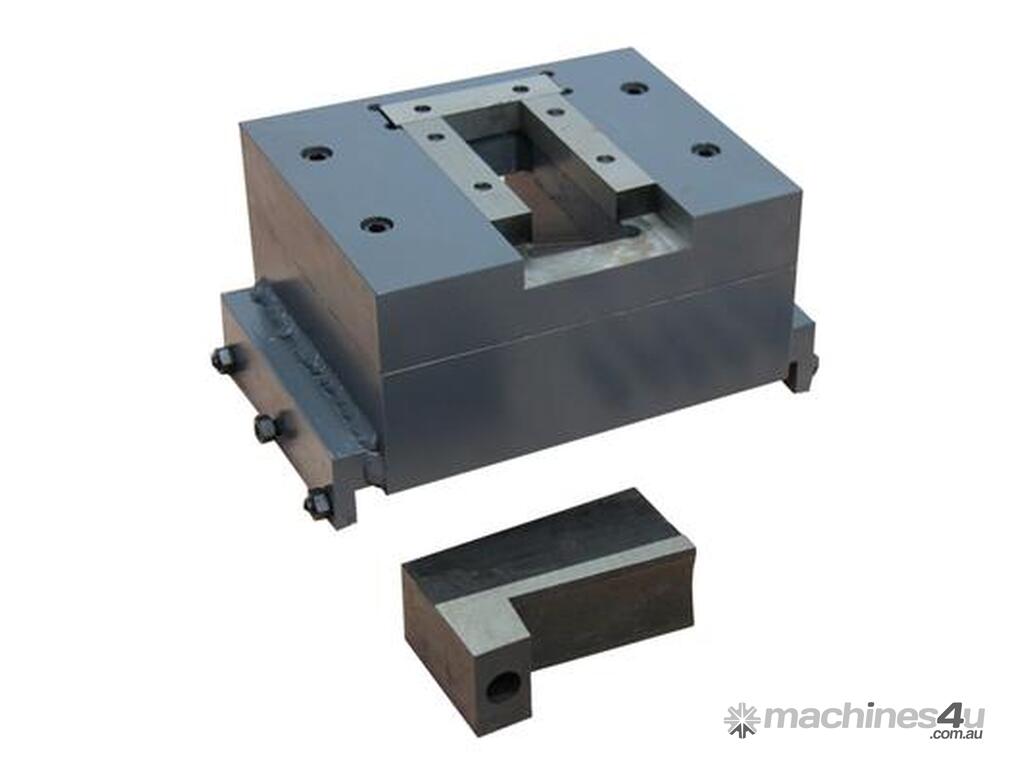

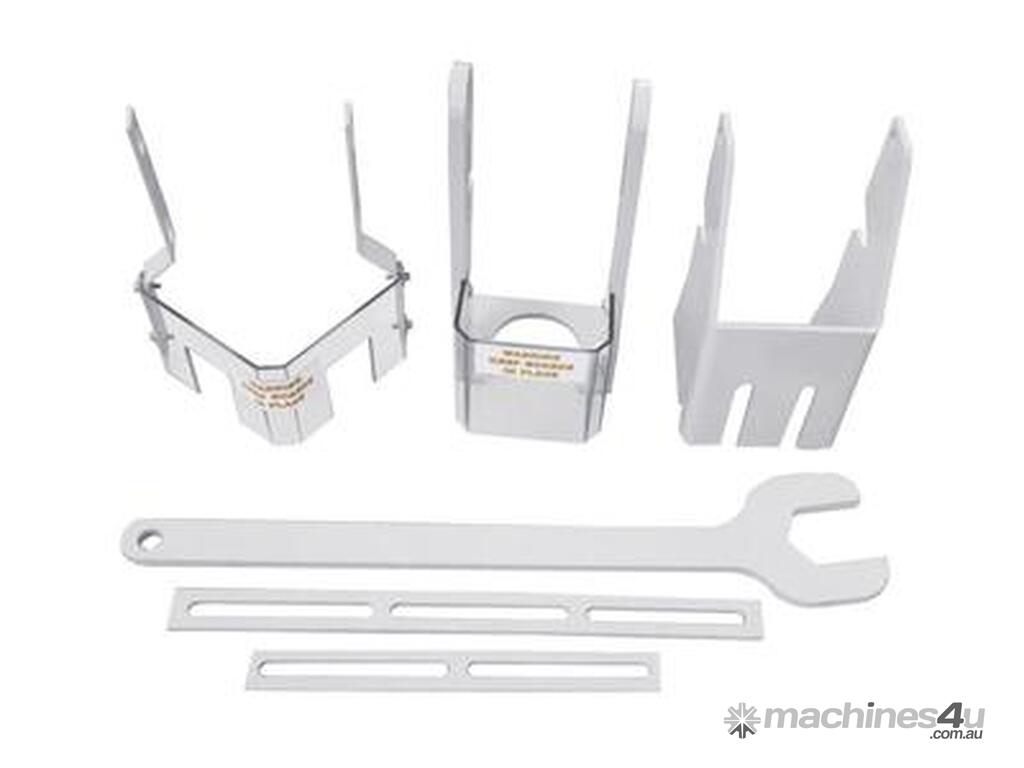

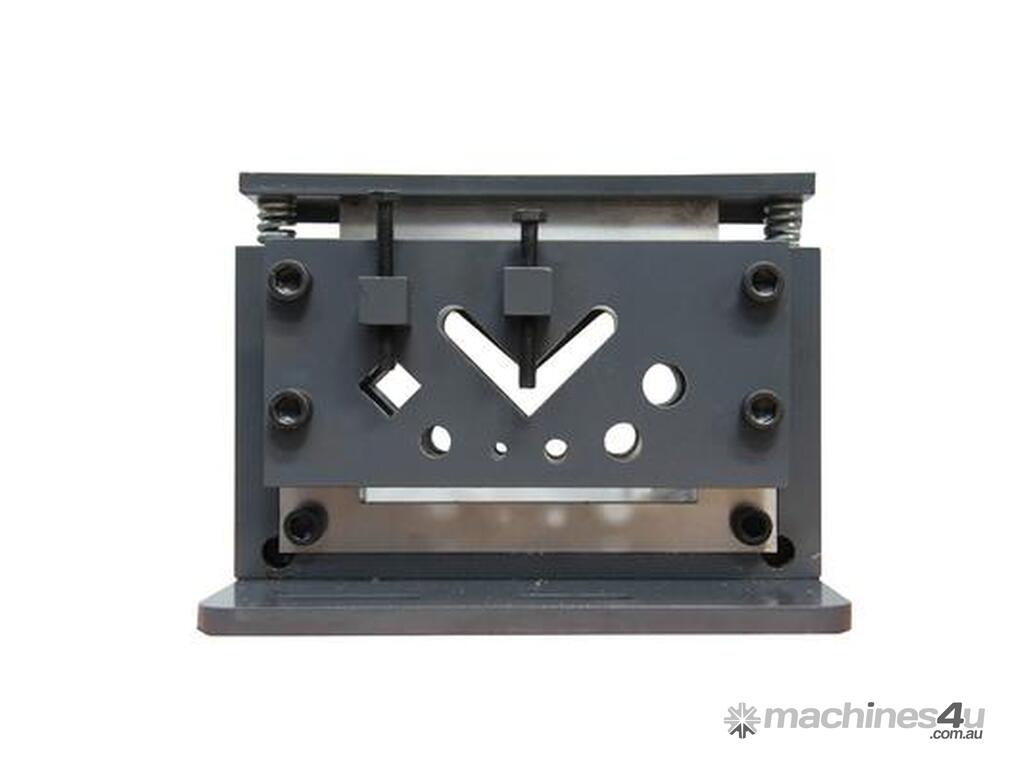

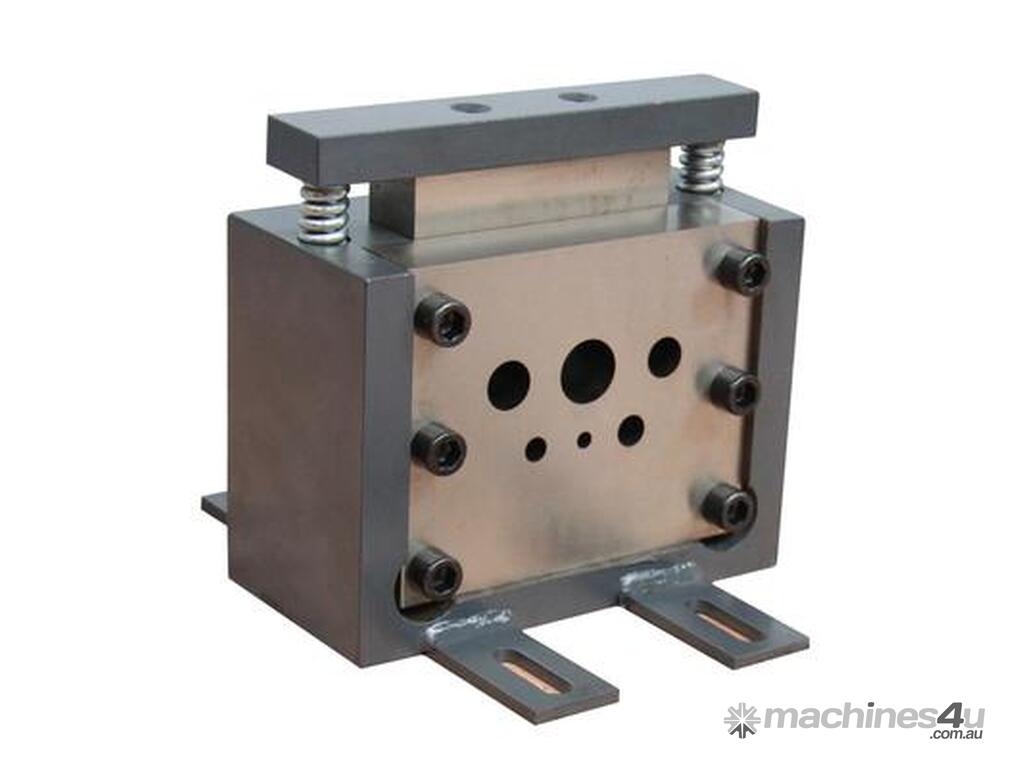

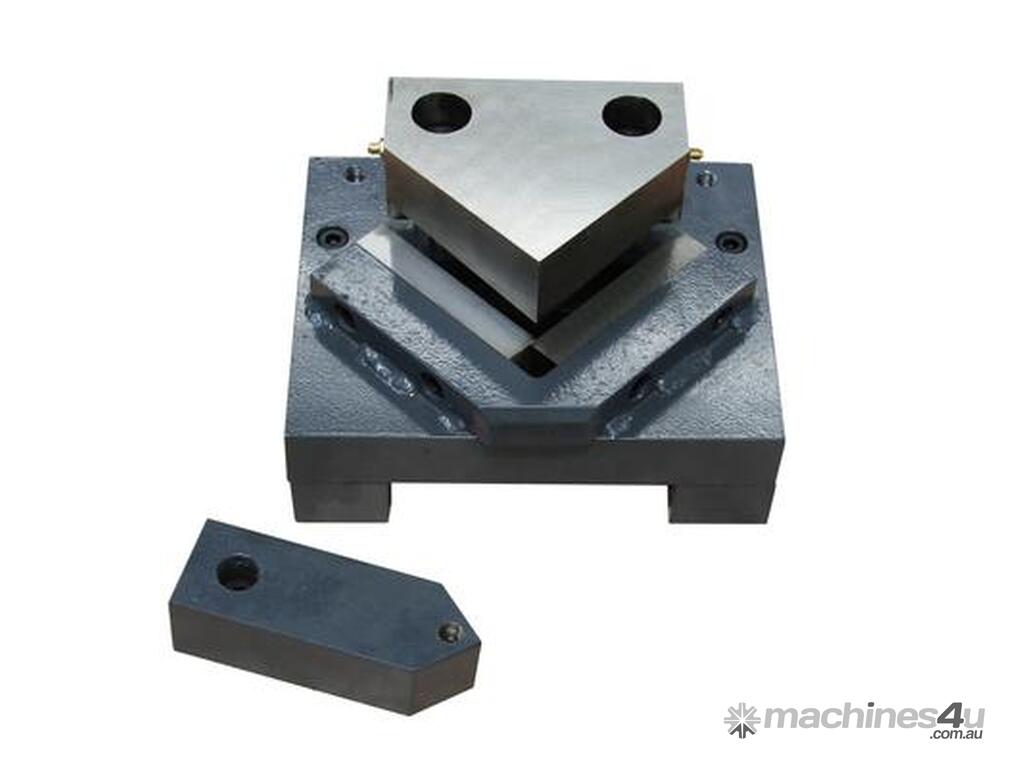

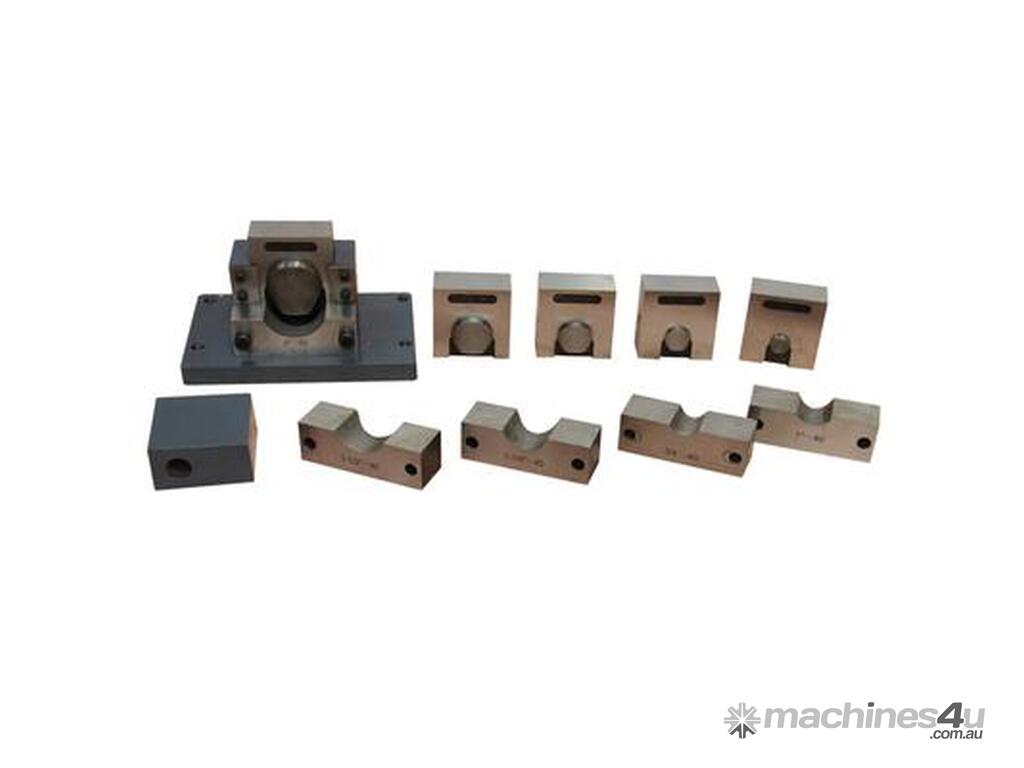

A wide range of acessories are avaiable to fabricate rod,square stock,sheet metal and pipe.
M-55 Ton Metal Iron Worker

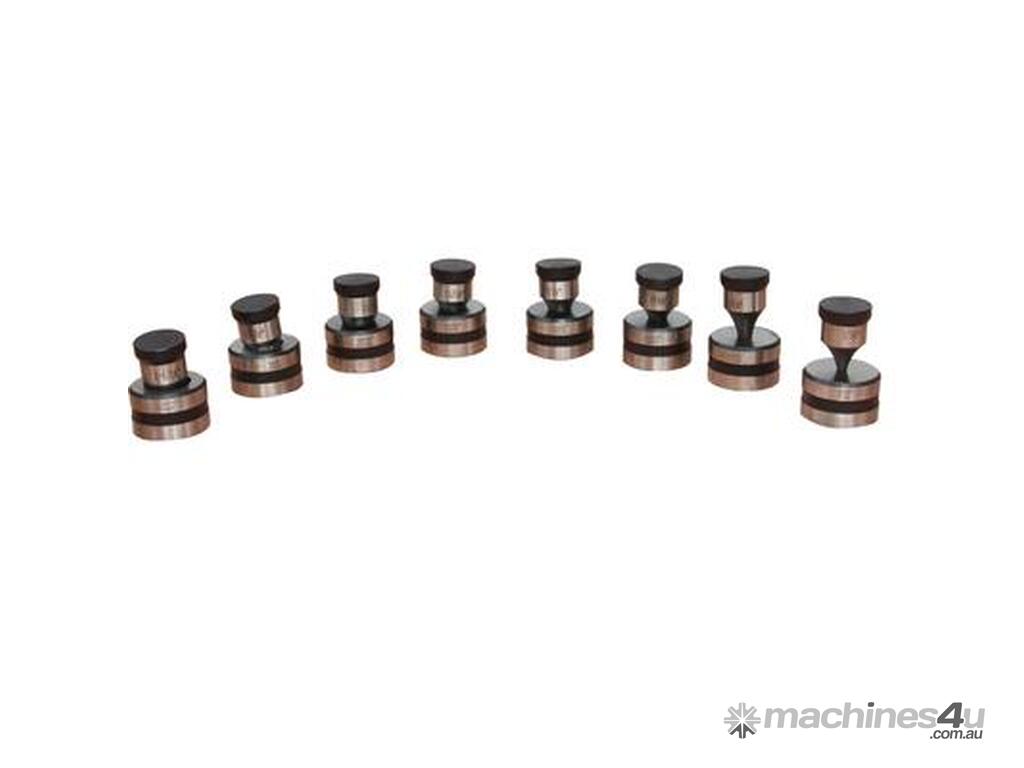

Punching Capacity:
Punching:Max. Capacity: 1-1/16" Diameter x 5/8" Plate
Flat Bar Shearing:
*Max. Width: 1/2" x 10" or 3/8" x 14"
*Max. Thickness: 3/4" x 4"
Angle Shearing: *Max. Size: 4" x 4" x 1/4" or 3" x 3" x 3/8"
Rated capacity:55 Ton
Throat Depth: 190MM
Open Height: 8"
Shut Height: 6-3/4"
Stroke:1-1/4"
Motor:3.75KW *5 HP
*220 Volt 60 Hz
*3-Phase
Packing size: 115X113X152CM
N.W./G.W. :1060/1160 KG
Shipping Method:
Large Freight (LTL-Trucking)
