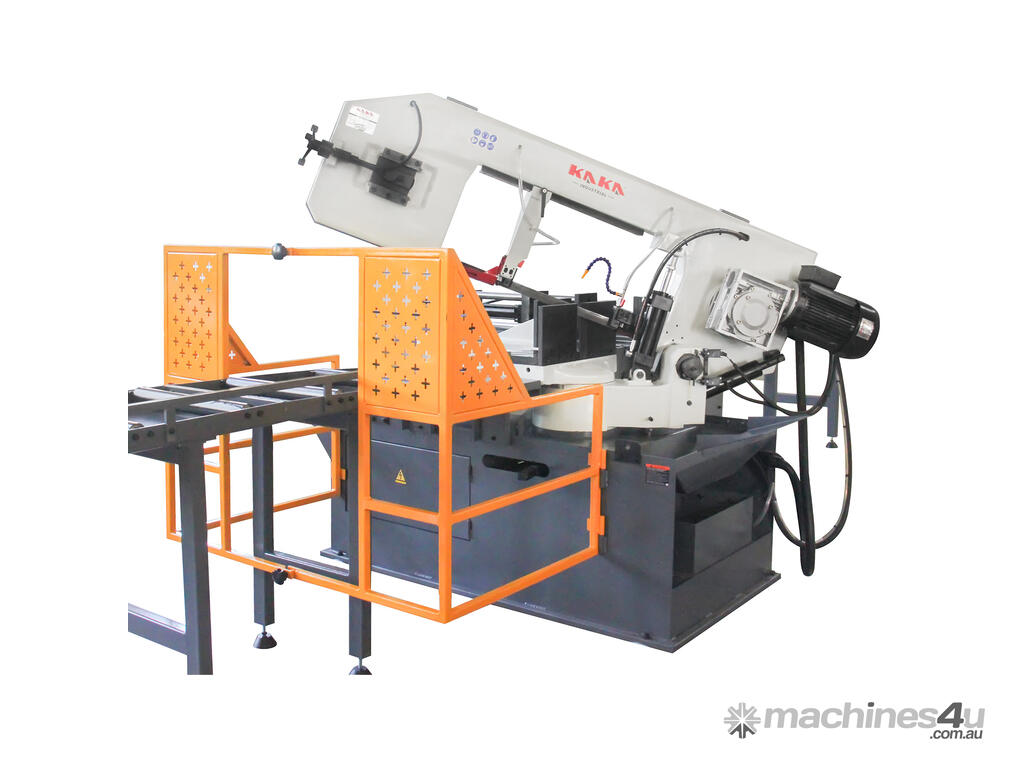

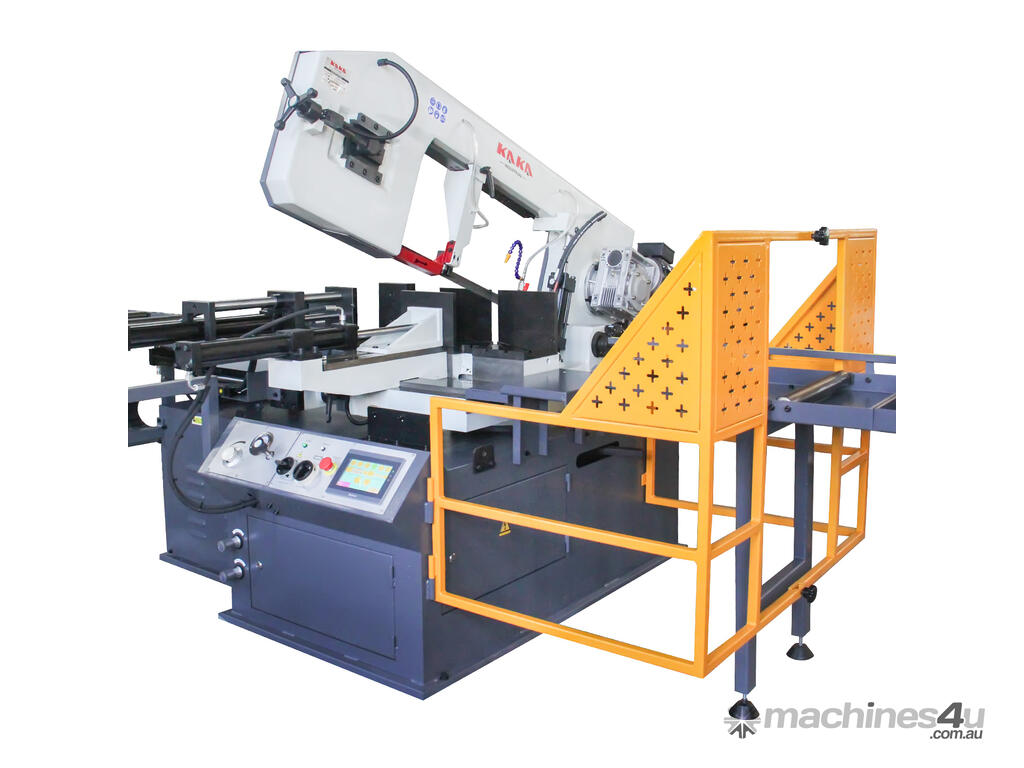

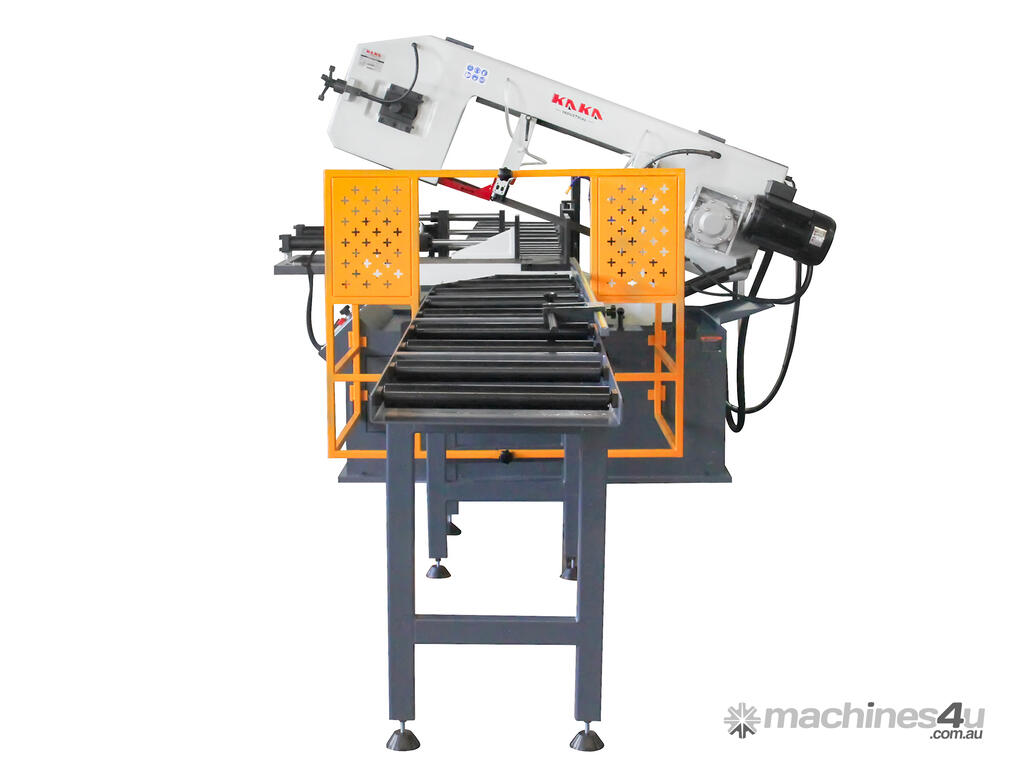

Kang Industrial BS-1810G Metal Band Saw, Semi CNC Metal Cutting Band Saw

Kang Industrial Metal Cutting Band Saw BS-1810G
Semi-CNC Metal Band Saw, PLC control



Features

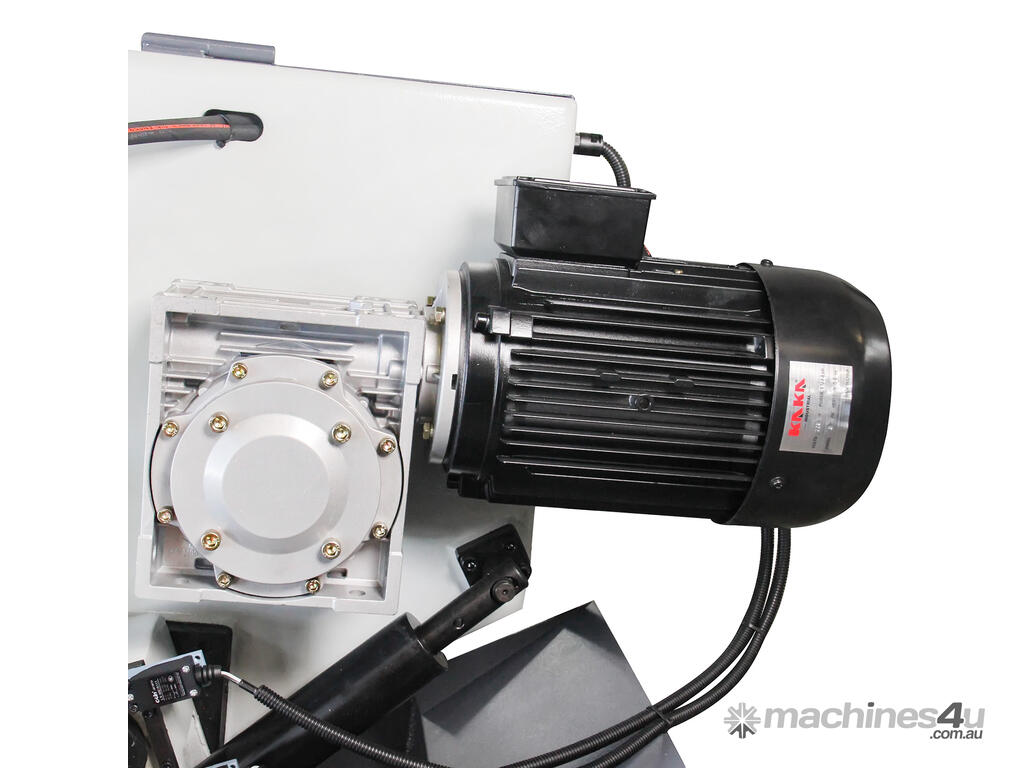

Runs on 415V-3PH power, 1.5/2.2kW double speed motor

Max. cut 330mm at 90 degrees

Gear drive, double cutting speed (optional, variable speed at extra cost)

Swivel saw frame, max. angle 60 degrees

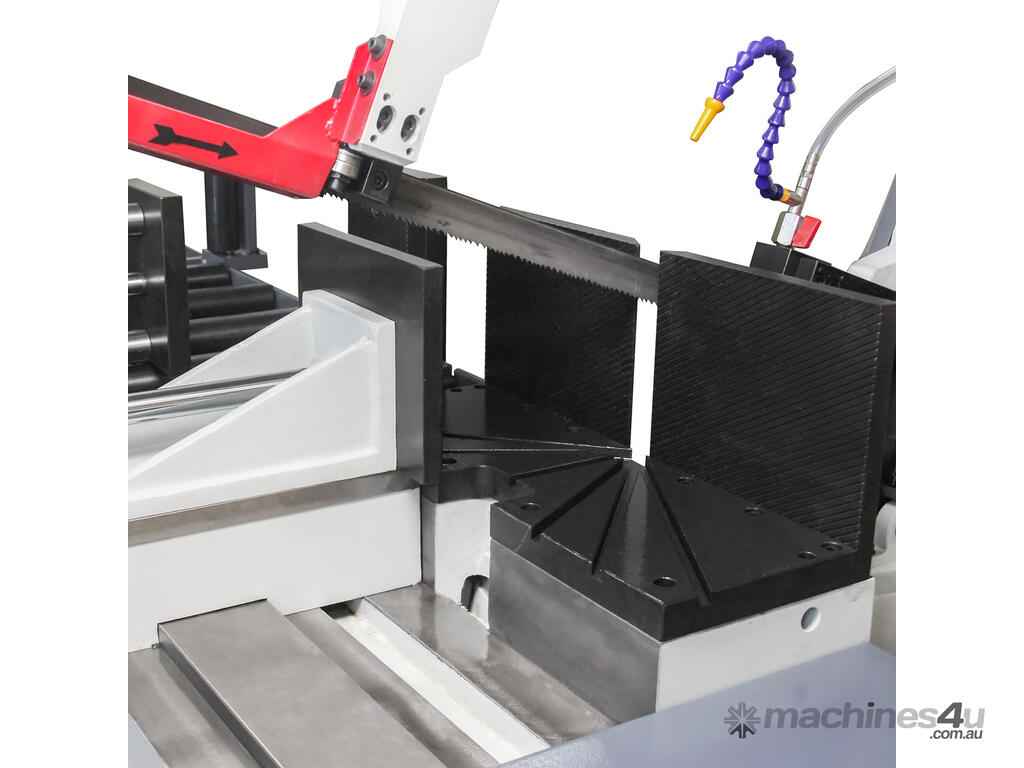

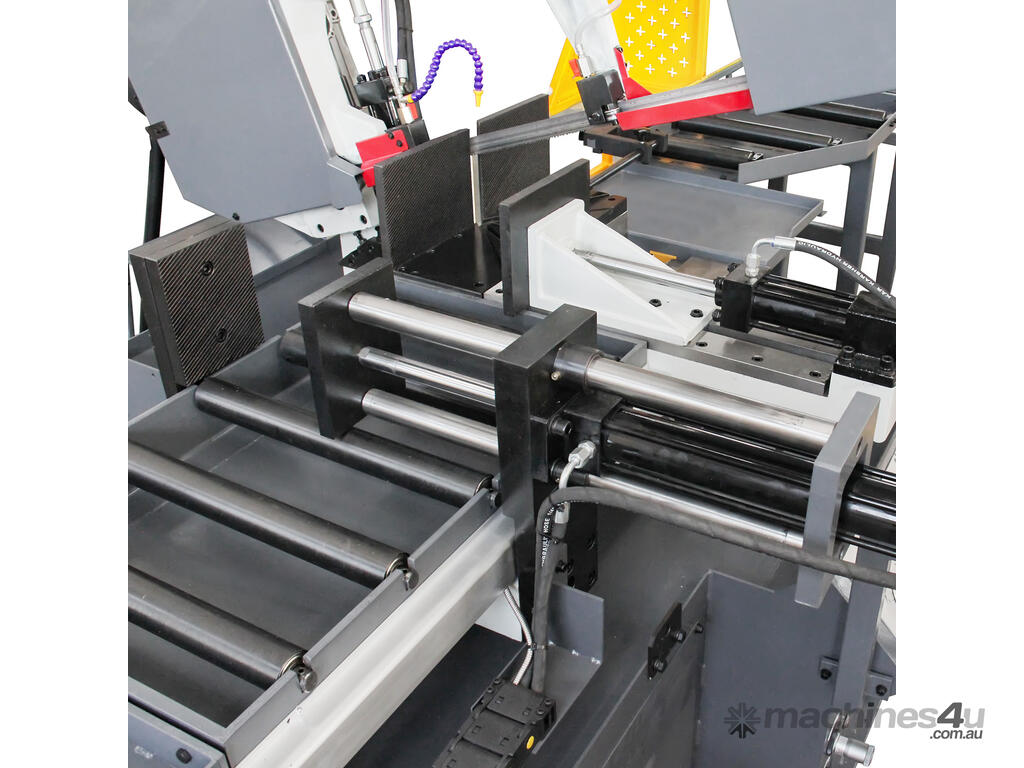

Automatic feeding and clamping, max. feed 500mm each feed

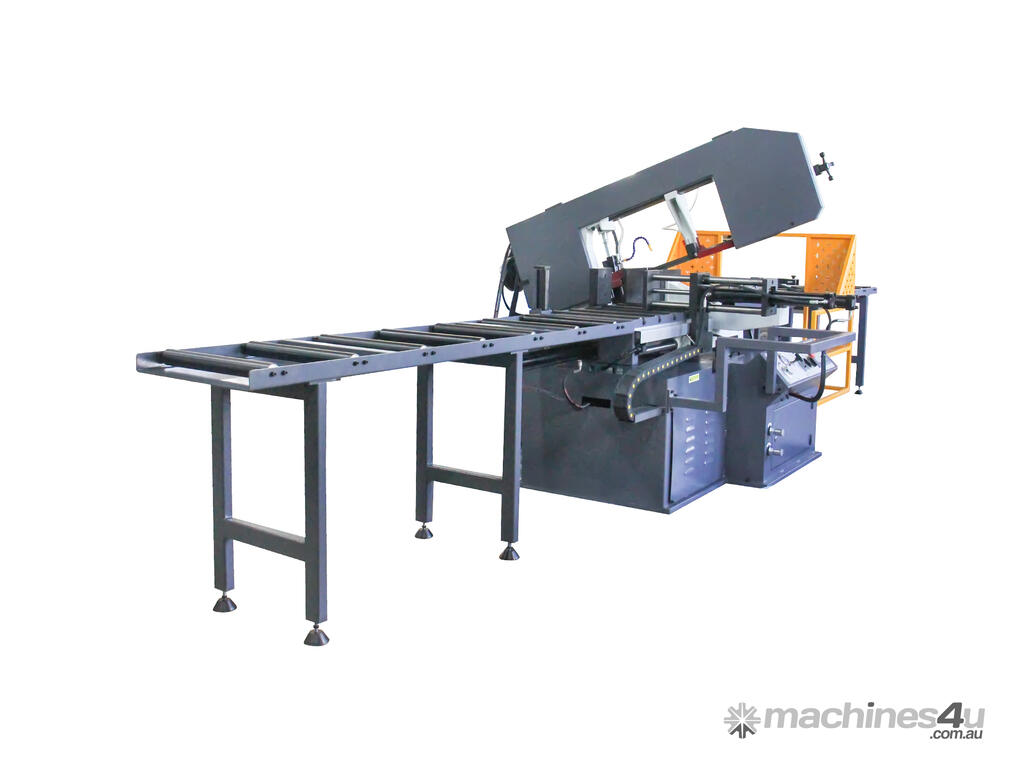

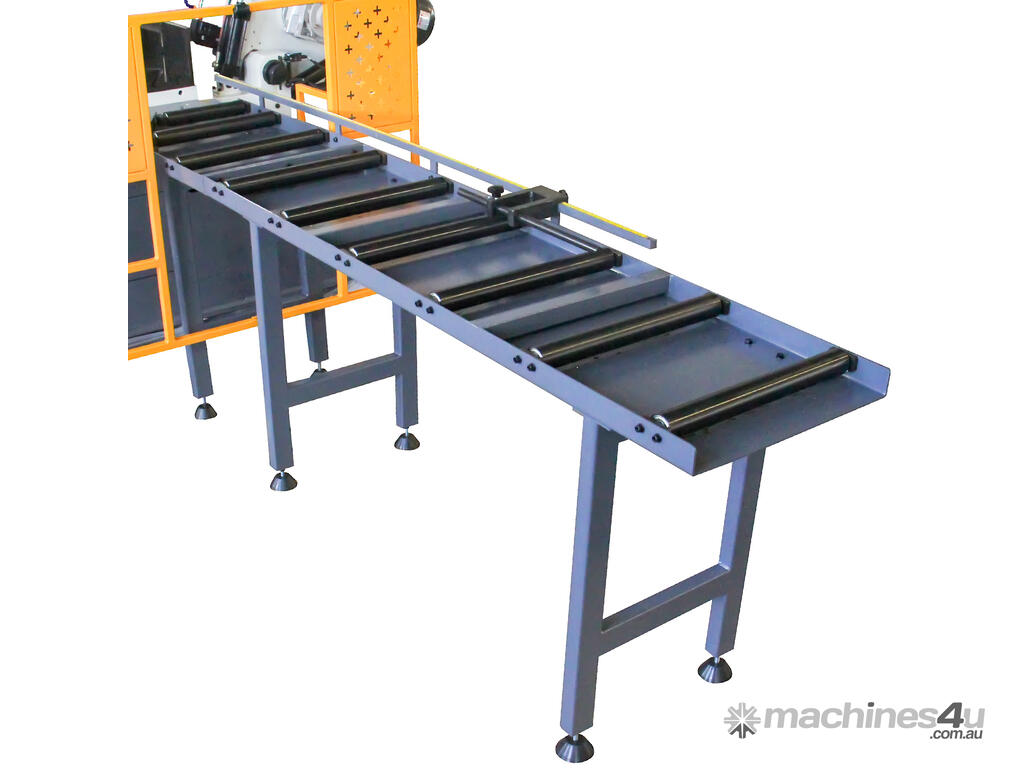

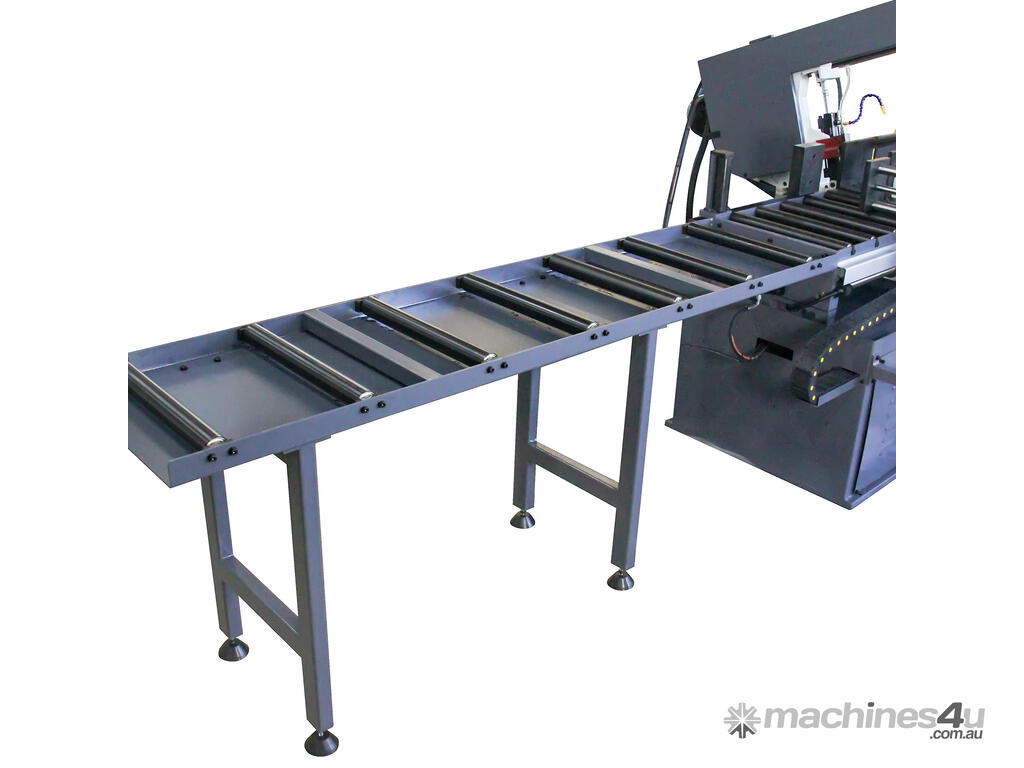

Standard with material stand, total 6-meter length width up to 460mm

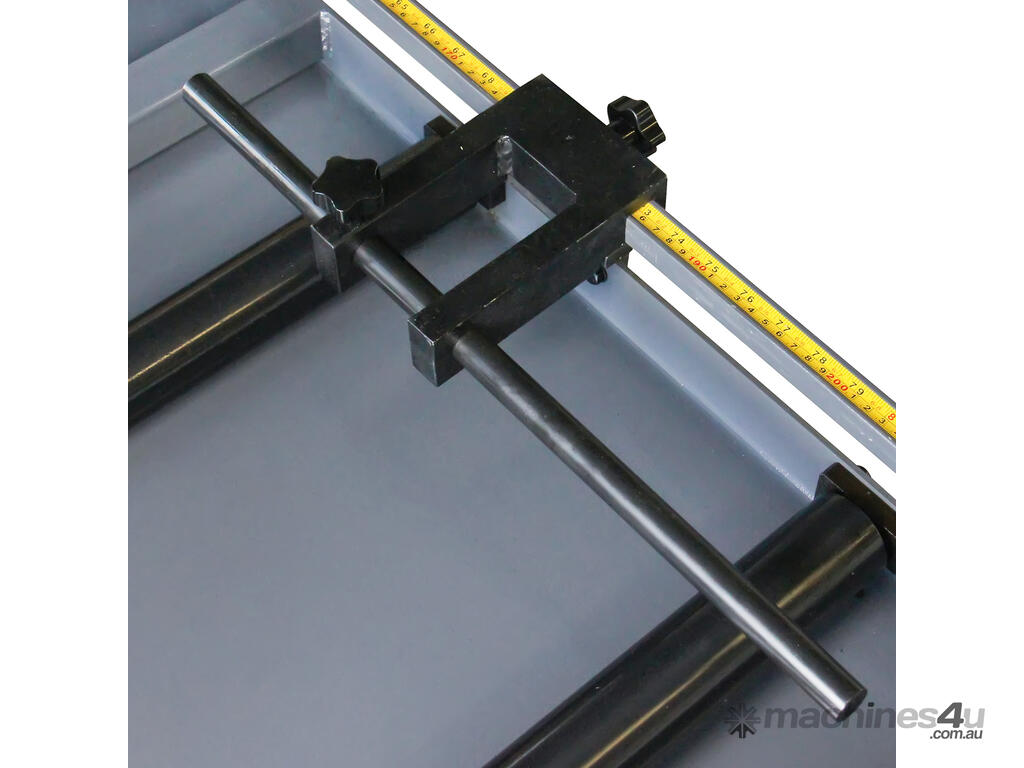

Stop rod available on the material stand

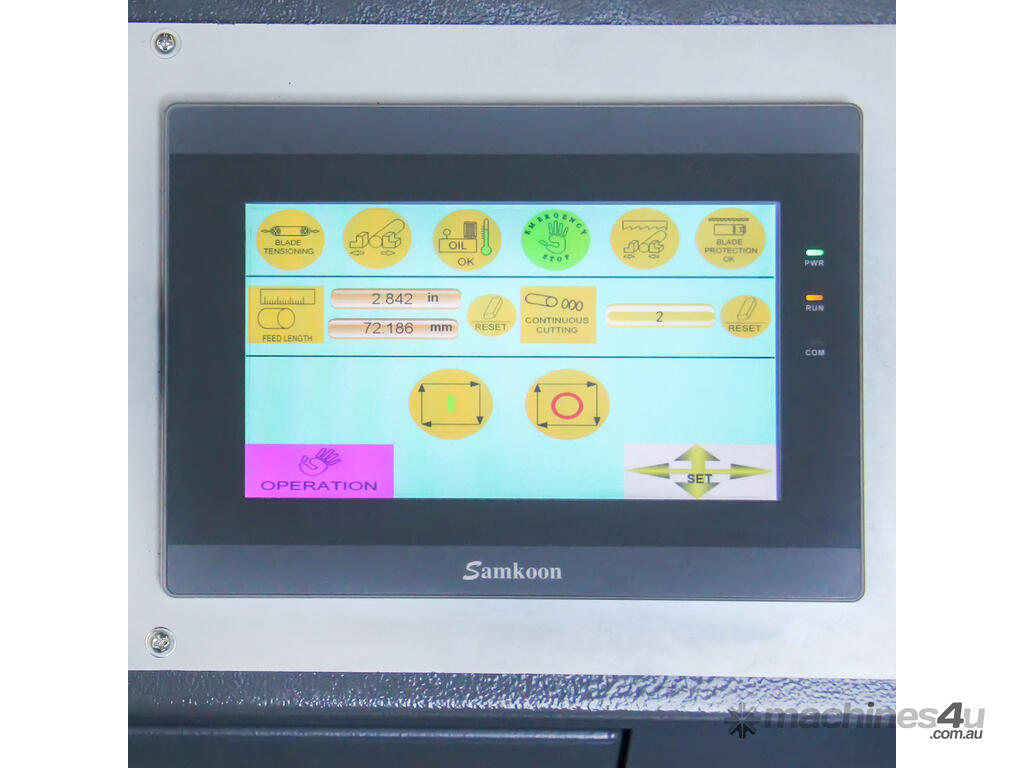

PLC control with an HMI, easy operation



Specifications
SKU 188127
Model BS-1810G
Cut circular 90° 330 mm
Cut rectangular 90° 460x250 mm
Cut circular 60° (right) 205 mm
Cut rectangular 60° (right) 205x250 mm
Cut circular 45° (right) 305 mm
Cut rectangular 45° (right) 305x250 mm
Blade speed 40/80 MPM
Blade size 27x0.9x3960 mm
Motor 1.5/2.2 kW
Drive Gear
Packing size 265x230x163 cm
N.W./G.W. 1520/1655 kg
