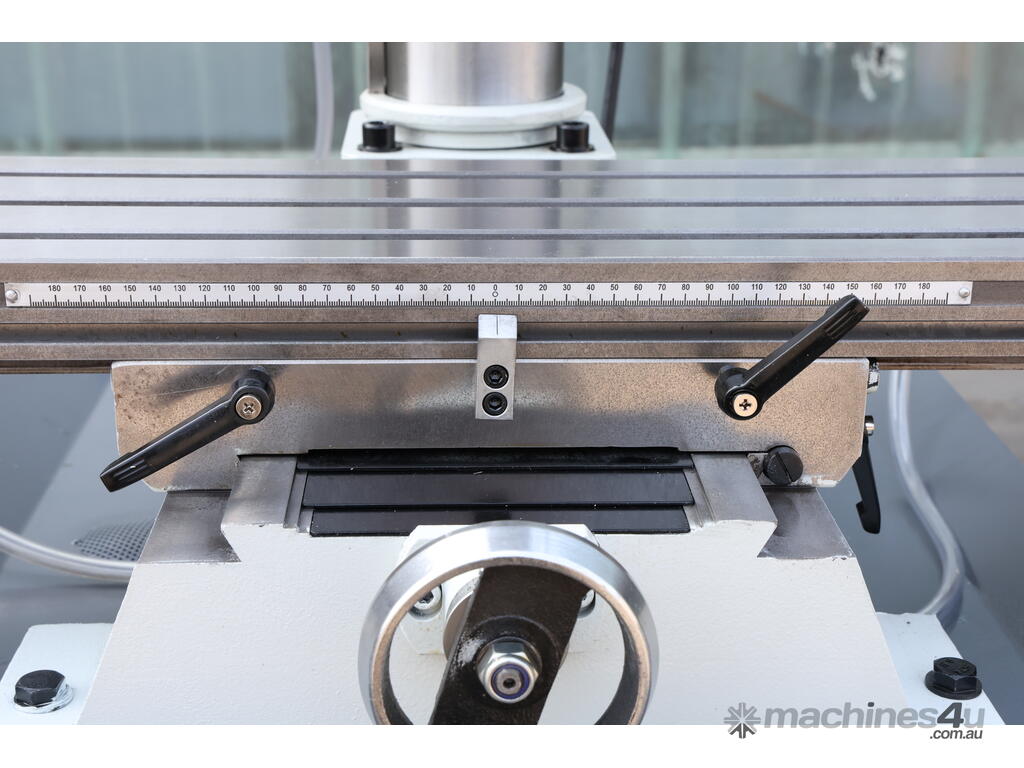

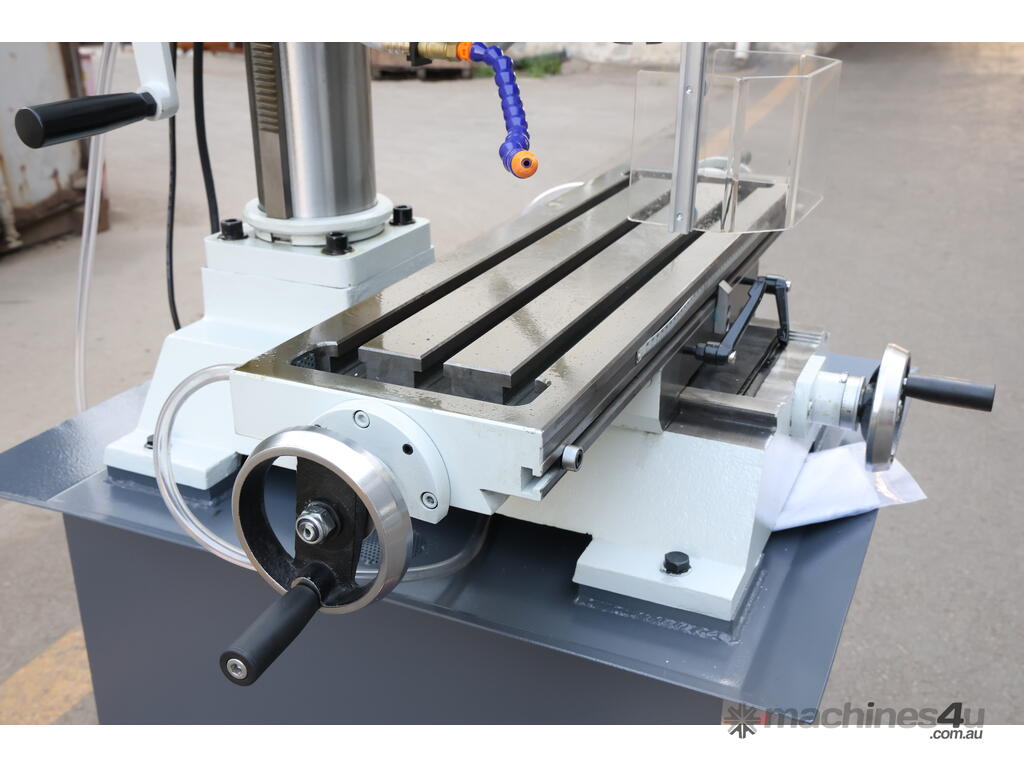

Precision casting worktable with 16mm width T slot
Table size 730x210mm, Travel 370x170mm

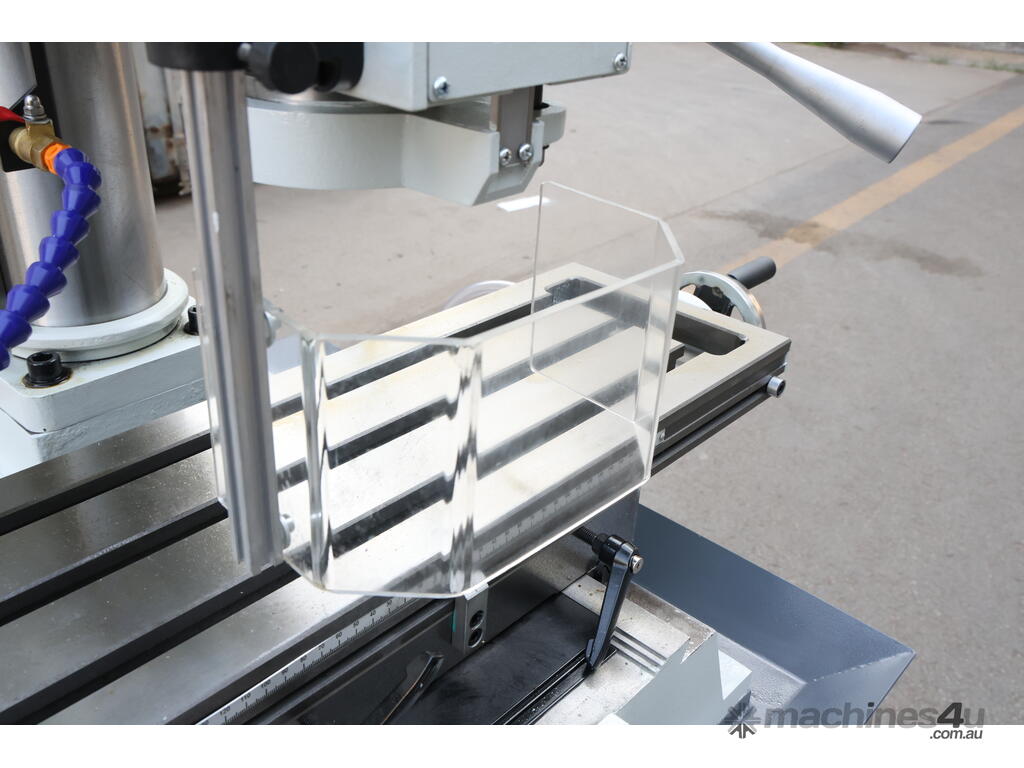

Safety guards with a microswitch to protect the worker

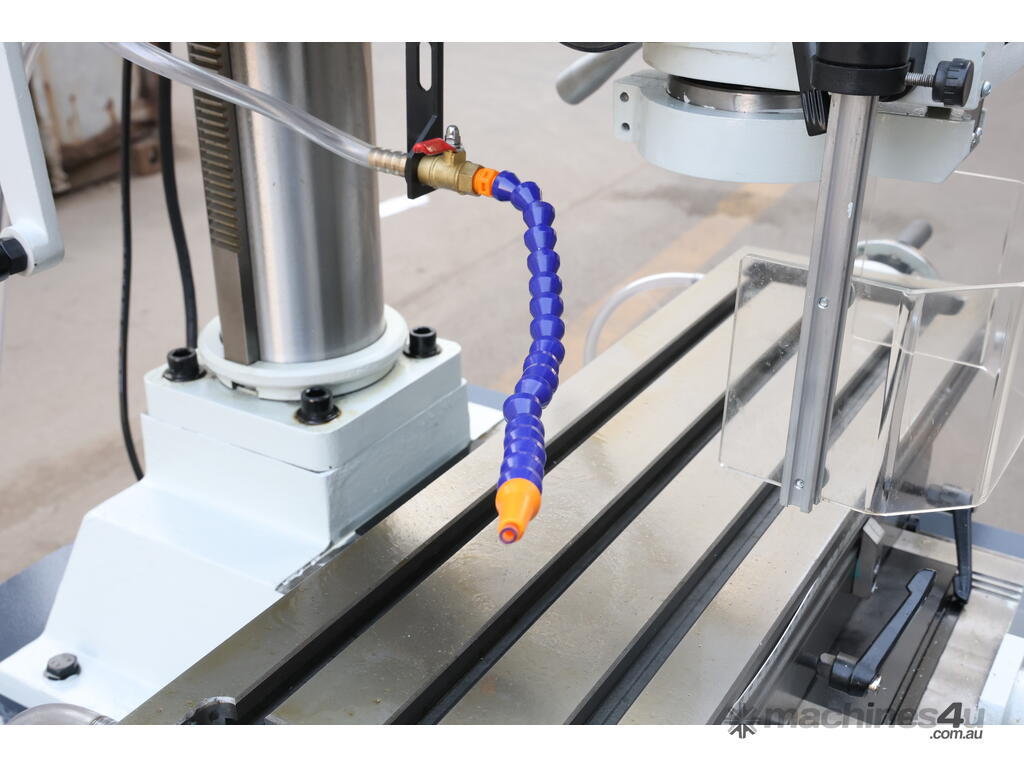

Standard with cooling system
Specifications
SKU 183038
Model DM-32A
Max. drilling dia. ?32 mm
Max. face milling dia. ?75 mm
Max. vertical milling dia. ?25 mm
Tapping in Steel/Cast Iron M16/M18
Spindle taper MT3
Sleeve dia. ?75 mm
Sleeve travel 150 mm
Spindle speed High, 0-2000 rpm; Low, 0-540 mm
Distance from spindle to column 265 mm
Table size 730x210 mm
X/Y/Z travel 370mm/170mm/450mm
T-slot 16mm
Main motor 2.2 kW
Coolant motor 0.45 kW
Packing size 96x96x198 cm
N.W./G.W. 366/464 kg
KAKA Industrial LLC, direct distributor of metalworking machinery store. Our products include band saws, pan box brakes, shearing machines, and much more.
