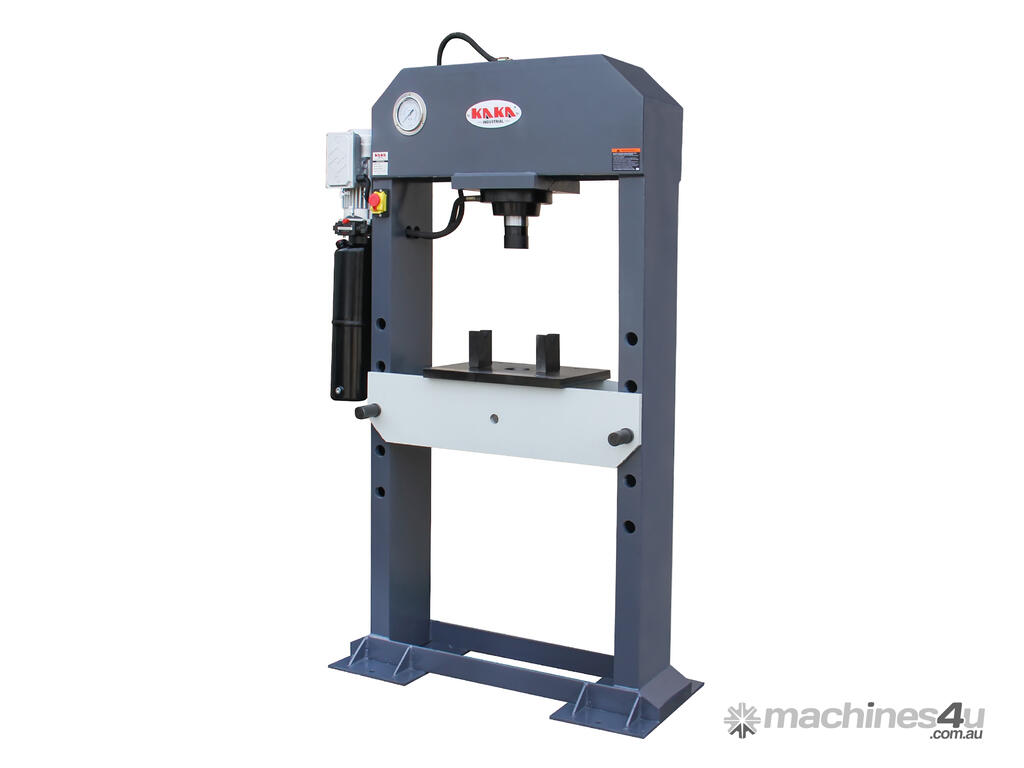

KANG INDUSTRIAL HP-50 Hydraulic Workshop Press
50T pressure, 2 pcs V-Blocks
Features
50-ton Capacity motorized hydraulic press
Fixed central cylinder delivers 25 MPA pressure
Fully welded steel frame, robust structure
Distance between uprights, 800 mm
Dual speed control with manual direction valve
Gear pum with 12L hydraulic tank
Standard with press gauge on the machine body
Specifications
SKU 182002
Model HP-50
Capacity 500 kN
Pressure 25 Mpa
Piston Dia. 160 mm
Piston travel 220 mm

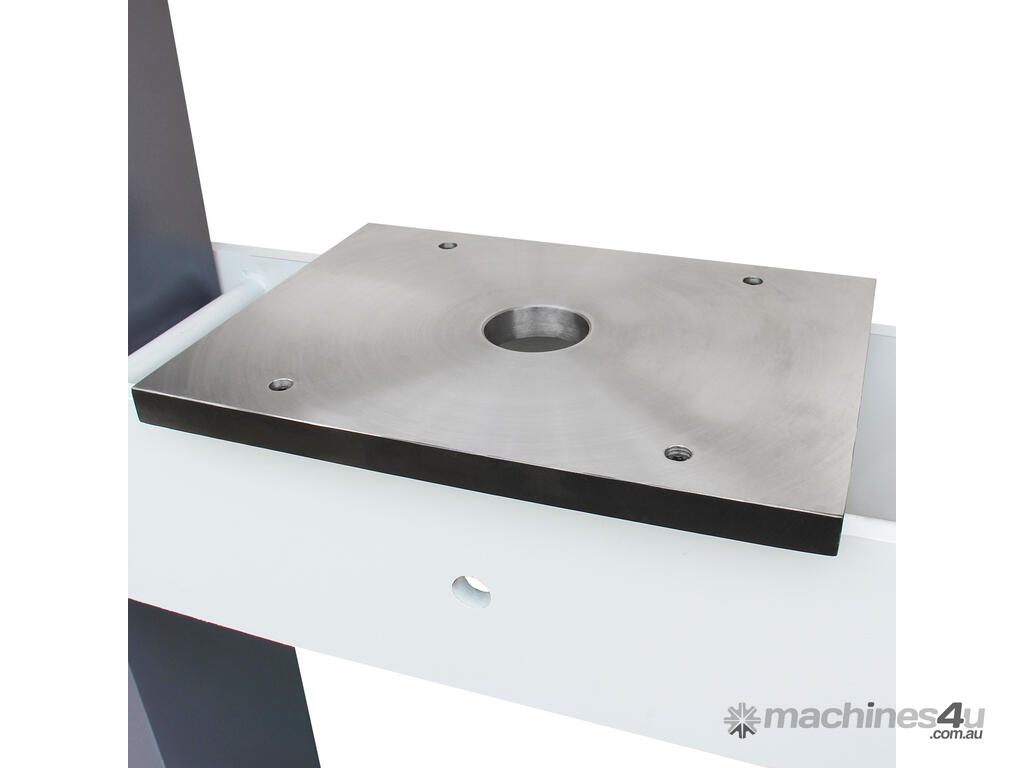

Table size 480x360 mm
Packing size 148x64x200 cm
N.W./G.W. 520/593 kg
