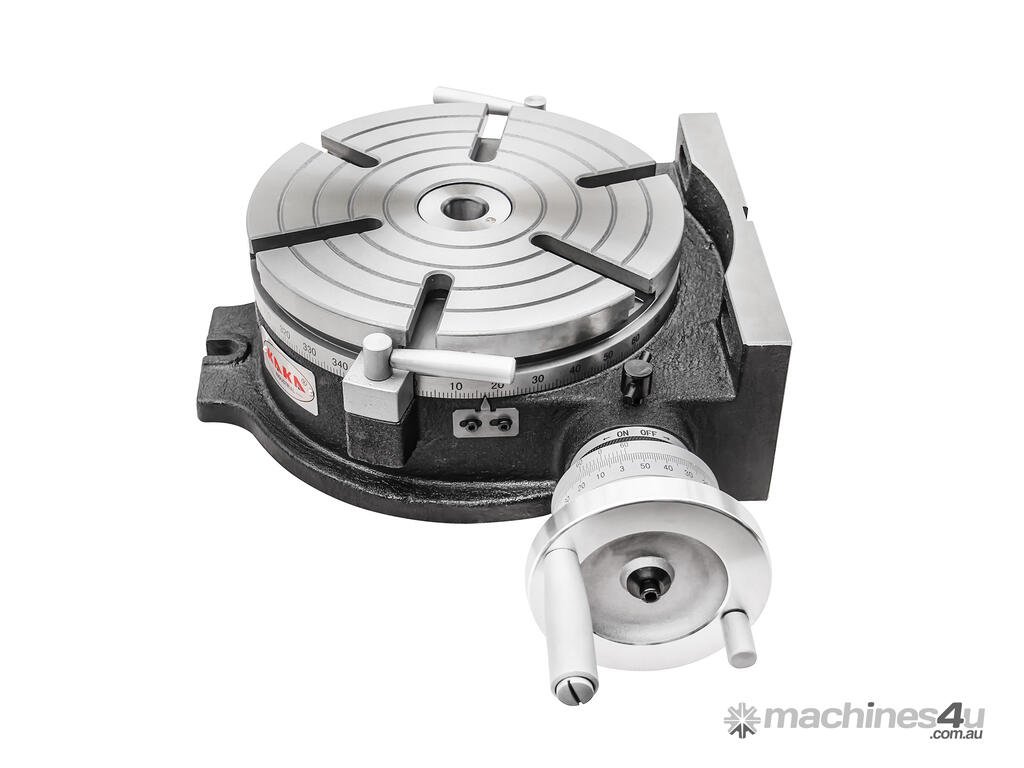

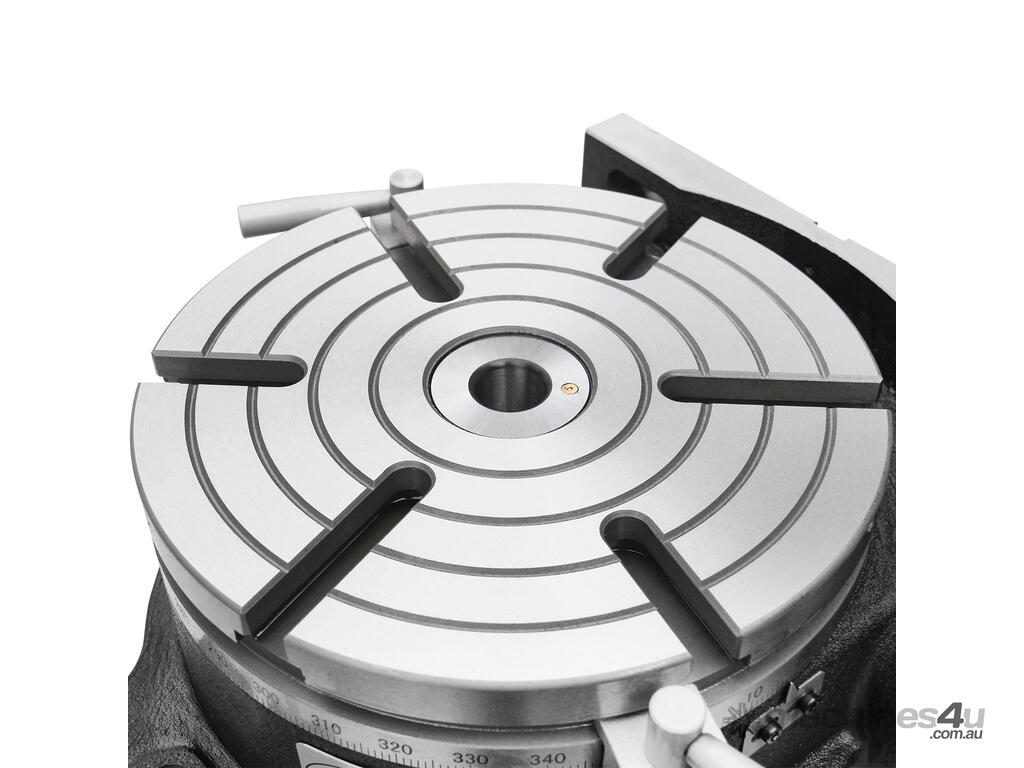

Kang Industrial HV-10 Horizontal and Vertical Rotary Table, 250mm Table Dia. for Milling Machine

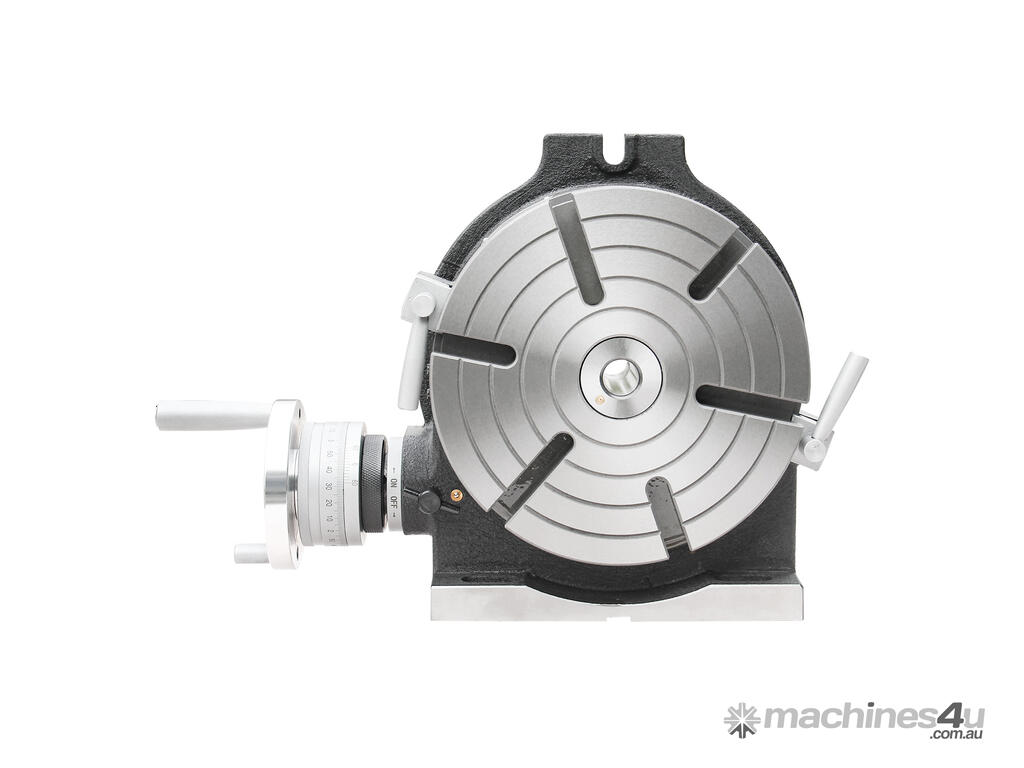

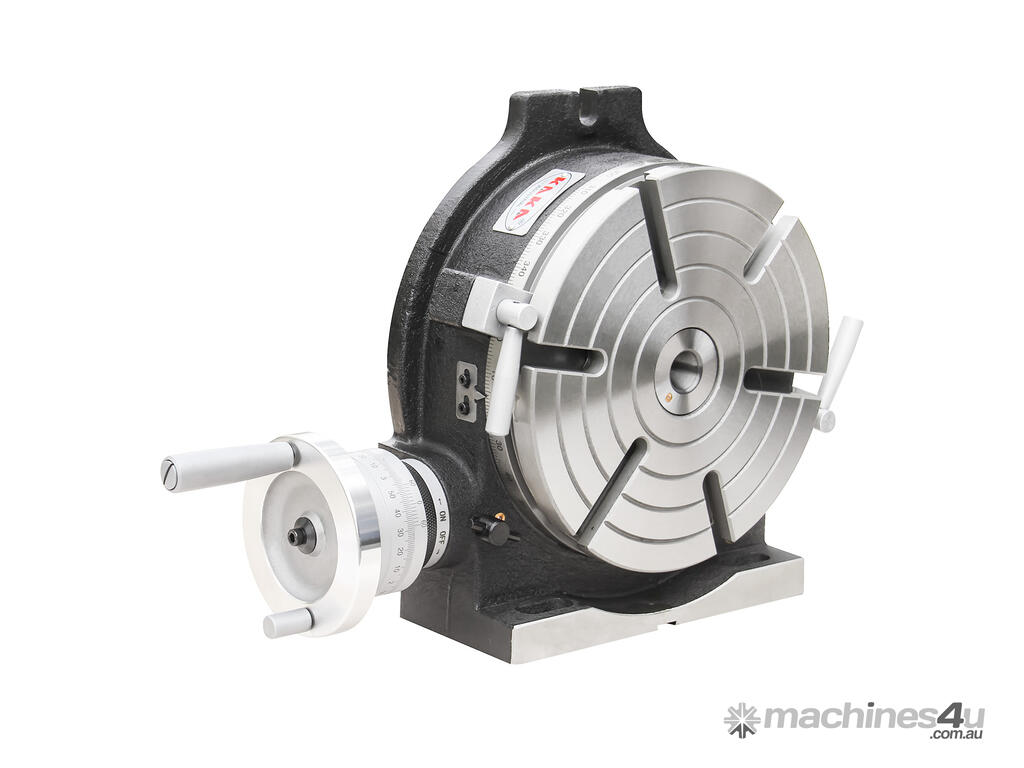

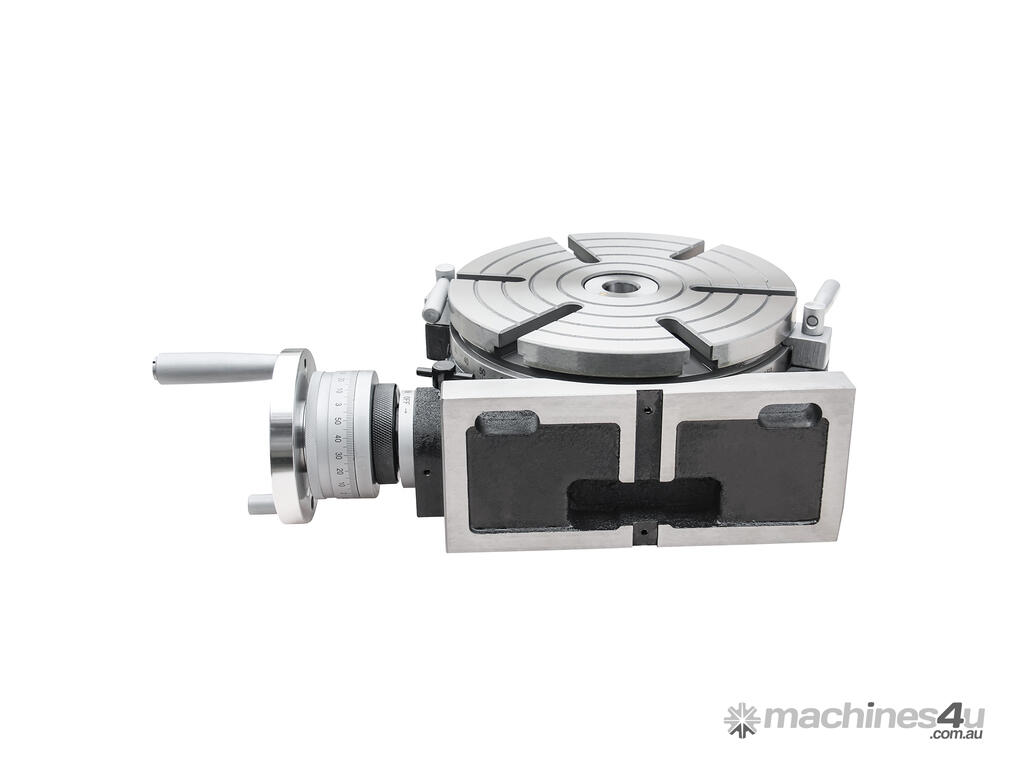

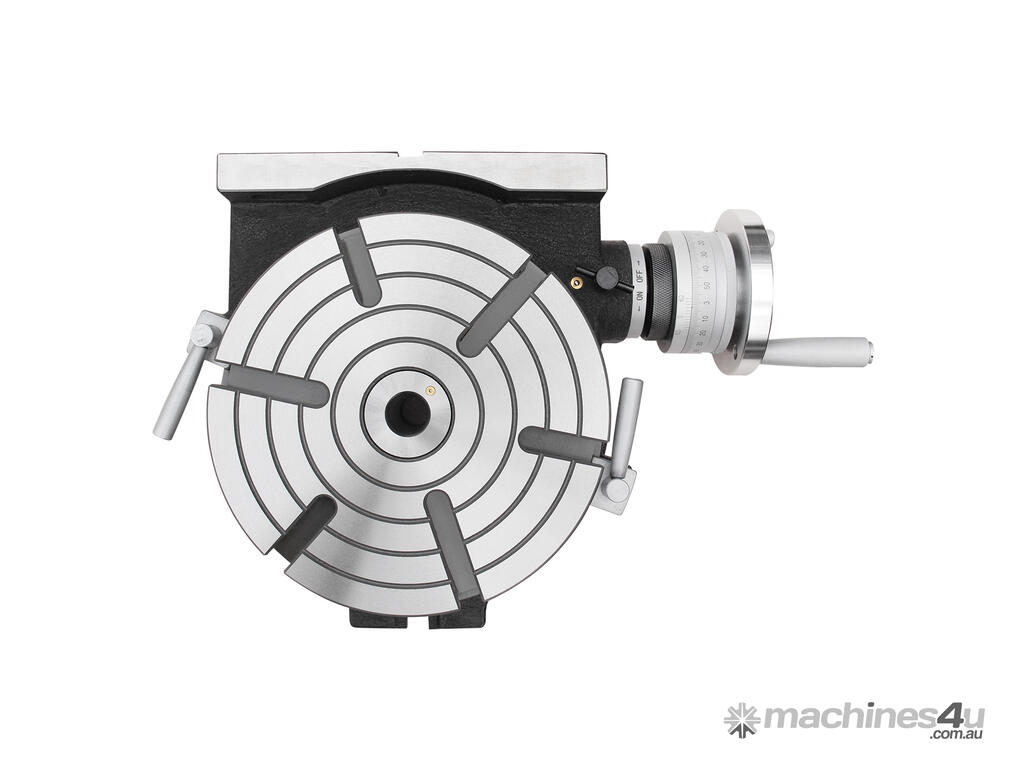

Kang Industrial Horizontal & Vertical Rotary Table
OD250mm table



Features
Suitable for milling and drilling works

MT3 Spindle taper

Table made of high-quality cast iron, sturdy sturcture

Hardened and grounded worm shaft

2 clamping lever for clamping of the table

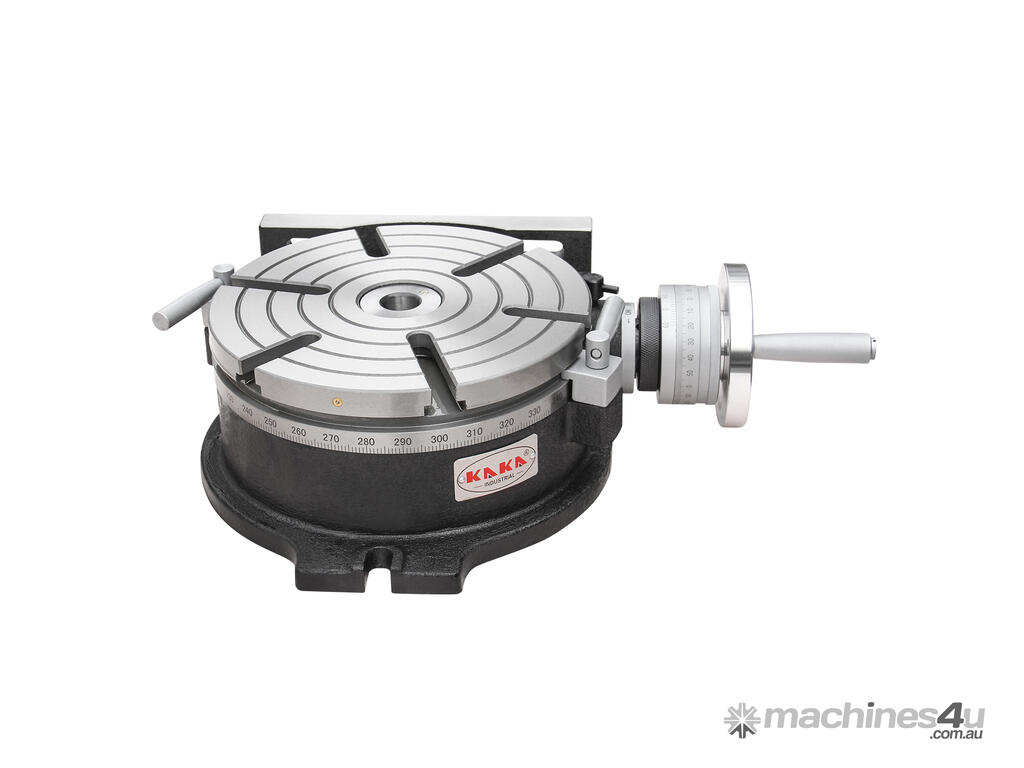

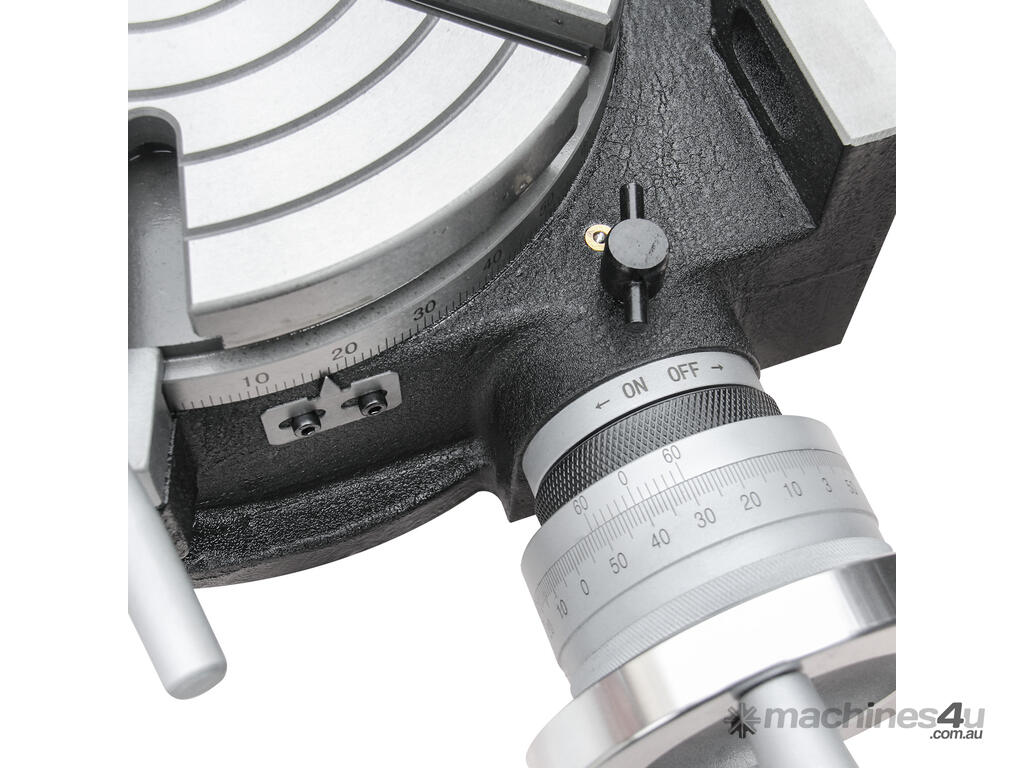

Direct indexing via 360° scale mounted on the table

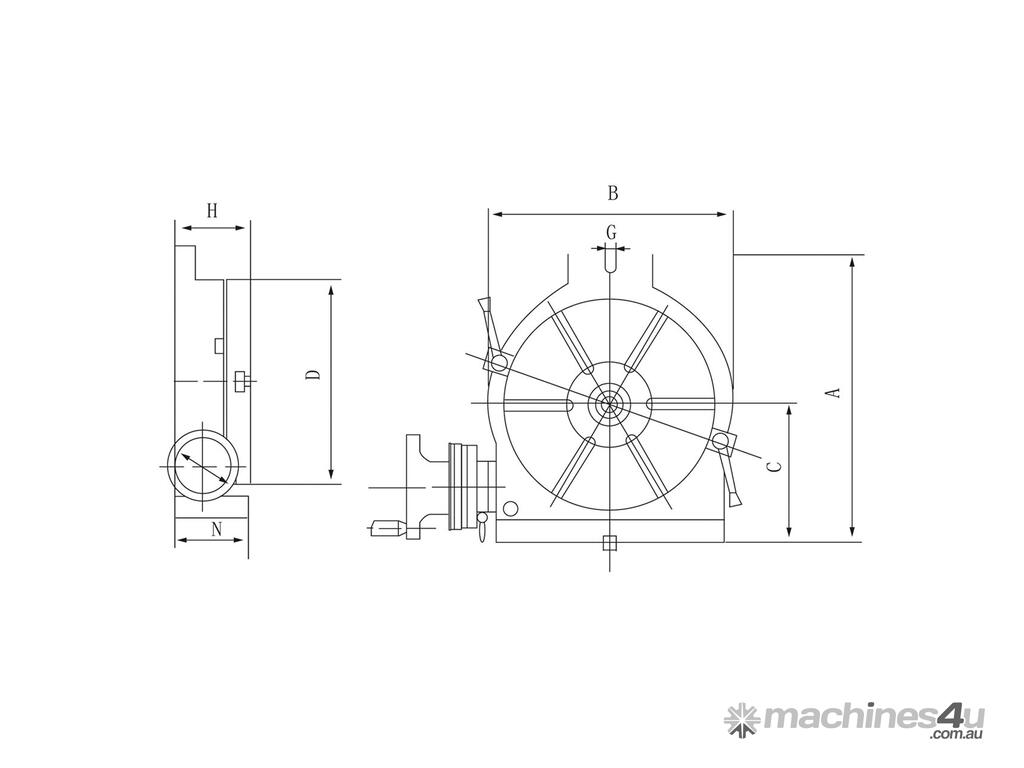

HV-10 dimension (picture reference)

A B C D E G H N
325 mm 280 mm 165 mm 250 mm 16 mm 17 mm 115 mm 113 mm


Specifications
SKU 161110
Model HV-10
Table dia. 250 mm
Morse taper of the center hole MT3
Height of center 165 mm
Width of T slot 12 mm
Adjacent angle of T slot 60°
Width of the locating key 16 mm
Modules of worm and worm gear 2
Transmission ratio of the worm gear 1:90
Graduation of the table 360 °
Rotating angle of the table with one revolution of the worm 4” ?1‘ per graduation)
Min. value of vernier 10"
Indexing accuracy 60"
Max. loading (Table horizontal) 200 kg
Max. loading (Table vertical) 100 kg
Packing size 43x35x18 cm
N.W./G.W. 43/45 kg
