Kang Industrial HV-12 Horizontal and Vertical Rotary Table, Milling Accessories, 305mm Rotary Table

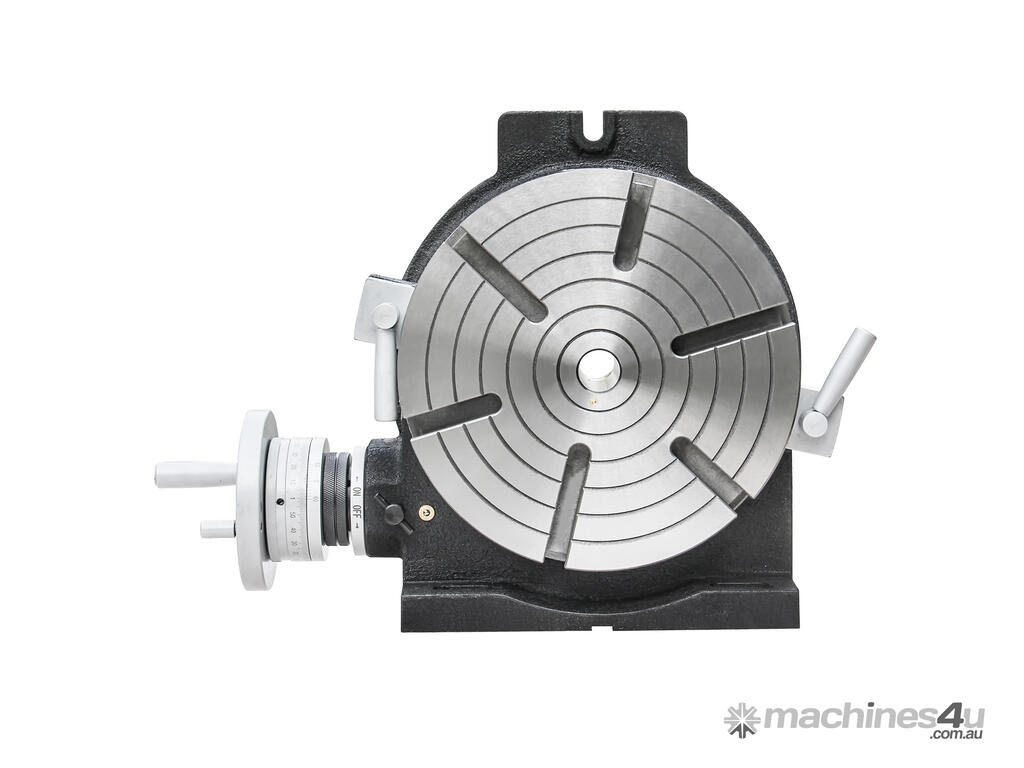

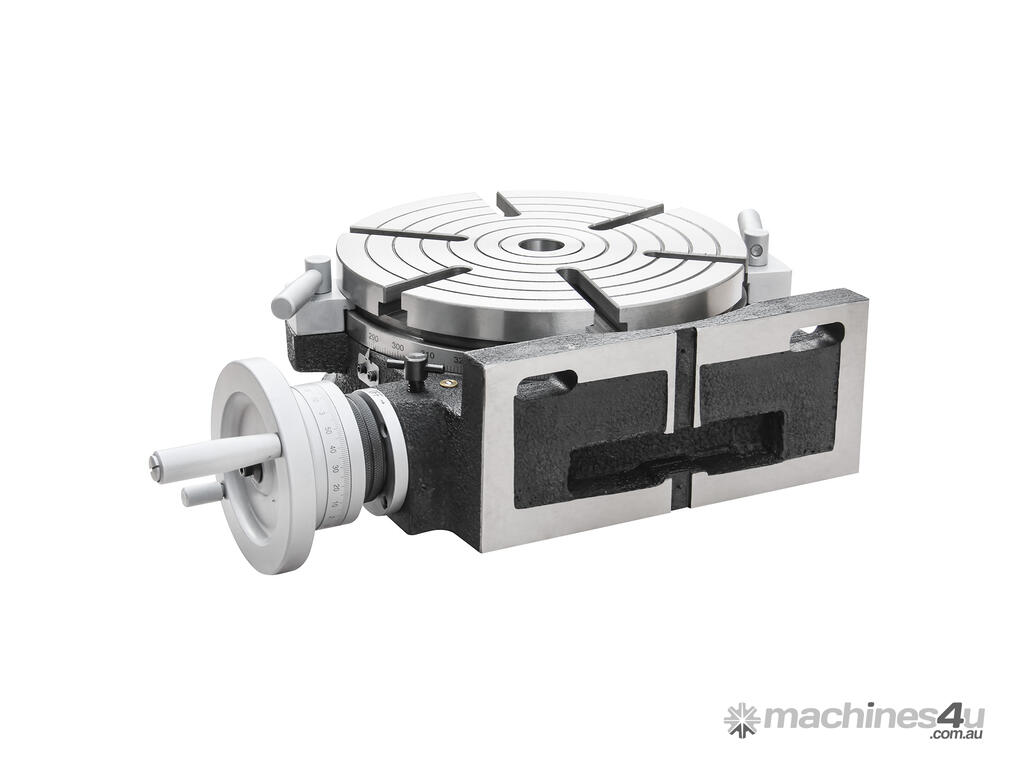

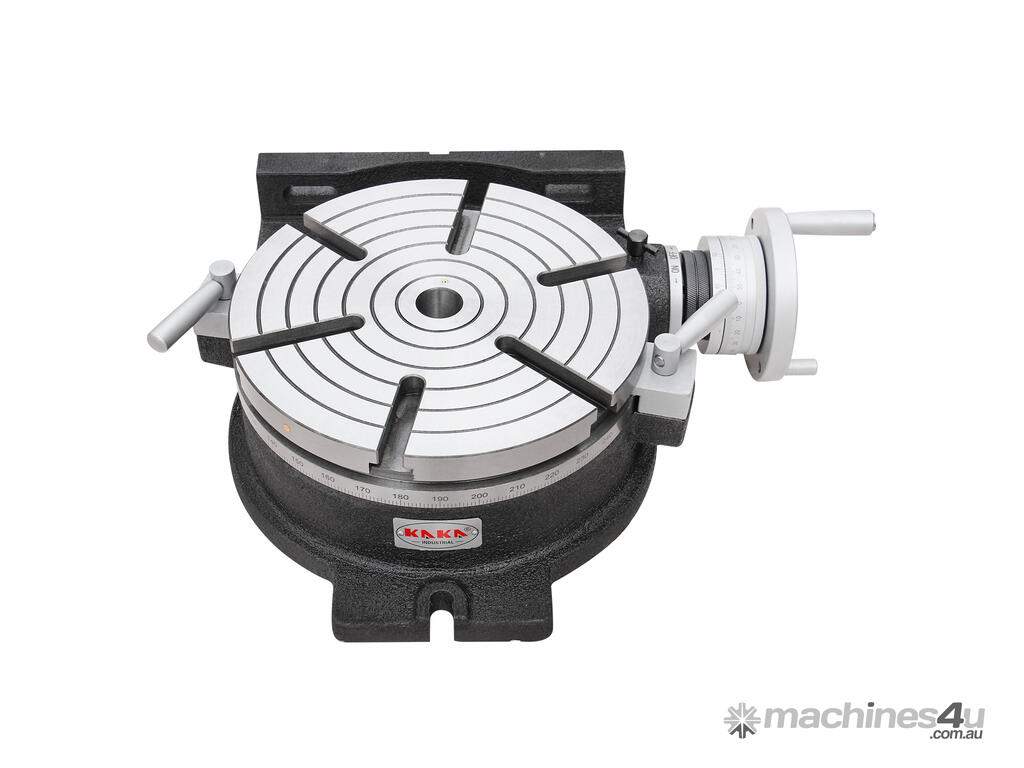

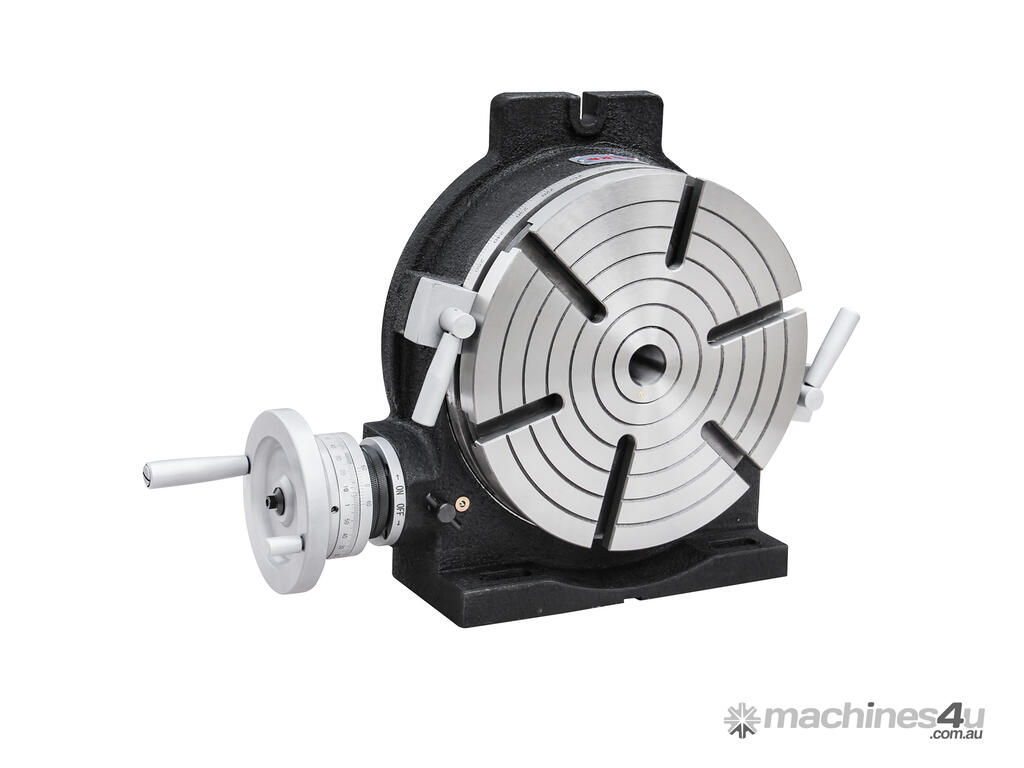

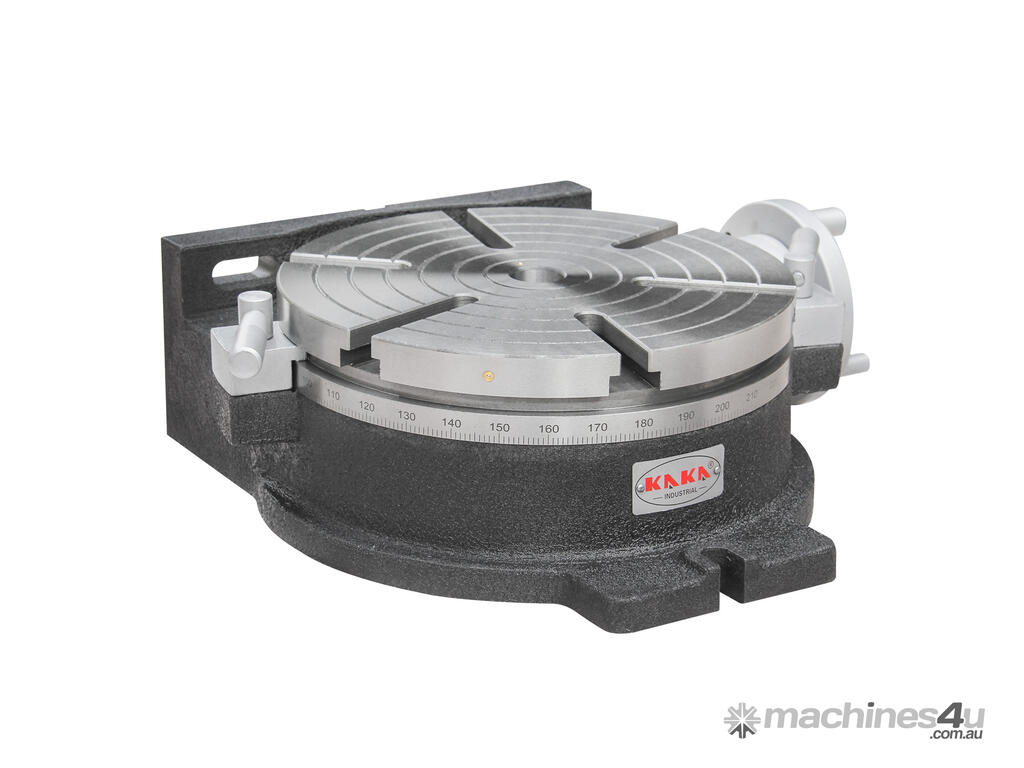

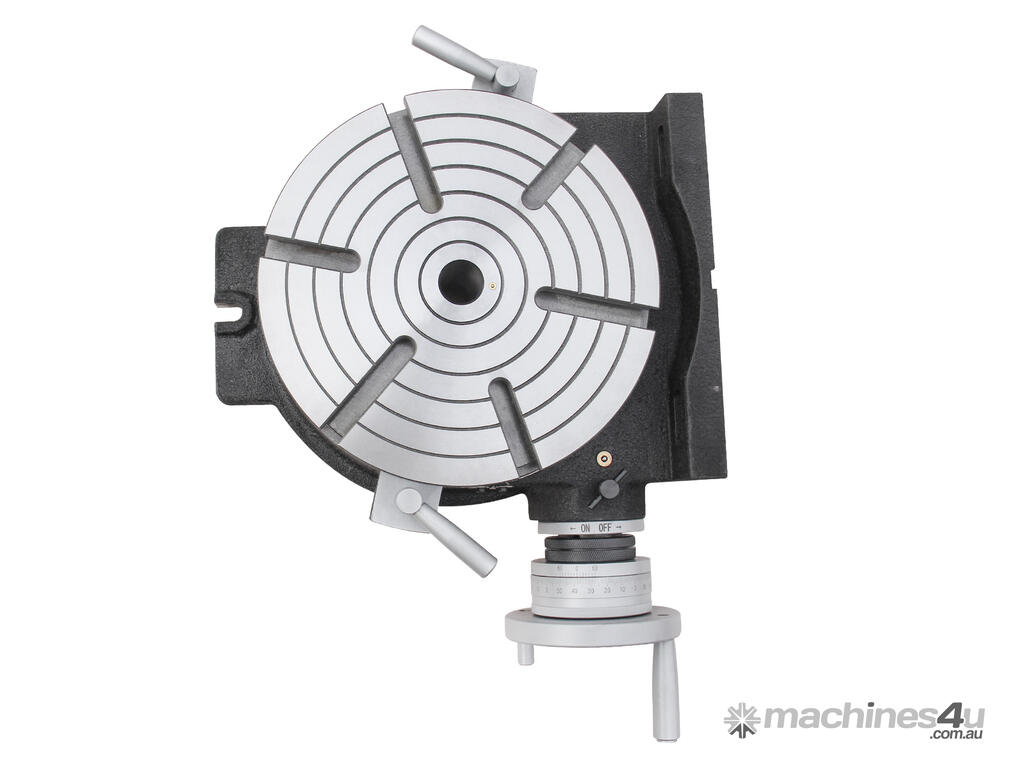

Kang Industrial Horizontal & Vertical Rotary Table
OD 300mm table, Milling Accessories



Features
Suitable for milling and drilling works

MT4 Spindle taper

Table made of high-quality cast iron, sturdy sturcture

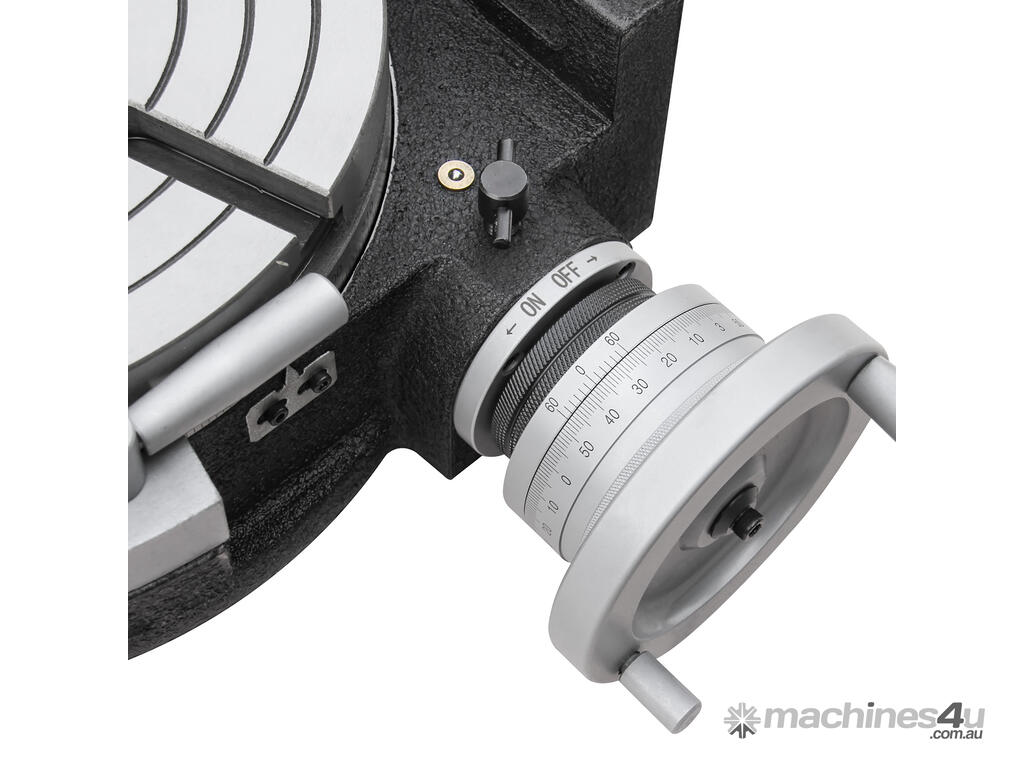

Hardened and grounded worm shaft

2 clamping lever for clamping of the table

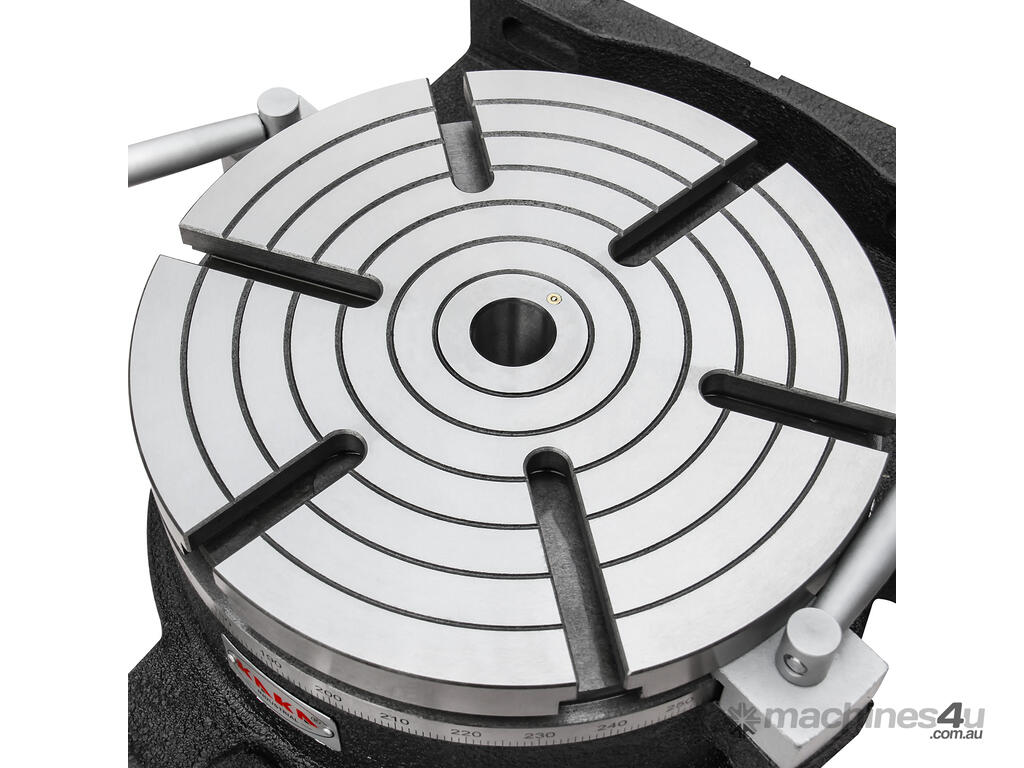

Direct indexing via 360° scale mounted on the table

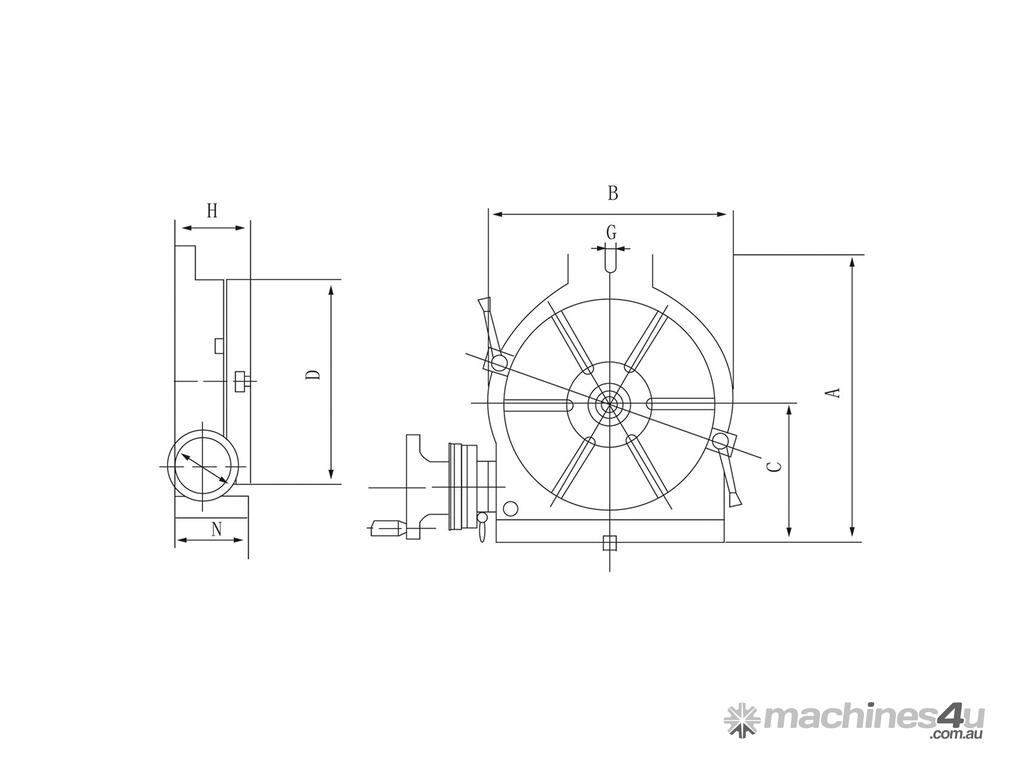

HV-10/12 dimension

A B C D E G H N
388 mm 330 mm 195 mm 300 mm 16 mm 17 mm 135 mm 133 mm


Specifications
SKU 161112
Model HV-12
Table dia. 300 mm
Morse taper of the center hole MT4
Height of center 195 mm
Width of T slot 14 mm
Adjacent angle of T slot 60°
Width of the locating key 16 mm
Modules of worm and worm gear 2.5
Transmission ratio of the worm gear 1:90
Graduation of the table 360 °
Rotating angle of the table with one revolution of the worm 4” ?1‘ per graduation)
Min. value of vernier 10"
Indexing accuracy 60"
Max. loading (Table horizontal) 250 kg
Max. loading (Table vertical) 125 kg
Packing size 51x43x21 cm
N.W./G.W. 71/73 kg
