Kang Industrial HV-4 ø110mm Horizontal Vertical Rotary Table, Cast Iron Rotary Table, MT2 Bore

Name: Kang Industrial HV-4 110mm Horizontal Vertical Rotary Table Cast Iron Rotary Table MT2 Bore
Brand: KAKA
SKU: 161104
Price: 300 AUD
Availability: InStock

DANDENONG, VIC

Play Video

$300 AUD($330 Inc. GST)
Confirm with seller if additional costs apply

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Milling Machine Tooling and Accessories

Make:

KAKA

Model:

HV-4

No. in Stock

Year:

Not specified

Member Since: Feb 2021

Silver Member

Listings: 308

Sellers stock ID:

161104

Description

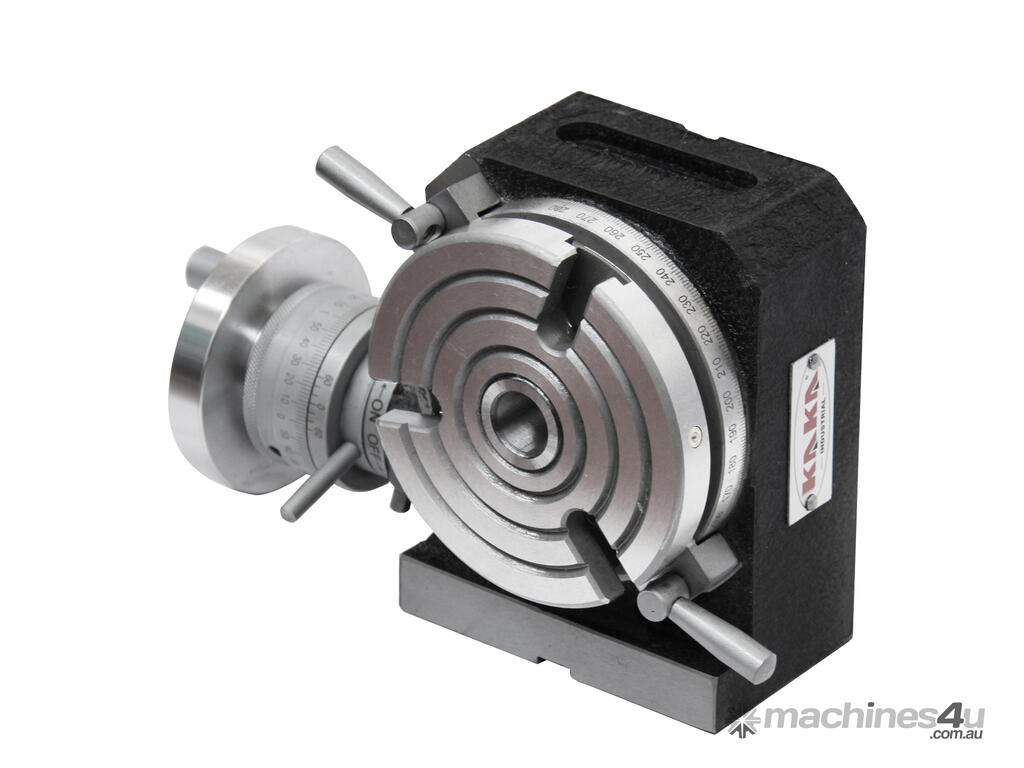

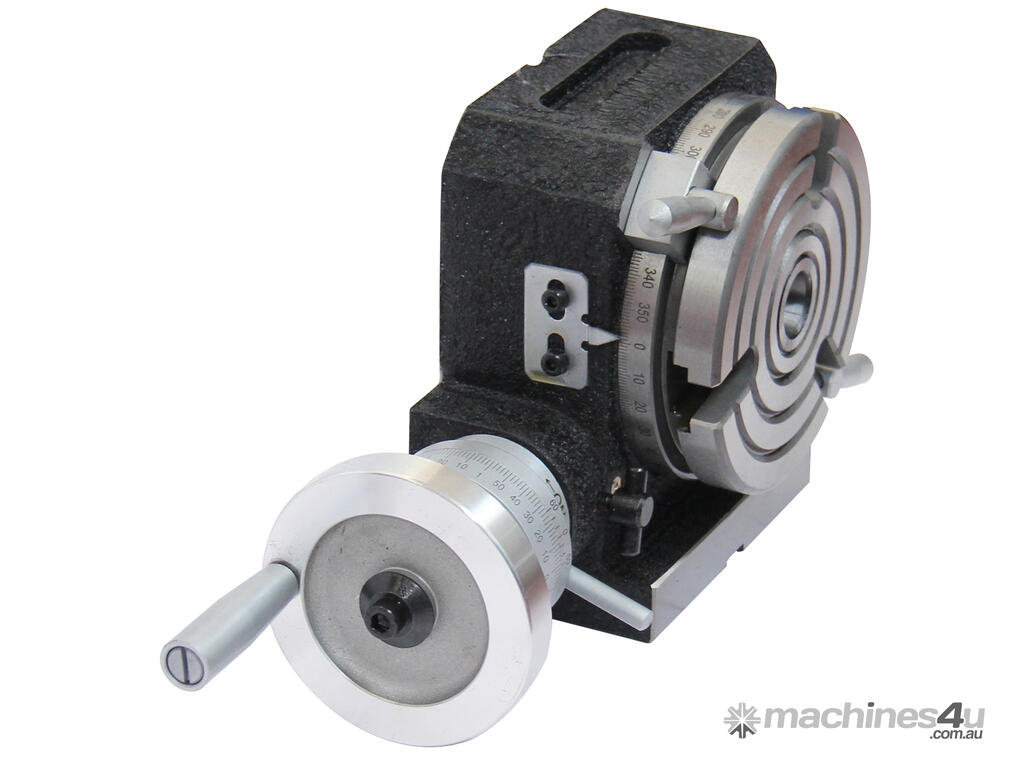

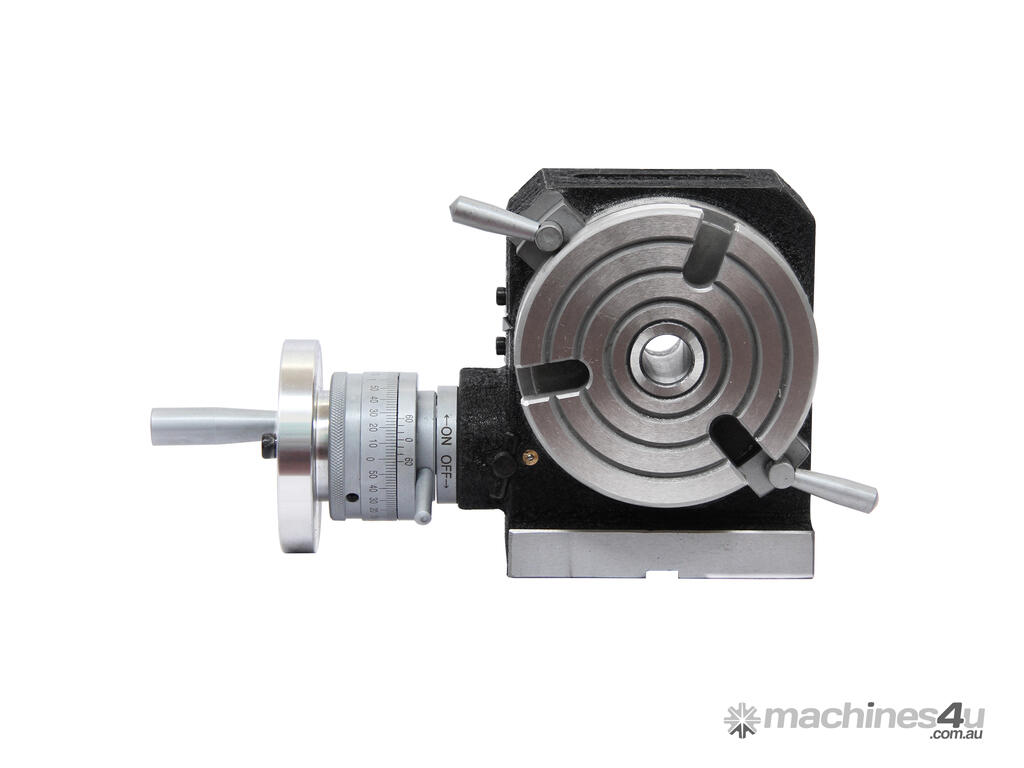

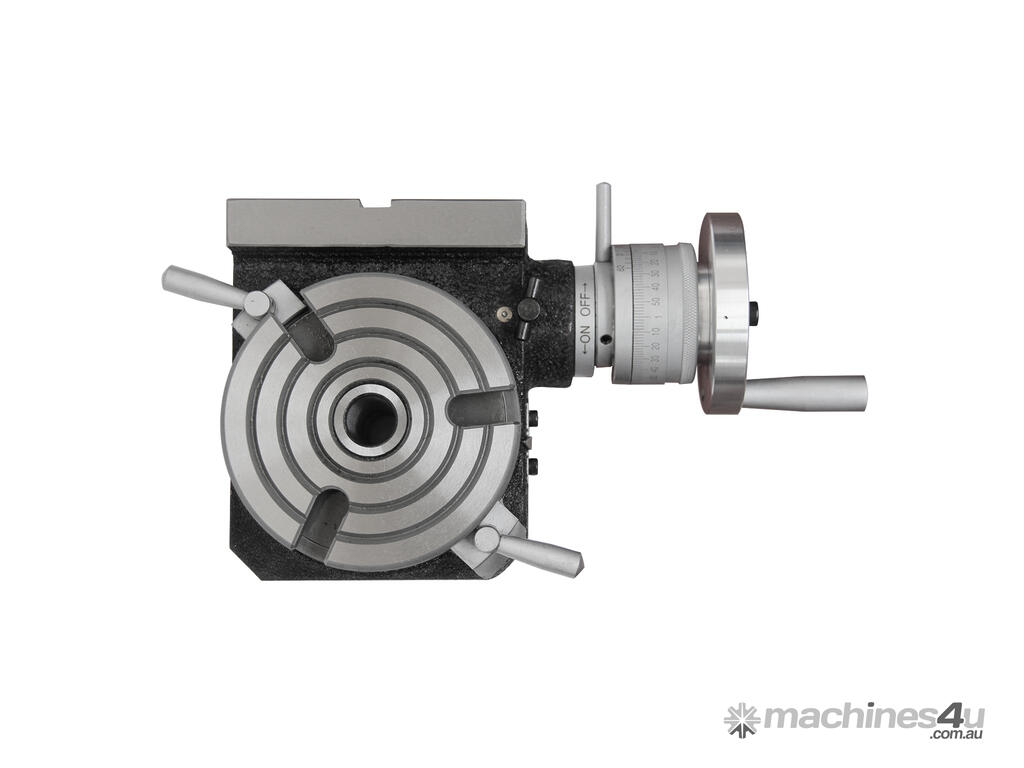

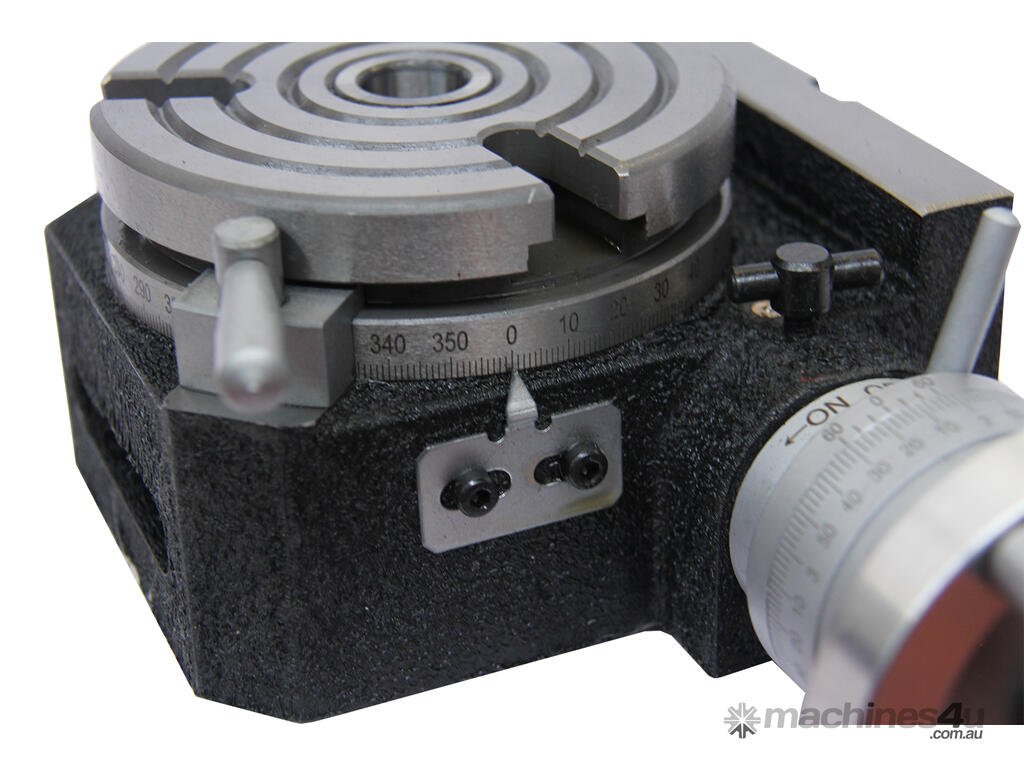

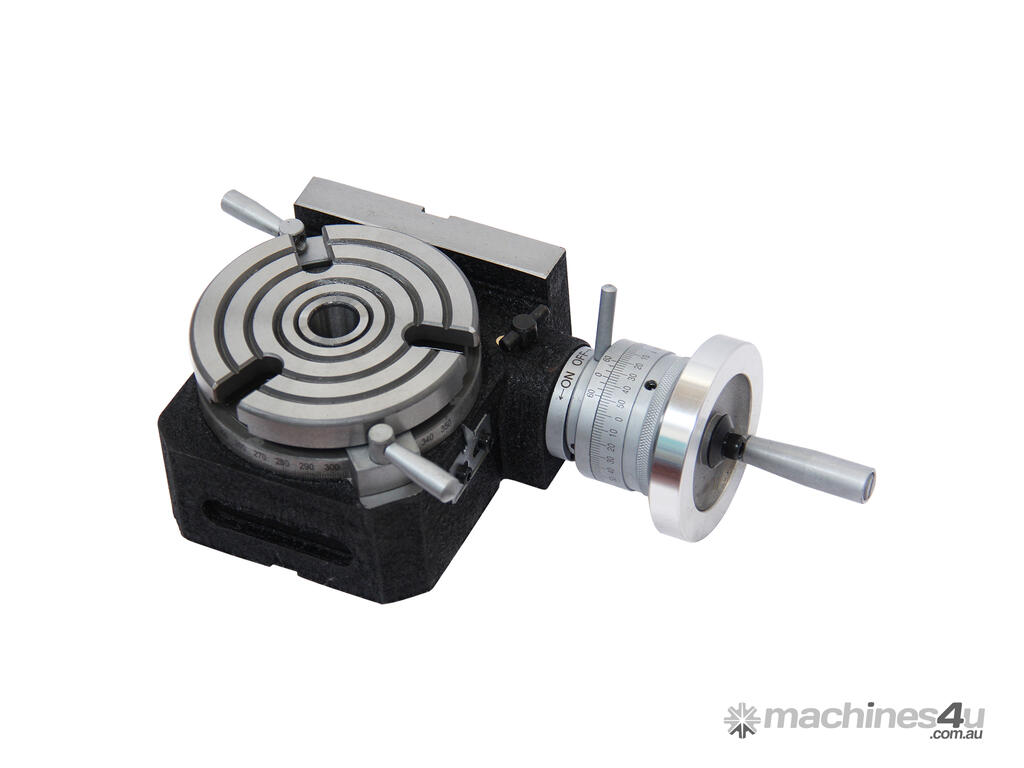

KANG INDUSTRIAL Rotary Table HV-4

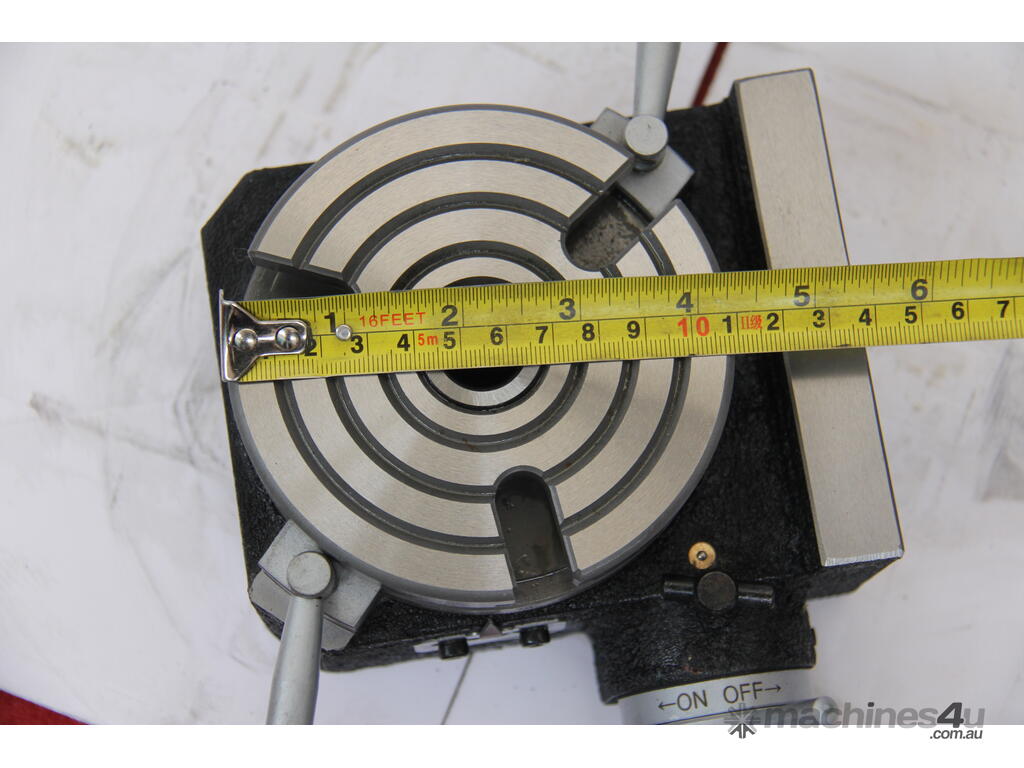

ø110mm table, high-density cast iron rotary table

High-density cast iron body

Vertical and horizontal position table

One rotation of the handle equals 5° on the collar

Gear ratio: HV-4, 1:72, HV-6, HV-8 1:90

Ground surface areas on the table

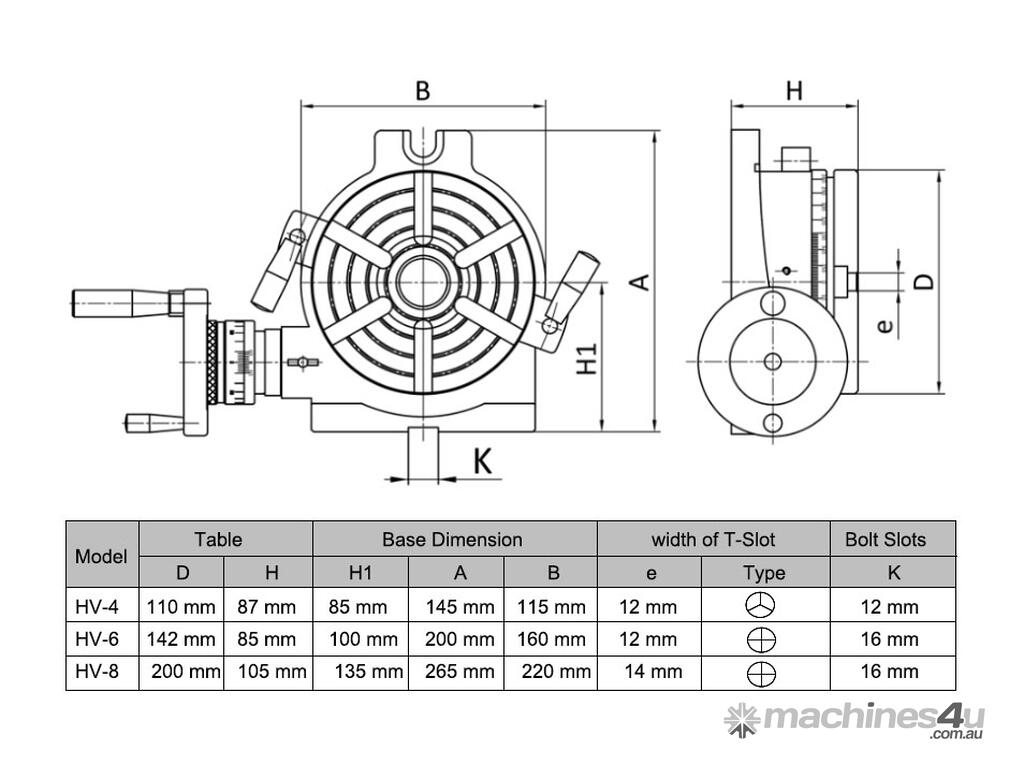

Specifications
Item No.: 161104
Model: HV-4
Dia. of table: 110 mm
Morse taper: MT2
Width of T-slot: 12 mm
Adjacent angle of T slot: 120°
Transmission ratio of the worm gear: 1:72
Minimum value of vernier: 10"
Max. loading with table horizontal: 110kg
Max. loading with table Vertical: 110kg
Packing size: 19x10x12 cm
N.W./G.W.: 7/9 kg
