Kang Industrial HV-8 ø200mm Horizontal Vertical Rotary Table, Cast Iron Rotary Table, MT3 Bore

Name: Kang Industrial HV-8 200mm Horizontal Vertical Rotary Table Cast Iron Rotary Table MT3 Bore
Brand: KAKA Industrial
SKU: 161108
Price: 500 AUD
Availability: InStock

DANDENONG, VIC

Play Video

$500 AUD($550 Inc. GST)
Confirm with seller if additional costs apply

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Milling Machine Tooling and Accessories

Make:

KAKA INDUSTRIAL

Model:

HV-8

No. in Stock

Year:

Not specified

Member Since: Feb 2021

Silver Member

Listings: 308

Sellers stock ID:

161108

Description

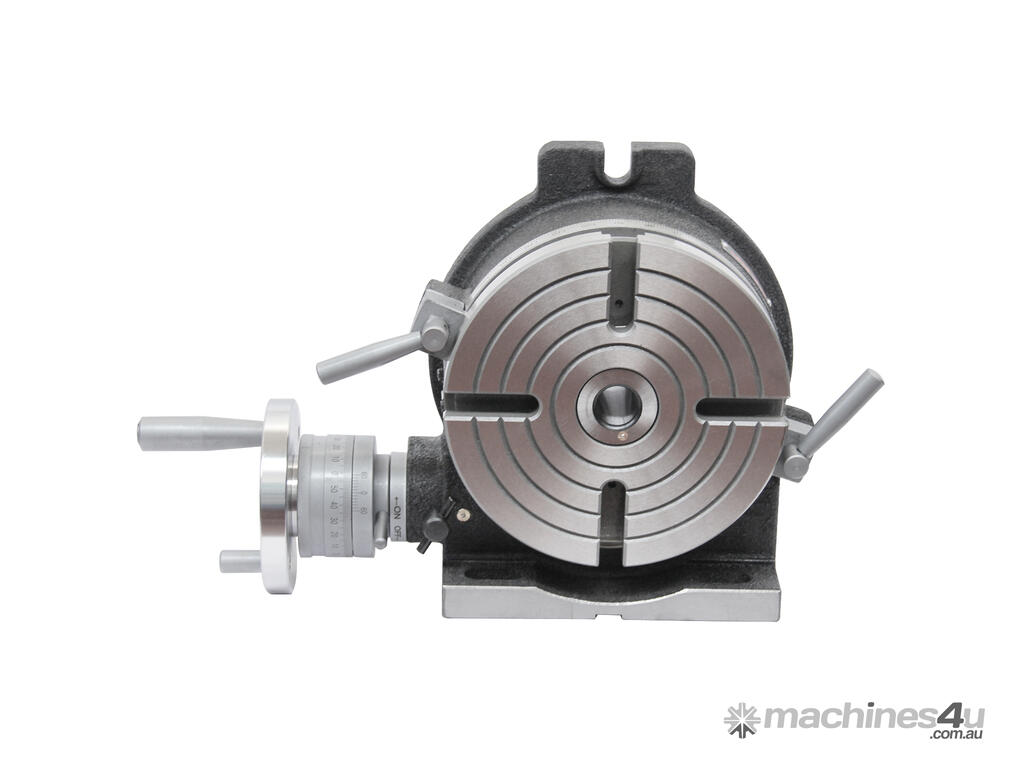

KANG INDUSTRIAL Rotary Table HV-8
ø200mm table, high-density cast iron rotary table

High-density cast iron body

Vertical and horizontal position table

One rotation of the handle equals 4° on the collar

Gear ratio: HV-4, 1:72, HV-6, HV-8 1:90

Ground surface areas on the table

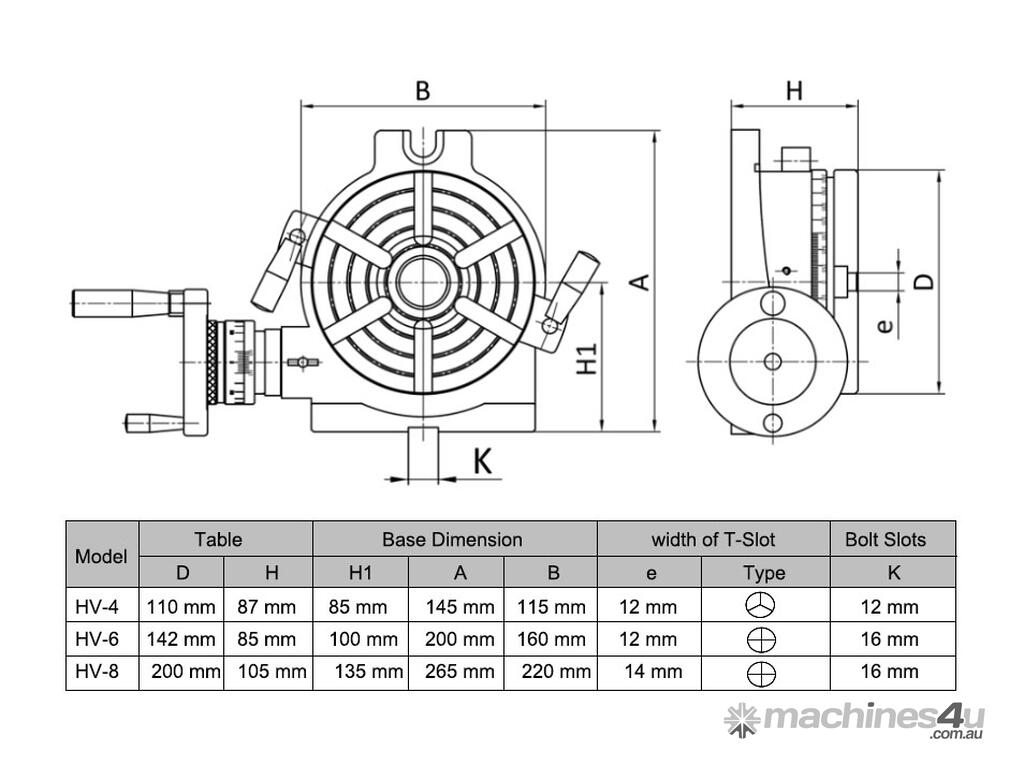

Specifications
Item No.: 161108
Model: HV-8
Dia. of table: 200 mm
Morse taper: MT3

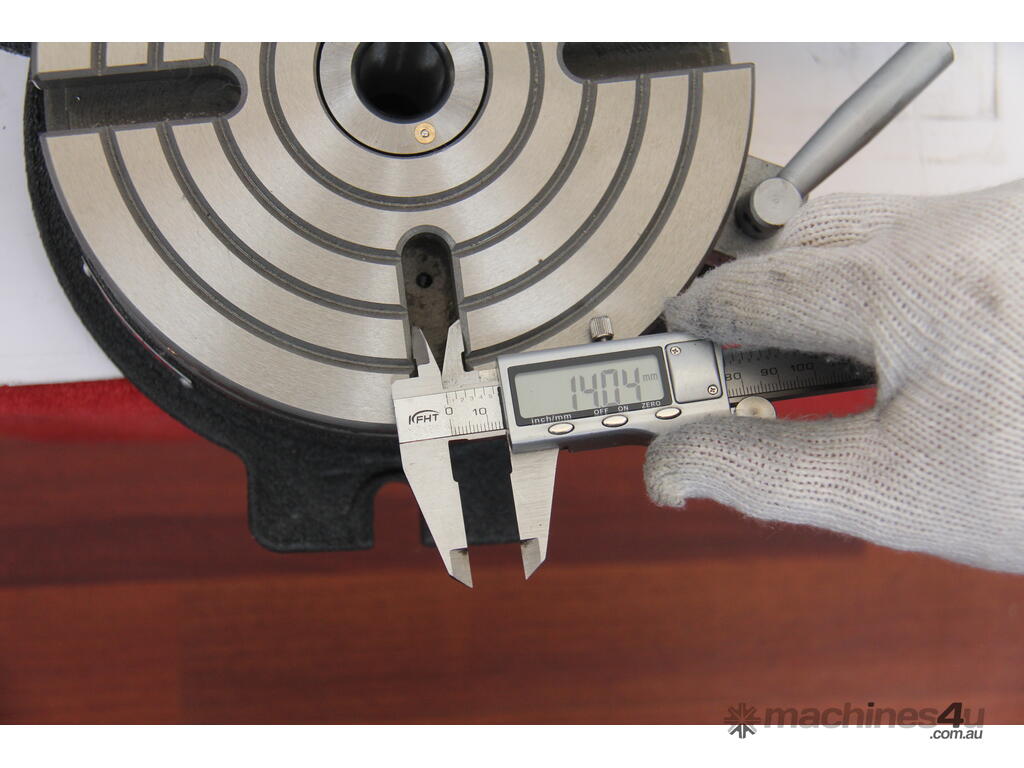

Width of T-slot: 14 mm
Adjacent angle of T slot: 90°
Transmission ratio of the worm gear: 1:90
Minimum value of vernier: 10"
Max. loading with table horizontal: 150 kg
Max. loading with table Vertical: 75 kg
Packing size: 38x31x18 cm
N.W./G.W.: 38/31 kg
