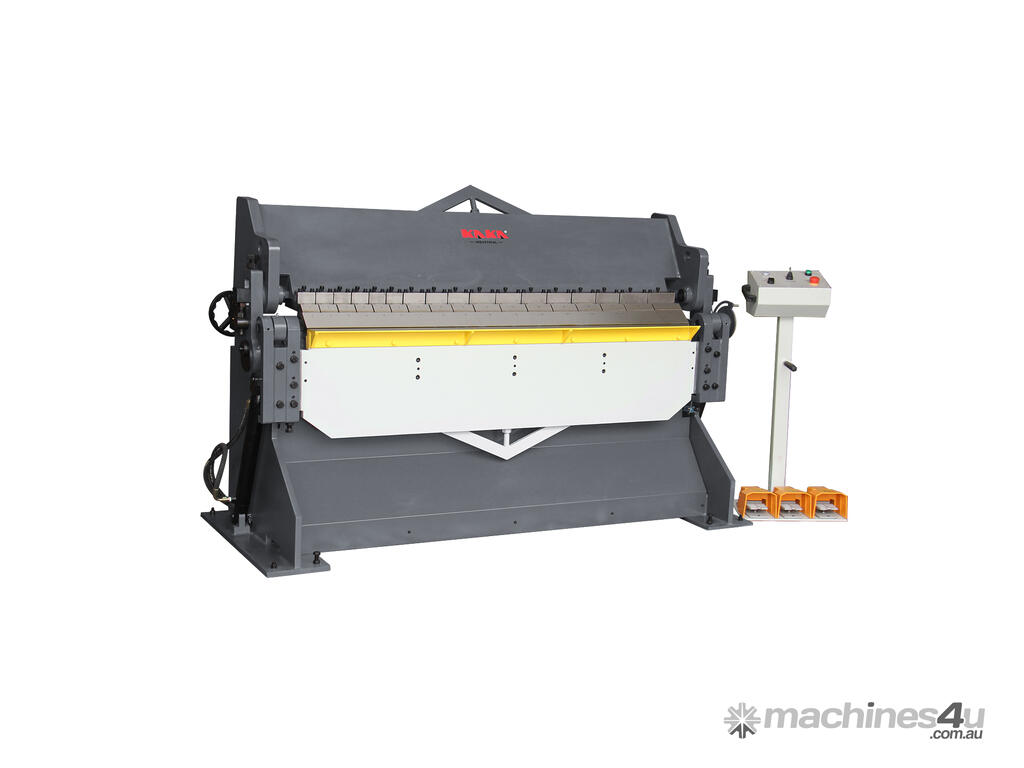

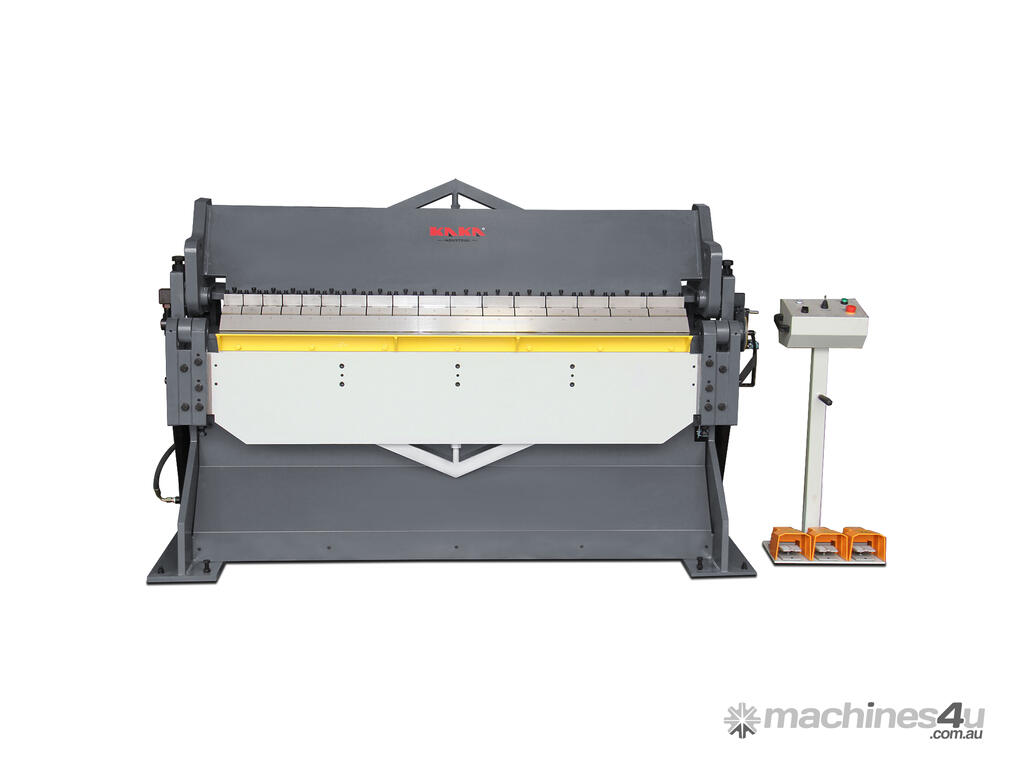

Kang Industrial Hydraulic Pan Brake Folder
Bending 2440x3.5 mm mild steel plate, segment fingers for pan brake
Powerful 5.5kW motor runs on 415V power
Max. bending 3.5 mm thick mild steel plate across the full width of 2440 mm

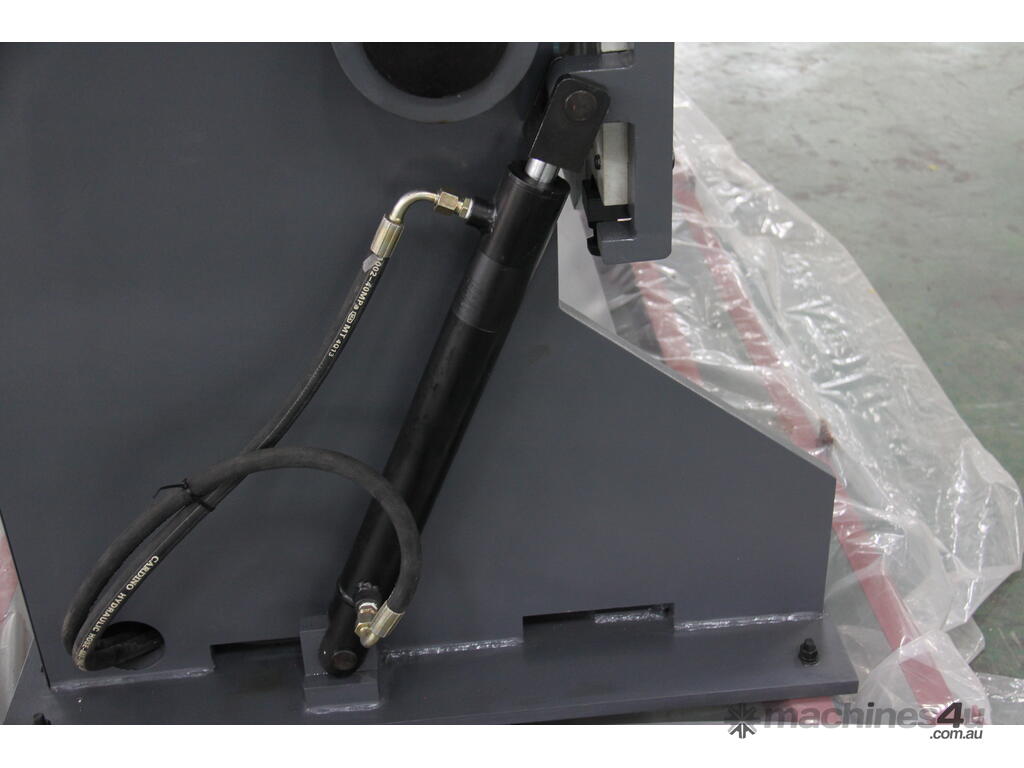

Hydraulic bending and clamping beam, heavy-duty pan brake folder
Max. box depth up to 150 mm

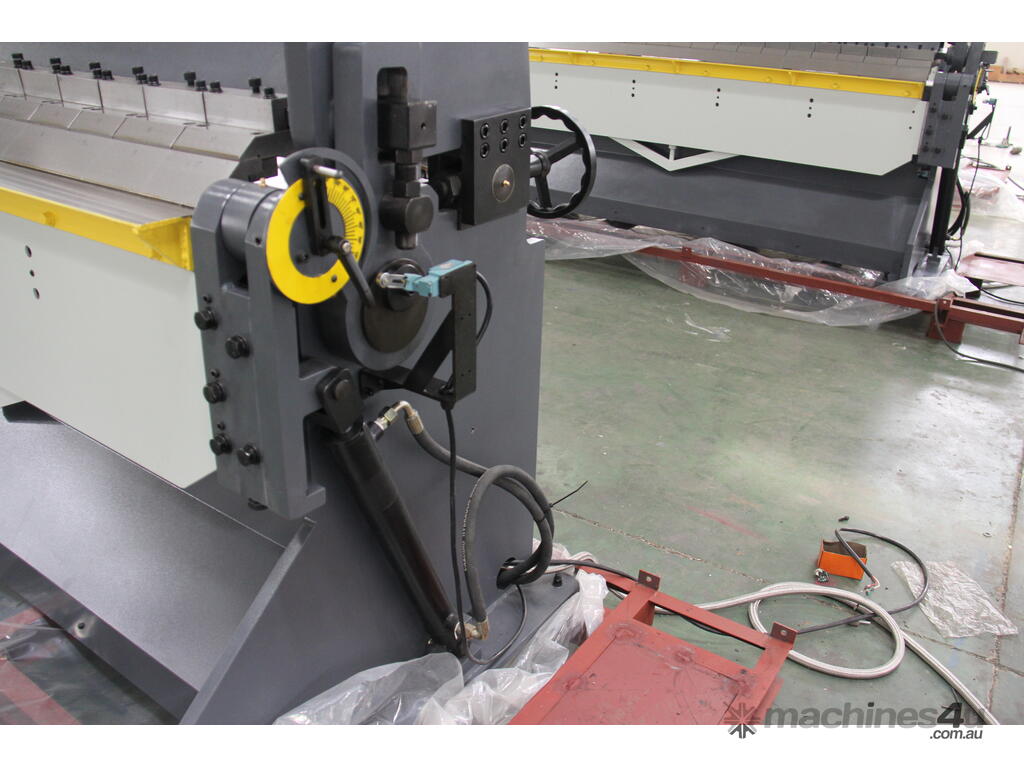

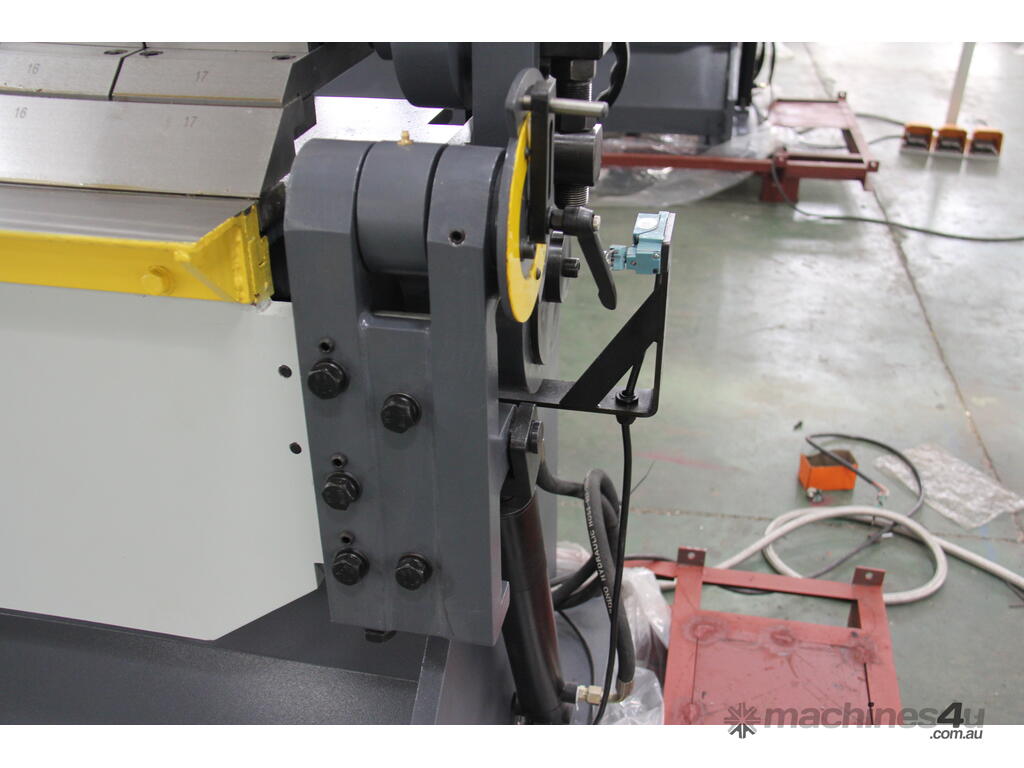

The bending angle range from 0-135 degrees, angle stops to get repeatable bending

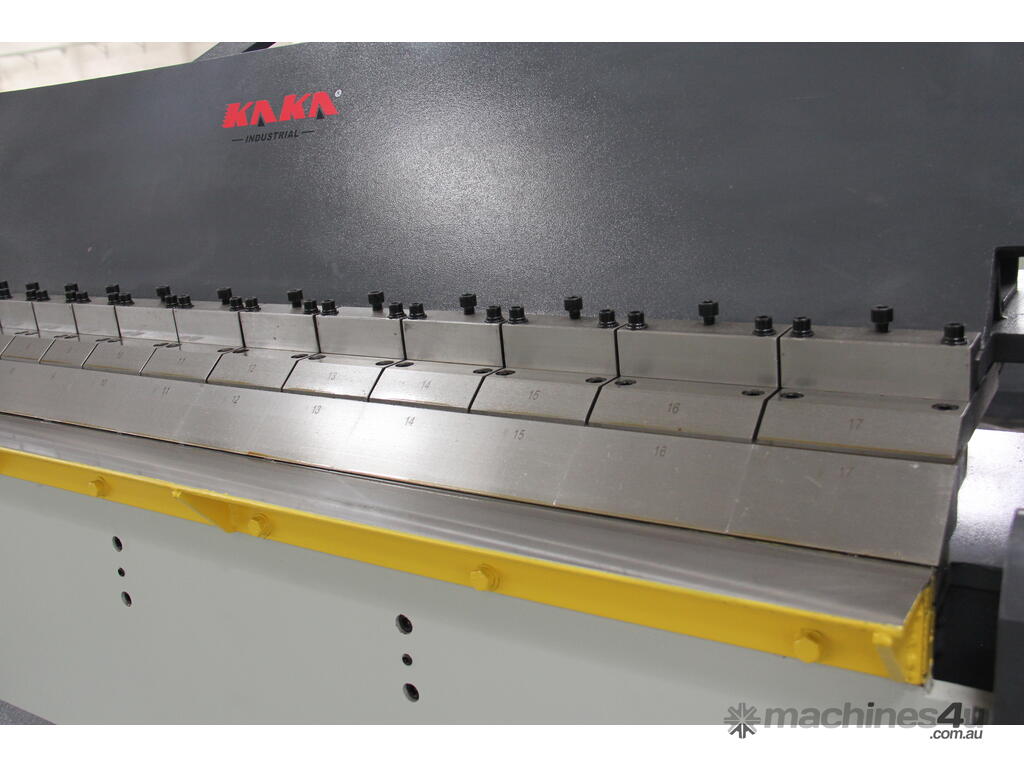

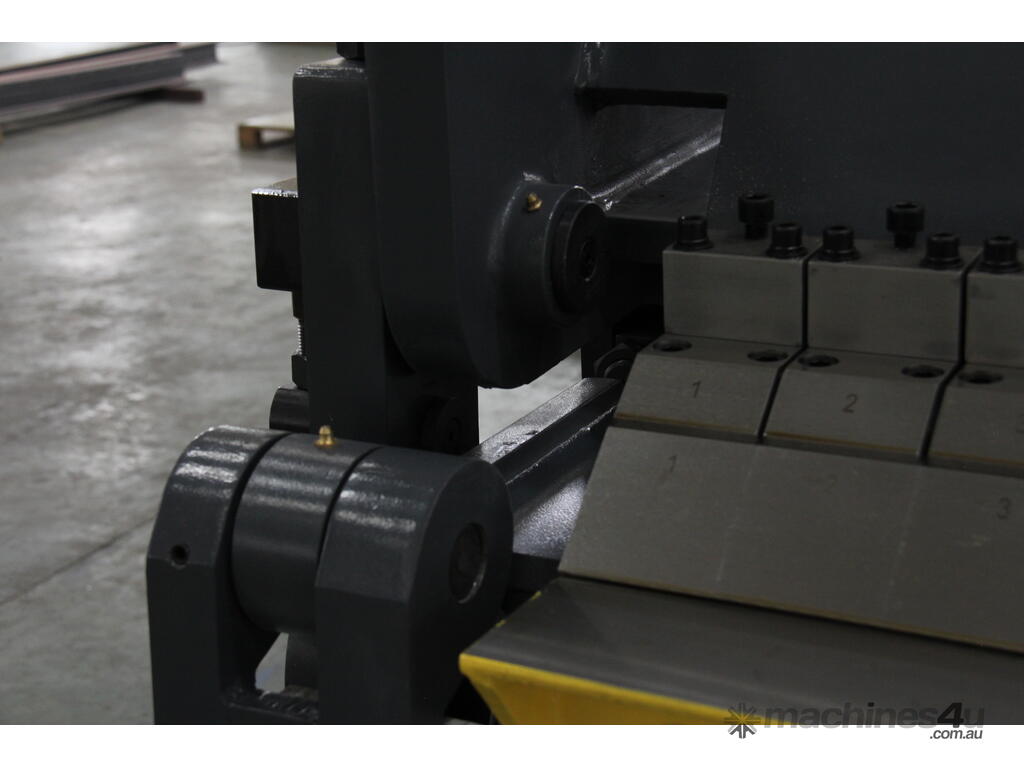

Various finger size to make different width box
Finger size: 76mmx6, 102mm x3, 127mmx6, 153mmx2
Specifications
SKU 173503
Model HW-9610
Max. bending thickness 3.5 mm
Max. bending width 2440 mm
Bending angle 0-135°
Max. box depth 150 mm
Large beam opening 75 mm
Manual back gauge 660 mm
Hydraulic cylinder pressure Max. 15 MP
Hydraulic cylinder speed 50-85 mm/s
Motor working pressure 9-13 Mp

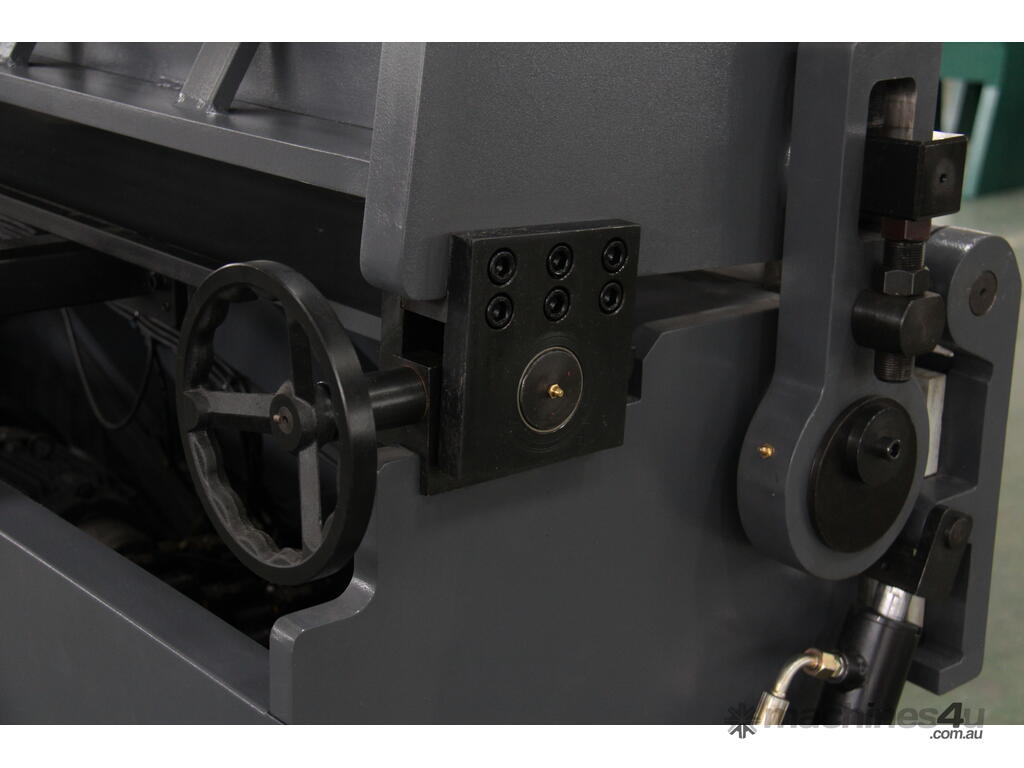

Manual beam adjustment 0-25 mm
Motor power 5.5 kW
Packing size 325x102x170 cm
N.W./G.W. 2850/3000 kg
