Kang Industrial TGK-16A, ø400mm-400x400mm Dual Column Bundle Cutting Saw, Hydraulic Band Saw Machine

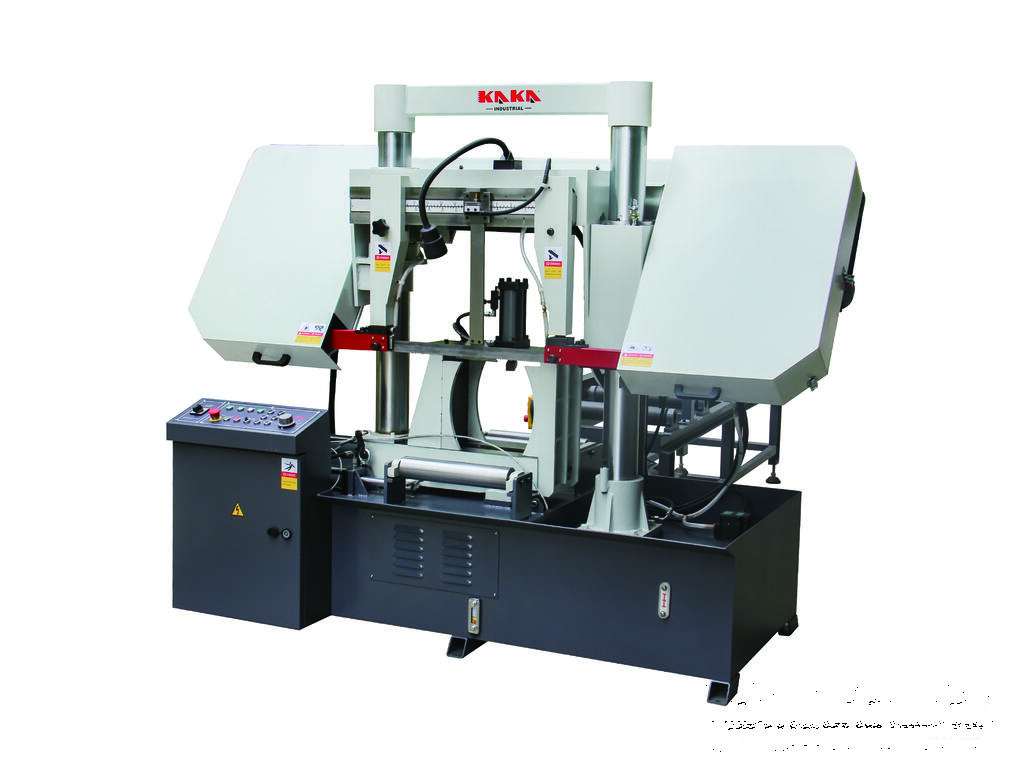

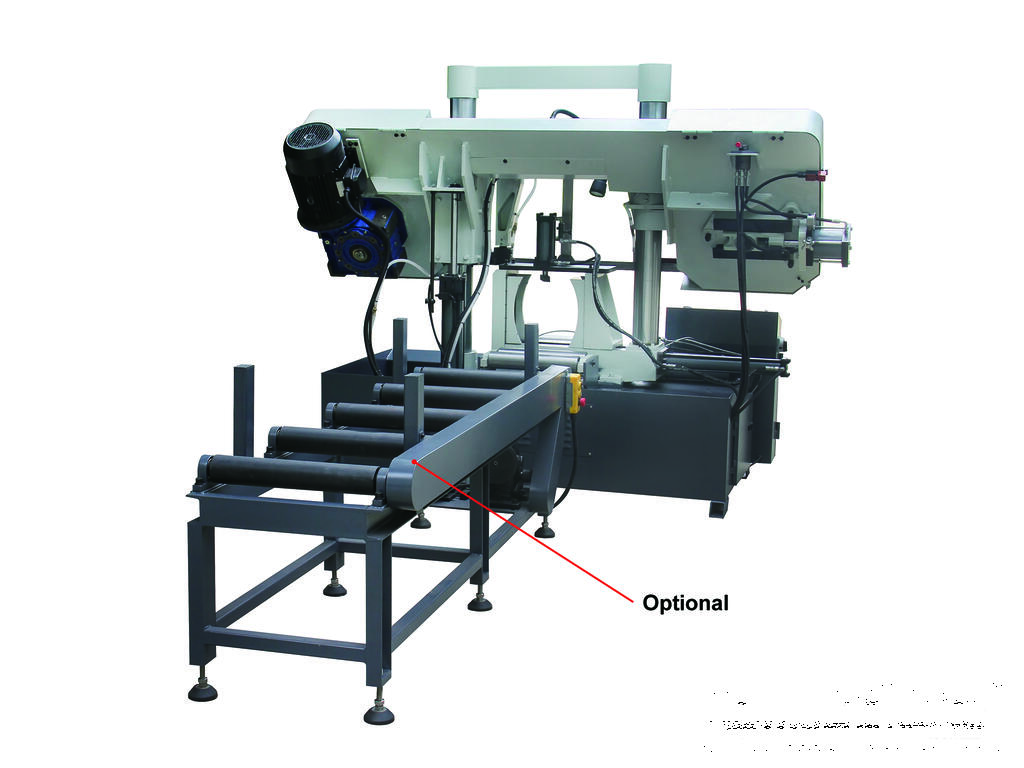

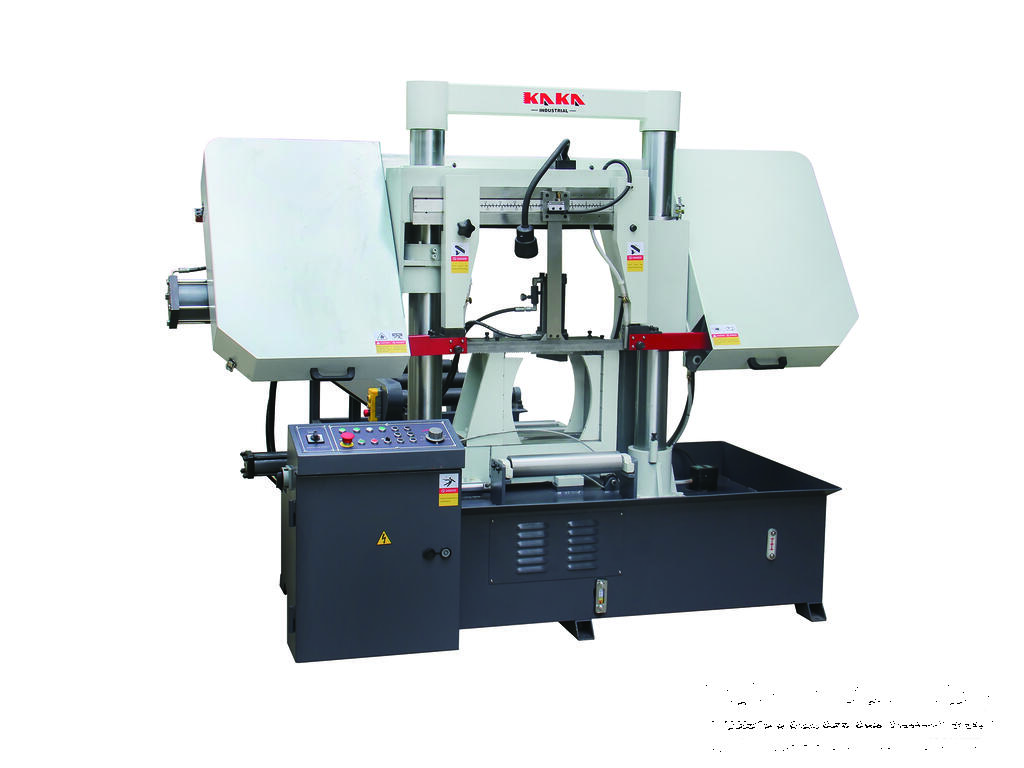

Kang Industrial TGK-16A Double Column Band Saw
Cut 400mm OD and 400x400 square solid material, with Extra Vice to cut Bundle material

Runs on 415V power, industrial grade metal cutting band saw

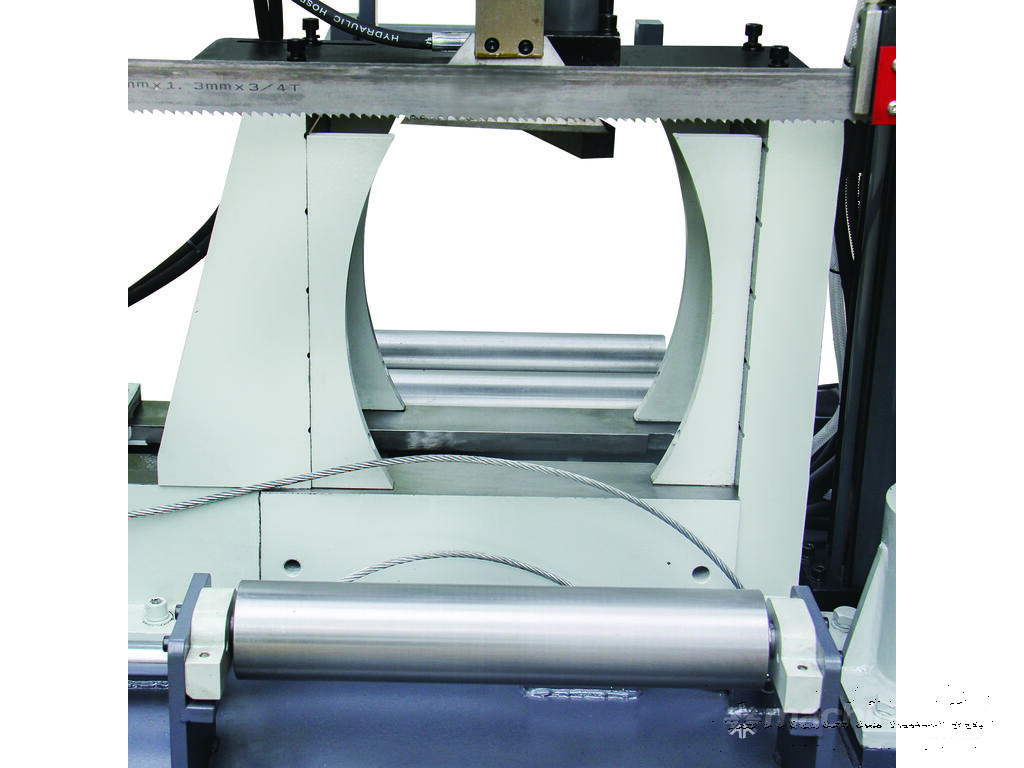

Standard extra clamp for hexagonal bundle material cutting

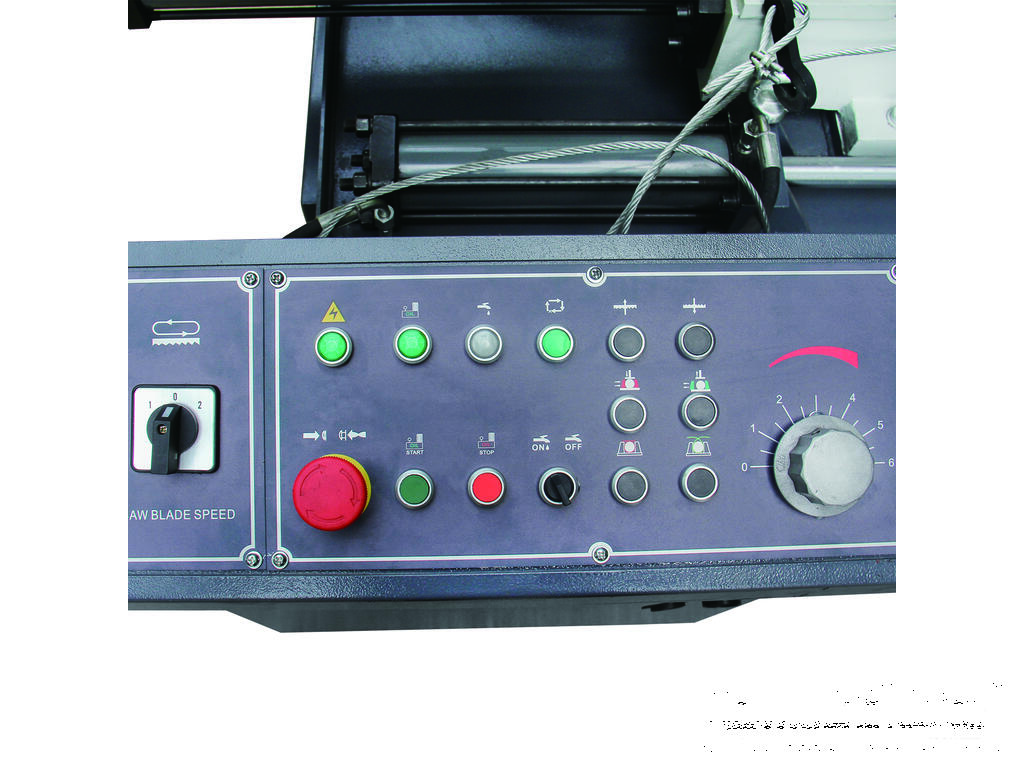

3.0/4.0 kW double speed motor to get two saw blade speed, 36,56 m/min

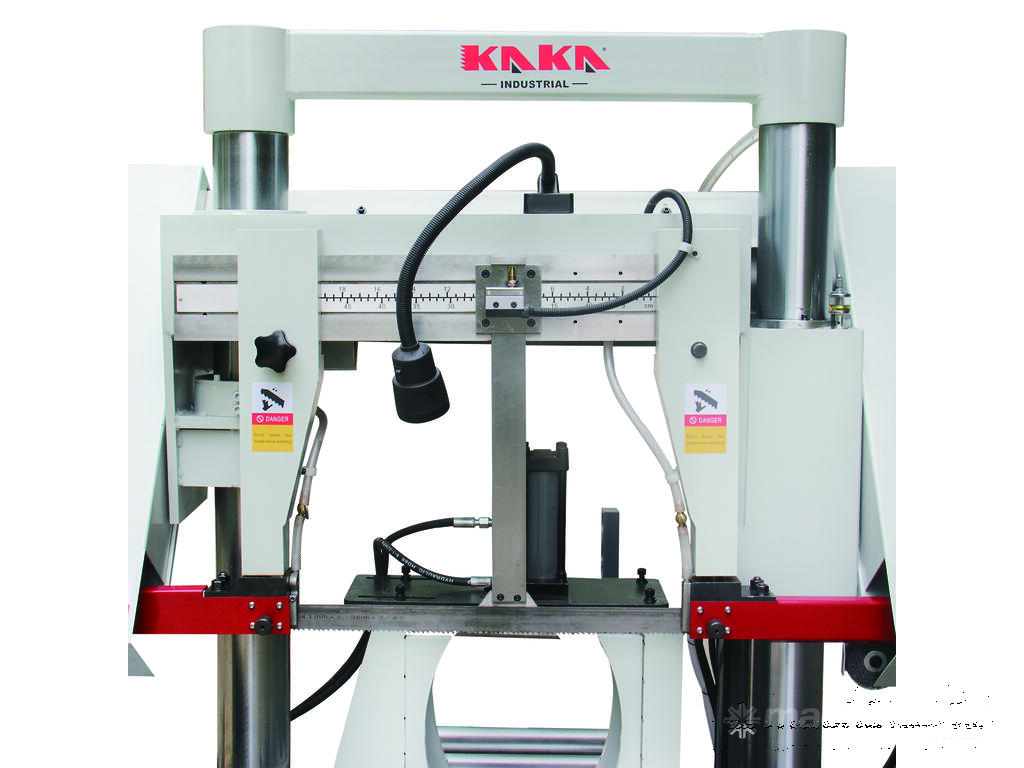

Double column structure, saw frame vertical lifting, high stability

Saw frame descent by hydraulic control, variable speed

Hydraulic clamping vice and hydraulic blade tension adjustment

Hydraulic blade tension is standard

Standard working light and cooling system



Features
SKU 188304
Model TGK-16A
Max. cutting capacity ø400-400x400 mm
Cutting speed 36,56 m/min
Feeding speed Hydraulic, variable speed
Balde size 41x1.1x5000 mm
Workpiece clamping Hydraulic
Blade tensioning Hydraulic
Main motor power 3.0/4.0 kW
Oil pump motor power 0.75 kW
Coolant pump motor power 0.9 kW
Drive Gear
Packing size 270x135x215 cm
N.W./G.W. 1350/1610 kg
