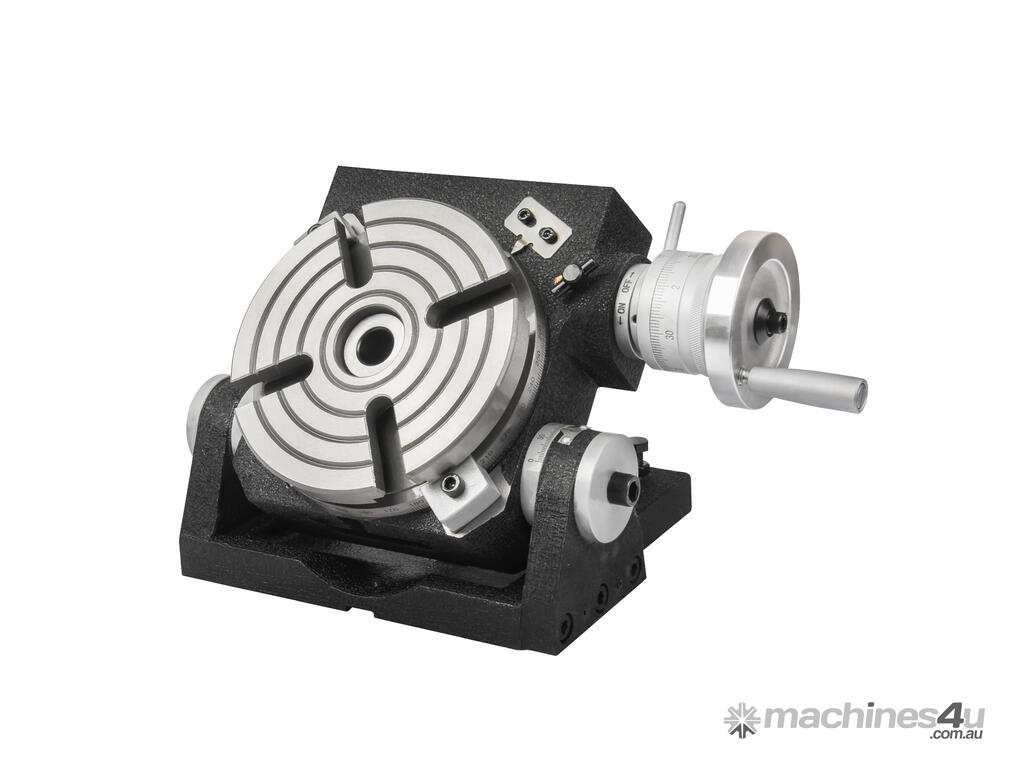

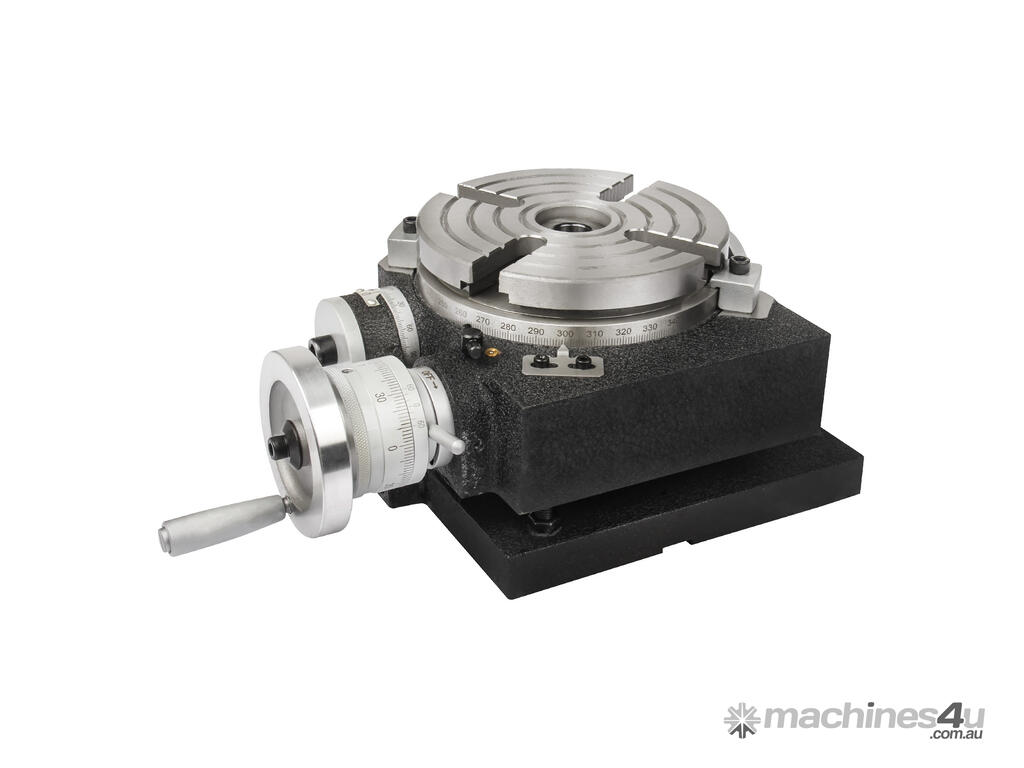

Kang Industrial Tilting Rotary Table TSK-6
OD 150 mm table
Features

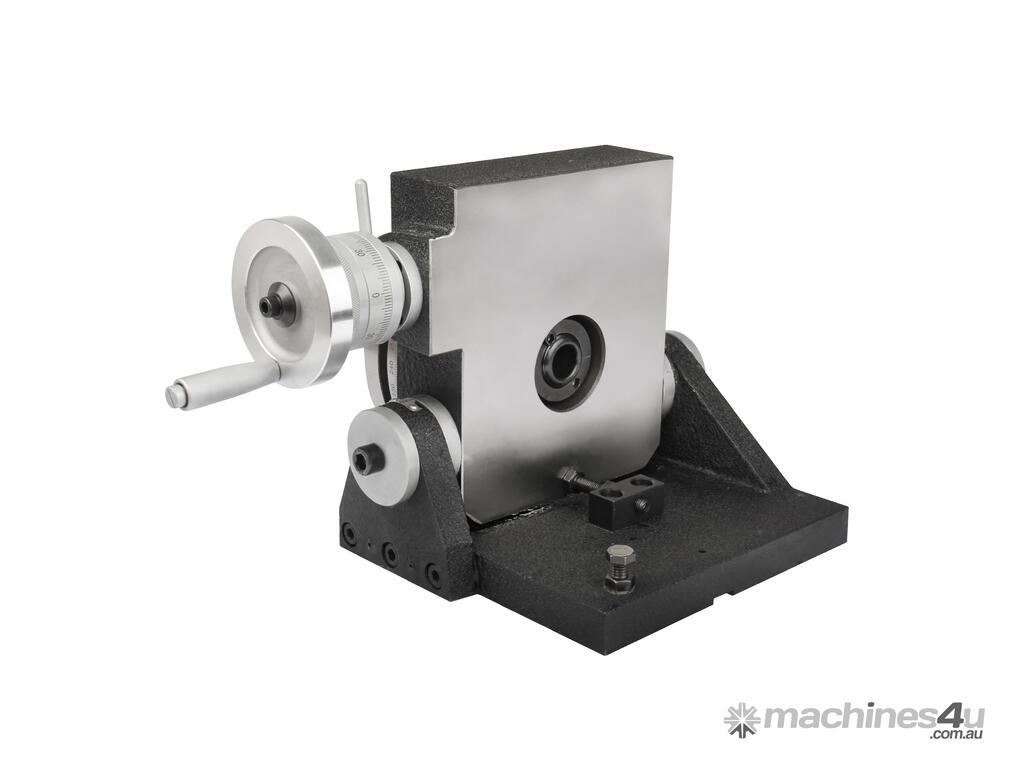

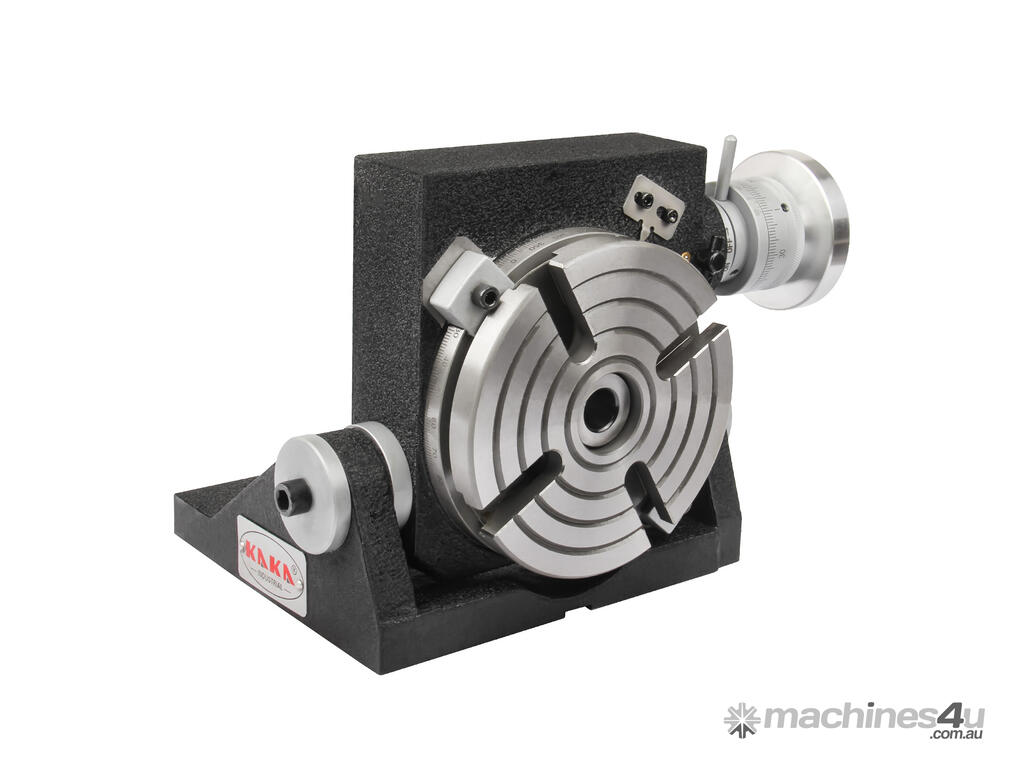

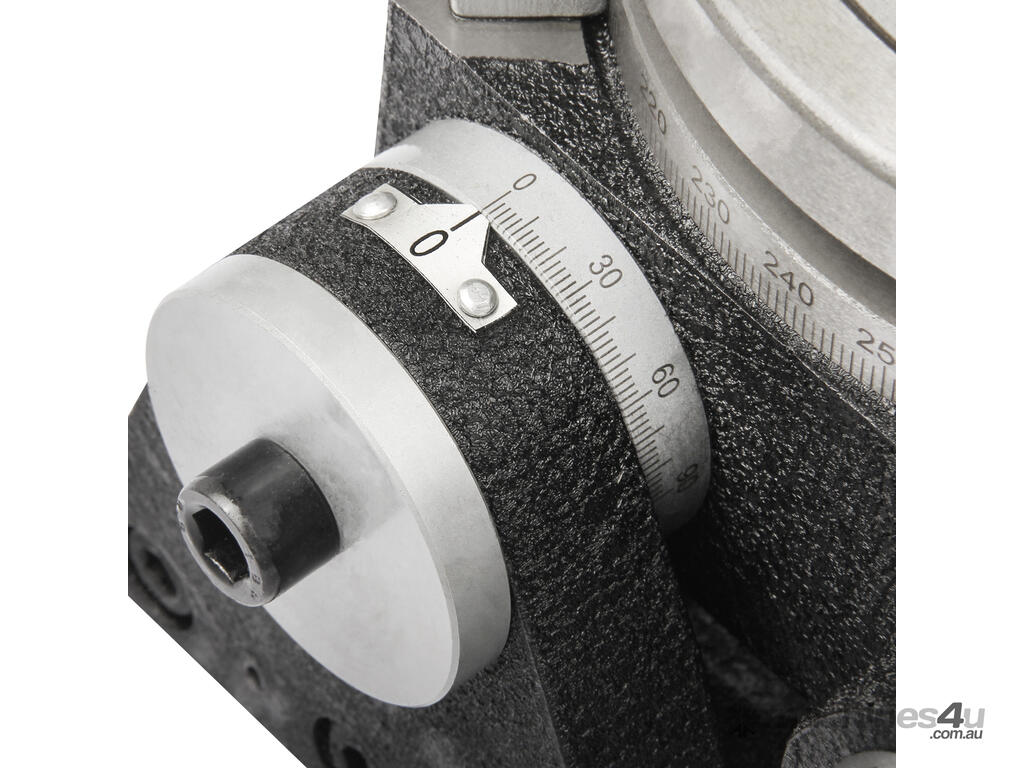

Tilting range 0-90 ° horizontal to vertical graduated in 1°
Graduation of the table 360°

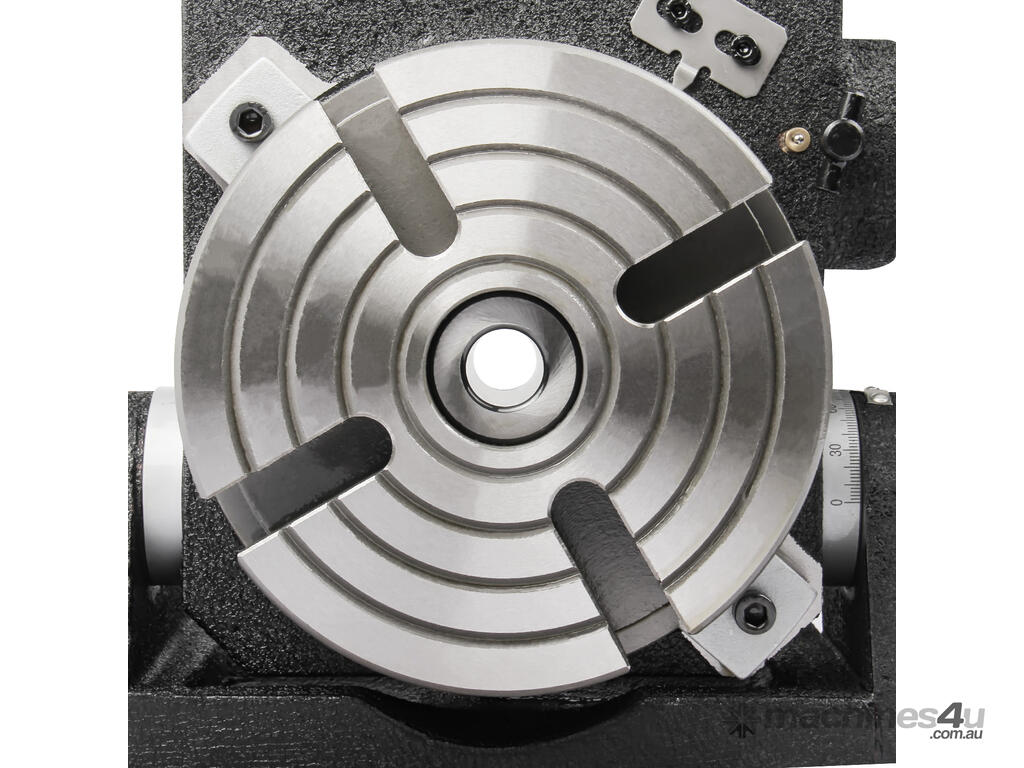

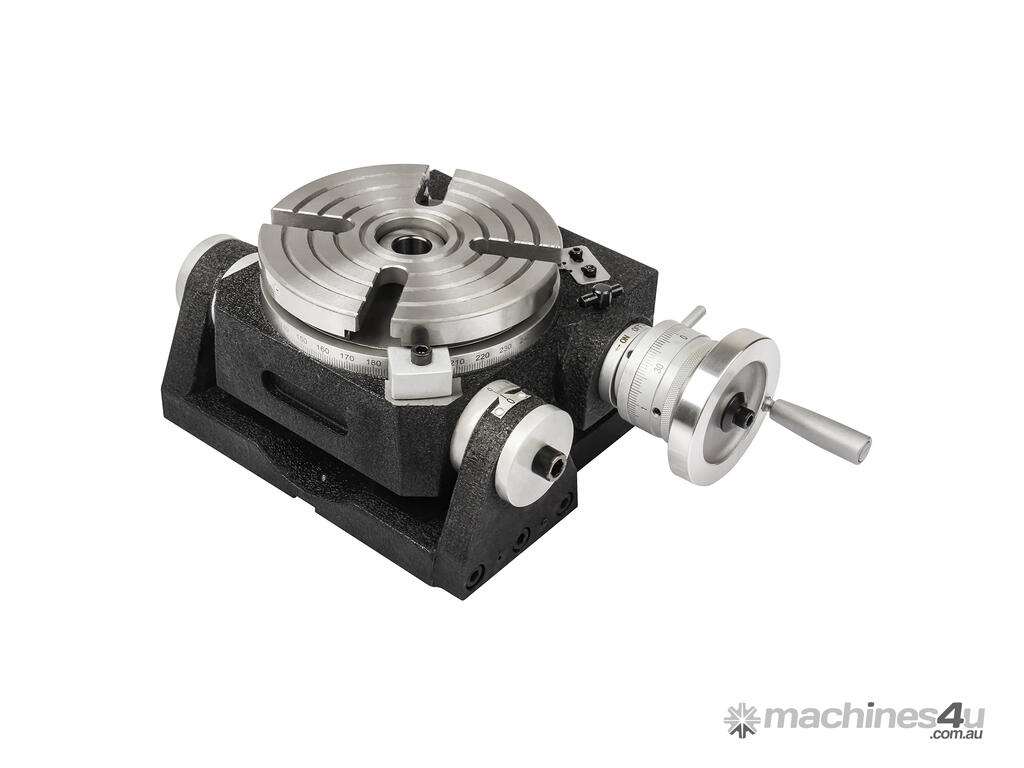

Table with 4 slots
Worm ration is 1:90

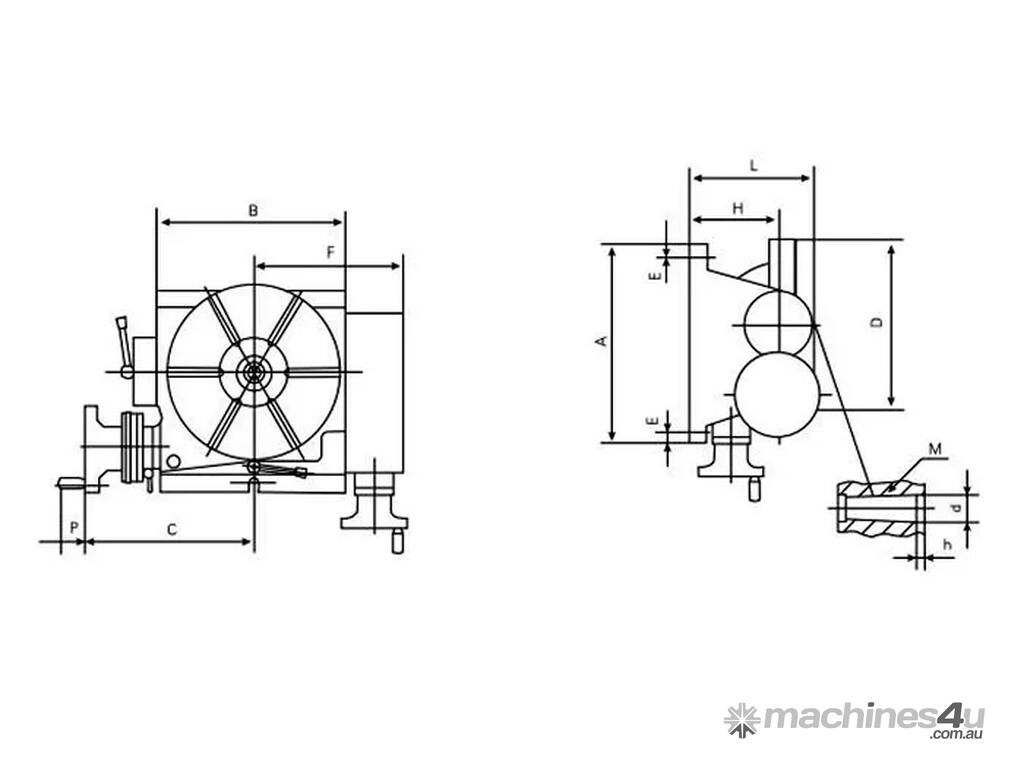

Specifications
SKU 162316
Model TSK-6
Table dia. ø 150mm
Morse taper of the center hole MT2
Width of T-slot 14 mm
Modules of worm and worm gear 1
Width of the locating key 16 mm
Adjacent angle of T-slot 90°
Transmission ratio of the worm gear 1:90
Graduation of the table 360°
Tilting angle 0~90°

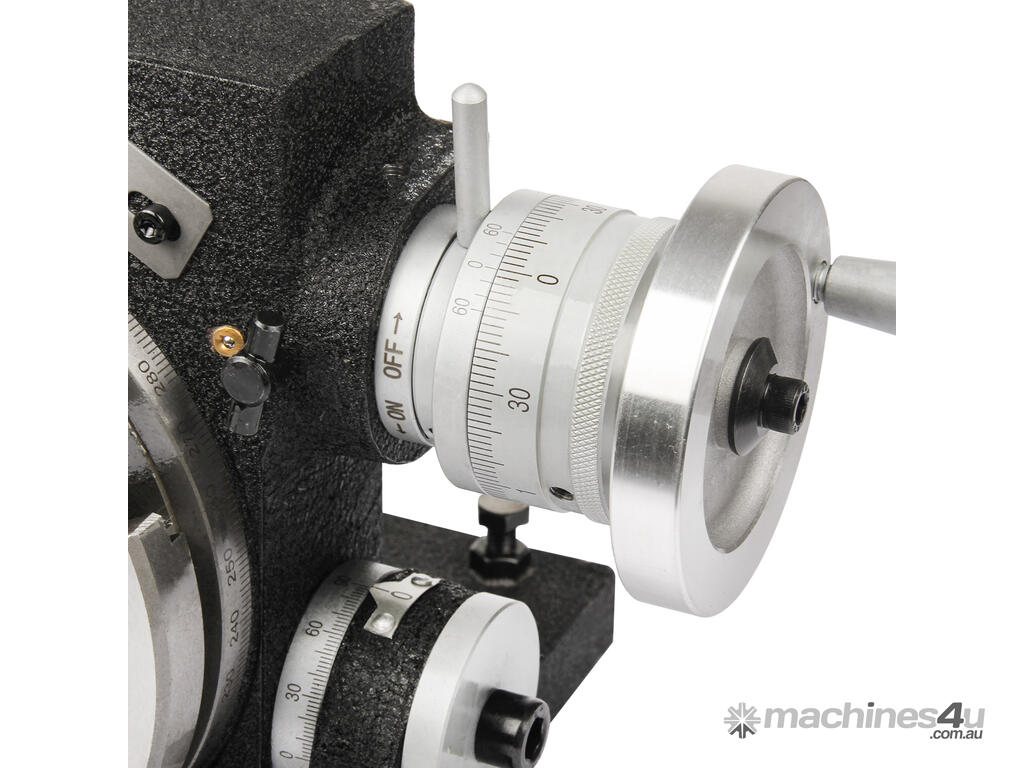

Readout of the handwheel 1"
Min. value of vernier 10"
Min. reading of tilting vernier 1°
Indexing accuracy 60"
Packing size 32x12x19 cm
N.W./G.W. 20/22 kg
