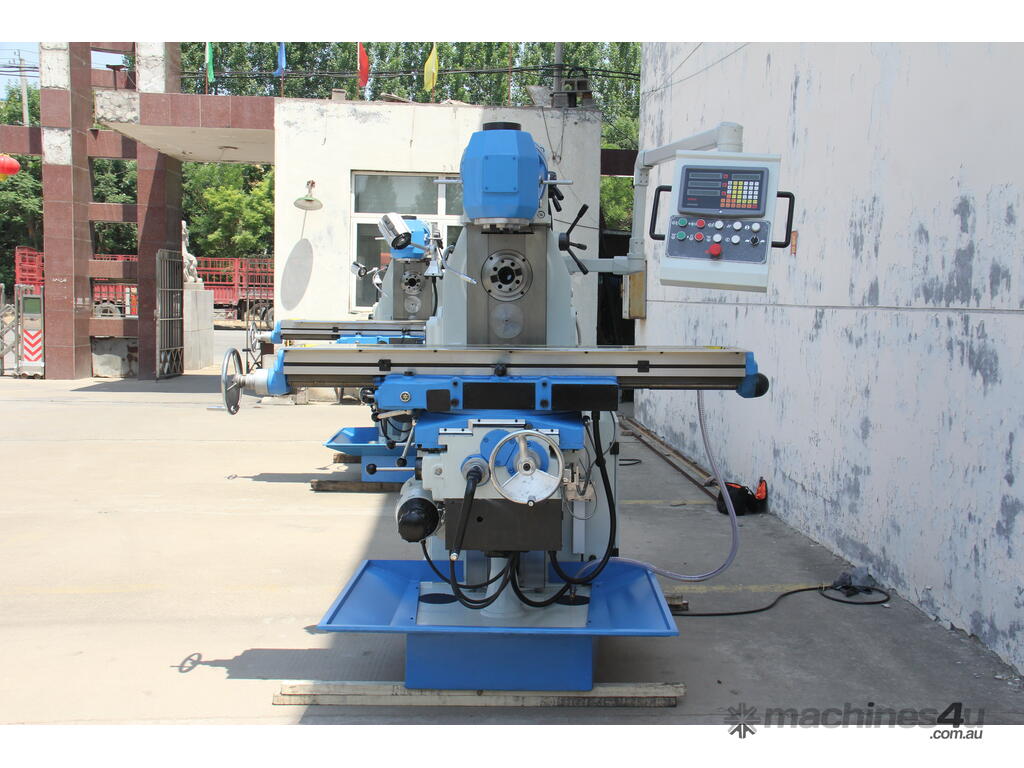

Kang Industrial Universal Milling Machine LM-1450C, Auto Feed on X, Y, Z Axis, 1630x320mm table size

Heavy duty universal mill Combining and extra large working area and large travels to suit, we are confident this will cover your milling applications. Table size, 1630x320 mm, X/Y/Z travel: 800/310/420 mm, Automatic feed on X, Y, Z

Runs on 3 Phase power

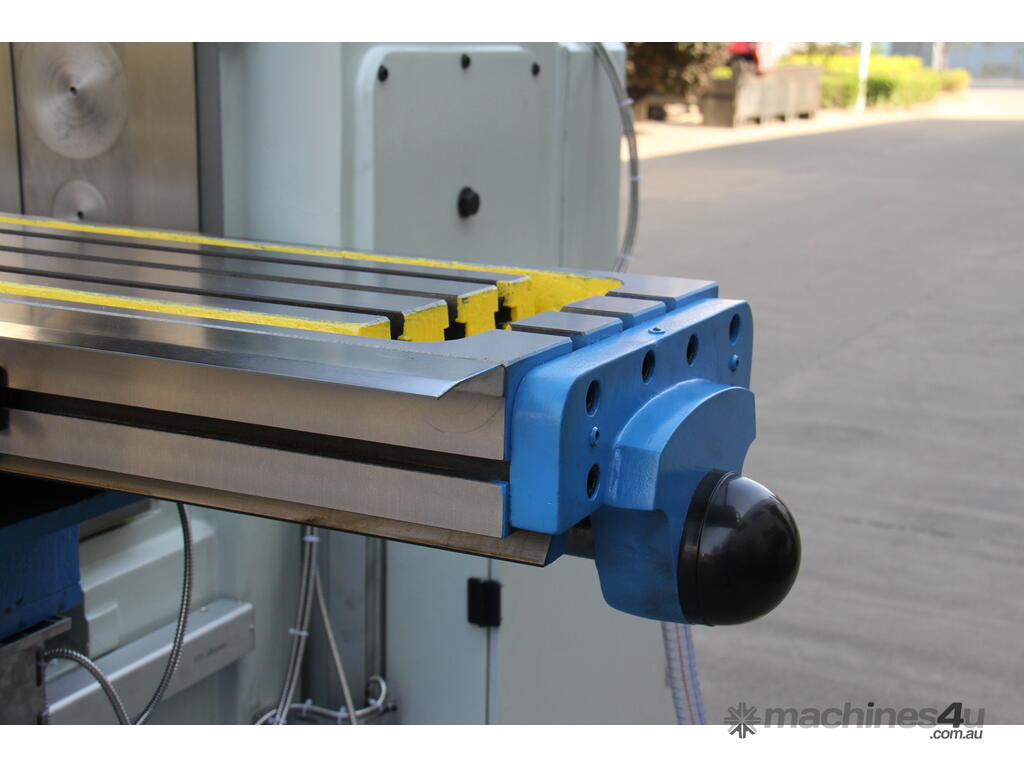

Large 1630x320mm slotted worktable

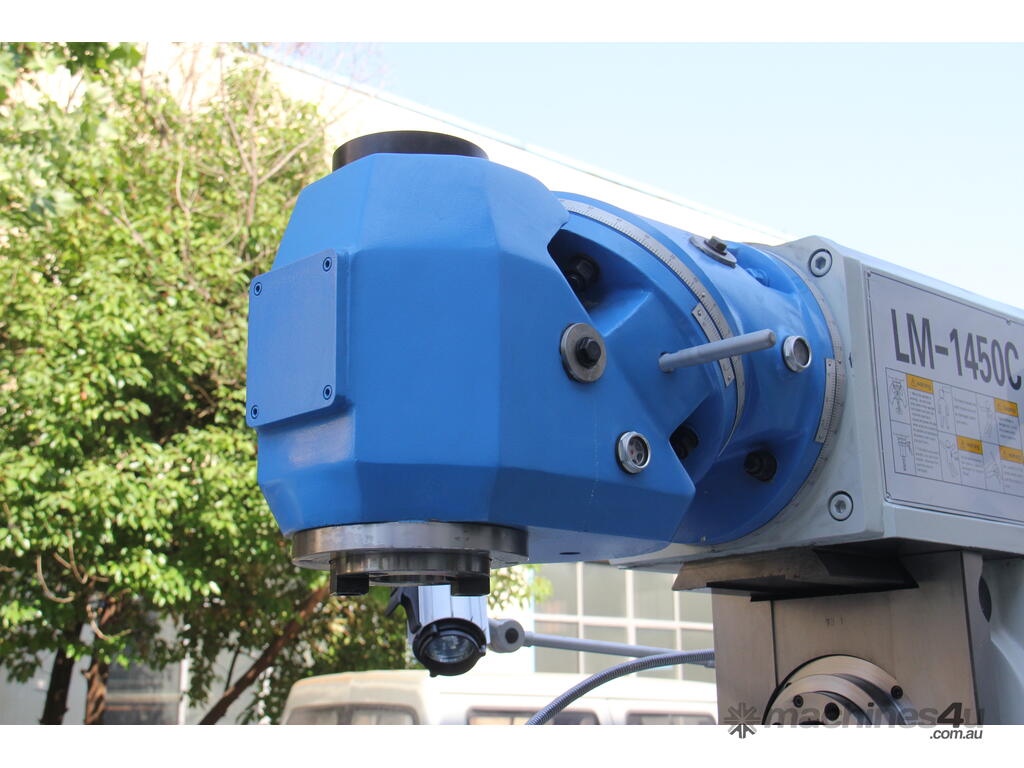

ISO50 universal head swivel 360°

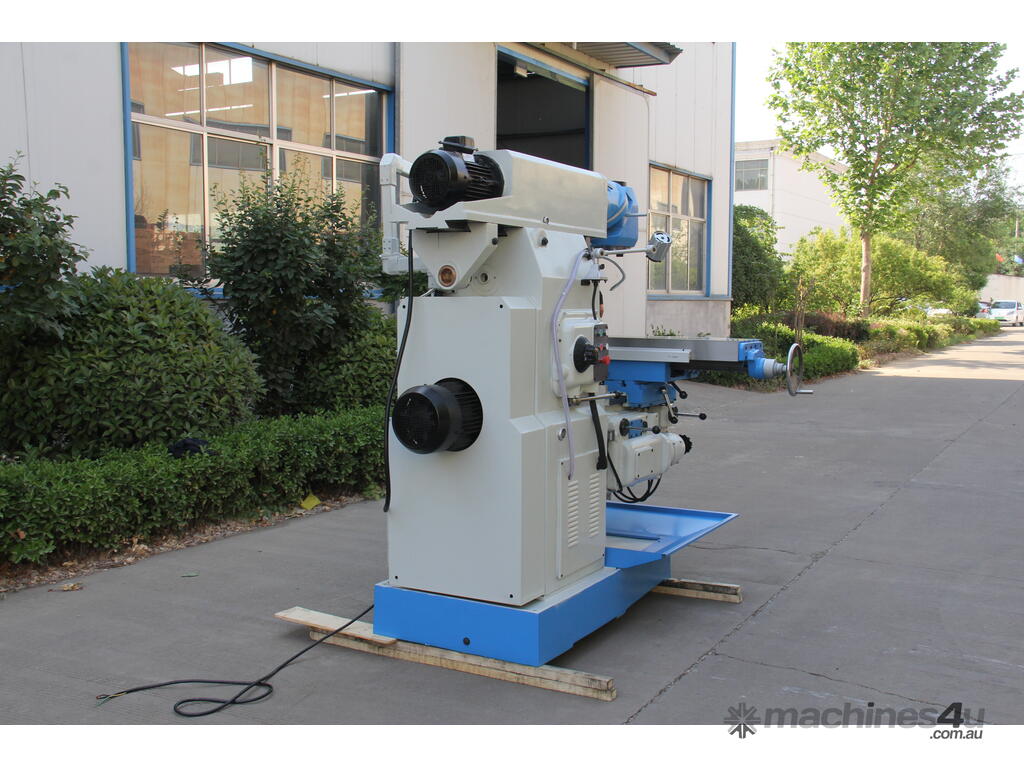

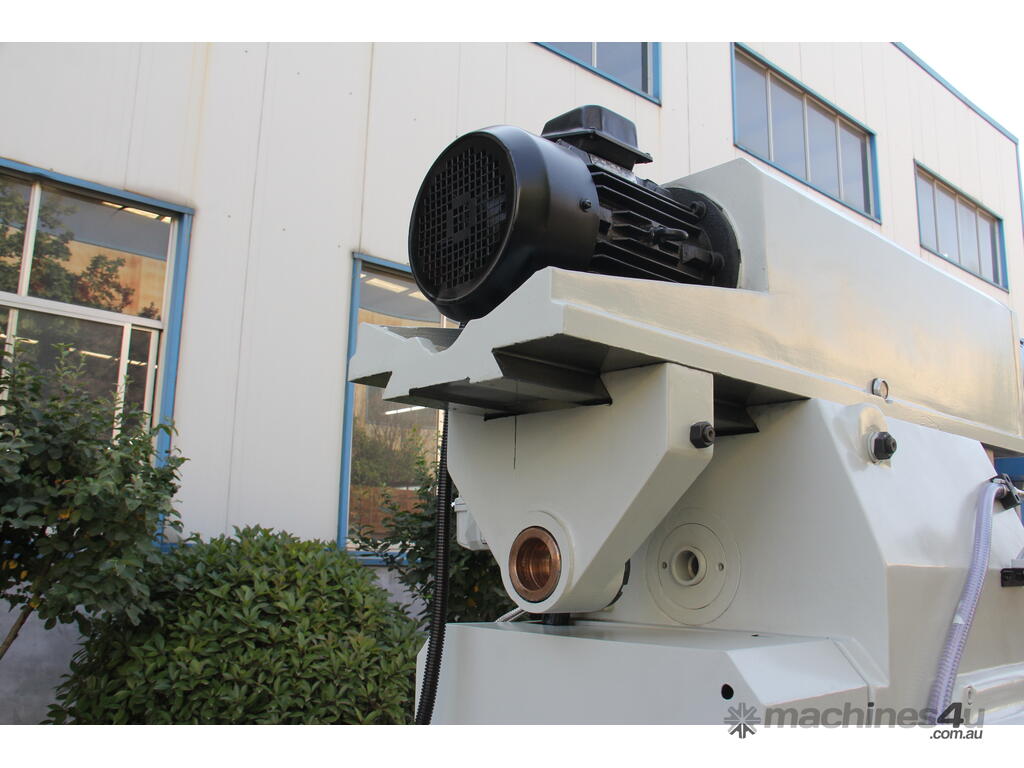

Horizontal milling ISO50 Spindle

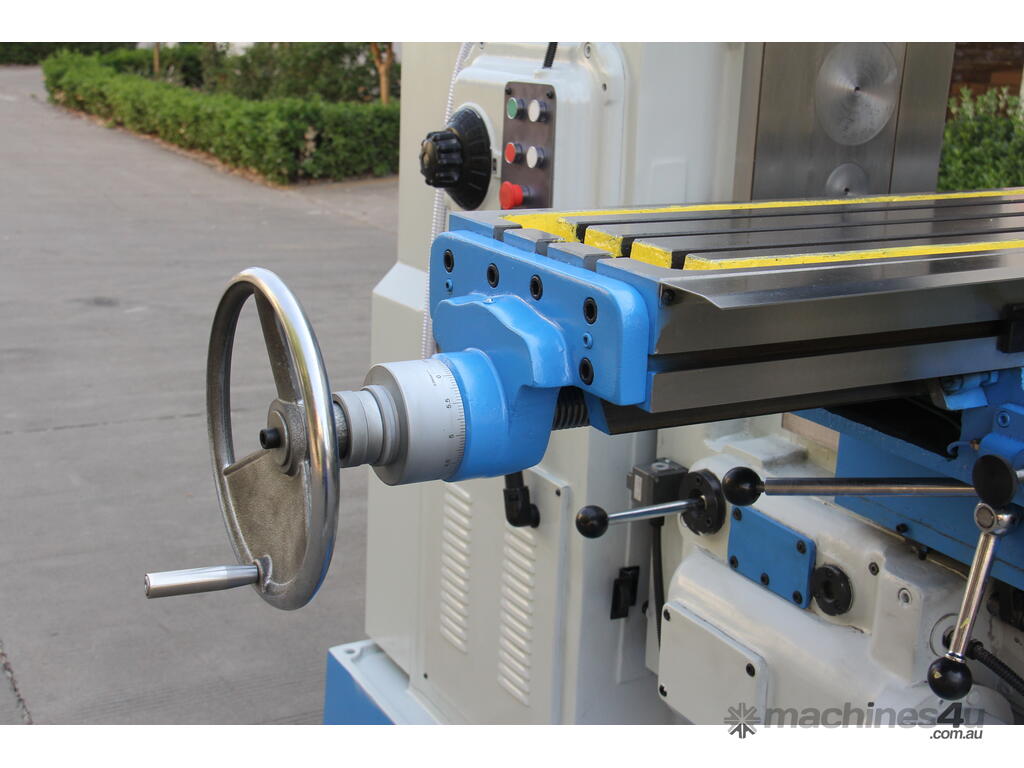

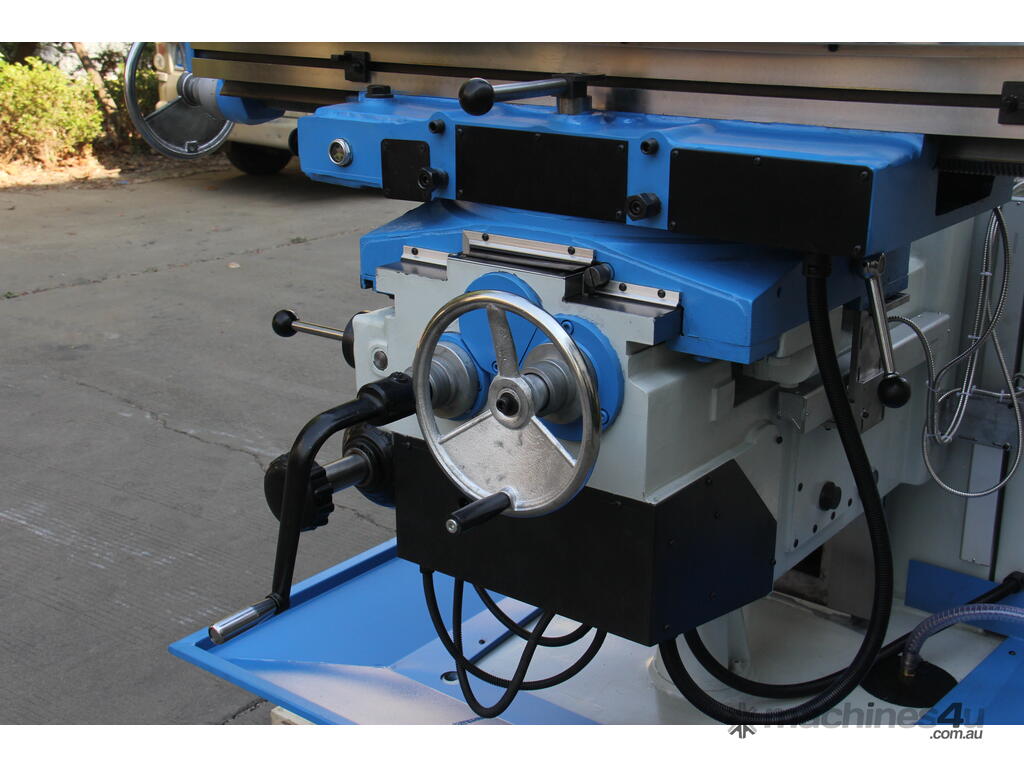

Table travel 800/310/420mm, automtic feed on X, Y, Z

Rigid, torsion-proof construction, dovetail guide X-Axis & wide square guides Y & Z-Axis

Table rotates ±45°

Oil lubrication pump and reservoir

Standard LED working light & Cooling system


Specifications

Item NO. 383013

Model LM-1450C

Spindle taper (V) ISO50

Spindle taper (H) ISO50

Spindle speed (V) 60-1700 rpm, 12 steps

Spindle speed (H) 30-1500 rpm, 18 steps

Distance from spindle to table 150-570 mm

Swivel angle milling head 360°

Table size 1630x320 mm

Table travel 800x310x420 mm

T-stot 3/18/70 mm

Tabel rotary ±45°

Motor power 4.0 kW (V), 7.5kW (H)

Packing size 223x210x225 cm

N.W./G.W. 3500/3700 kg
