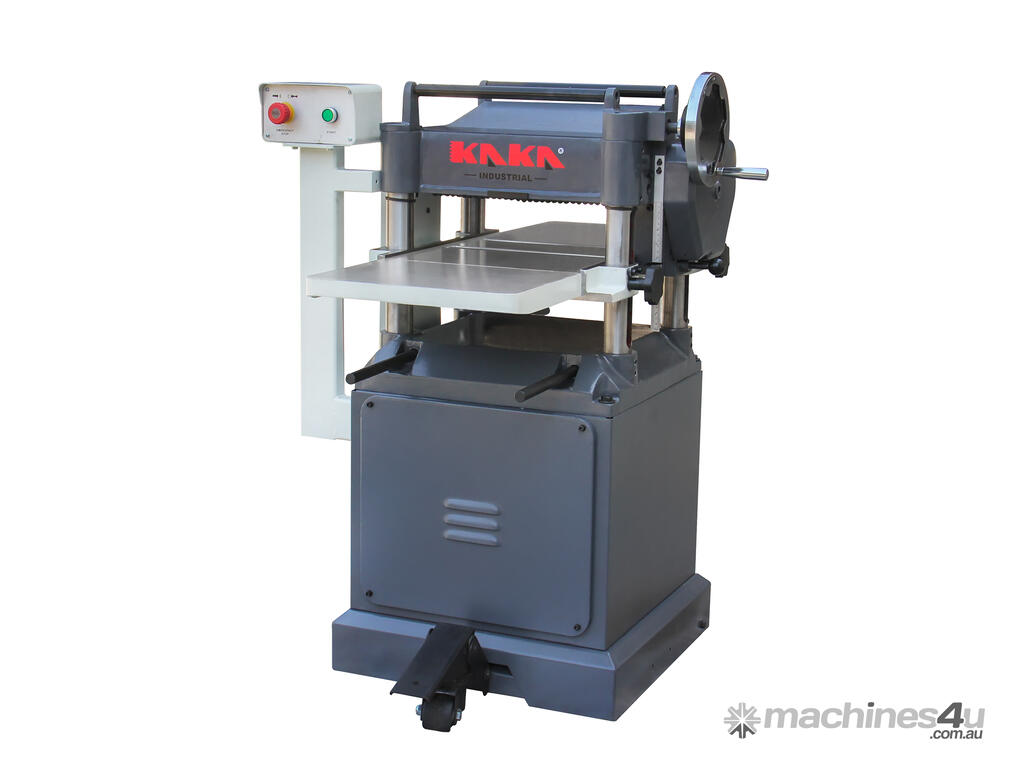

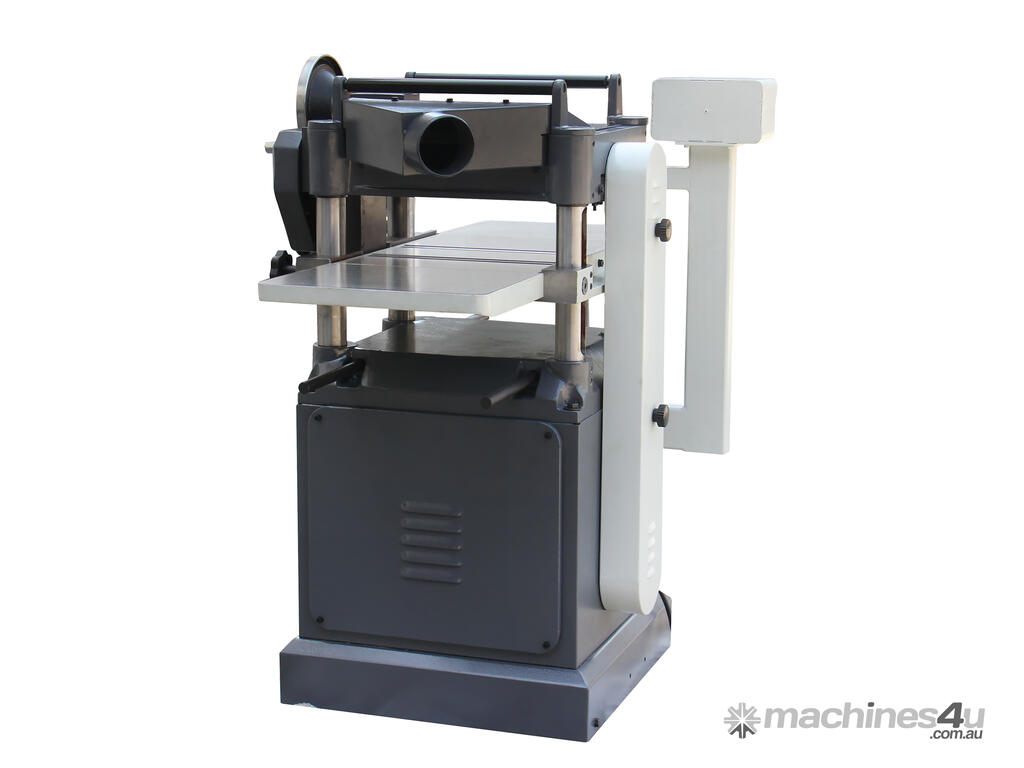

Kang Industrial WDP-4215 Spiral Cutterhead

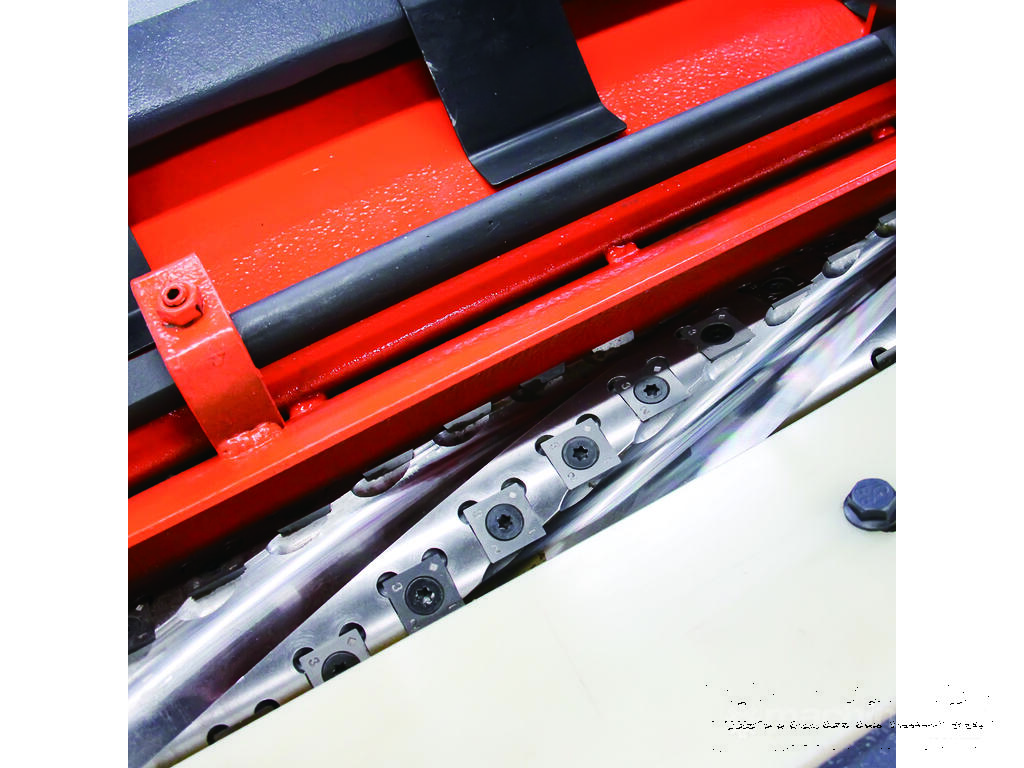

380x200 mm thicknesser capacity, Spiral Cutterhead with 74 Carbide inserts.
3 HP Powerful motor runs on 240V Power
Max. cutting depth up to 3 mm

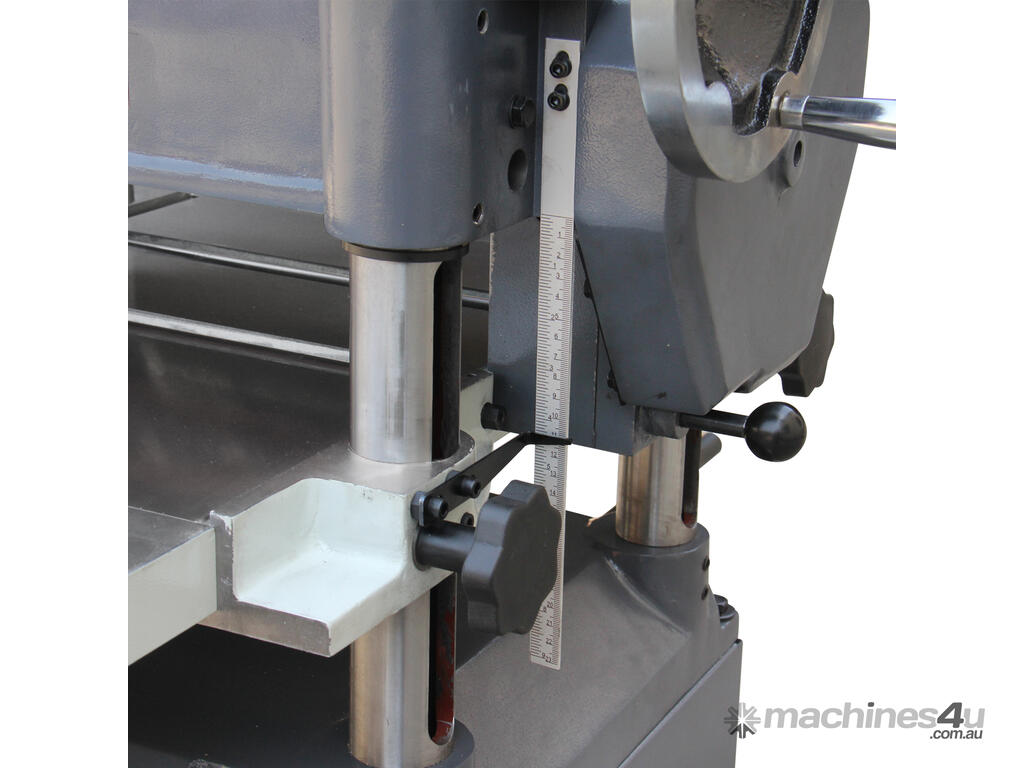

Heavy cast iron table raises and lowers on four precision ground columns
Two feeding speed 31rpm & 54 rpm
Cutterhead speed up to 4750 rpm

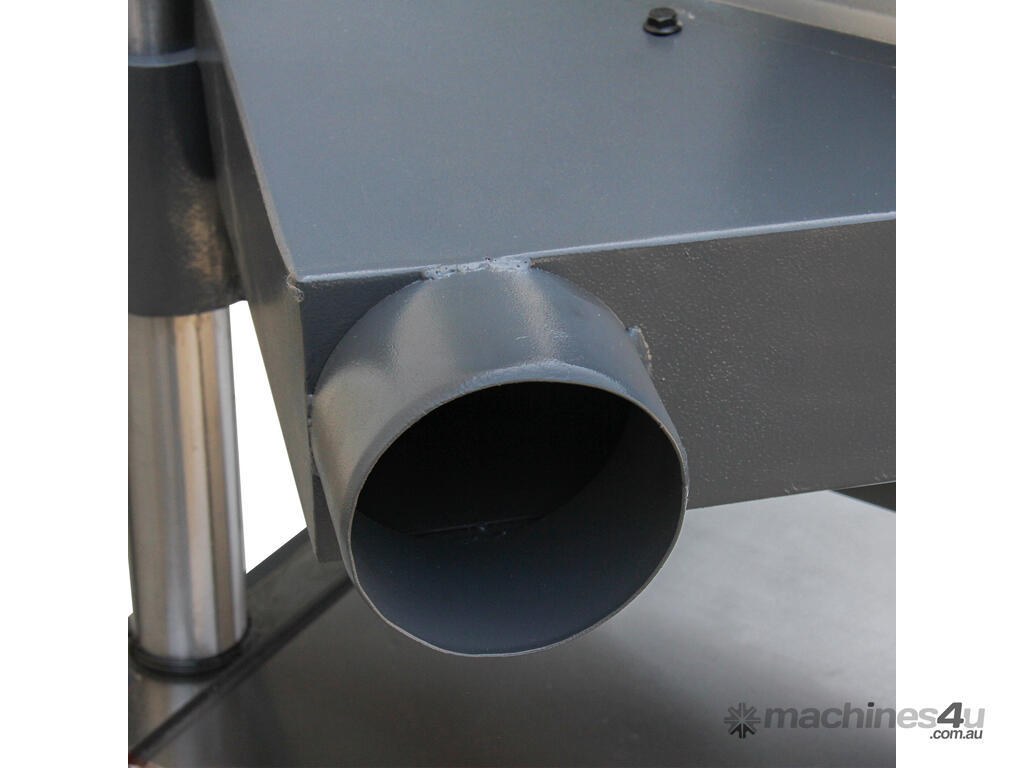

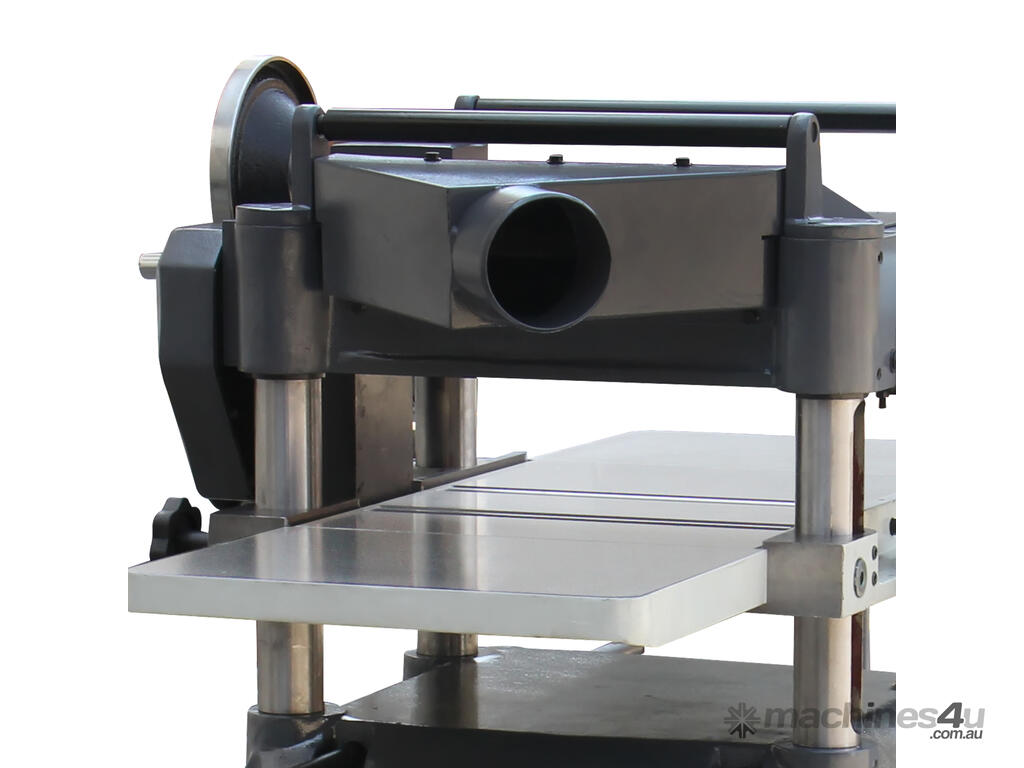

100mm dust port, could use Kang Industrial Dust Collector DC900
Specifications
SKU 473050
Model WDP-4215
Max. cutting width 380 mm
Cutting thickness 5-200 mm
Max. cutting depth 3 mm
Cutterhead type Spiral cutterhead
Cutterhead speed 4750 rpm
Insert size & type 15x15x2.5 mm, indexable carbide
Feed rate 31 rpm, 54 rpm
Motor power 2.2 kW
Table size with extensions 1070x380 mm
Packing size 92x73x130 cm
N.W./G.W. 273/310 kg
