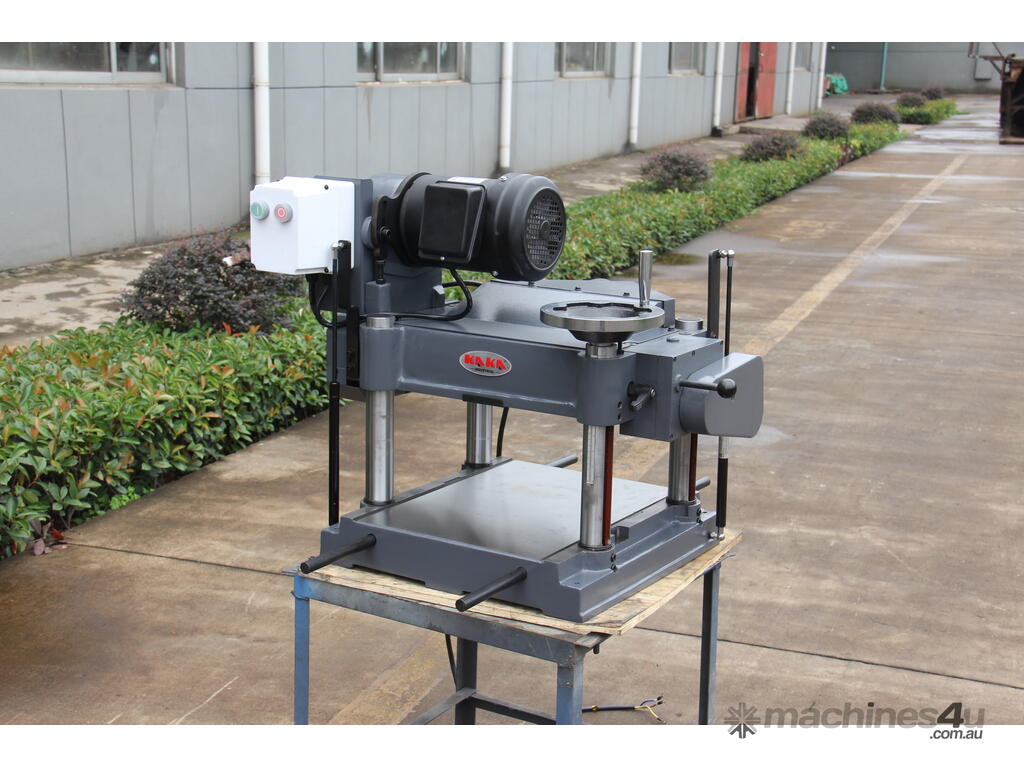

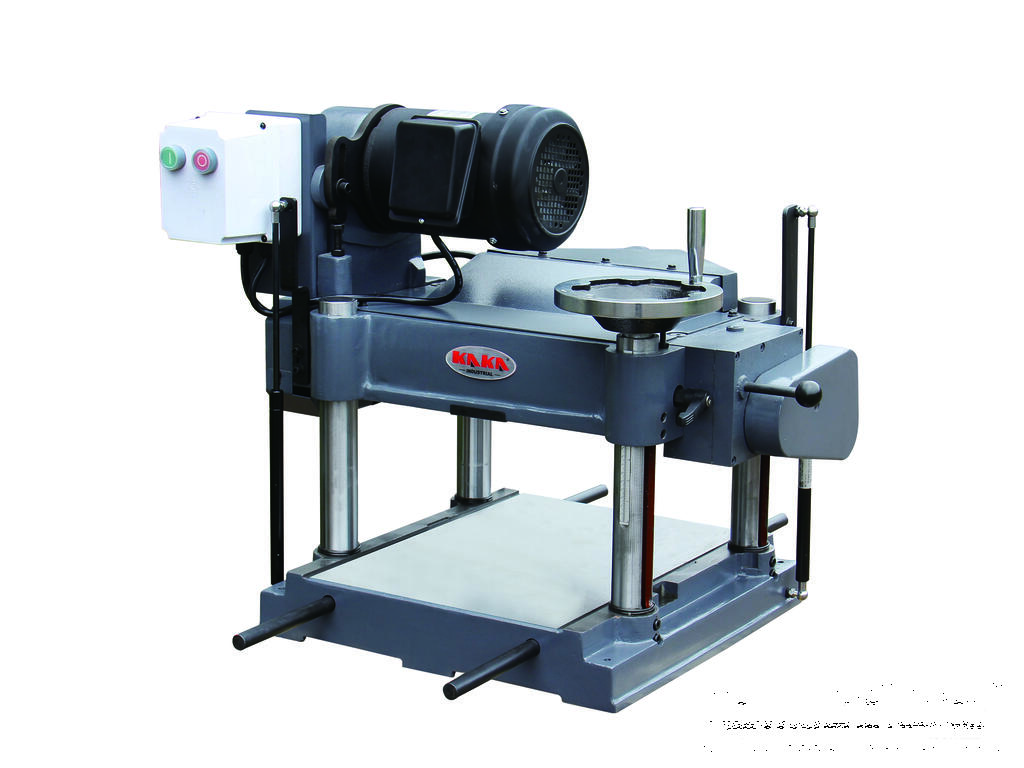

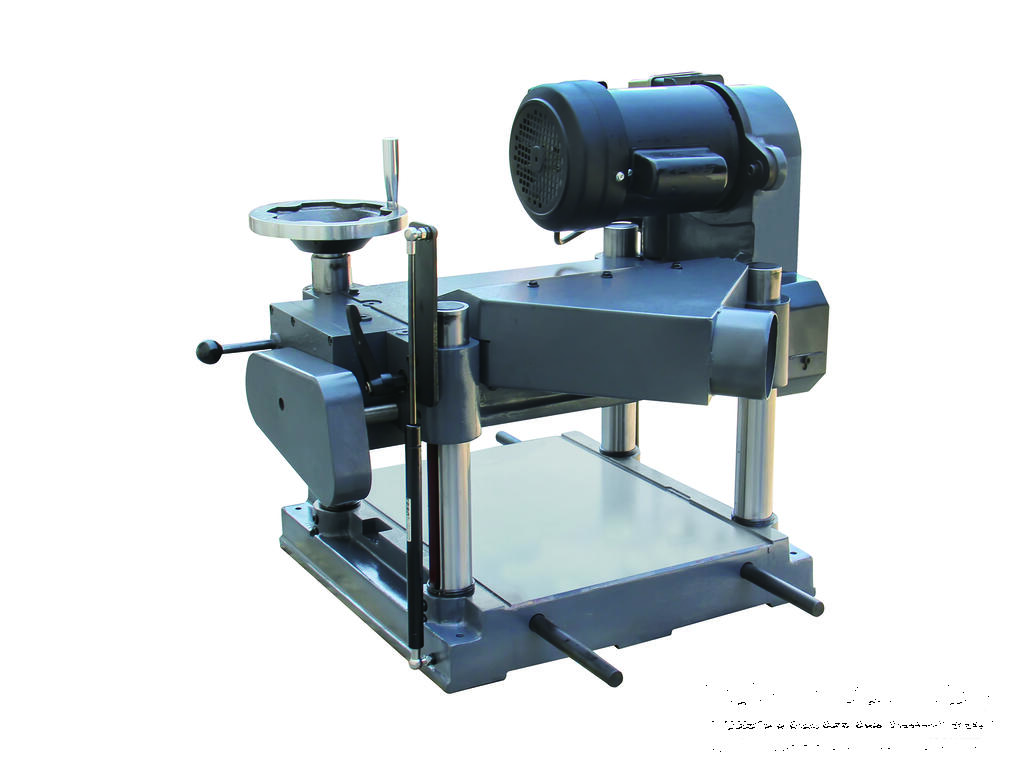

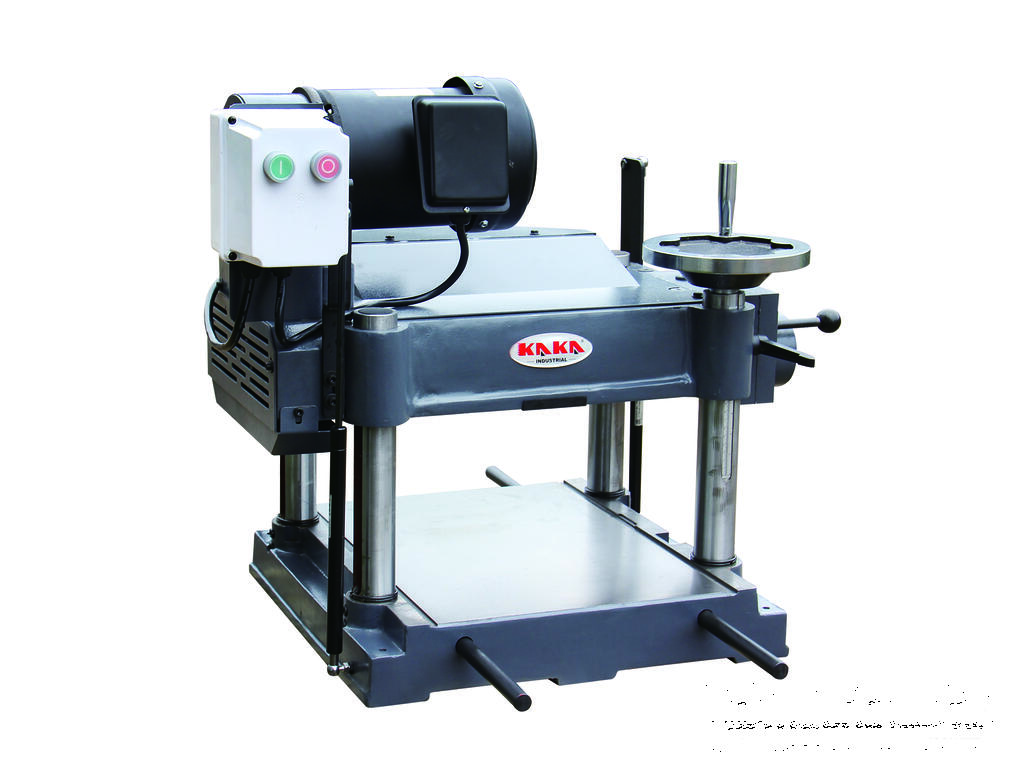

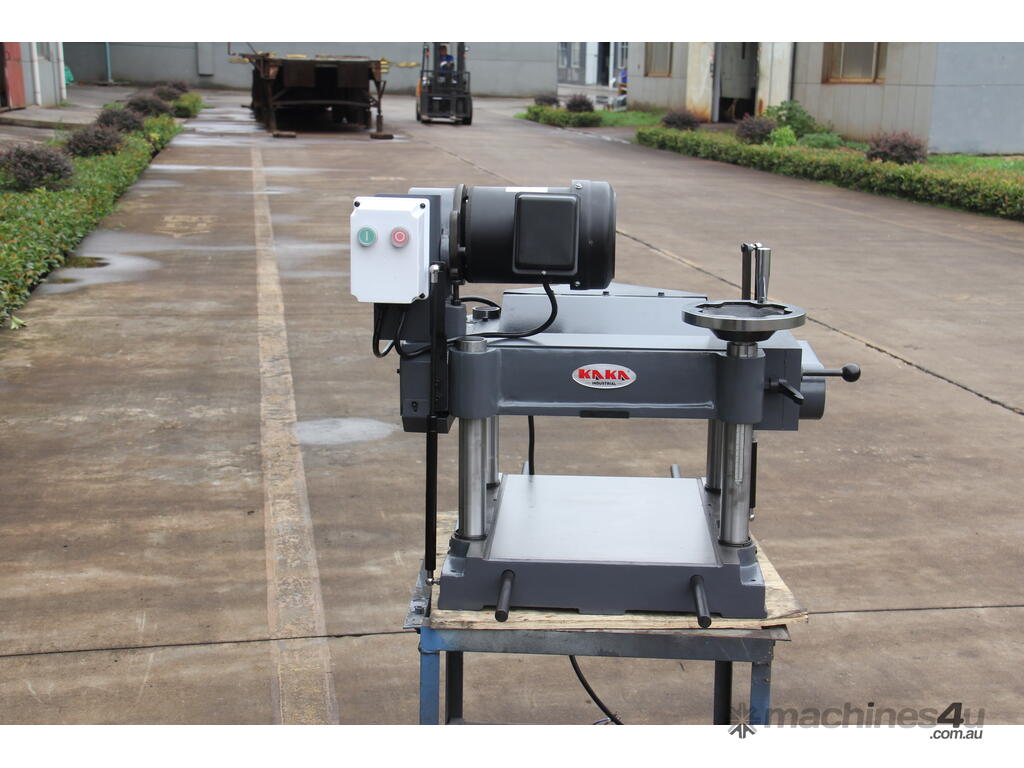

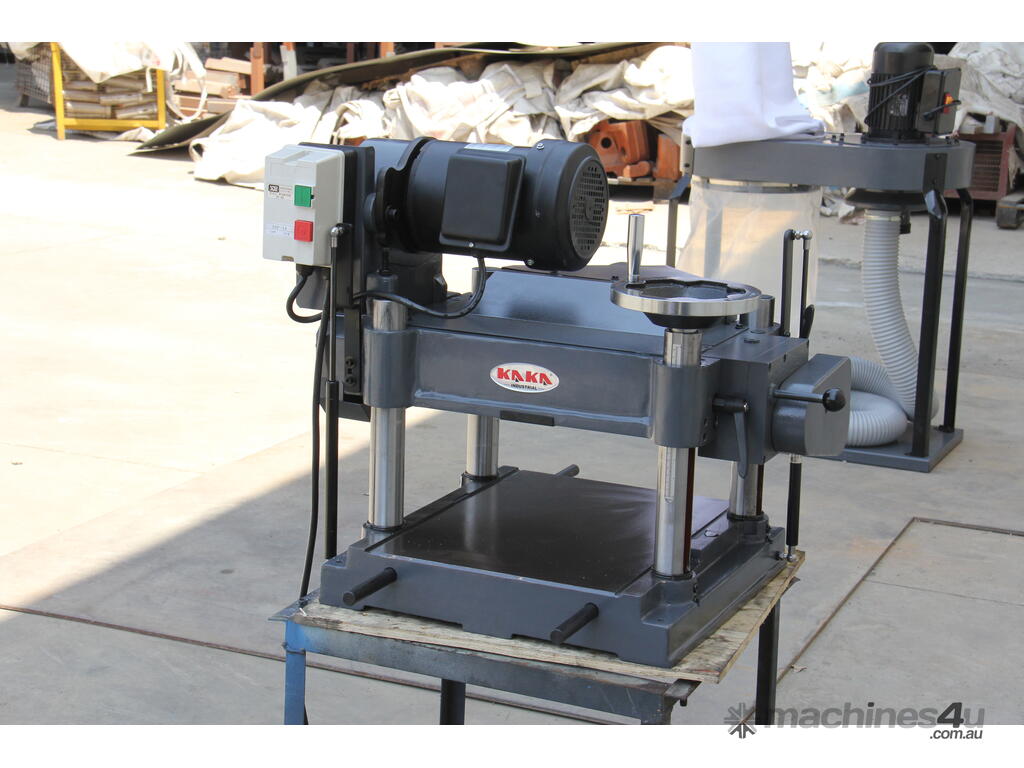

Kang Industrial WDP-4215B Bench Top Thicknesser Spiral Cutterhead

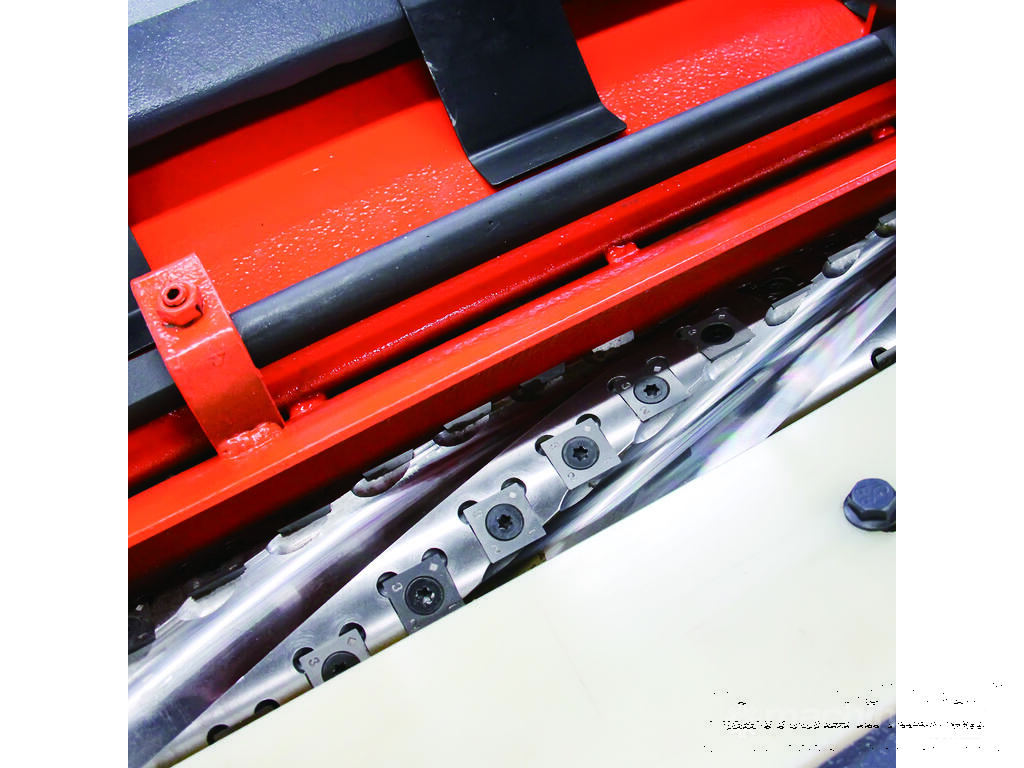

380x210 mm thicknesser capacity, Spiral Cutterhead with 74 Carbide inserts.
Benchtop thicknesser
3 HP Powerful motor runs on 240V Power
Max. cut 380x210 mm timber
Max. cutting depth up to 3 mm

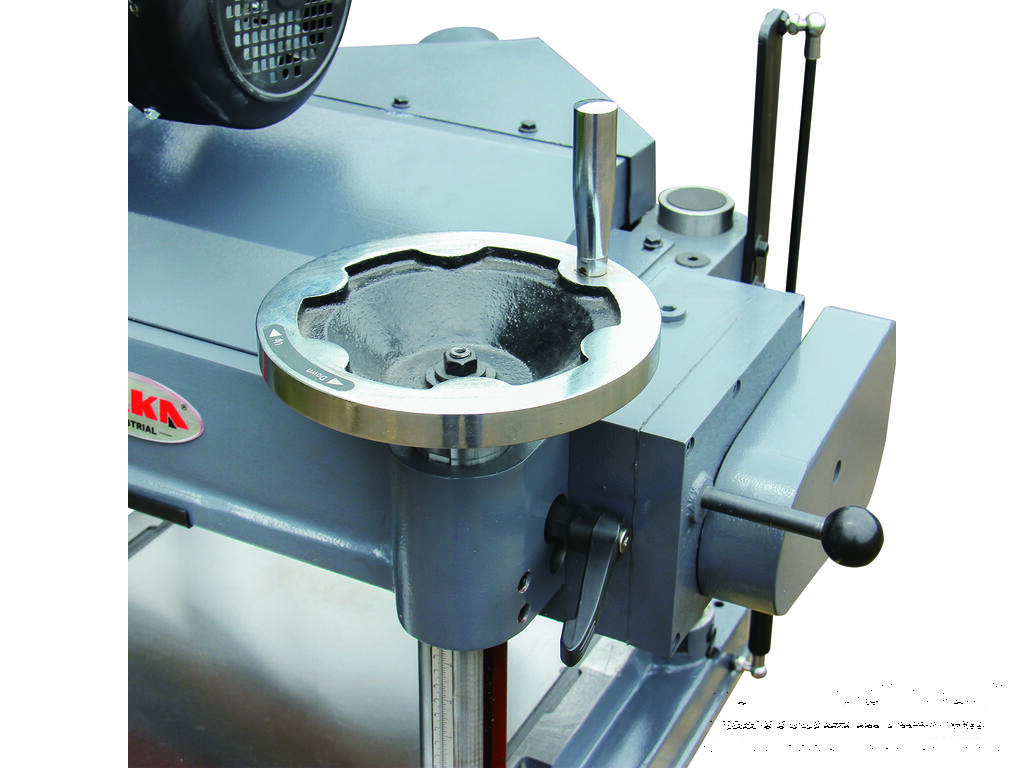

Heavy cast iron table raises and lowers on four precision ground columns
Two feeding speed 32rpm & 56 rpm
Cutterhead speed up to 5000 rpm

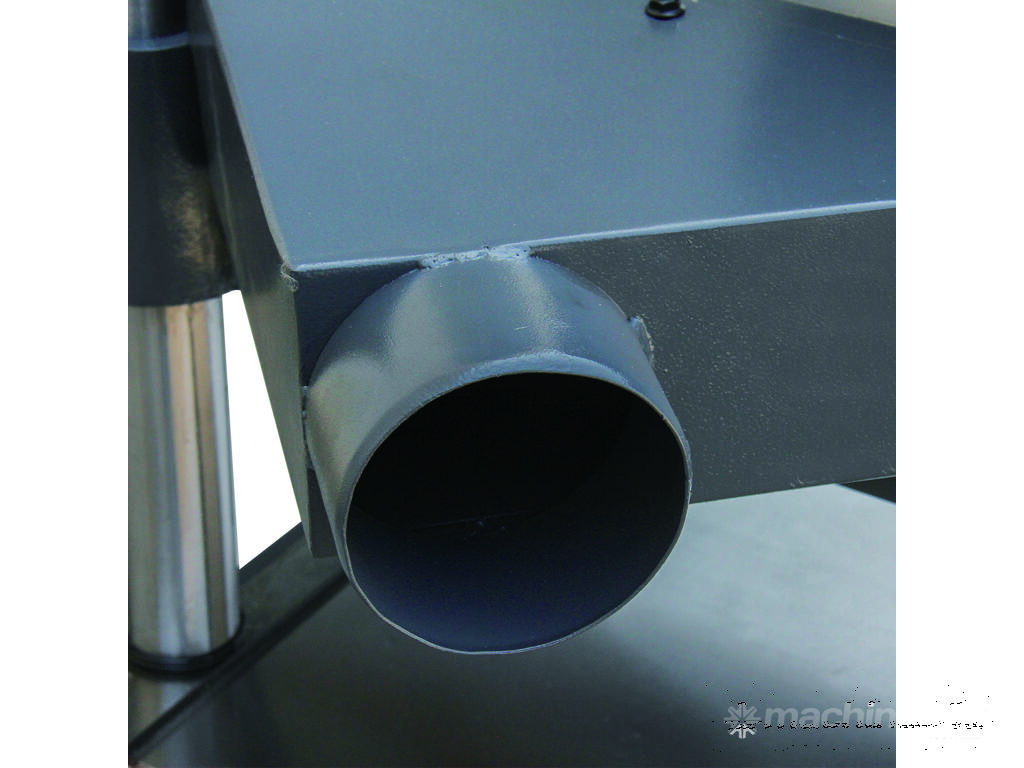

100mm dust port, could use Kang Industrial Dust Collector DC900
Specifications
SKU 473055
Model WDP-4215B
Max. cutting width 380 mm
Cutting thickness 5-210 mm
Max. cutting depth 3 mm
Cutterhead type Spiral cutterhead
Cutterhead speed 5000 rpm
Insert size & type 15x15x2.5 mm, indexable carbide
Feed rate 31 rpm, 54 rpm
Motor power 2.2 kW
Table size with extensions 515x380 mm
Packing size 94x64x72 cm
N.W./G.W. 145/165 kg
