KAKA Industrial ESR-5108, 4.5x1300mm motorized plate curve rolling machine
Ideal plate rolling machine for light or medium fabrication shops
Features:
1. Runs on 415V-3PH power
2. Working width up to 1300mm
3. Could roll 4.5mm max. across the full width

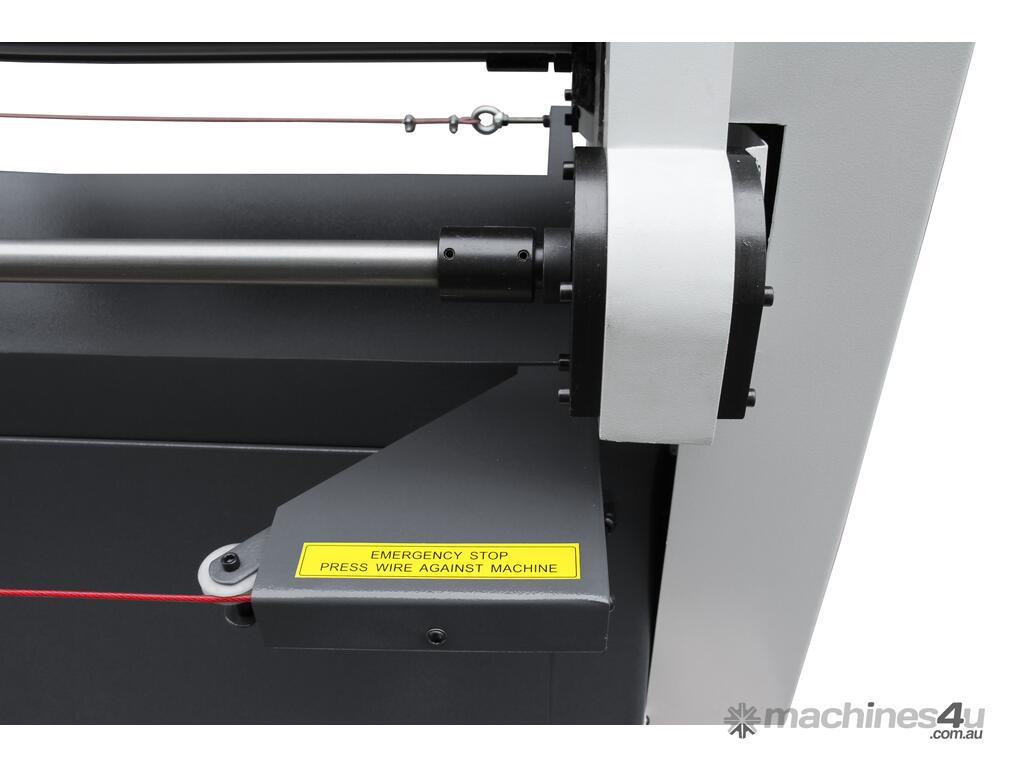

4. Safety line interlock system with emergency stop

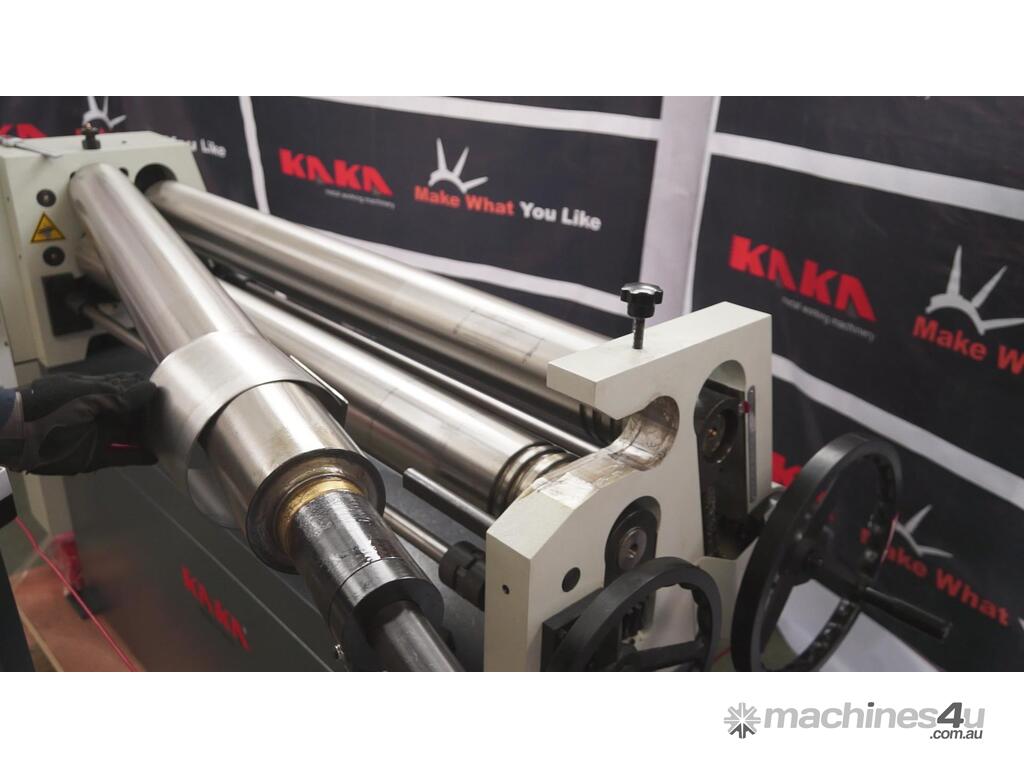

5. Top roll swing out across cam lock to take out the workpiece

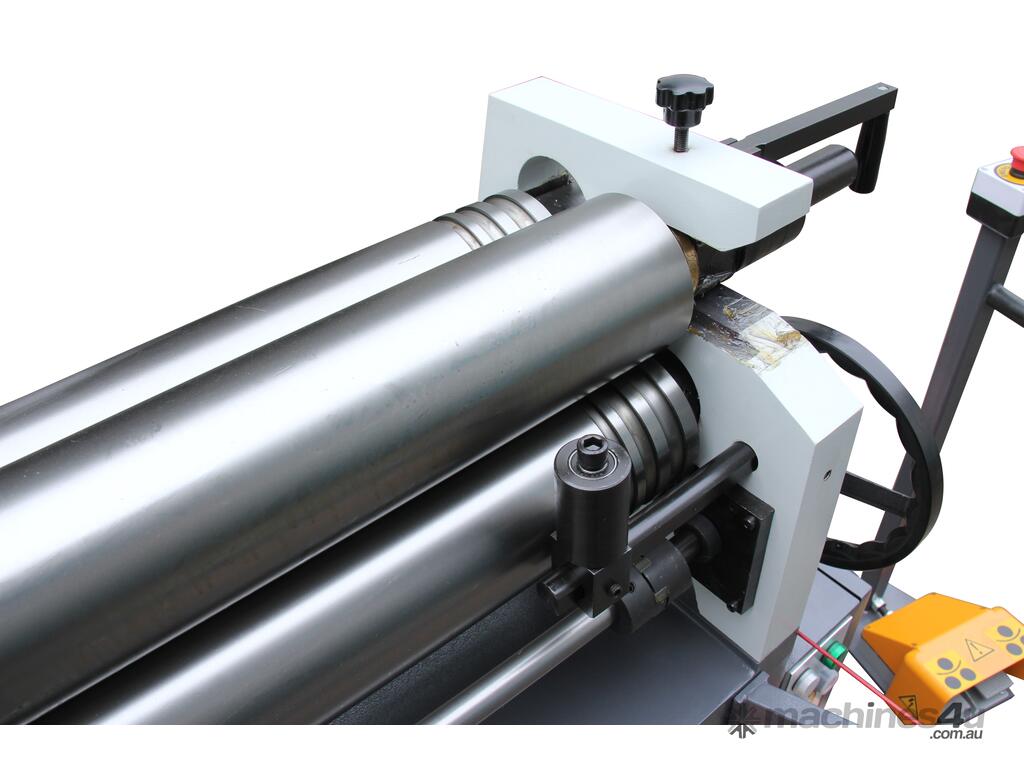

6. Standard with wire core groove for wire rolling
*** Optional motorised up and down the rear roller with extra cost***
Specs:
SKU: 191105
Model: ESR-5108
Max. rolling thickness: 4.5 mm
Max. rolling width: 1300 mm
Dia. of roller: 120 mm
Min. Rolling dia.: 130 mm
Motor power: 2.2 kW
Roller speed: 9.3 rpm
Packing size: 200x76x127 cm
N.W./G.W.: 750/840 kg
