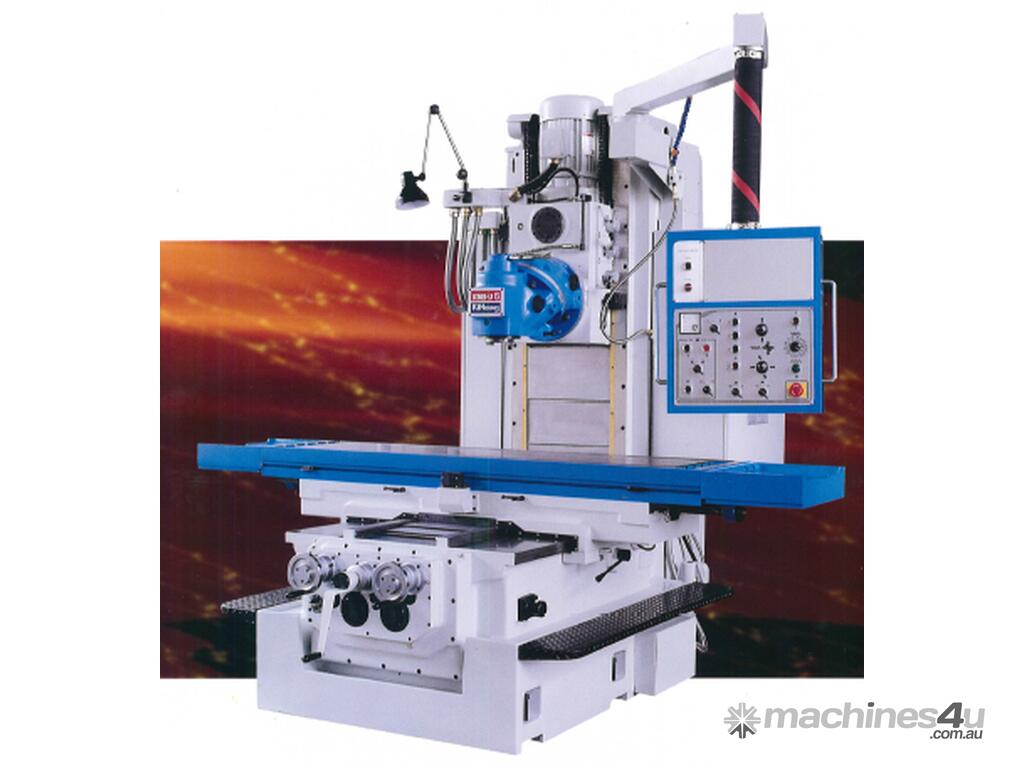

Kiheung heavy duty Universal bed type milling machine
These are an extremely high quality machine made in South Korea.
KMB-U6 model
Table size 2200 x 550 mm
Maximum table load 3000 Kg
X axis travel 1600 mm
Y axis travel 710 mm
Z axis travel 700 mm
Varaible feeds in all directions
Height from table to vertical spindle nose 50 – 750 mm
Spindle taper NT50 or BT50
Spindle motor 11KW – 15HP
Siemens motors
Machine net weight Approx 8000 Kg
