Kingsland 60P Punch Machine Made in England

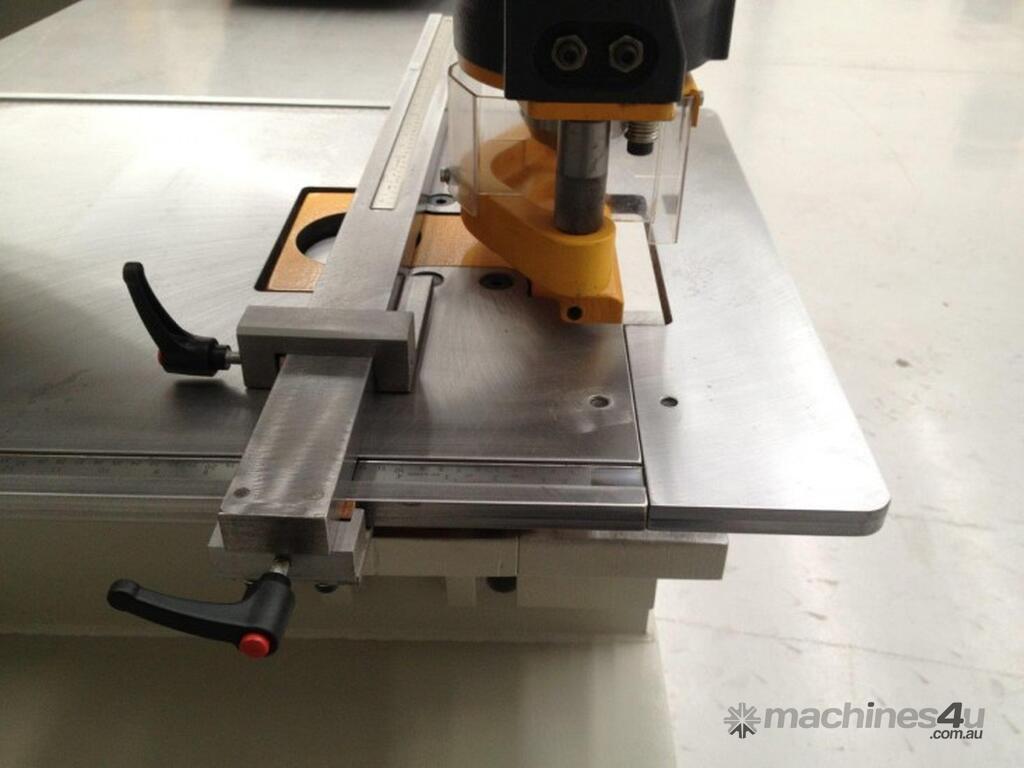

The Kingsland range of Hydraulic Punching Machines all come equipped with a deep throat of 625mm as standard. Heavy-duty support tables with scales and backstops, universal die holder for punching in plate, flat bar, angle iron and flange of channel and beam are all part of the standard execution. The Kingsland Hydraulic Punching machines are also available in double-ended execution (option), using a shared frame and thus saving space and money. The standard machine (single ended version) comes equipped with a deep throat and universal die-bolster, punching up to 57mm diameter/slot. The front part of the table can be removed in order to punch in large format angle-iron.

Maximum Capacity: 29 x 15mm
Diameter x Thickness: 57 x 8mm
Stroke Length: 55mm
Standard Throat Depth: 625mm
Largest Hole – Standard Equipment: 57mm
Largest Hole: (*) 160mm
Working Height: 1075mm
Bar Bend Max Capacity: 250 x 12mm
Sheet Bend Max Capacity: 500 x 3mm

Technical Data:
Motor Power: 5.5kw
Nett Weight – Std. Throat: 1320kg
Gross Weight – Std. Throat: 1420kg
Machine Dimensions: 164 x 71 x 178mm
(*) Optional Equipment
