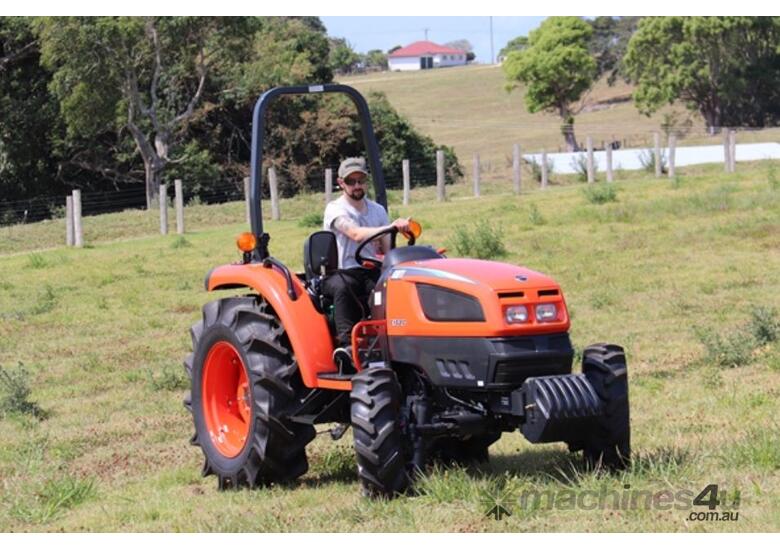

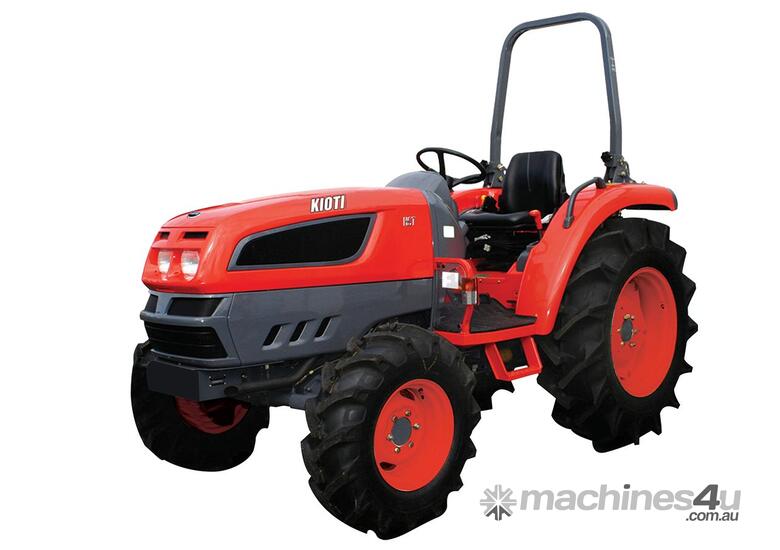

Kioti EX5810 ROPS Compact Tractor

Kioti EX Series. EXtra power, EXtra standard features, EXtra comfort

The measure that makes a tractor a true asset is the boost it gives to your productivity. It has to deliver enough power and versatility for a wide range of applications, day in, day out, season after season. This is where Kioti’s EX Series outperforms the competition and offers unbeatable value.

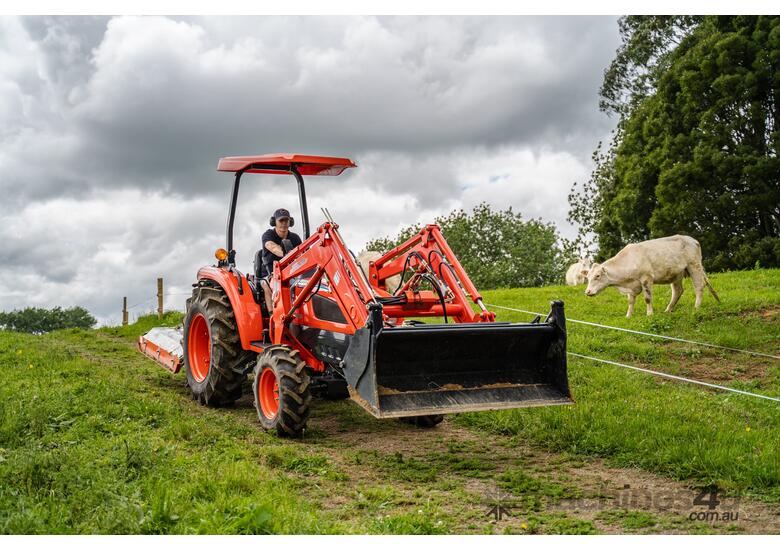

Offering a turbo-aspirated 58 hp, and numerous features that give this tractor the edge over others. Consider the powerful hydraulic system flow, 12 x 12 three-range smooth synchro shuttle transmission, two sets standard rear remotes, a generous 3-point linkage lift capacity of 1131kg, standard loader with 4-in-one bucket and standard three-speed auto PTO.

The flat platform operator area has a no-slip mat, standard foot-activated tilt steering column and fully adjustable deluxe suspension seat for all-day comfort.

High ground speed, push button 4WD, and power steering provide you with confidence, traction and excellent manoeuvrability in changing ground conditions and tasks.

Whether you compare specs and crunch the numbers yourself, or have a chat with your local dealer, the ultra-versatile EX series adds up to a great choice for a better tractor.


58 hp Engine
12 x 12 Manual Transmission
Deluxe Suspension Seat
Auto Hydraulic Independent PTO
2 x Rear Remotes Standard

SPECIFICATIONS
ENGINE
EX5810: 4B243DTM-C | 58 hp 2600 rpm
2435cc Displacement
48 Litre Fuel Tank Capacity

TRANSMISSION
12x12 Synchro Shuttle
Rear Differential Lock
4 Wheel Drive

HYDRAULICS & LINKAGE
Tandem Gear Hydraulic Pump
Manual Linkage Control
62.4 l/min Total Flow
CAT I 3-Point Linkage
1,131 kg Max Rear Lift Capacity 610mm behind Lift
Power Steering
2 x Rear Remotes

PTO
Hydraulic Independent rpm

BRAKES
Wet Disc Type

OPERATOR ENVIRONMENT
Front Work Lights with Indicators / Brake Lights
Step Through Platform
Under Bonnet Muffler
Comfort Seat with Seat Belt
Foldable ROPS

TRAVEL SPEEDS
Speed Range 1.5-27.9 km/h

DIMENSIONS
Overall Length incl. 3PL 3317mm
Overall Height inc ROPS 2550mm
Overall Width min tread 1675mm
Wheelbase 1919mm
Min Ground Clearance 405mm
Weight 1790kg

TYRES
Ag - Front 9.5-16, Rear 13.6-26
