Kombucha Bottle filling line

Kombucha Bottle filling Line for Glass and PET.

Complete Line for sale consisting of the main components below.

De Palletizer:

AUTOMATIC DEPALLETIZER Mod. DPB-0051 designed to depalletize the following formats:

GLASS BOTTLES
• 330 ml
• 750 ml


PET BOTTLES
• 300 ml
• 700 ml



Filler:

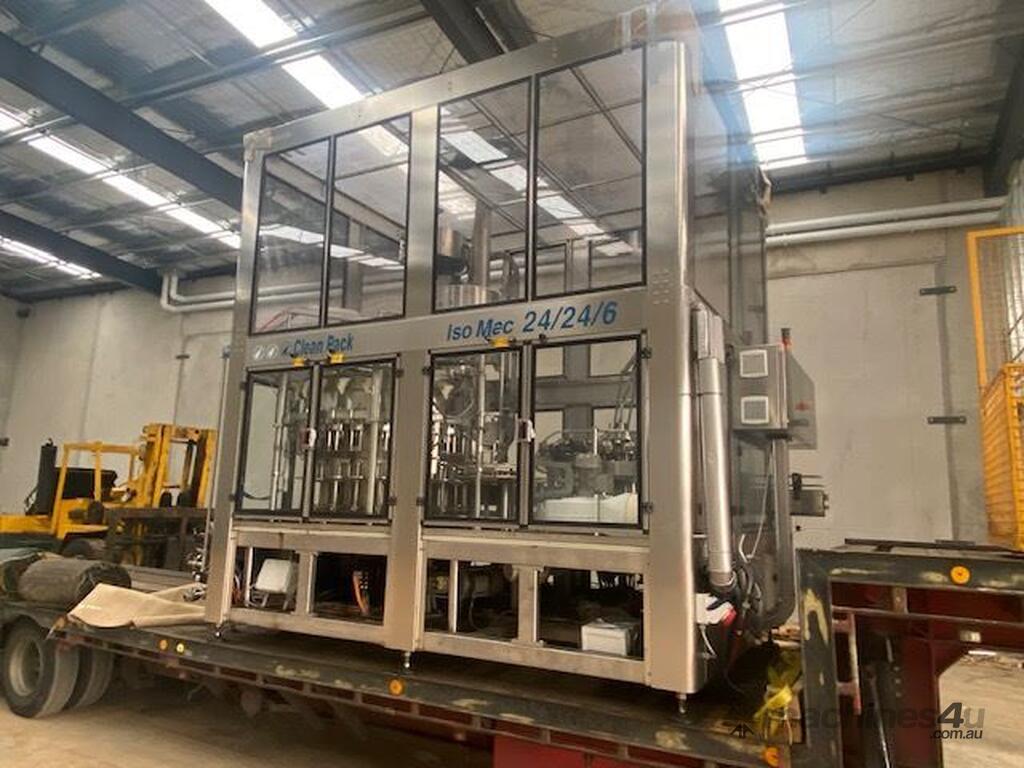

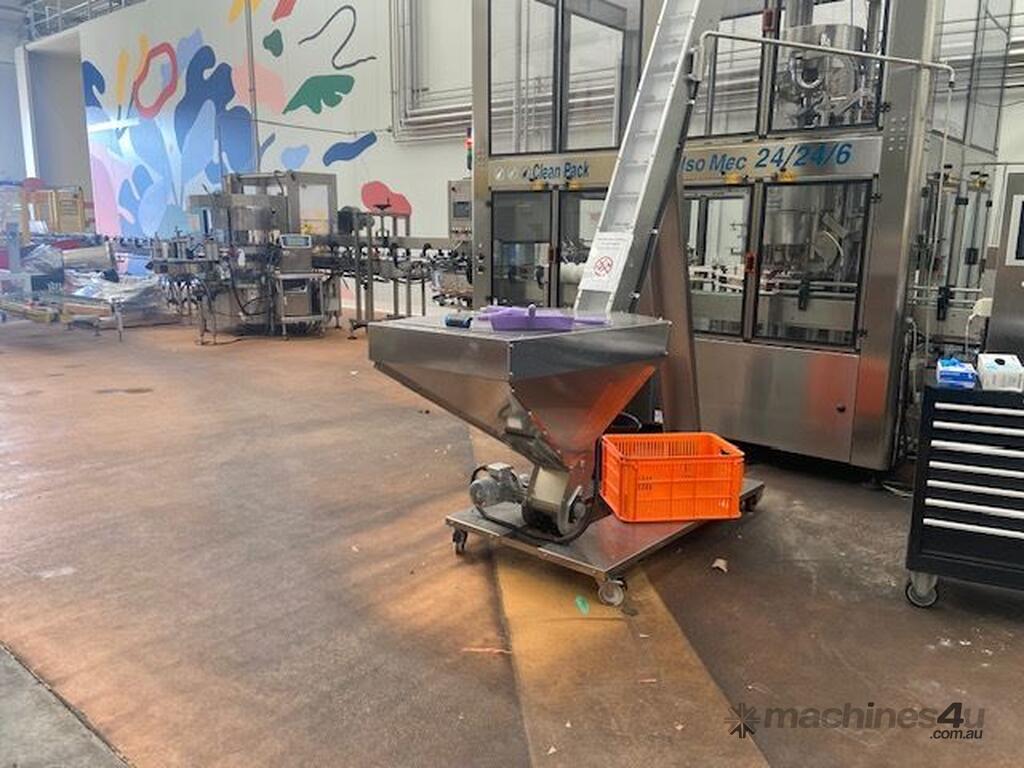

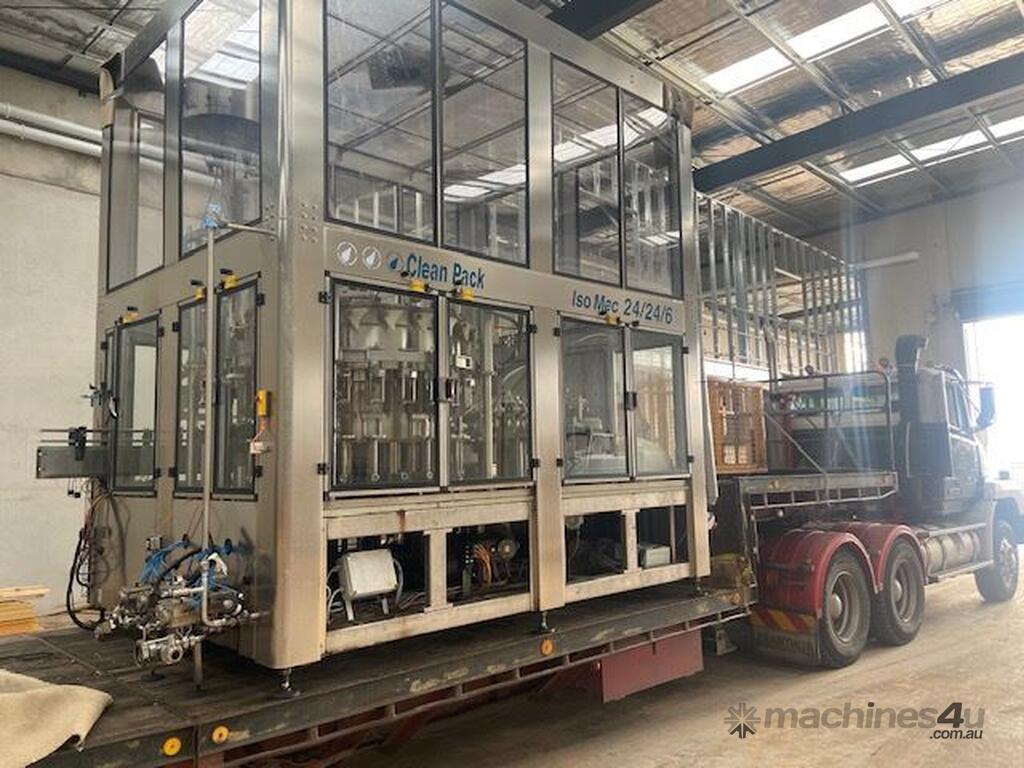

ISO MEC 24 / 24 / 6 AV – PF PP Bottle Filler. Suitable to bottle KOMBUCHA into GLASS and PET BOTTLES by means of a THREE-BLOCK composed by a 24 head gripper rinsing turret, a 24 valve counter pressure filler and a 6 head capper Pick and place which can do ROPP and PRE-THREADED CAPS. Aluminium cap and plastic cap.

Approx speeds below.

100 bpm (6.000 bph) by 300 and 330 ml
66 bpm (4.000 bph) by 700 and 750 ml



Labeller:

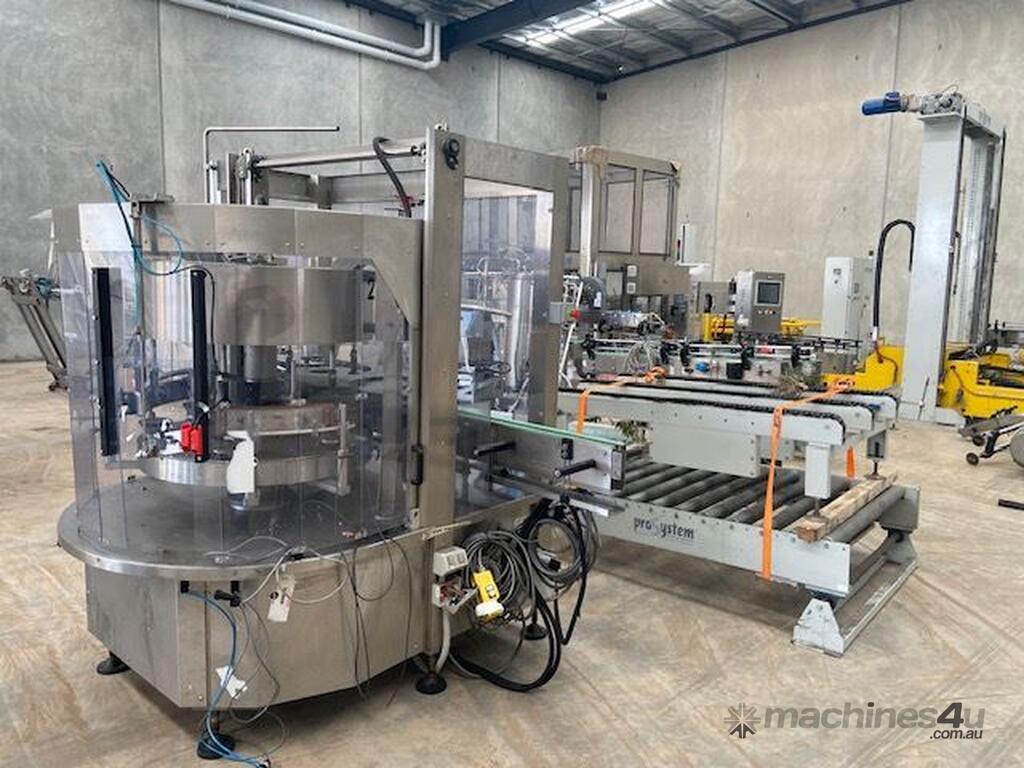

LABELMATIC R 6T AD S3 E2 it’s a ROTARY 6 HEADAS labelling machine suitable to apply
1 self-adhesive labels by 2 labelling stations. The machine is suitable to process cylindrical
and / or shaped bottles with application of WRAP-AROUND labels.

Palletizer.

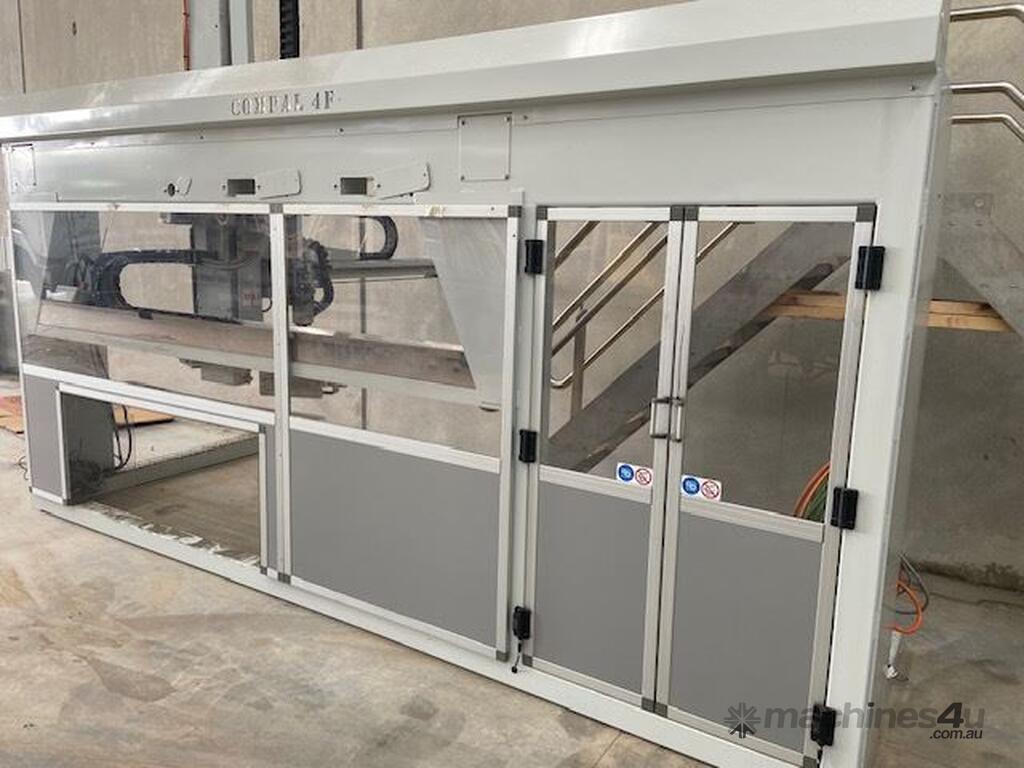

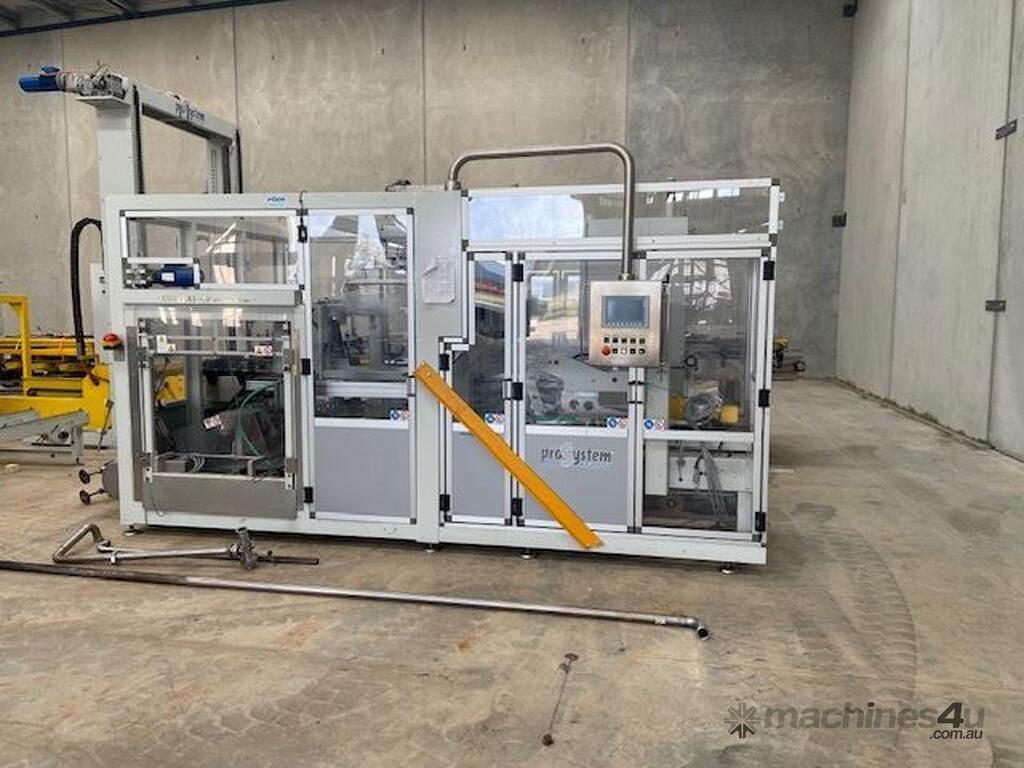

COMPAL-4F-NVE-006-MEC-NS is designed to form the carton, fill it and seal it with adhesive tape at the top-
bottom part and palletizing it, all in compact dimensions and spaces.
COMPAL incorporates all 4 phases of the packaging process, coordinating them by SIEMENS programmable
logic system

AUTOMATIC STRETCH WRAPPER Mod. ROTAFILM –PR1200

SATURATION SYSTEM – Clean Pack. Carbon dioxide saturation at 3.000 Lt P hour

Volume Material Packing speed Bottle per carton
330 ml. GLASS 60 bpm 6 (3x2)
330 ml. GLASS 120 bpm 12 (3x4)
750 ml. GLASS 60 bpm 6 (3x2)
750 ml. GLASS 120 bpm 12 (3x4)
300 ml. PET 60 bpm 6 (3x2)
300 ml. PET 120 bpm 12 (3x4)
700 ml. PET 60 bpm 6 (3x2)
700 ml. PET 120 bpm 12 (3x4)
