Kubota 25hp 4WD Diesel Tractor + FEL + Backhoe

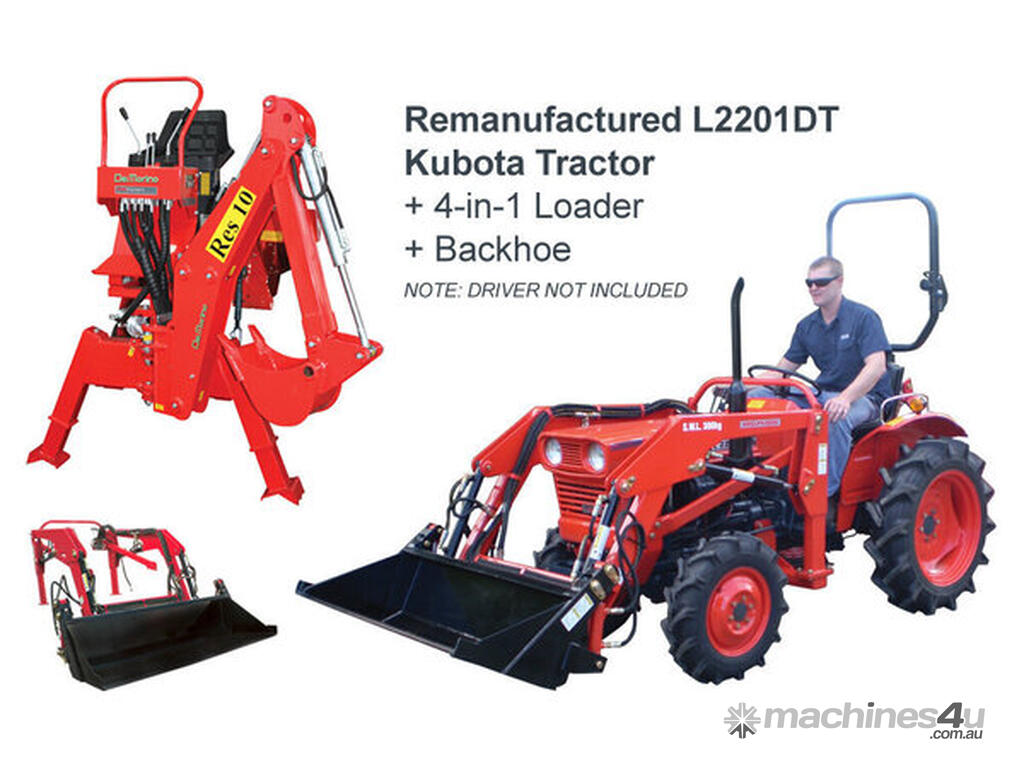

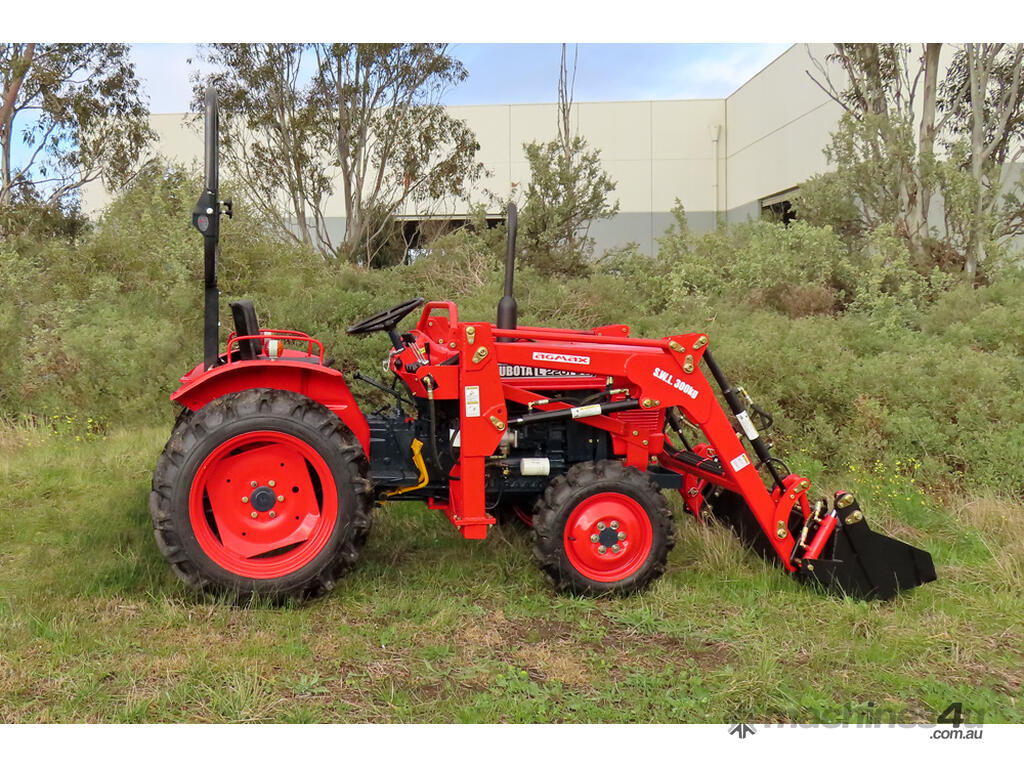

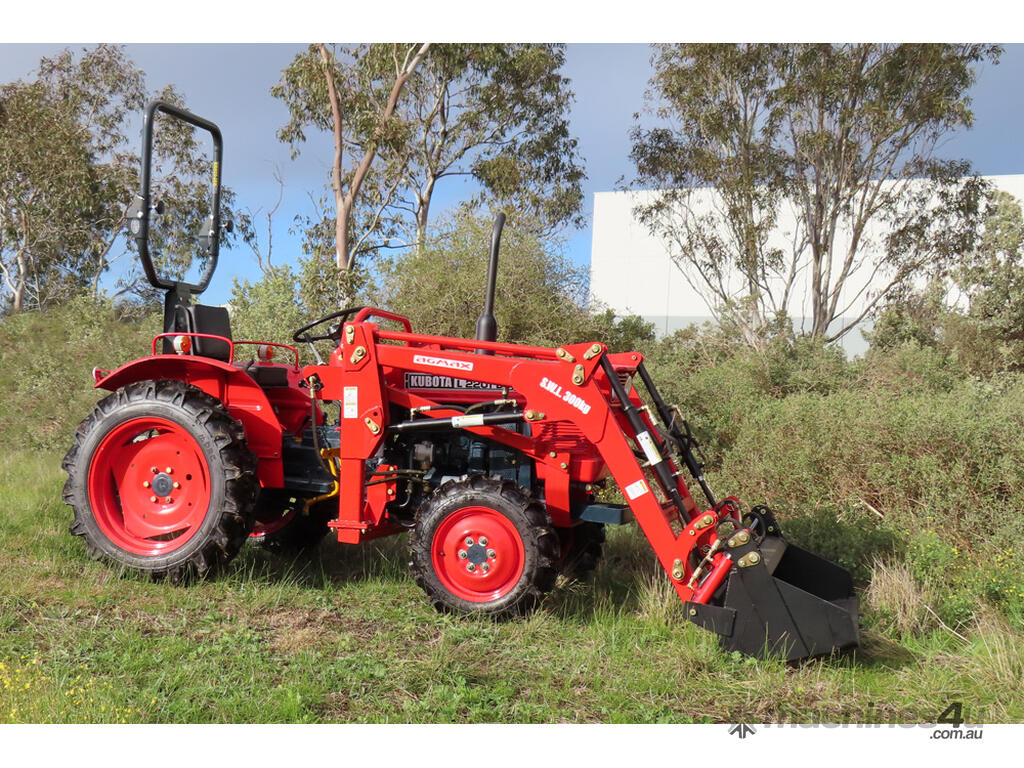

This listing is for a remanufactured L2201DT Kubota tractor, with a 4-in-1 front end loader and a Del Morino RES10 backhoe.

SOTAs Kubota 01 series are especially good value when matching horsepower for dollars. This Kubota L2201DT 25hp diesel 4WD with front end loader is the largest tractor in the 01 series. It is not a new tractor; it is a remanufactured tractor that has been rebuilt to a fixed specification.

A SOTA remanufactured Kubota tractor has been dismantled down to the transmission and key components of the engine, clutch, brakes, hydraulics and starting system that is tested and replaced as required. The tractor is then rebuilt.

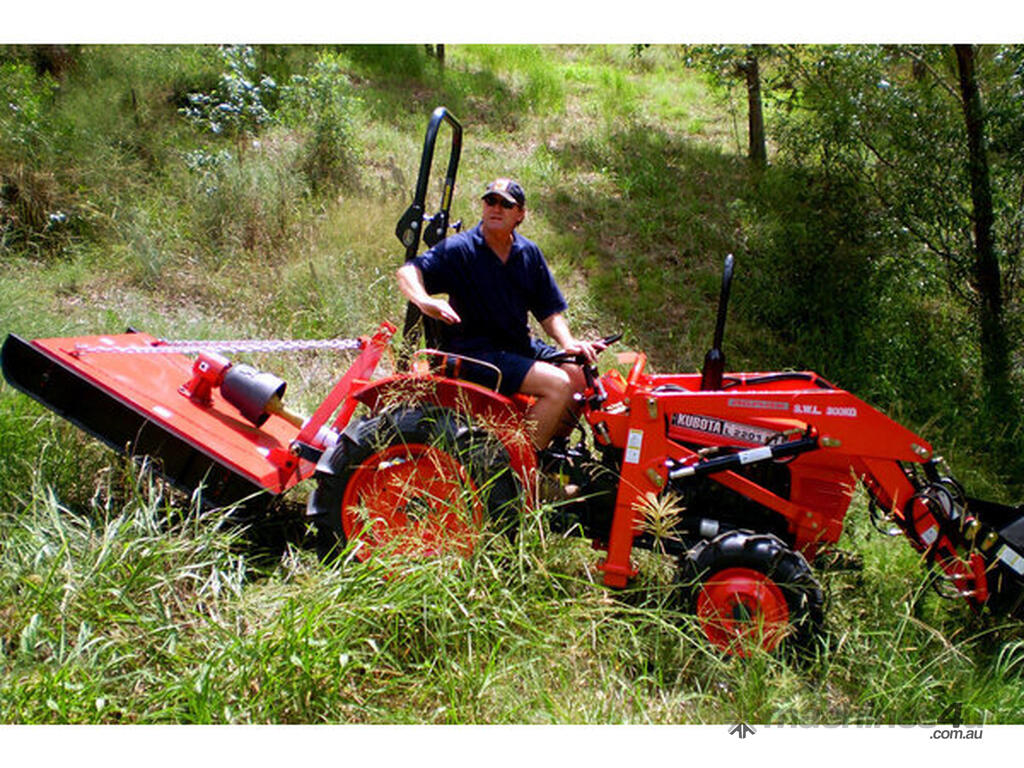

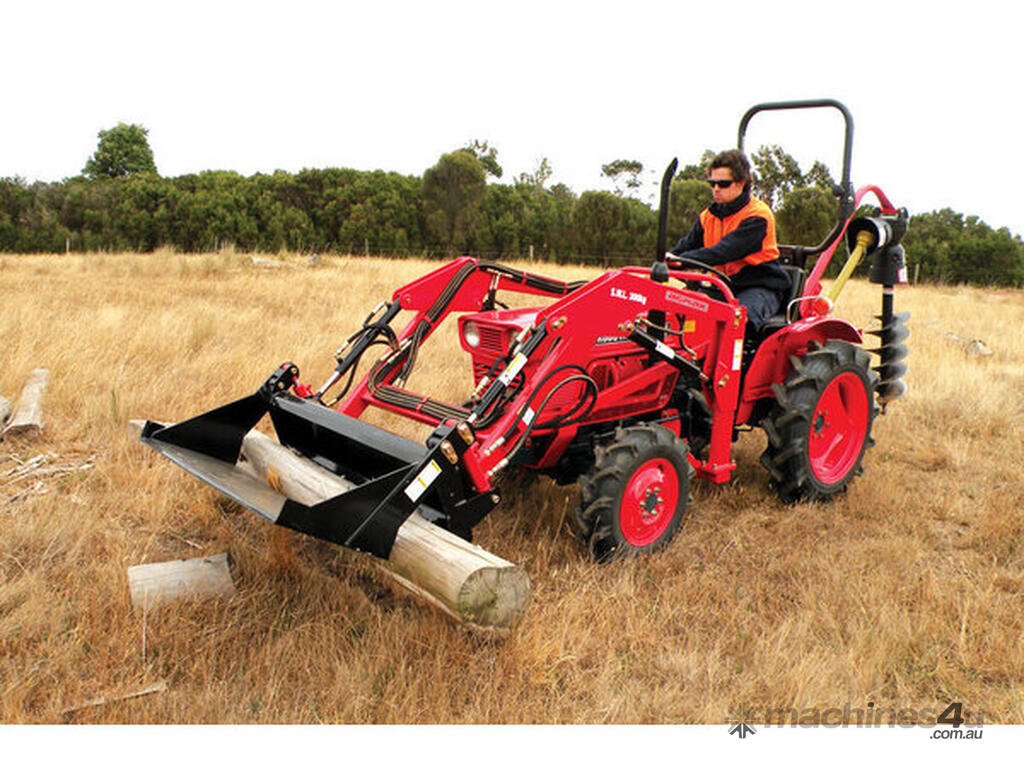

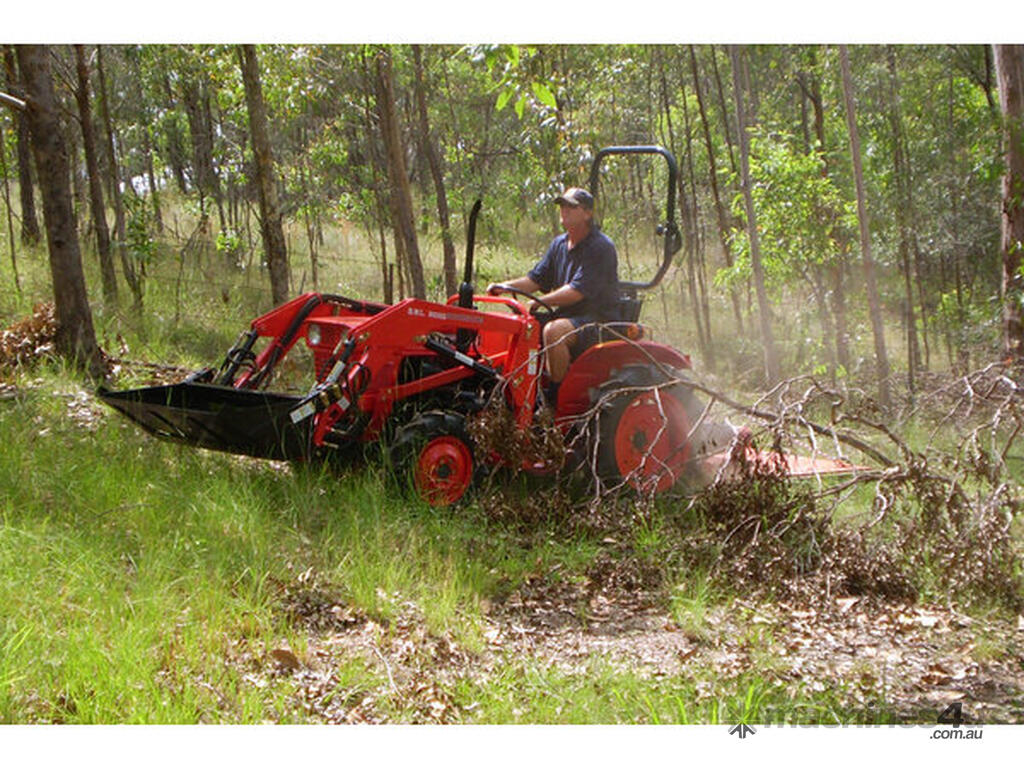

Buying a remanufactured Kubota is a cost effective way of purchasing a reliable, high quality tractor that is supported like a brand new tractor. The powerful Kubota tractor range is ideal for landscaping, small farming and other agricultural applications. With 16 speed transmissions and creeper gears as a standard kit, the 01 series are excellent workhorses and have the capacity to handle a full range of implements including 4-in-1 loaders, post hole diggers, box scrapers, backhoes, rotary hoes, flail mowers, chippers, bale spikes and stick rakes.

SOTA remanufactured tractors come with a certified Hercules ROPS, operators manual, comprehensive safety manual, spare parts back up and a 3 month written warranty. An extended warranty is available for an additional cost. This covers engine and transmission for a further 15 months. There is a 2 year warranty on the AGMAX front end loader.

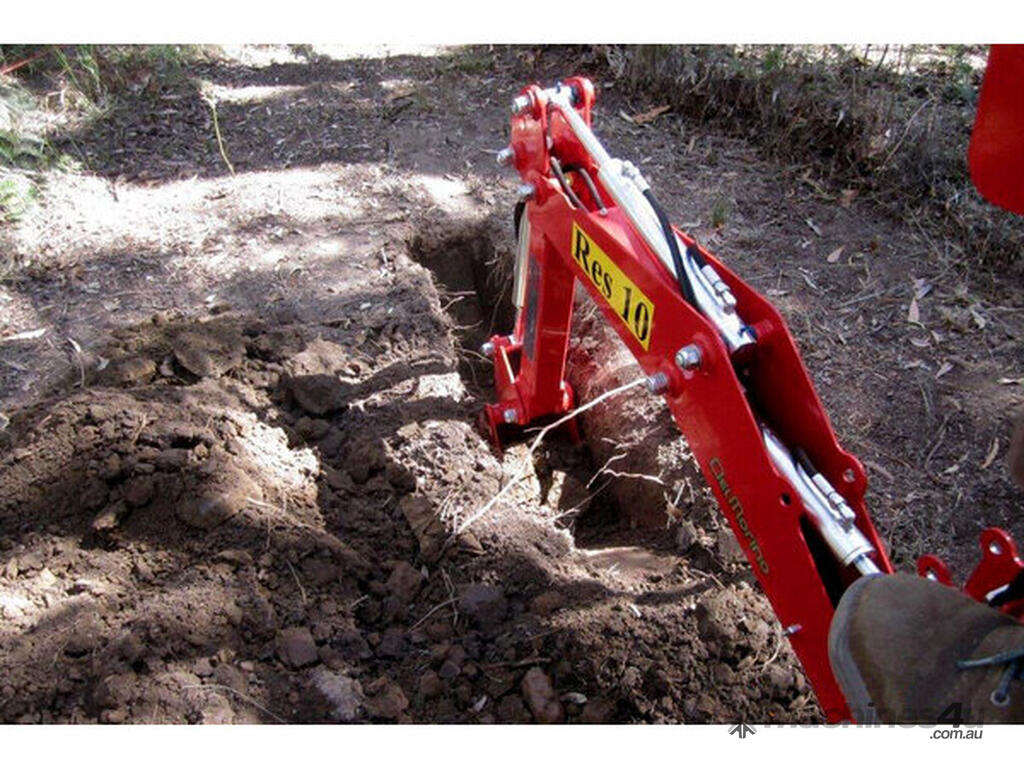

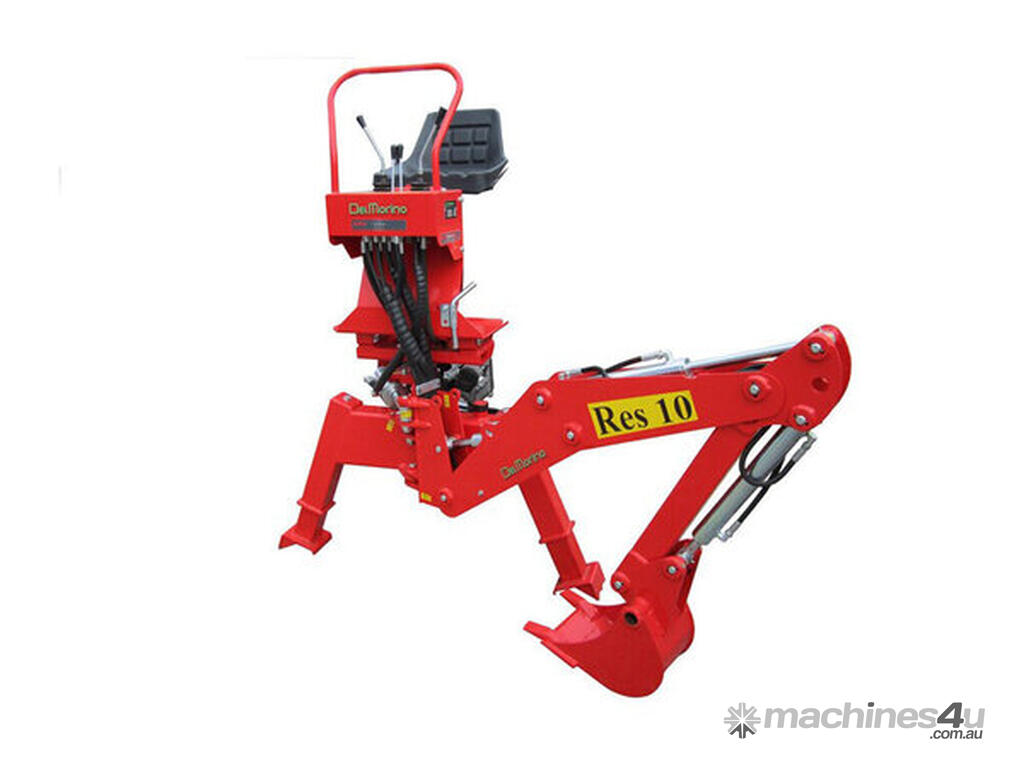

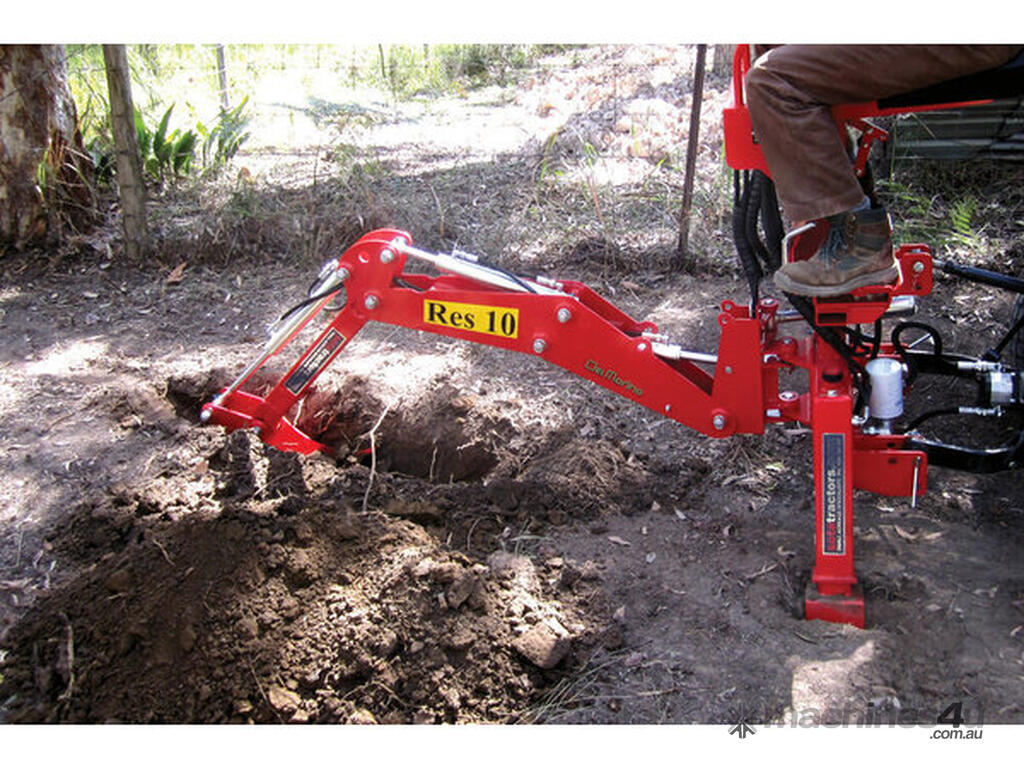

The Del Morino RES10 is the best backhoe for a sub-compact tractors in Australia. In the RES10, Del Morino have been able to engineer a very light and fully-functional backhoe that is stable and transports safely on your tractor's three point linkage. It may also be folded close to the tractor, compactly and conveniently, for storage. The Del Morino backhoe has a 2 year warranty.

***This listing is for a Kubota L2201DT tractor with a front end loader, ROPS and backhoe only. No other implements are included.

FEATURES & BENEFITS

The Remanufactured Kubota L2201DT offers:

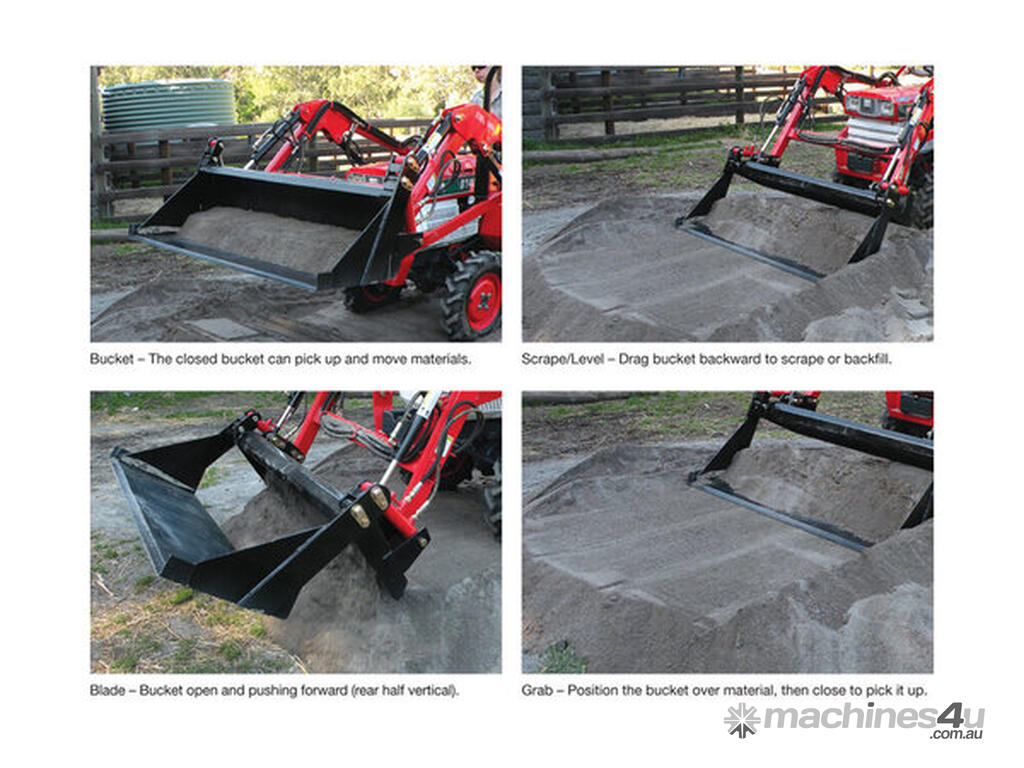

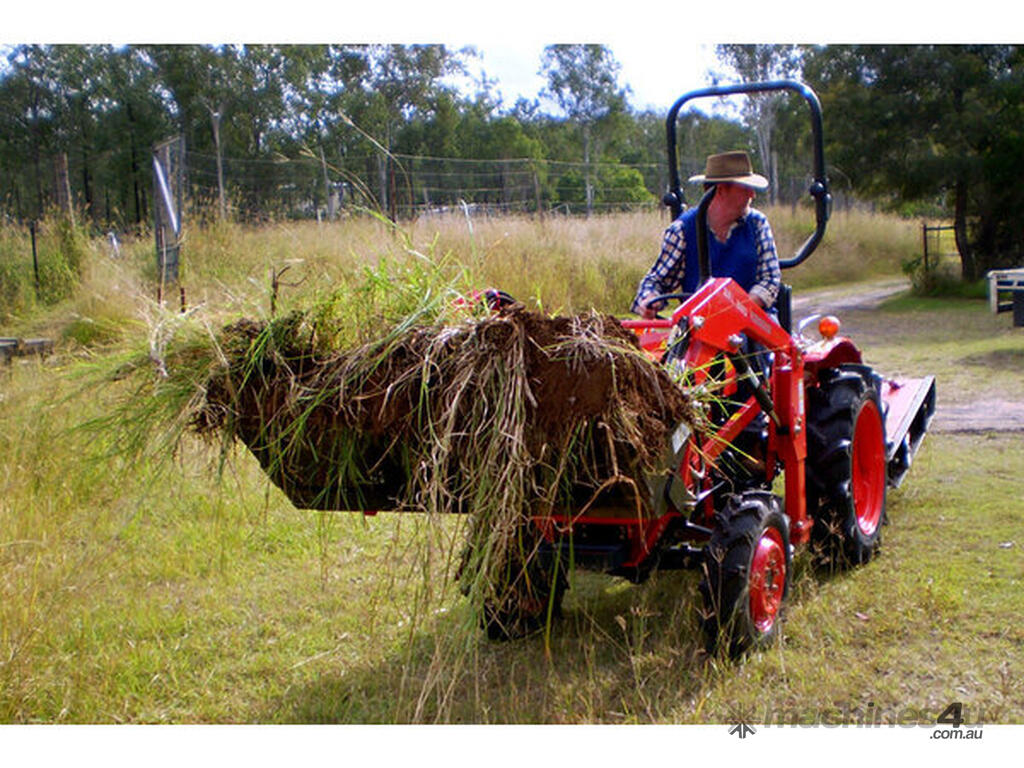

Self levelling 4-in-1 loader
SWL 300kg
3 cylinder, direct injection, diesel engine
Transmission (16 forward, 4 reverse)
2WD/4WD selection
Creeper gears
Rear differential lock
Single stage clutch
Split brakes
4 speed PTO
Certified (AS 1636) ROPS and seat belt
Accepts standard Cat 1 TPL implements

KUBOTA L2201 SPECIFICATIONS

Engine Model: Kubota DH1100
Engine Type: Diesel
Engine Gross Power: 25hp
PTO: 4 Speed 22hp
No of Cylinders: 3
Total Displacement: 1115cc
Gearbox: Manual
Battery: 12v
Fuel Tank Capacity: 22L
Drive: 4 x 4
Transmission: 16 Forward, 4 Reverse
Brake: Wet Disc
Clutch: Dry Single
Rear PTO Revolutions: 540/810/1160/1480rpm

HYDRAULICS

Lift Control Type: Position
TPL: Cat 1
SWL 300kg

STANDARD TYRE SIZE

Front: 6 x 14
Rear: 8.3 x 22

DIMENSIONS

Overall Length: 3400mm
Overall Width: 1350mm
Overall Height (Including ROPS): 2220mm
Min. Ground Clearance: 290mm
Weight w/ Loader: 1190kg

FEATURES & BENEFITS

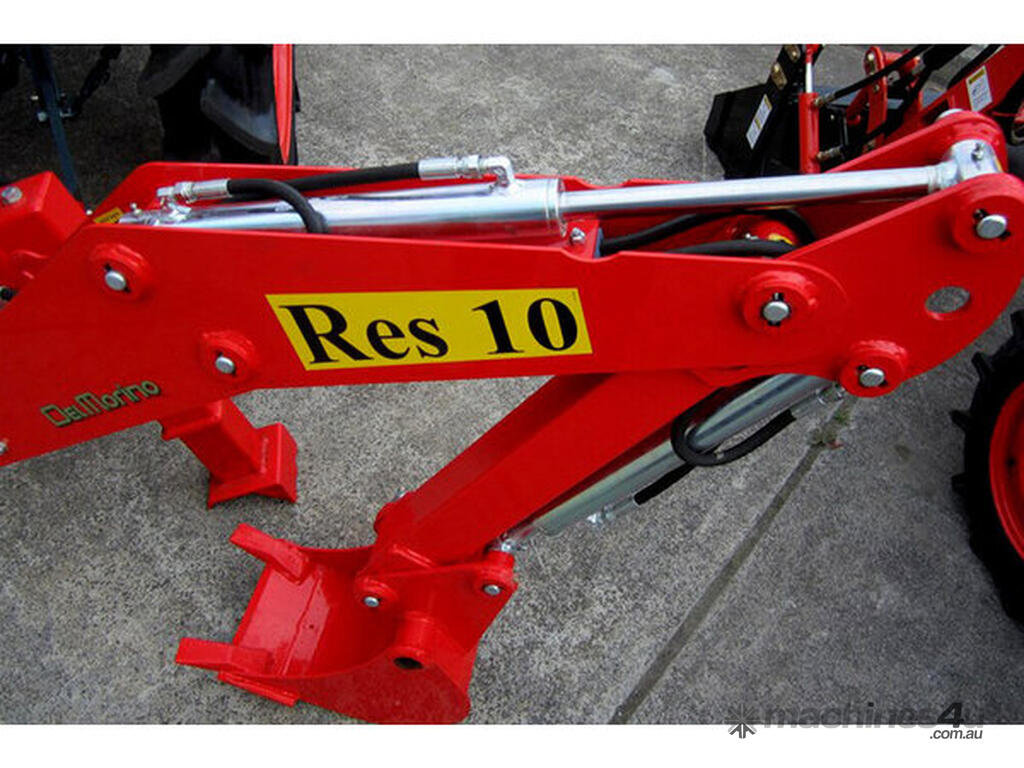

The Del Morino RES10 backhoe offers:

180 degree arm rotation (side shift lock)
High performance, cast iron pump
Case hardened steel pins - all pivot points
Self lubricated bushes
Easy access and ergonomic seat (adjustable)

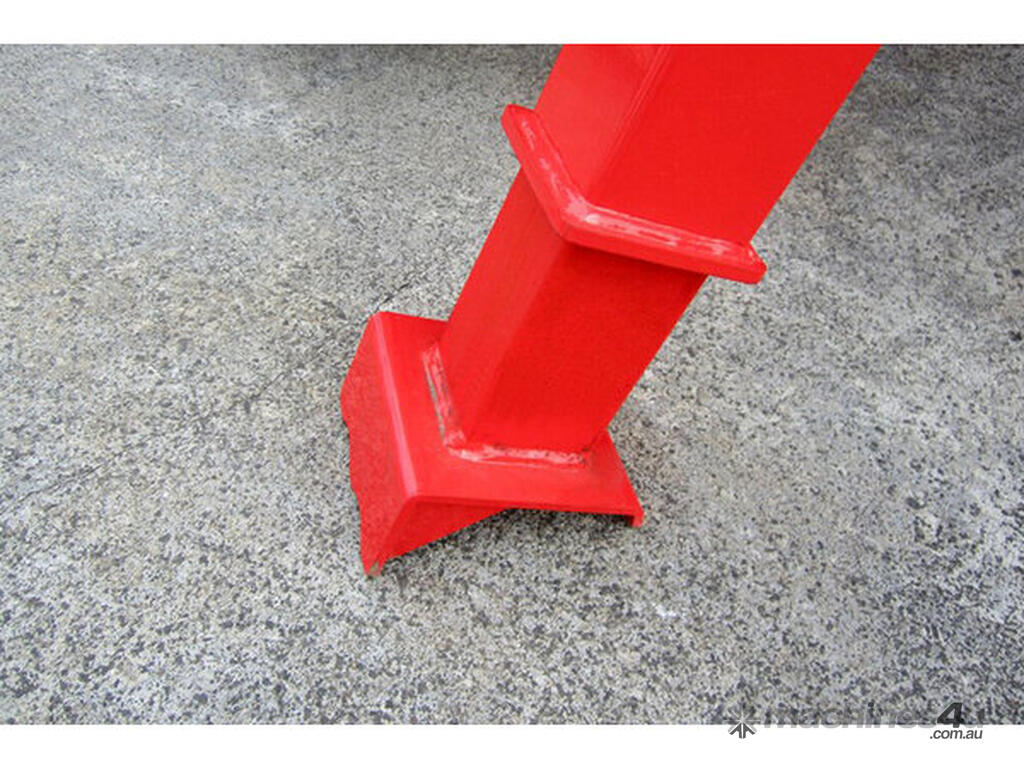

Stabiliser legs with locking valves

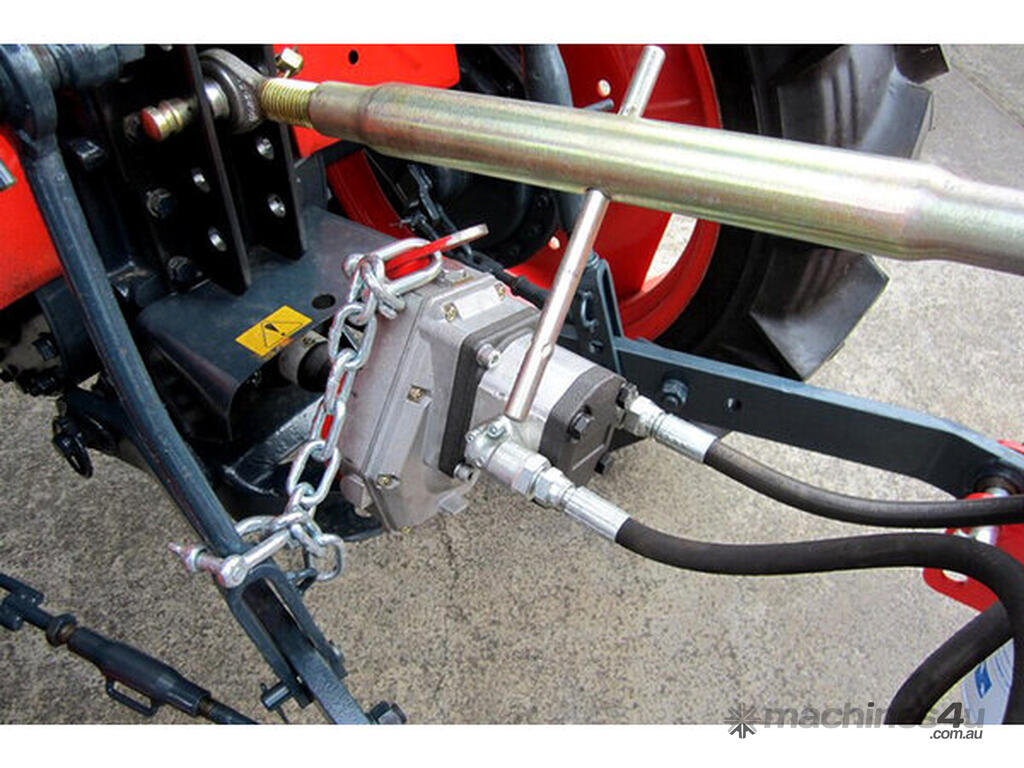

Italian hydraulic pumps, by META

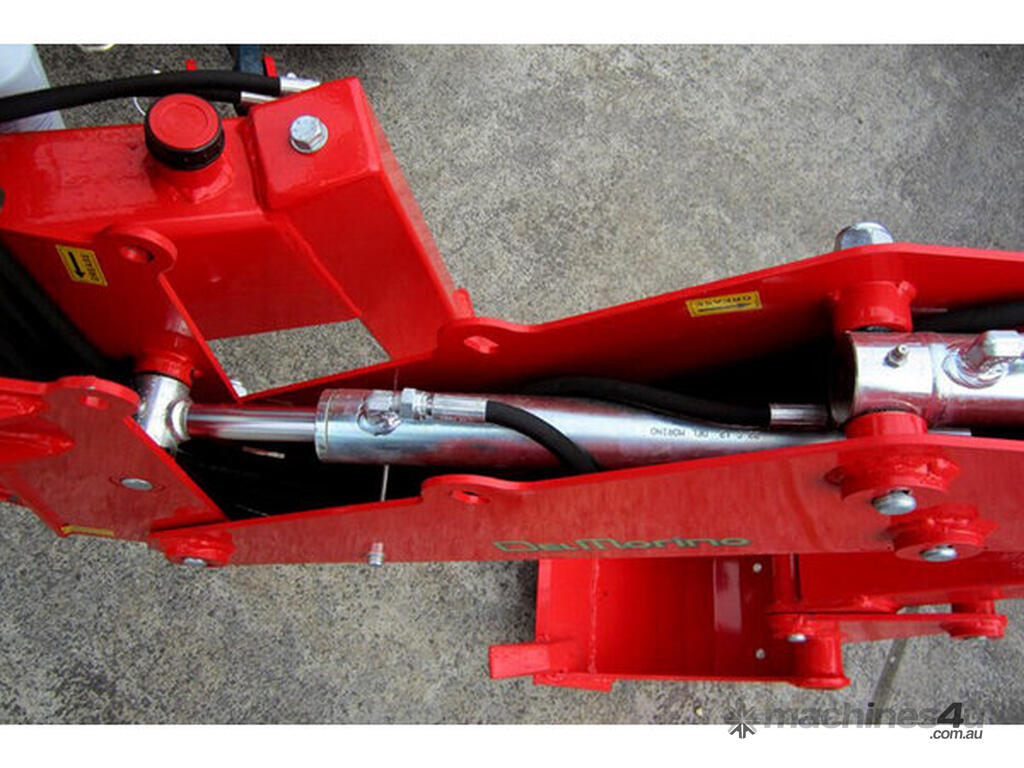

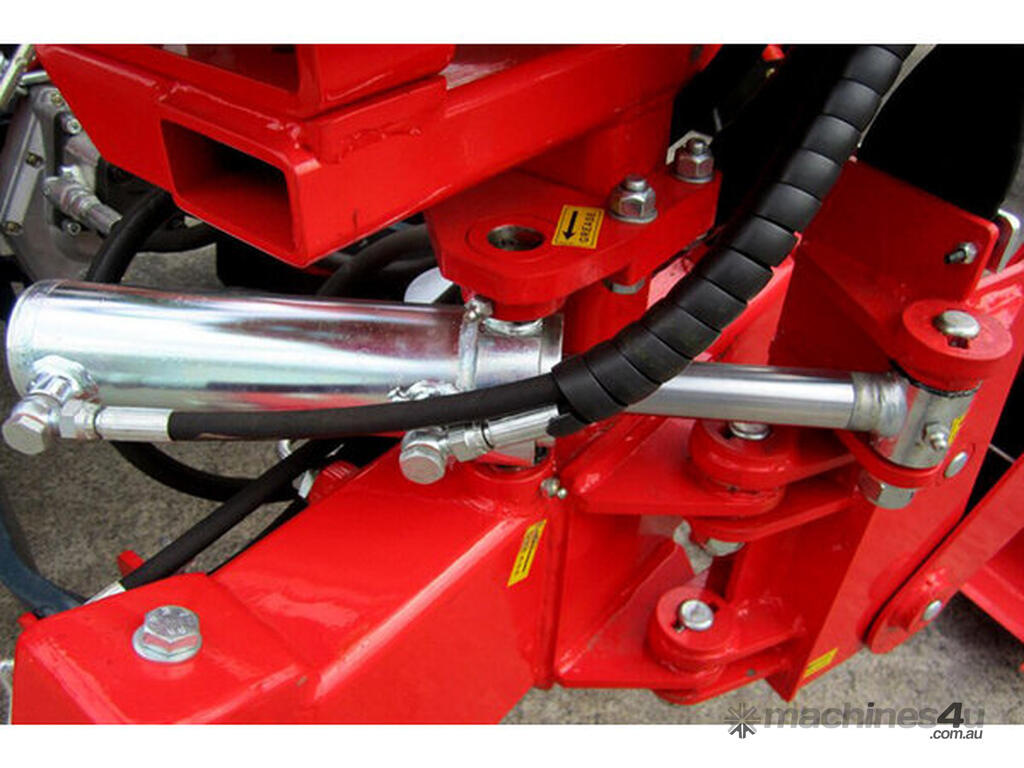

Italian hydraulic cylinders
Italian hydraulic hoses, by TEKNO
Purpose-specific buckets
Independent, hydraulic stabiliser legs
Hydraulic control unit with pressure regulator

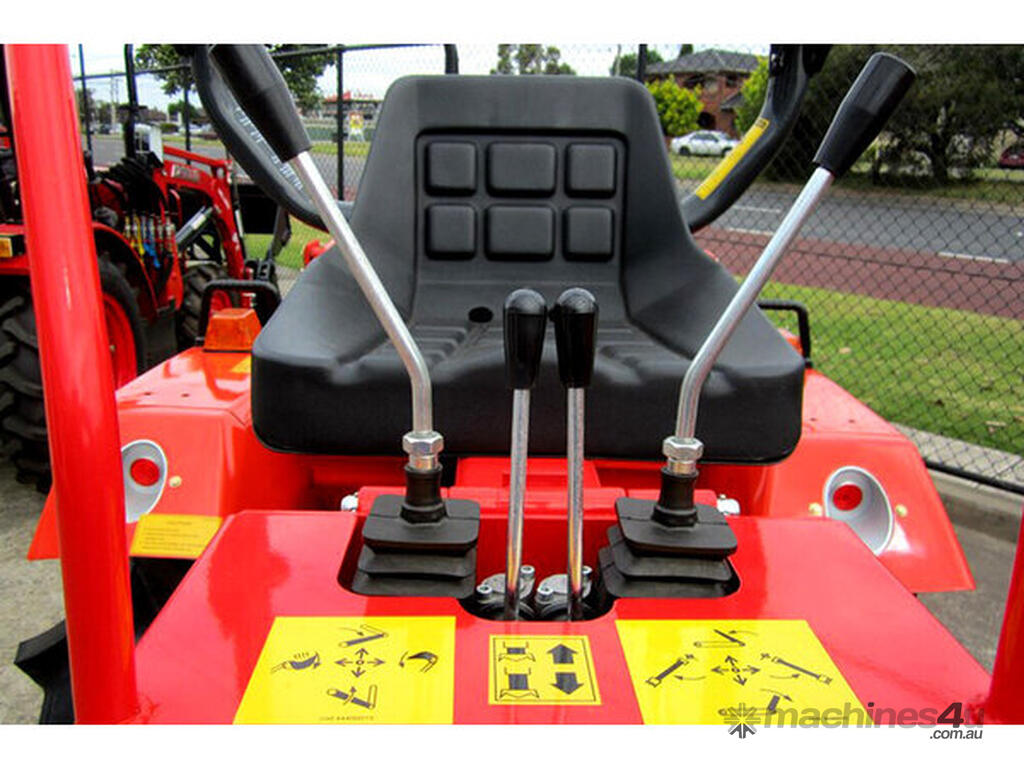

Tilt seat with gas strut

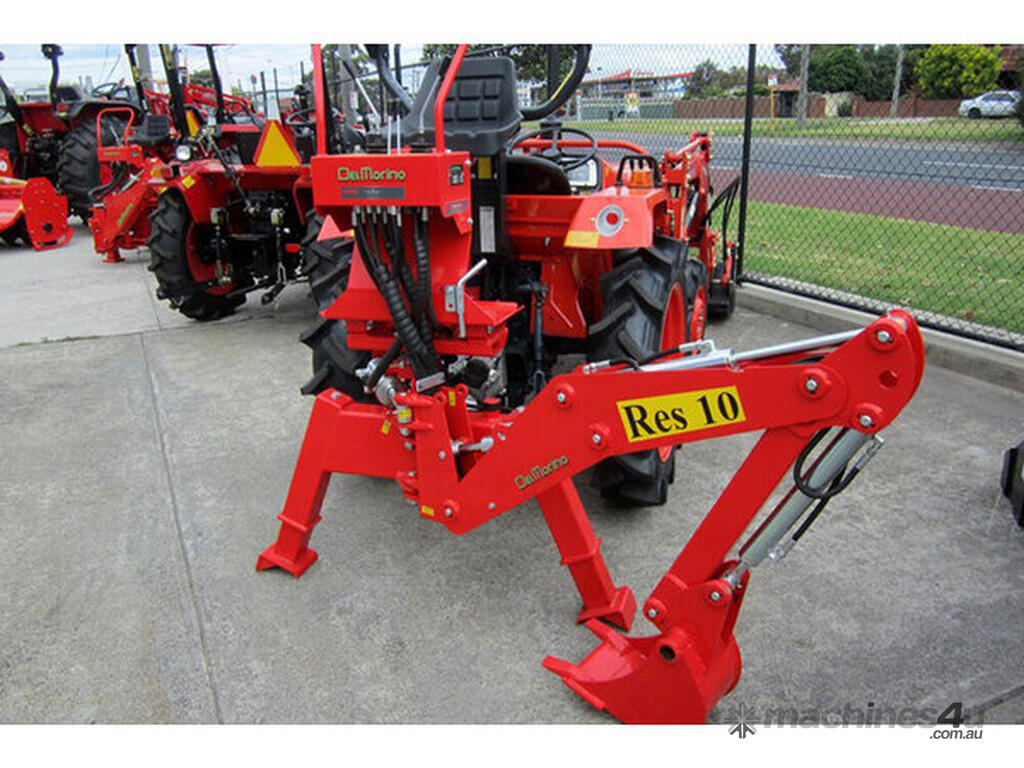

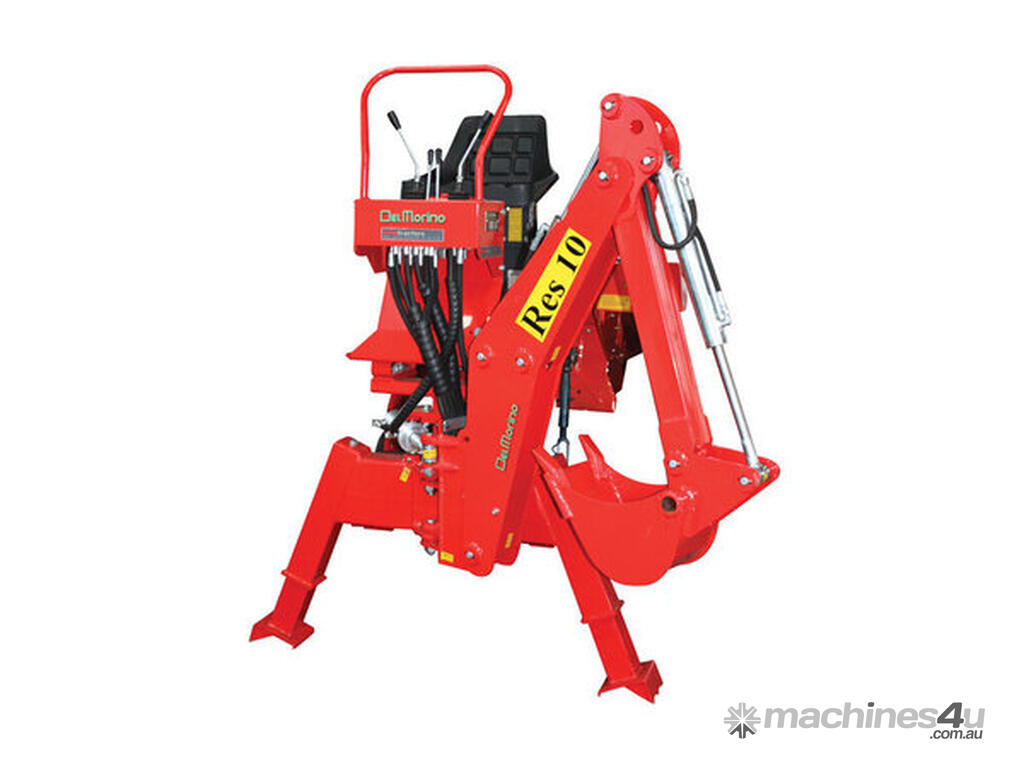

DEL MORINO RES10 SPECIFICATIONS

Tractor HP: 18-30
TPL: Cat 1
Arm Length: 220cm
Maximum Working Height: 160cm
Maximum Digging Depth: 140cm
Digging Bucket: 25cm
Stabilising Leg Maximum Height: 30cm
Side Shift: No
Shifting Lock: N/A
Tearing Power At Tooth: 1200kg
PTO: 540rpm
Weight: 236kg

WARRANTY

The Kubota L2201DT is a value-priced, fully supported 25hp tractor, which means it is backed by SOTAs renowned after-sales support. SOTA has a comprehensive inventory of spare parts on hand, including all consumables such as filters, belts and so on. This tractor has a 3 month written warranty:

Standard 3 month warranty: comprehensive warranty, including parts, labour and all travel expenses.

Optional 15 month warranty extension: effective on expiry of standard 3 month warranty. Additional coverage of powertrain for 15 months.

Your tractor package is backed by SOTAs high standard of customer service we dont forget you once youve made your purchase.

We carry a huge range of spare parts in stock and supply to our customers. We offer full tractor servicing at each of our branches in VIC, NSW and QLD and we also offer onsite tractor servicing.

Our experienced diesel mechanics are fully equipped with onsite service trucks. They are always happy to share their expert knowledge and answer any maintenance questions you may have.

Delivery is available POA. A Kubota L2201DT 25HP diesel 4WD can be transported in a large trailer if necessary.
