Kubota 28hp 4WD Diesel Tractor + FEL + Backhoe

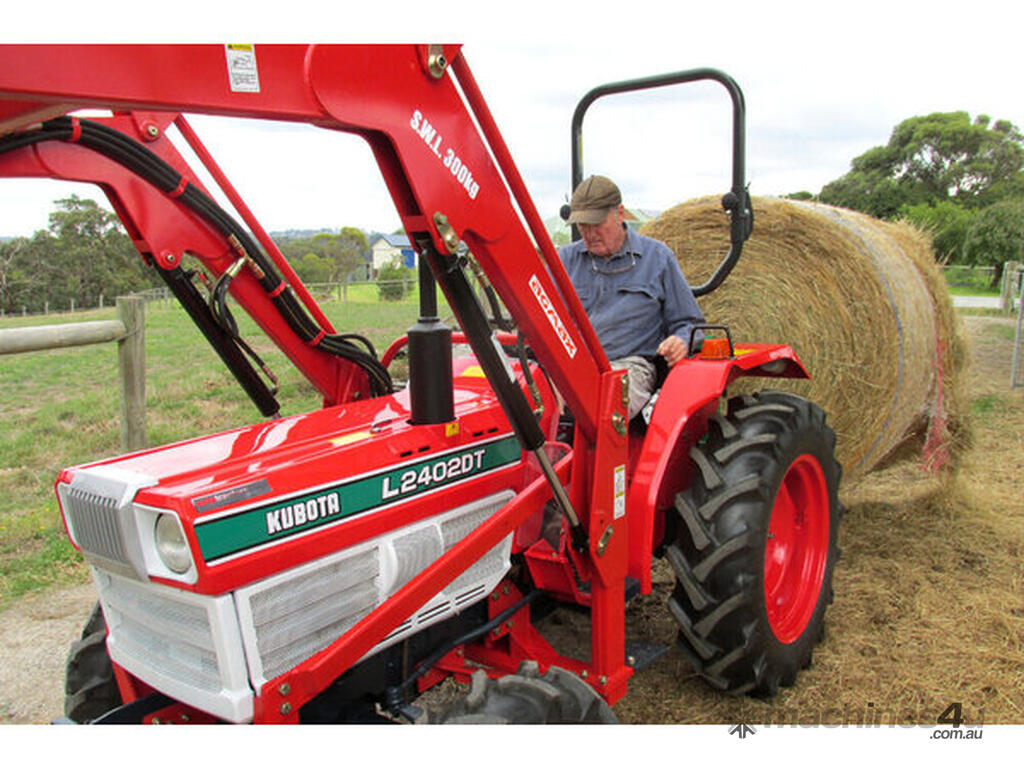

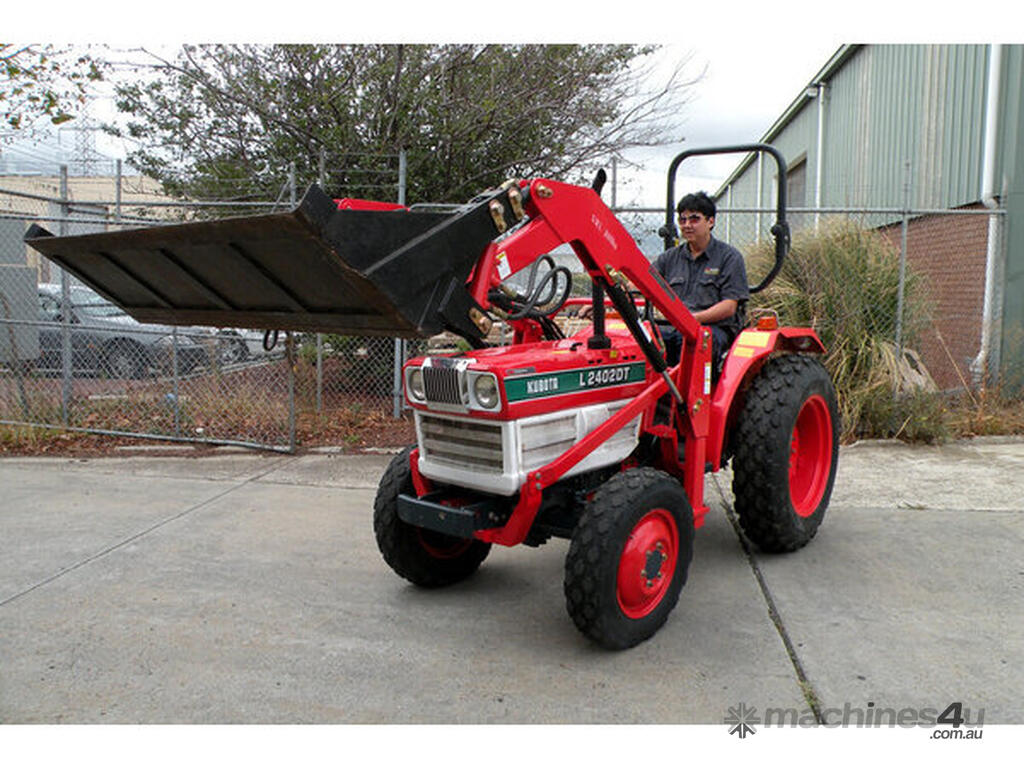

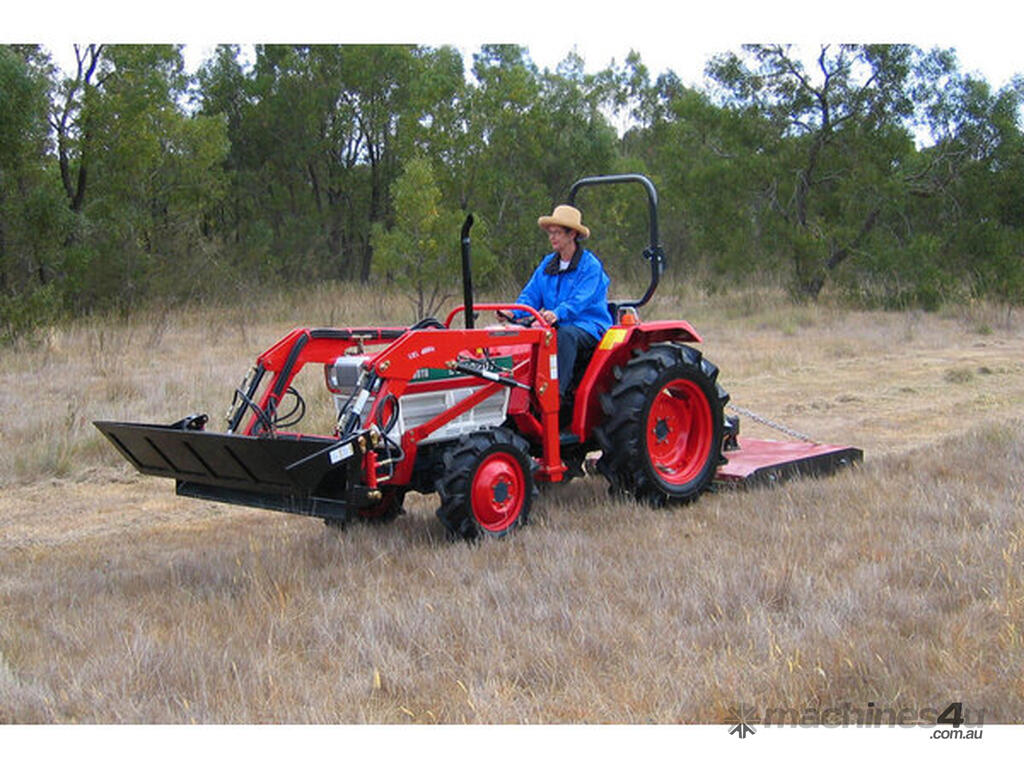

Remanufactured Kubota L2402DT Tractor with 4-in-1 Front End Loader and Del Morino RES15 Backhoe

Overview: This listing is for a remanufactured Kubota L2402DT tractor, equipped with a 4-in-1 front end loader and Del Morino RES15 backhoe. The Kubota L2402DT is ideal for landscaping, small farming, and agricultural applications. It’s a compact, tough tractor that accepts a full range of AGMAX implements. While this is not a new tractor, it has been rebuilt to a fixed specification for reliability and performance.

Remanufacturing Process: A SOTA remanufactured Kubota has been fully dismantled, and key components of the engine, transmission, clutch, brakes, hydraulics, and starting system have been tested and replaced as necessary. It is then rebuilt to meet the original specifications.

Purchasing a remanufactured Kubota offers a cost-effective way to own a reliable, high-quality tractor, supported by a warranty like a new machine. The 02 series is known for its excellent value in horsepower for the price and can handle a variety of implements, including 4-in-1 loaders, post hole diggers, backhoes, rotary hoes, and more.

Included Features:

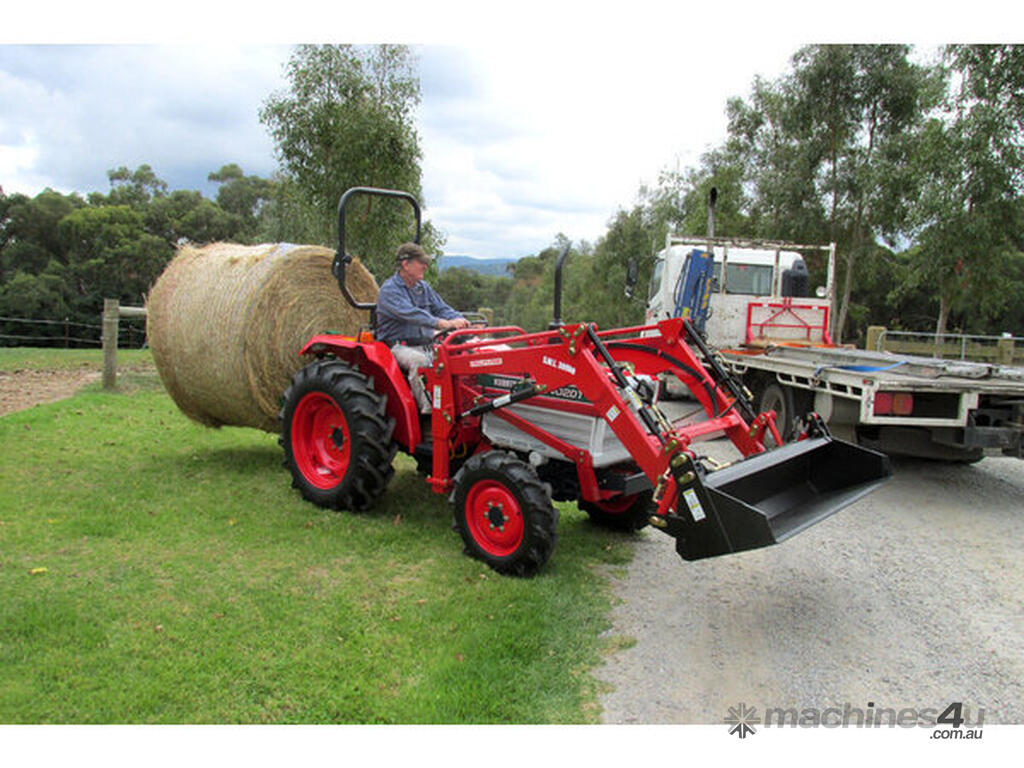

Self-leveling 4-in-1 loader
SWL 300kg
3-cylinder, direct injection diesel engine
16-speed manual transmission (16 forward, 4 reverse)
2WD/4WD selection
Creeper gears
Rear differential lock
Split brakes
Single stage clutch
4-speed PTO
Certified (AS 1636) ROPS and seat belt
Accepts standard Cat 1 TPL implements

Specifications:
Kubota L2402DT:
Engine Model: Kubota D1402, 3-cylinder, diesel
Gross Power: 28hp
PTO Power: 24hp
Total Displacement: 1395cc
Fuel Tank Capacity: 18.2L
Transmission: 16 Forward, 4 Reverse
Drive: 4 x 4
Clutch: Dry Single
Brake: Wet Disc
Battery: 12V
Rear PTO Revolutions: 540/770/940/1250rpm

Hydraulics:
Lift Control Type: Position
TPL: Cat 1
SWL: 300kg

Tyre Size:
Front: 7 x 16
Rear: 11.2 x 24

Dimensions:
Overall Length: 3550mm
Overall Width: 1570mm
Height (with ROPS): 2270mm
Min. Ground Clearance: 345mm
Weight (with Loader): 1395kg

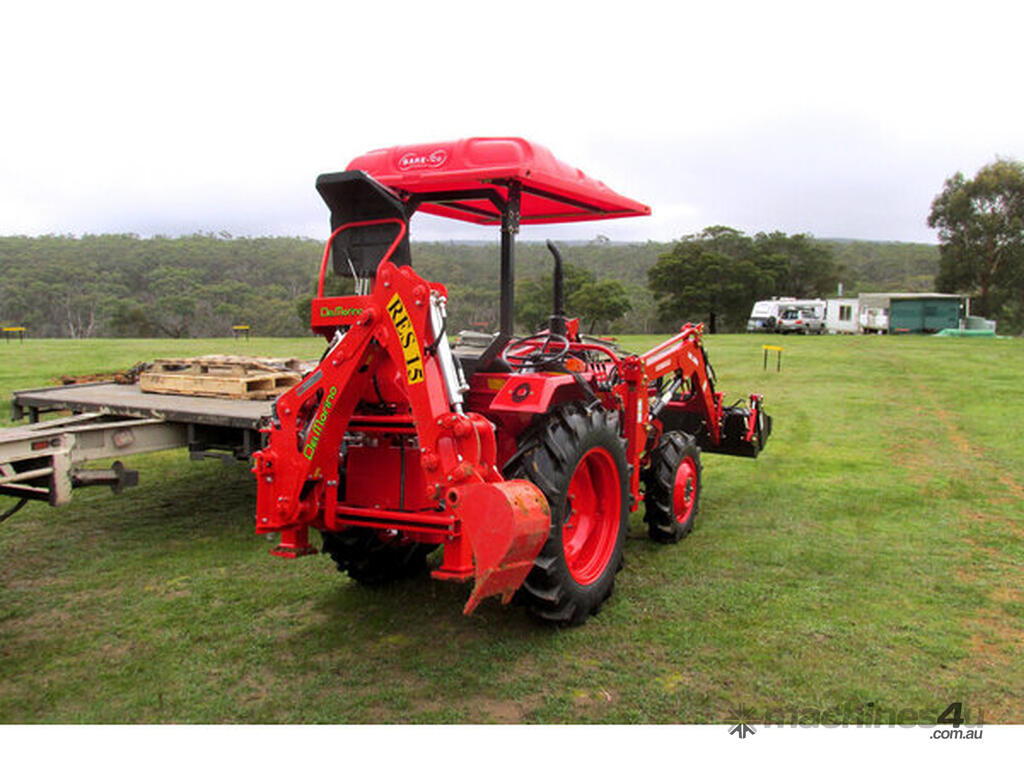

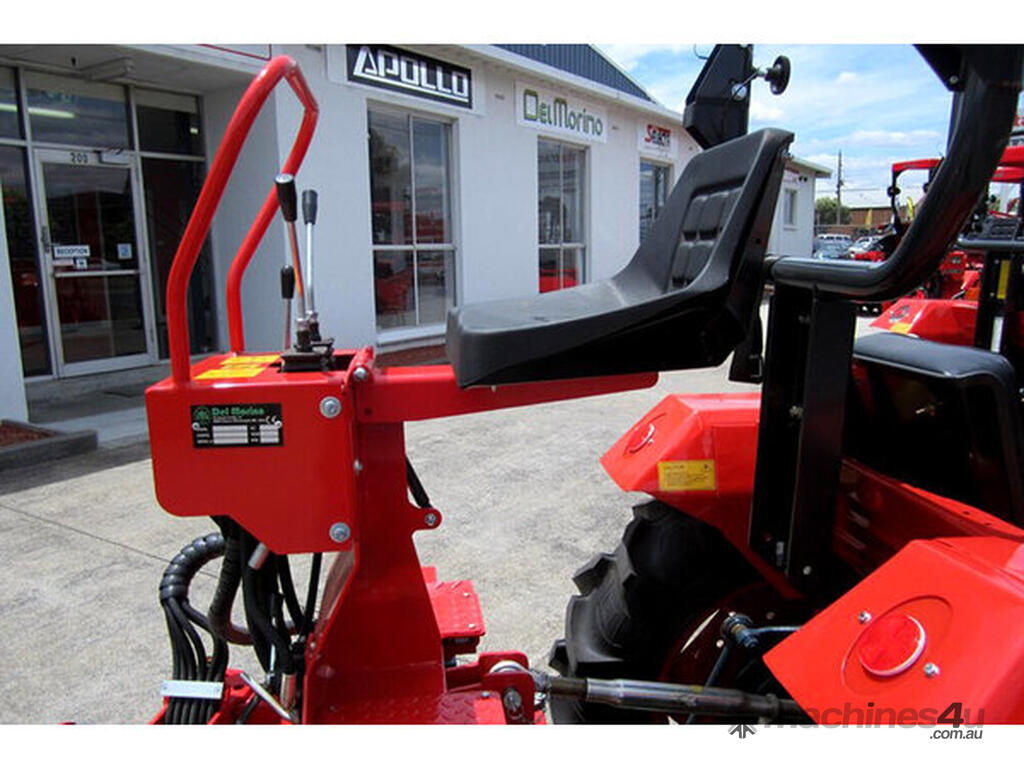

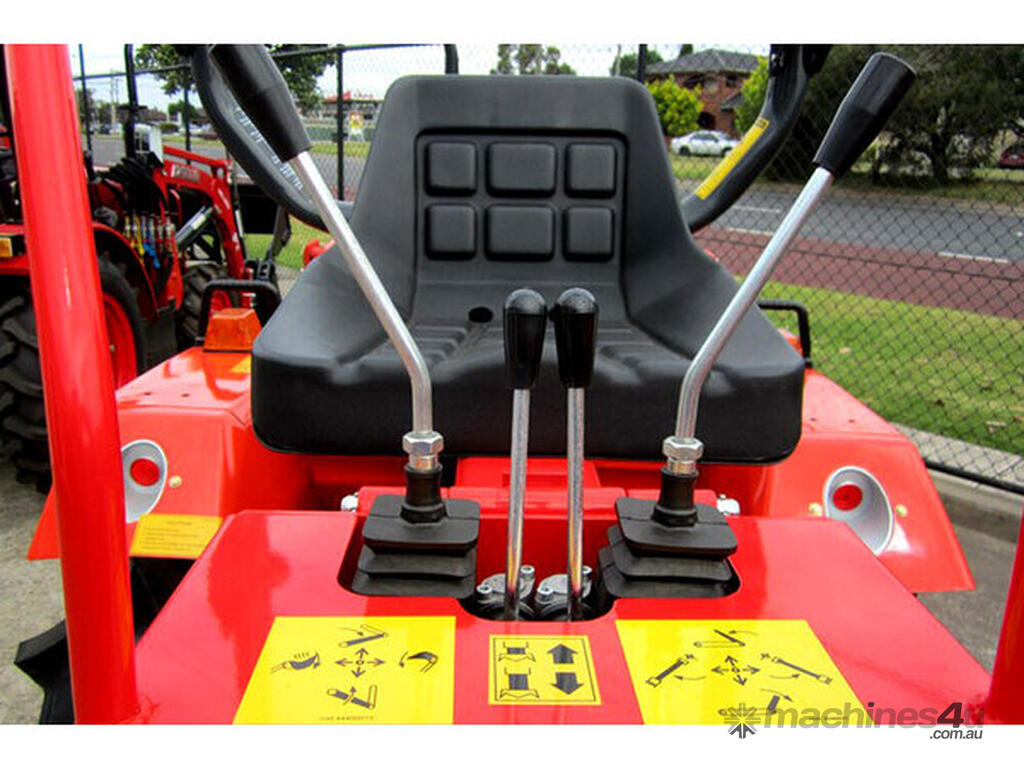

Del Morino RES15 Backhoe:
Tractor HP: 18-30
TPL: Cat 1
Arm Length: 220cm
Max Working Height: 165cm
Max Digging Depth: 130cm
Digging Bucket: 25cm
Stabiliser Leg Max Height: 30cm
Side Shift: Yes
Tearing Power At Tooth: 1200kg
Weight: 332kg
PTO: 540rpm

Warranty:
Standard 3-Month Warranty: Comprehensive coverage including parts, labor, and travel expenses.
Optional 15-Month Warranty Extension: Additional coverage for the powertrain, extending the warranty to 18 months.

Note: This listing includes only the Kubota L2402DT tractor, 4-in-1 front end loader, ROPS, and Del Morino RES15 backhoe. No other implements are included.
