Kubota 28hp 4WD Diesel Tractor + FEL + Backhoe

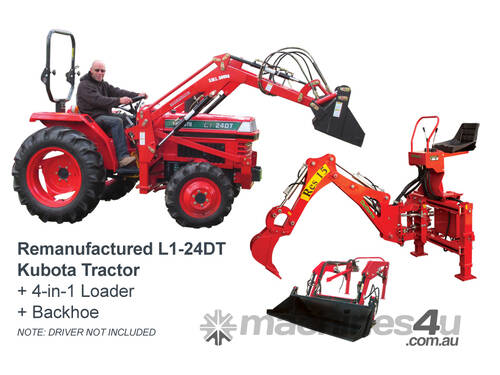

Remanufactured L1-24DT 28hp Kubota tractor, with a 4-in-1 front end loader and a Del Morino RES15 backhoe.

***This listing is for a remanufactured Kubota L1-24DT tractor with a 4-in-1 front end loader with ROPS and a RES15 backhoe only. No other implements are included.

SOTAs Kubota L1 series are especially good value when matching horsepower for dollars. The Kubota L1-24DT offers quality Japanese small tractor engineering. Its smooth, direct injection diesel engine is coupled with a higher specification shuttle shift transmission. With forward and reverse at your fingertips, this machine is the front end loader specialist. It is not a new tractor; it is a remanufactured tractor that has been rebuilt to a fixed specification.

A SOTA remanufactured Kubota tractor has been dismantled down to the transmission and key components of the engine, clutch, brakes, hydraulics and starting system that is tested and replaced as required. The tractor is then rebuilt.

Buying a remanufactured Kubota is a cost effective way of purchasing a reliable, high quality tractor that is supported like a brand new tractor. The powerful Kubota tractor range is ideal for landscaping, small farming and other agricultural applications. With 16F 16R speed transmission and creeper gears as a standard kit, the L1 series are excellent workhorses and have the capacity to handle a full range of implements including 4-in-1 loaders, post hole diggers, box scrapers, backhoes, rotary hoes, flail mowers, chippers, bale spikes and stick rakes.

SOTA remanufactured tractors come with a certified Hercules ROPS, operators manual, comprehensive safety manual, spare parts back up and a 3 month written warranty. An extended warranty is available for an additional cost. This covers engine and transmission for a further 15 months. There is a 2 year warranty on the AGMAX front end loader.

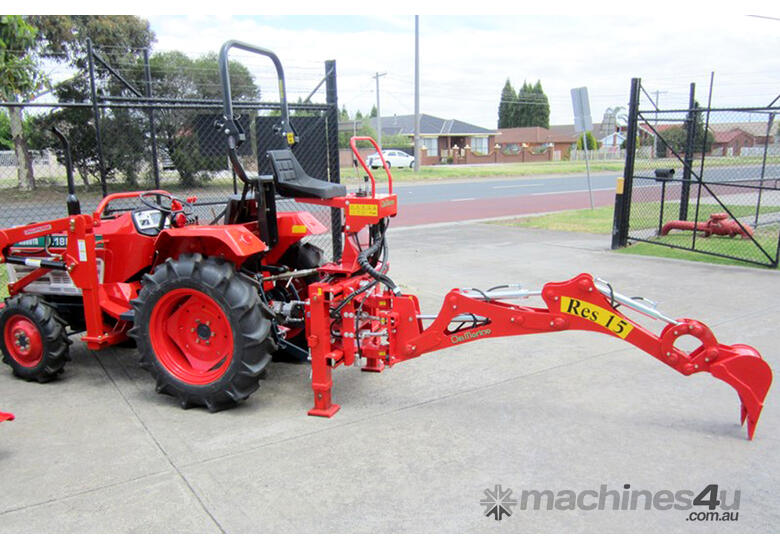

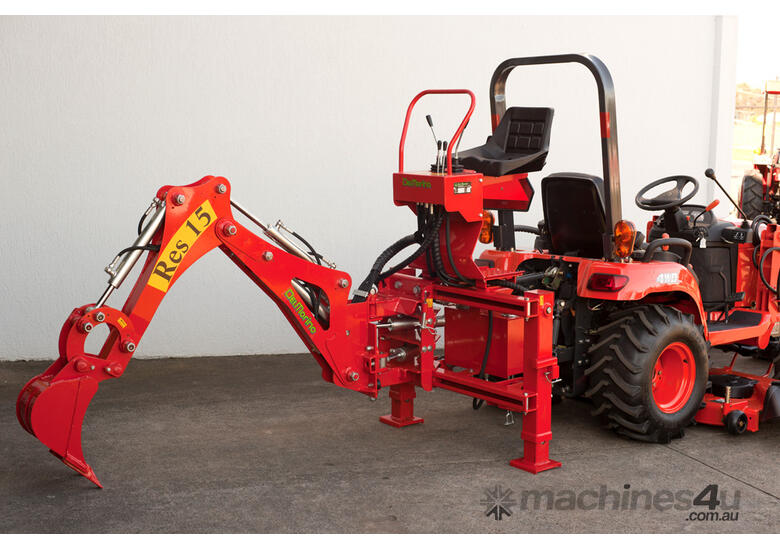

The Del Morino RES15 backhoe is engineered to be very light and fully functional, transportable on your tractor's three point linkage. It has a 2 year warranty.

FEATURES & BENEFITS

The Remanufactured Kubota L1-24DT offers:

Self levelling 4-in-1 loader
SWL 300kg
3 cylinder, direct injection, diesel engine
Transmission (16 forward, 16 reverse)
4WD, shuttle shift
Creeper gears
Rear differential lock
Split brakes
Single stage clutch
4 speed PTO
Certified (AS 1636) ROPS and seat belt
Accepts standard Cat 1 TPL implements

KUBOTA L1-24DT SPECIFICATIONS

Engine Model: Kubota D1462 DI
Engine Type: Diesel
Engine Gross Power: 28hp
PTO: 4 Speed
No of Cylinders: 3
Total Displacement: 1462cc
Gearbox: Shuttle Shift
Battery: 12v
Fuel Tank Capacity: 29L
Drive: 4 x 4
Transmission: 16 Forward, 16 Reverse
Brake: Wet Disc
Clutch: Dry Single
Rear PTO Revolutions: 540/770/940/1250rpm

HYDRAULICS

Lift Control Type: Position
TPL: Cat 1
SWL 300kg

STANDARD TYRE SIZE

Front: 7 x 16
Rear: 11.2 x 24

DIMENSIONS

Overall Length: 3500mm
Overall Width: 1570mm
Overall Height (Including ROPS): 2200mm
Min. Ground Clearance: 315mm
Weight: 1070kg + FEL

FEATURES & BENEFITS

The Del Morino RES15 backhoe offers:

180 degree arm rotation (side shift lock)
High performance, cast iron pump
Case hardened steel pins - all pivot points
Self lubricated bushes

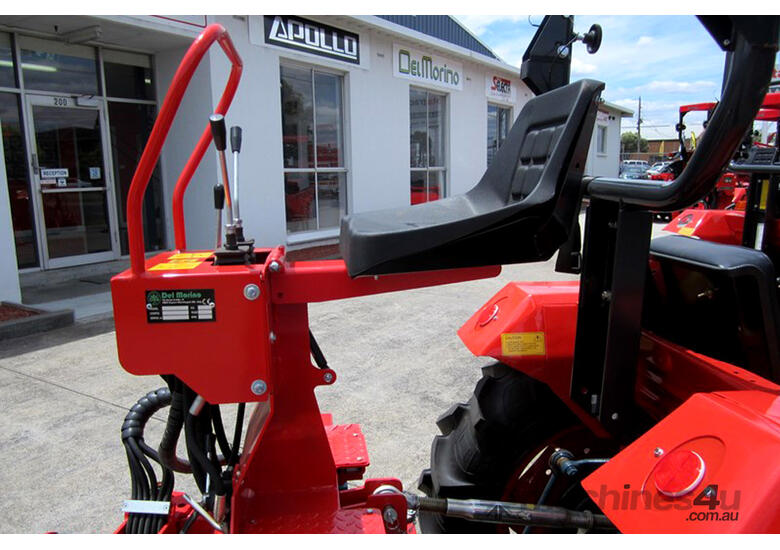

Easy access and ergonomic seat (adjustable)
Stabiliser legs with locking valves
Italian hydraulic pumps, by META
Italian hydraulic cylinders
Italian hydraulic hoses, by TEKNO
Purpose-specific buckets
Independent, hydraulic stabiliser legs
Hydraulic control unit with pressure regulator
Tilt seat with gas strut
Optional bucket sizes available

DEL MORINO RES15 SPECIFICATIONS

Tractor HP: 18-30
TPL: Cat 1
Arm Length: 220cm
Maximum Working Height: 165cm
Maximum Digging Depth: 130cm
Digging Bucket: 25cm
Stabilising Leg Maximum Height: 30cm
Side Shift: Yes
Shifting Lock: Mechanical
Tearing Power At Tooth: 1200kg
PTO: 540rpm
Weight: 332kg

WARRANTY

The Kubota L1-24DT is a value-priced, fully supported 28hp tractor, which means it is backed by SOTAs renowned after-sales support. SOTA has a comprehensive inventory of spare parts on hand, including all consumables such as filters, belts and so on. This tractor has a 3 month written warranty:

Standard 3 month warranty: comprehensive warranty, including parts, labour and all travel expenses.

Optional 15 month warranty extension: effective on expiry of standard 3 month warranty. Additional coverage of powertrain for 15 months.

Your tractor package is backed by SOTAs high standard of customer service we dont forget you once youve made your purchase.

We carry a huge range of spare parts in stock and supply to our customers. We offer full tractor servicing at each of our branches in VIC, NSW and QLD and we also offer onsite tractor servicing.

Our experienced diesel mechanics are fully equipped with onsite service trucks. They are always happy to share their expert knowledge and answer any maintenance questions you may have.

Delivery is available POA.
