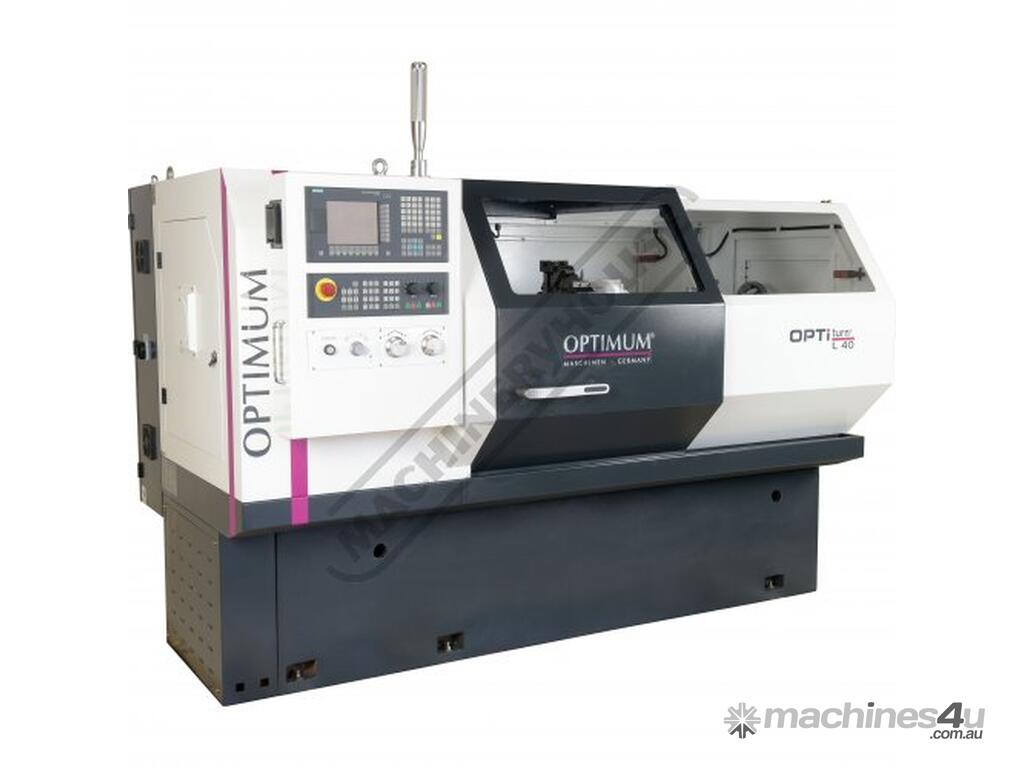

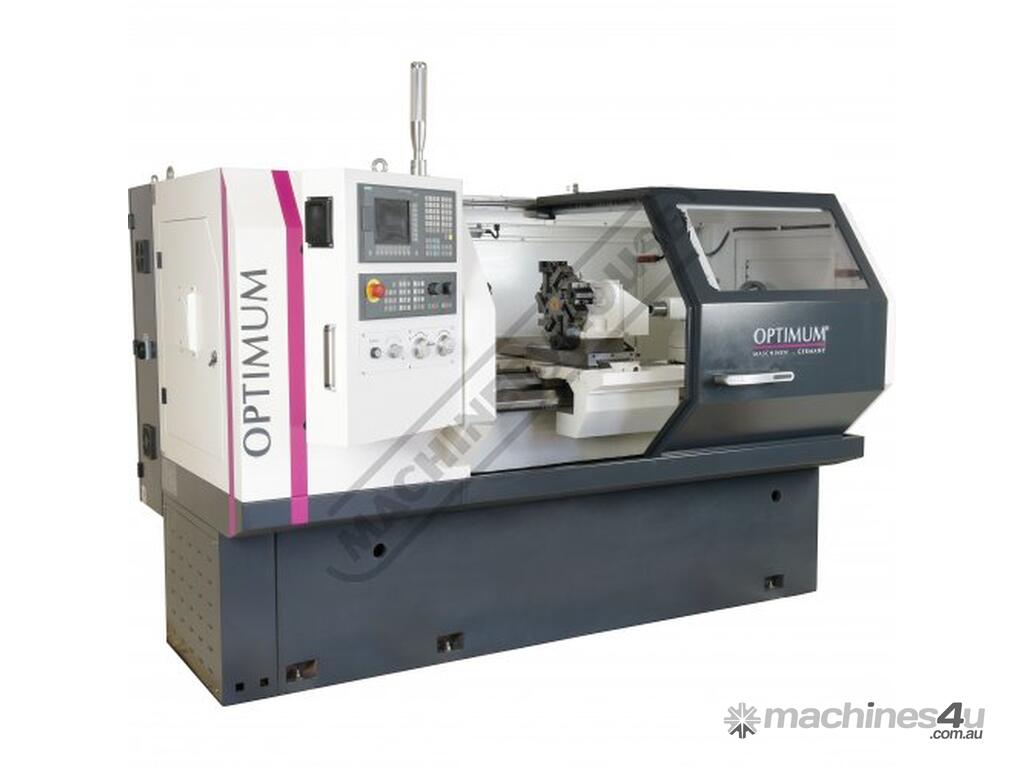

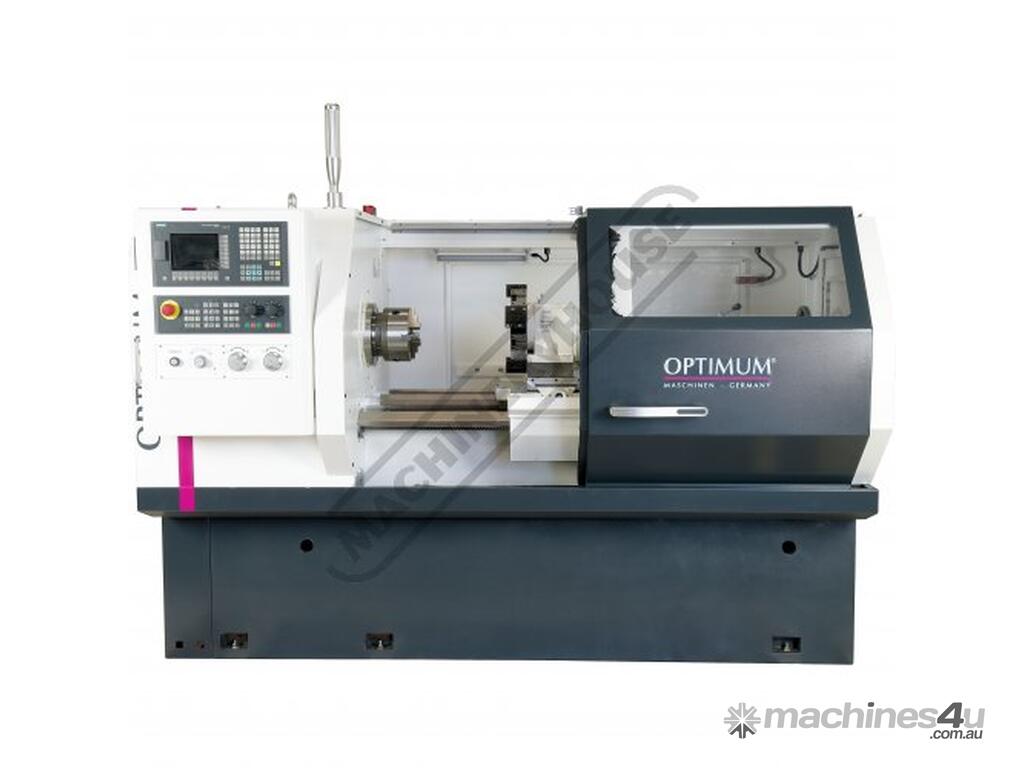

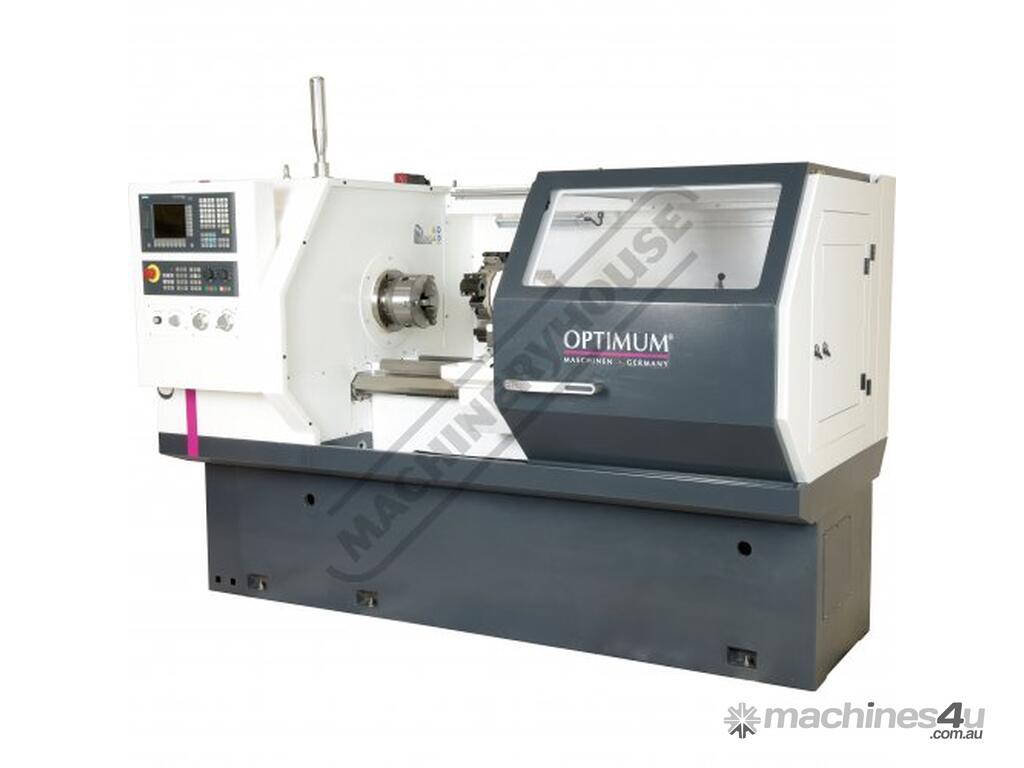

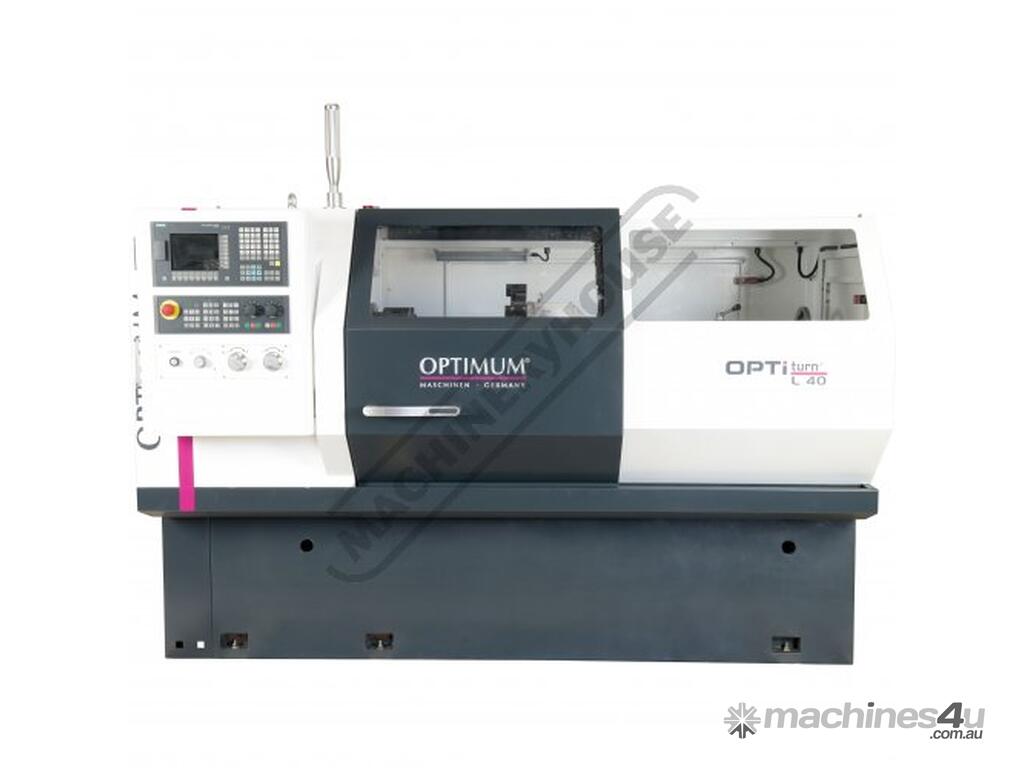

OPTIMUM L40 OPTi-Turn Optimum CNC Lathe 400 x 1000mm Turning Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L771
Designed and Engineered in Germany the OPTIMUM CNC range is a market leader in Europe and is now available in Australia through Hare and Forbes Machinery House. Offering exceptional value for money the OPTIMUM range can have you set up for in house CNC machining at a fraction of the financial outlay previously required.
Features:

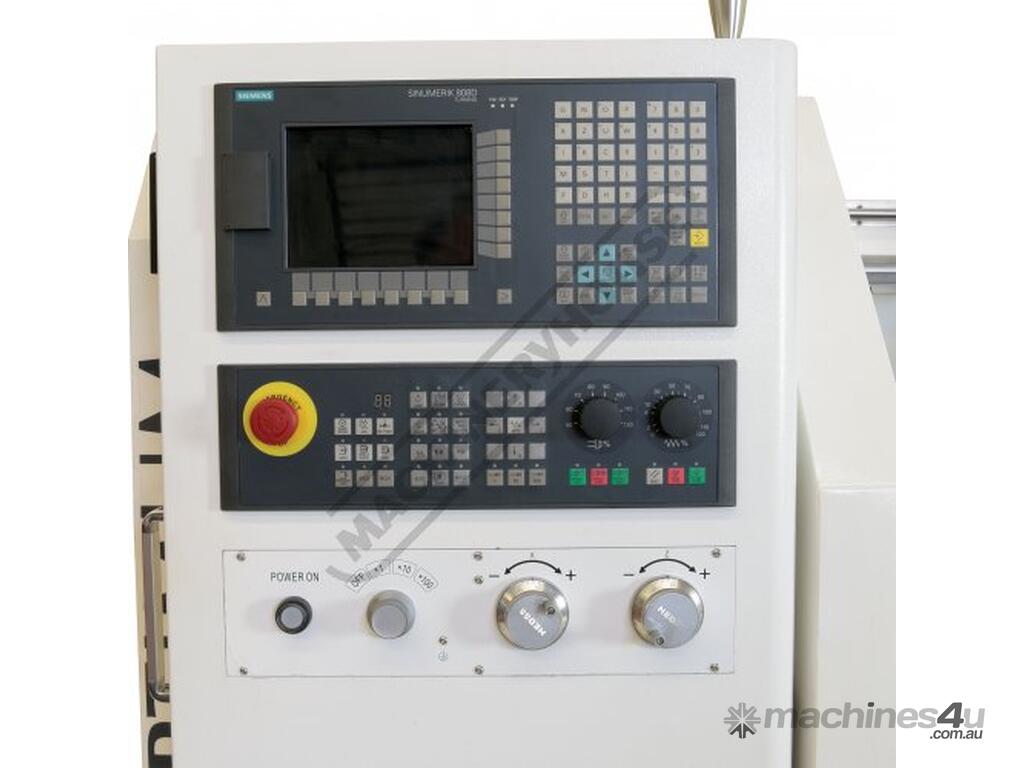

Siemens 808D CNC control

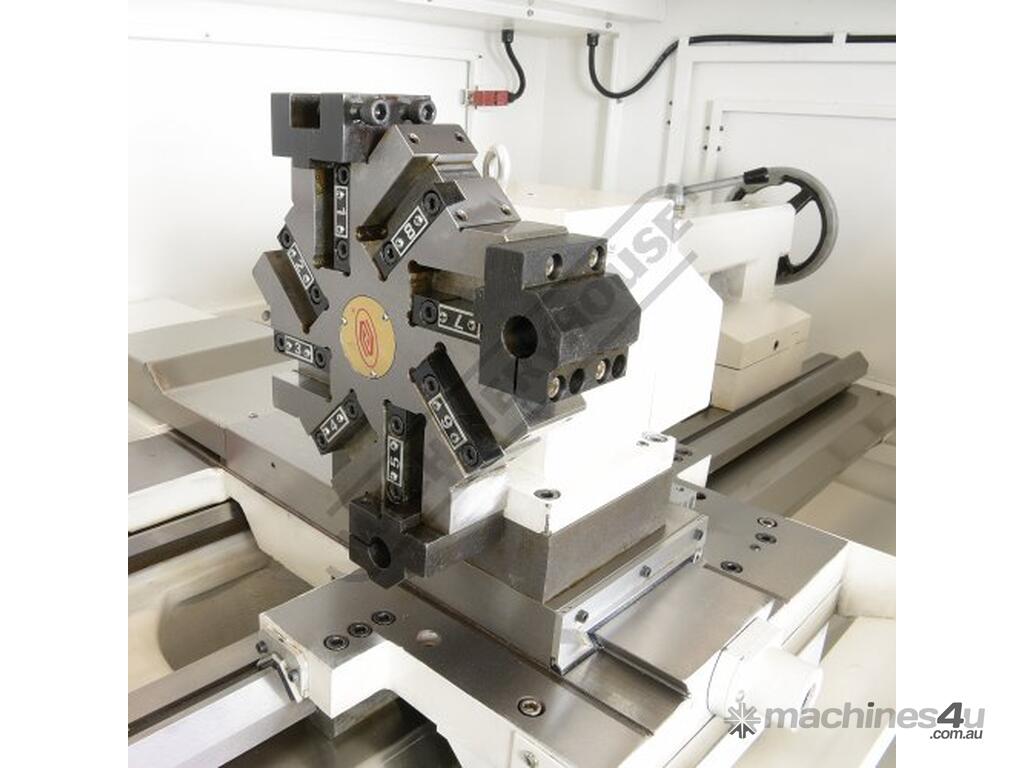

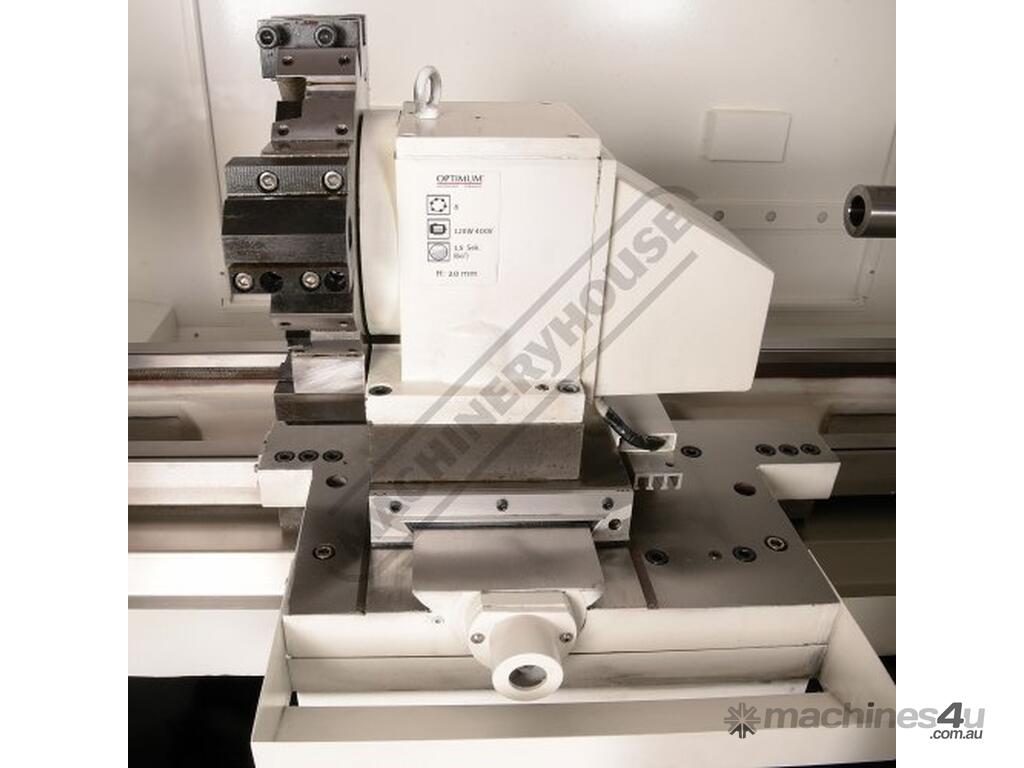

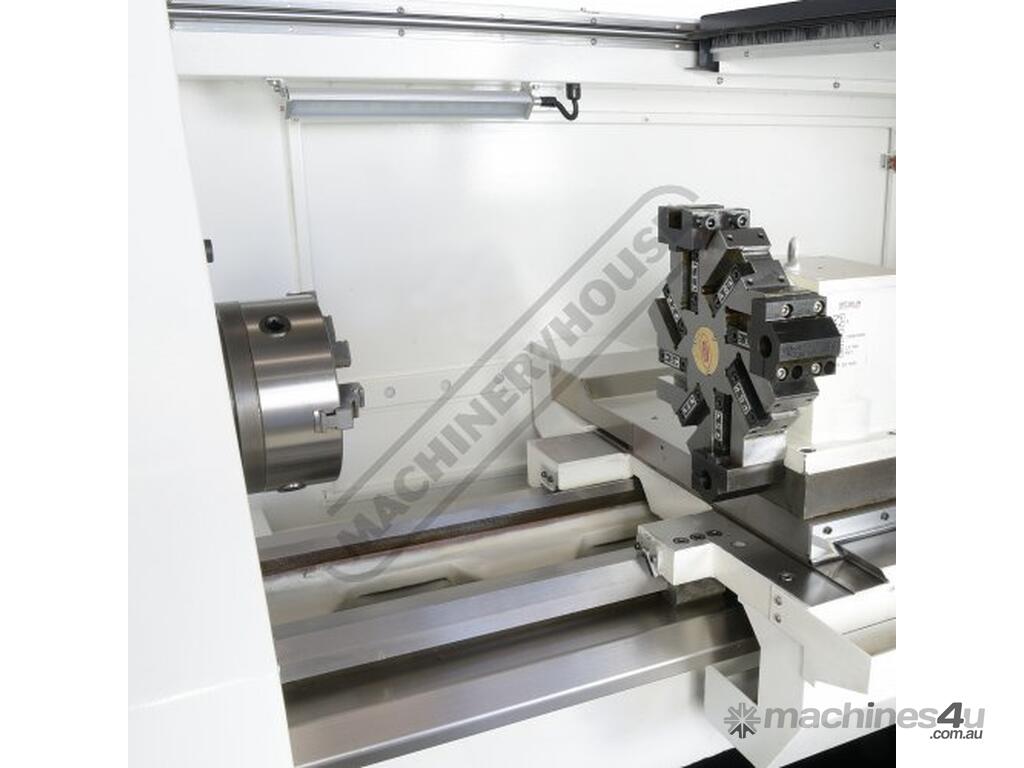

8 station auto turret
20mm Square shank OD Tooling
25mm ID Boring holders
2500rpm main spindle speed

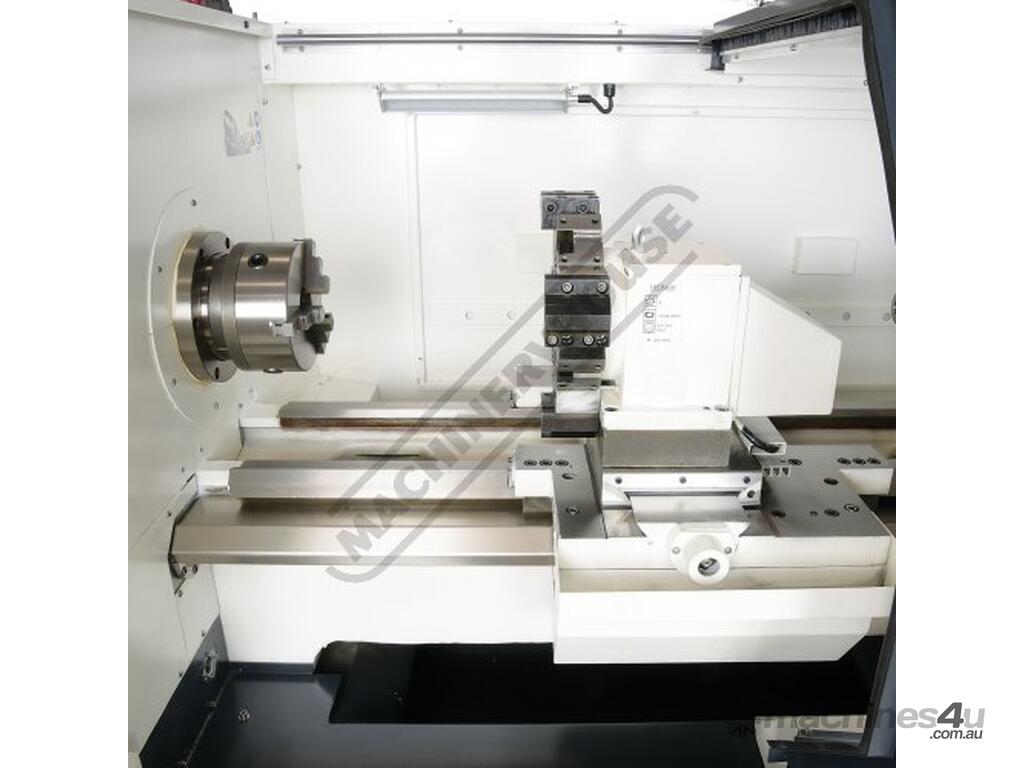

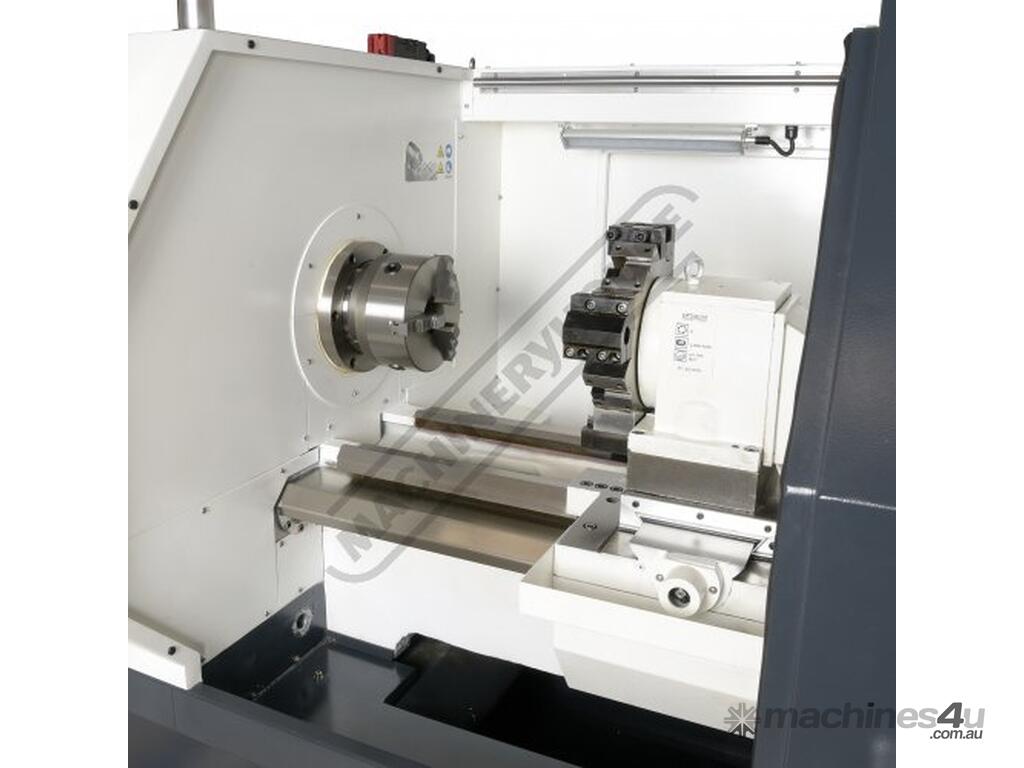

200mm 3 jaw chuck A2-6 mount.
60mm Spindle bore
400mm Swing over bed

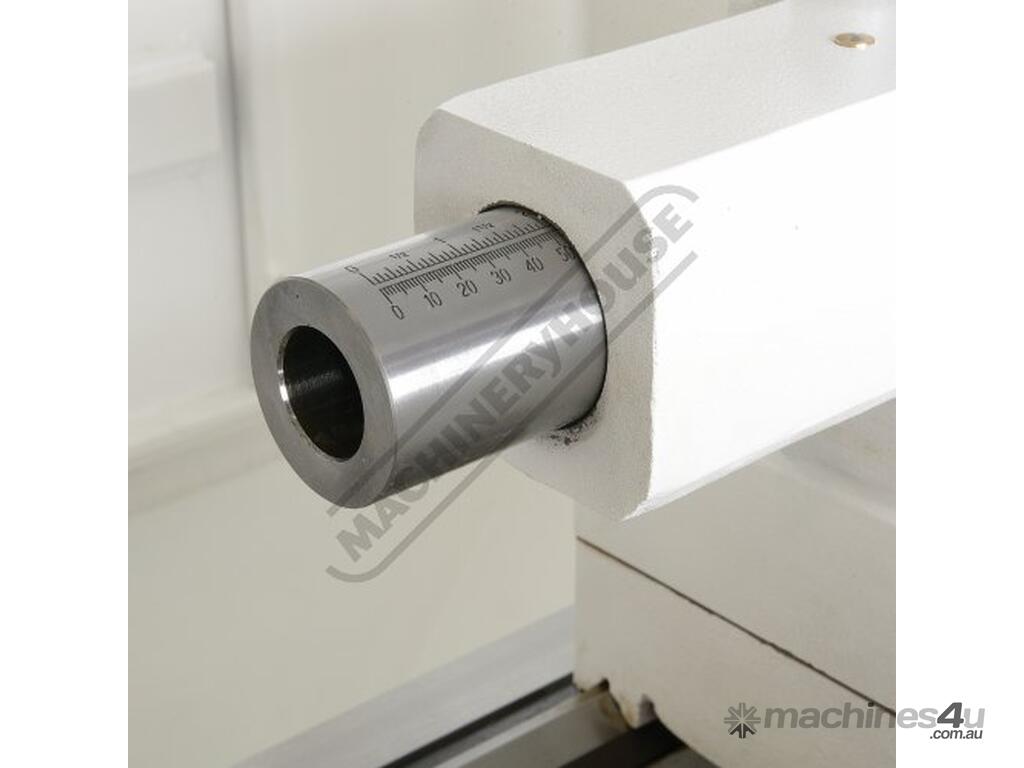

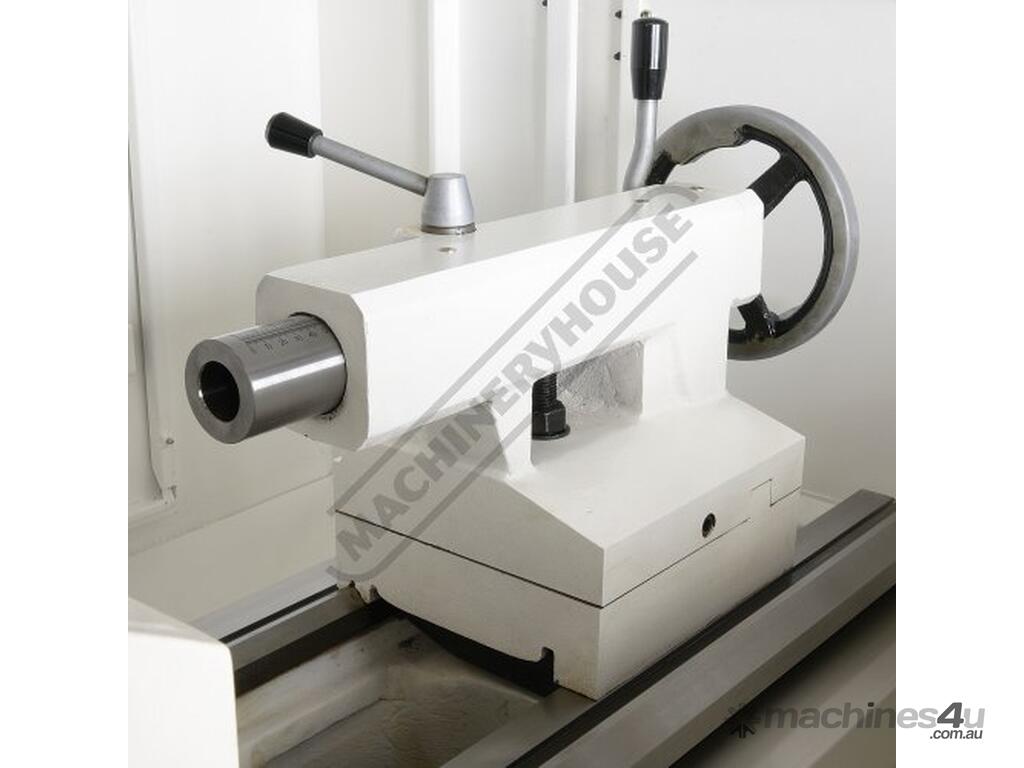

Tailstock with MT4
2-Axis servo motor control
Constant surface speed control
Flood coolant system

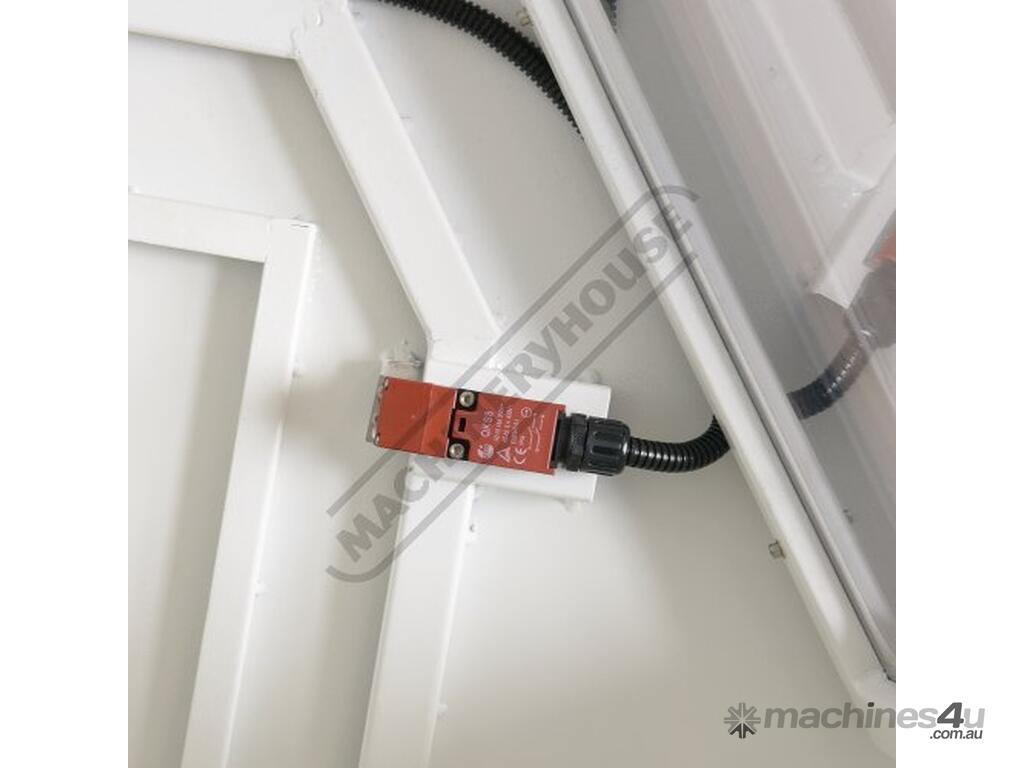

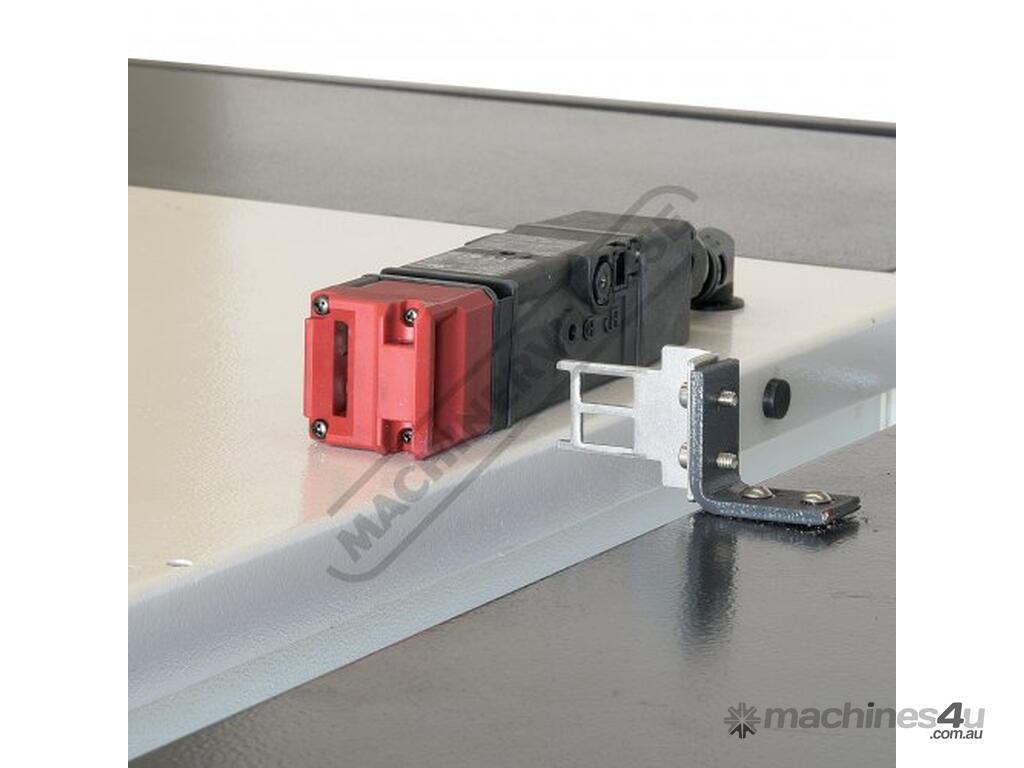

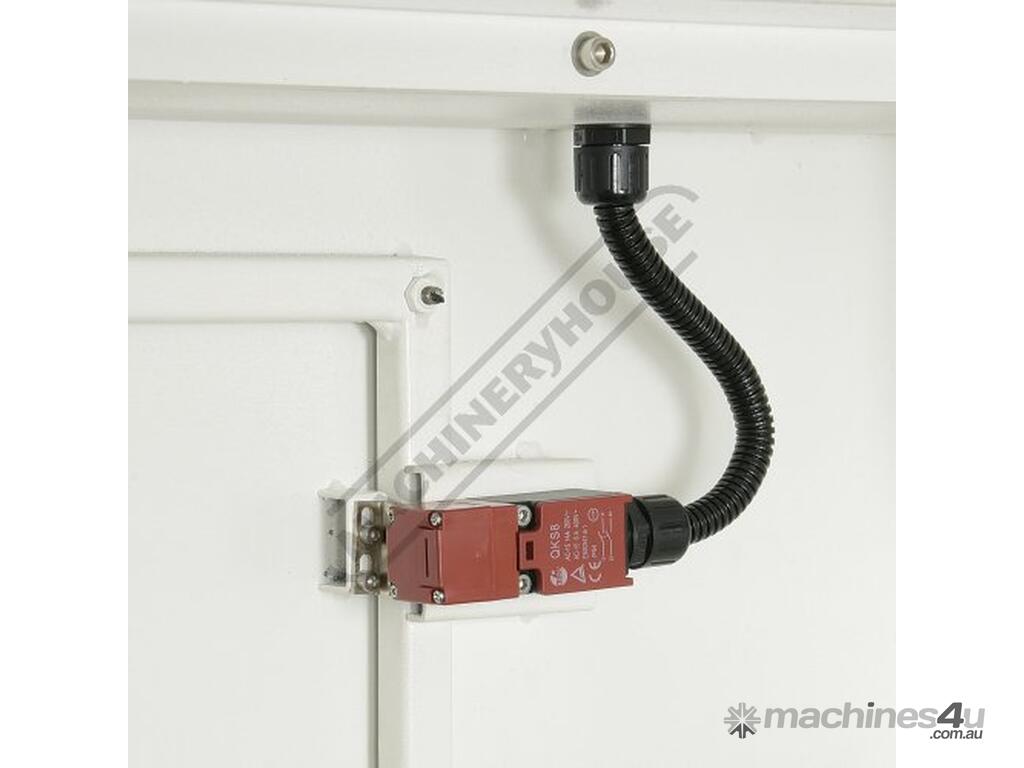

Full CE Safety enclosure with Safety PLC
Central lubrication unit
Includes:
- 2 x Boring Sleeve 20 x 25mm
- 2 x Boring Sleeve 16 x 25mm
- 1 x Boring Sleeve 12 x 25mm
- 1 x Boring Sleeve 10 x 25mm
Specifications:
ORDER CODE: L771
MODEL: L40 OPTi-Turn
Tool Height (mm): 20
Accuracy (mm): ~
Repeatability (mm): ~
Maximum Turning Length (mm): 900
Maximum Turning Diameter (mm): 400
Distance Between Centres (mm): 1000
Swing Over Bed (mm): 400
Centre Height (mm): 200

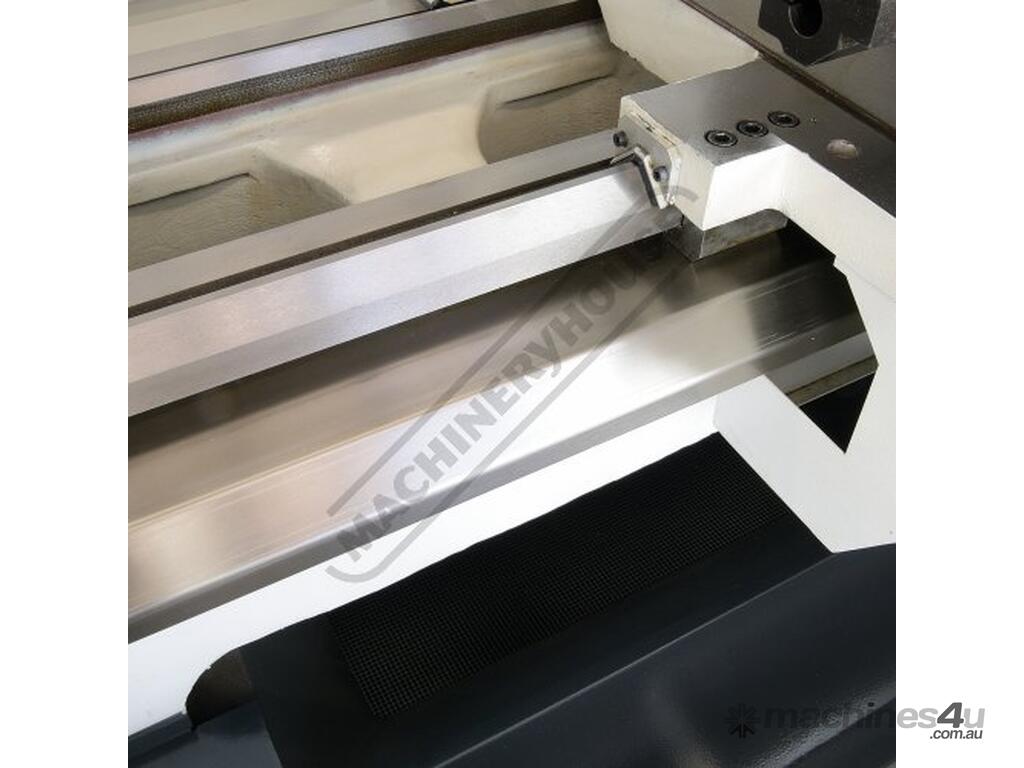

Bed Width (mm): 320
Spindle Bore (mm): 60
Spindle Taper (Type): A2-6
Turning Over Cross Slide (mm): 240
TailStock Taper (MT): 4
Tailstock Travel (mm): 120
Spindle Speed Range (rpm): 25 - 2500
Tool Position Number (No.): 8
Motor Power (kW / hp): 7.5 / 10
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 2400
