New from GERMANY. LANGE is a small family owned manufacturer of edgebanders.
THE BEST VALUE GERMAN BUILT EDGEBANDER ON THE MARKET.
LANGE has an excellent reputation across the board in Europe.

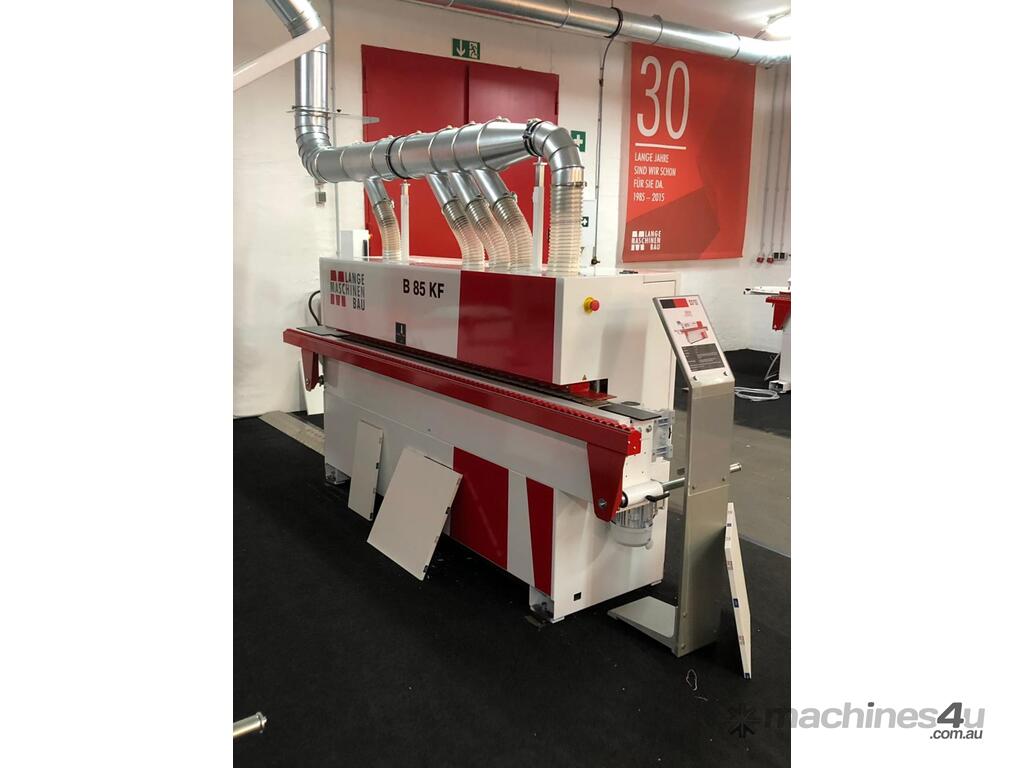

We are pleased to present the New LANGE B85KF

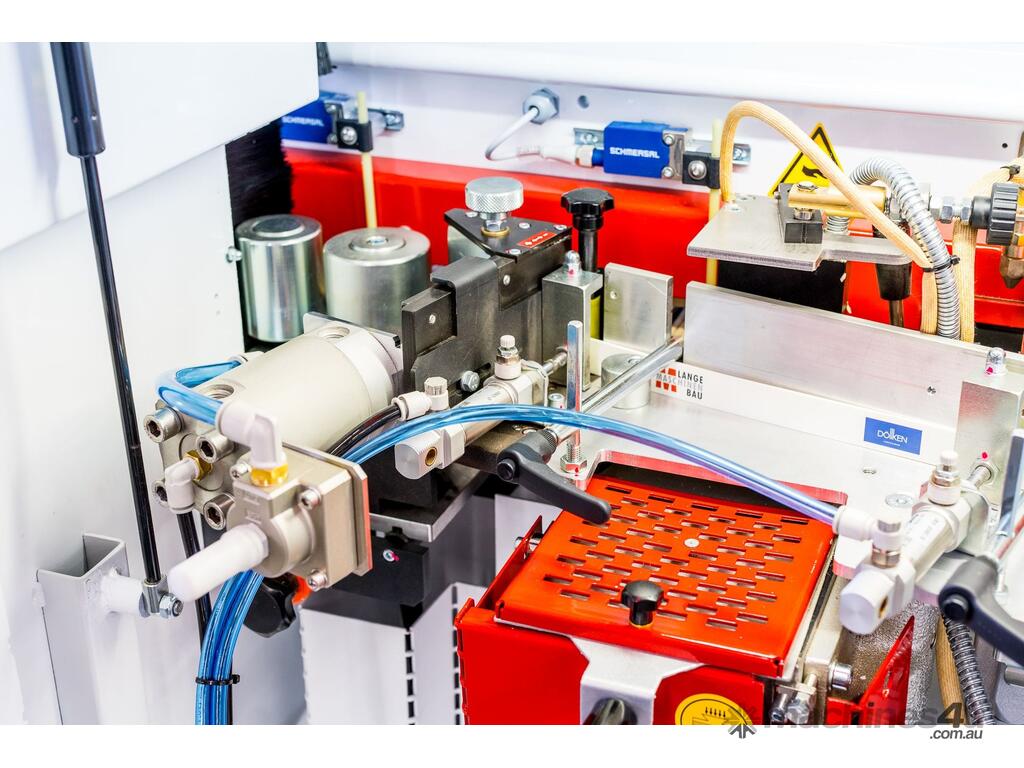

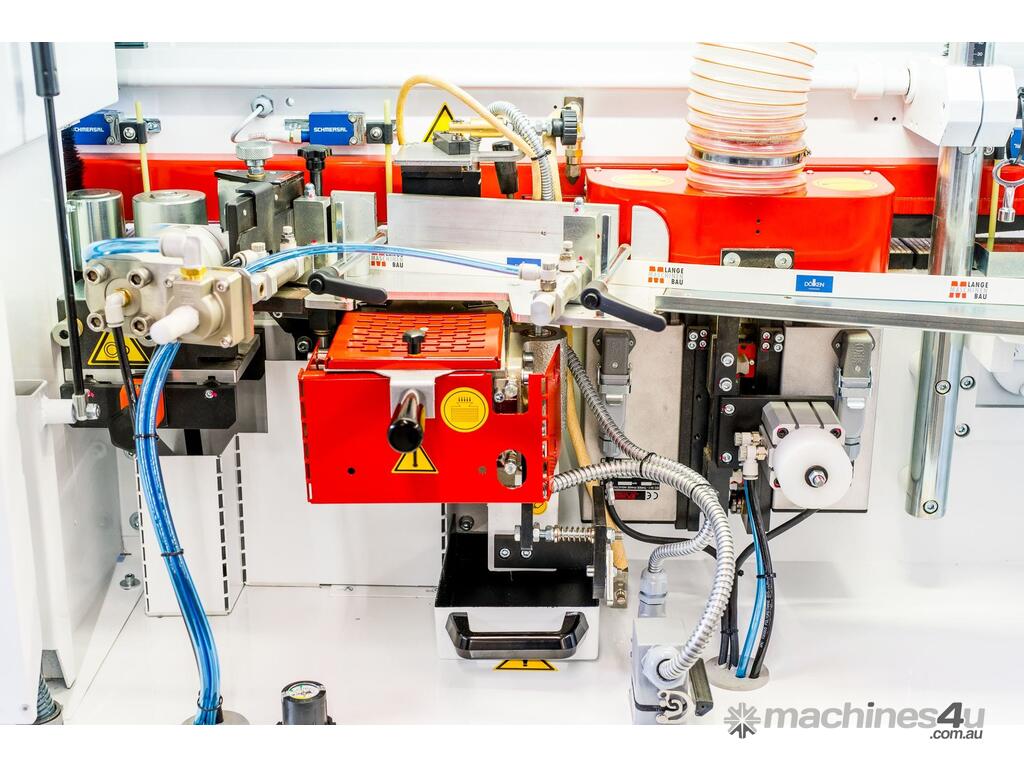

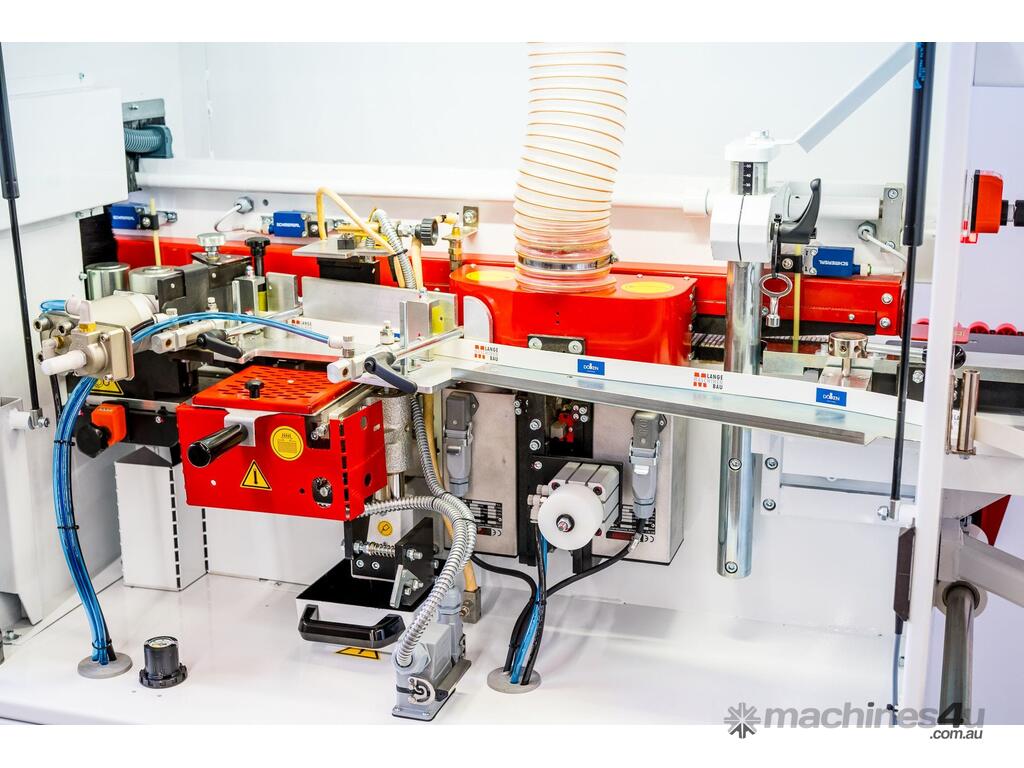

GLUE APPLICATION UNIT
- New design with improved thermodynamics, granting a shorter heating times;
- Power consumption 2,95 kW; Quick change concept;
- Automatic temperature control by electronic thermostat preventing the scorching of the glue when
the machine is idle;
- Separate glue roller temperature adjustment;
- Glue tank (1,5 kg capacity), full TEFLON??coating of the whole assembly;
EVA/PUR glue pot upgrade pack, allowing the use of the unit both with EVA and with
PUR adhesives. The pack includes a simple and efficient draining system for the residual glue
in the glue pot and the necessary software to support this feature.
- Heavy duty feed track with feed speeds 8 & 10m/min
- Can apply solid timber strips up to 3mm

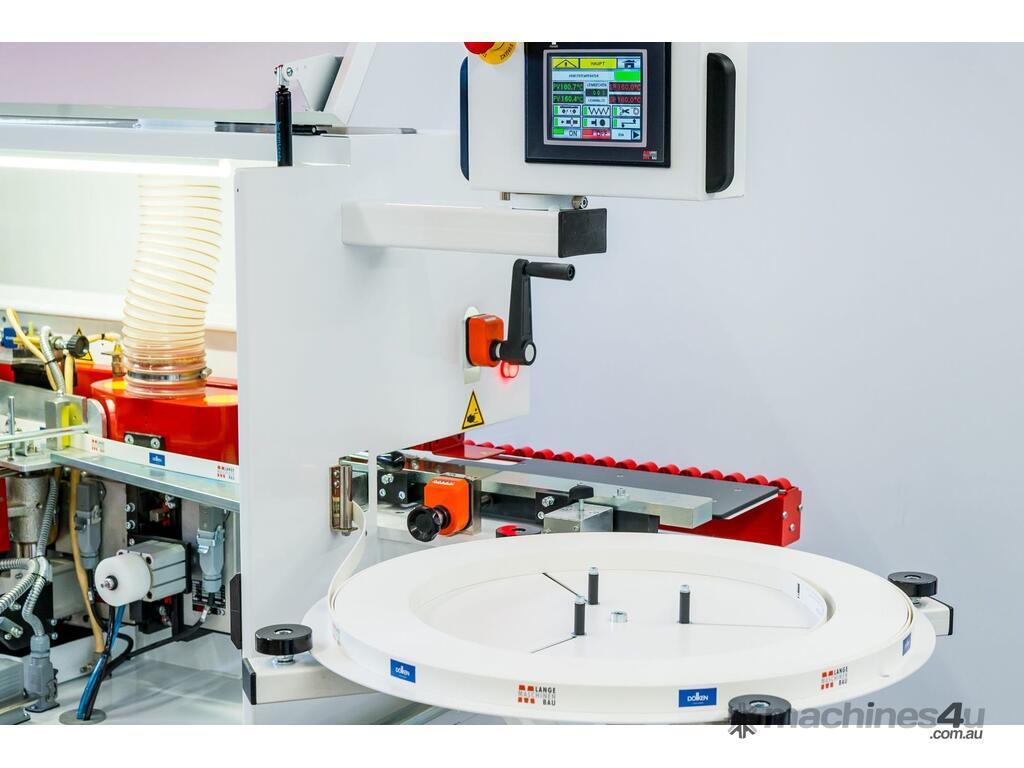

- "Colour Touchscreen" controller
- Pre-milling with Diamond cutter-heads up to 55mm
- Teflon coated Glue pot with Quick release and special "Run out" Function
- Run out function on Gluepot for use on PUR Glues & fast colour changes
- Twin end saws

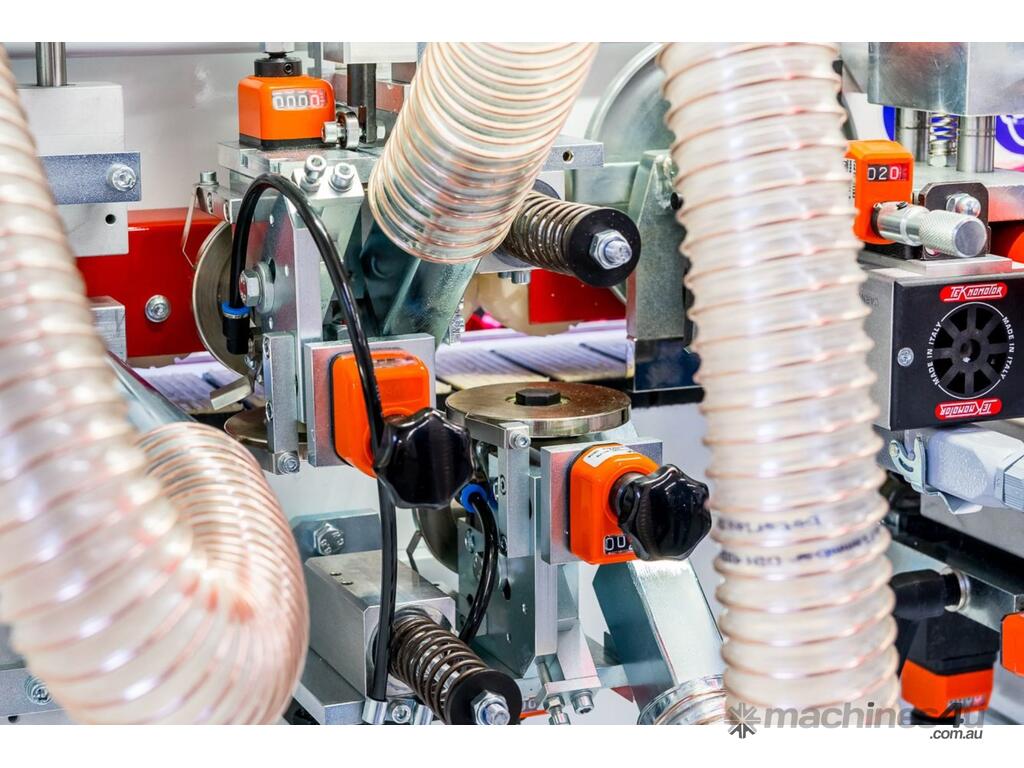

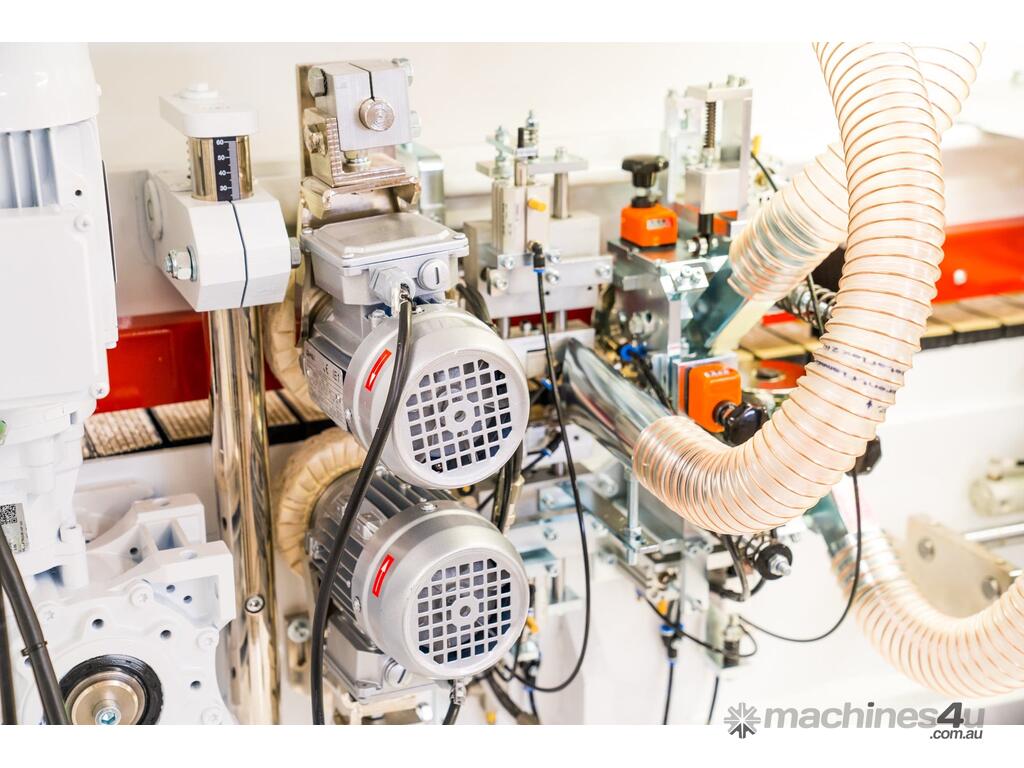

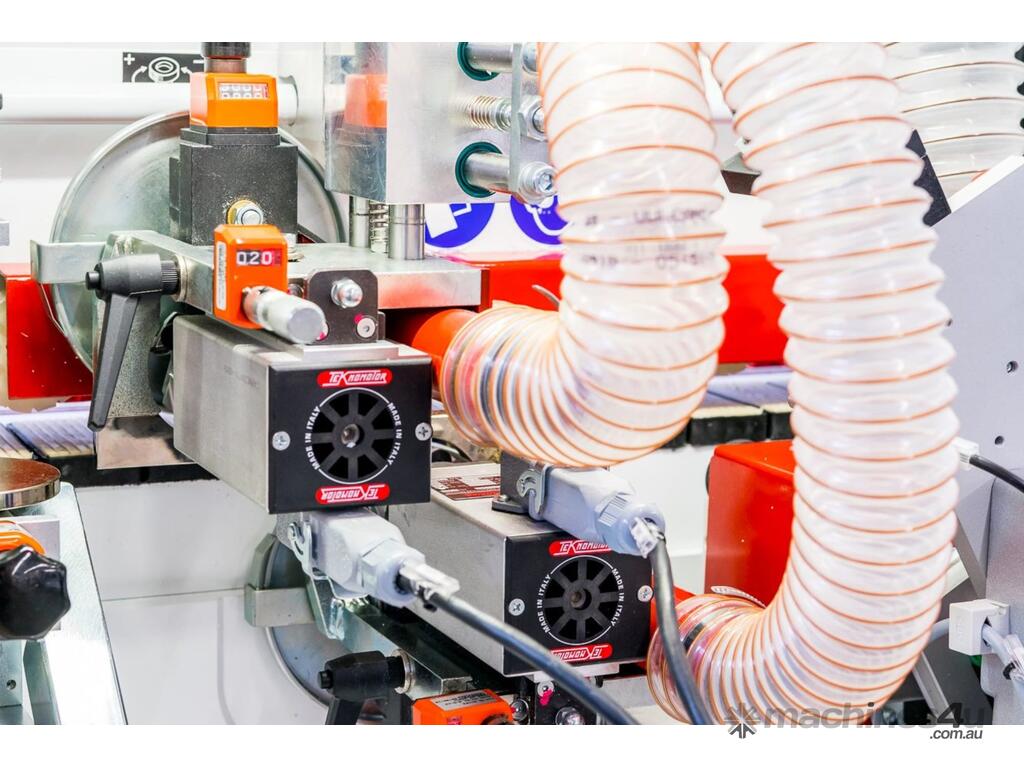

- Top & bottom high frequency trimmers
- Radius scrapers
- Top & bottom buffers
- (Corner rounding option also available on this model - B85KFE POA)
Machine length 2811 mm
Workpiece thickness 8 – 50 mm
Workpiece width min. approx. 75 mm
Workpiece length min. approx. 120 mm
Edging thickness 0,4 – 3,0 mm
Max edge thickness = Workpiece thickness + 4mm (2+2)
Electrical connection 400V,50Hz,3Ph+N
Total load 4,10 kW
Feed speed 7,0 m/min.
Air connection 6 Bar
Weight – net 557 kg
