LATHE CNC 50-55-60 INCH SWING OVER SLANT BED

Condition:
New - Build-To-Order

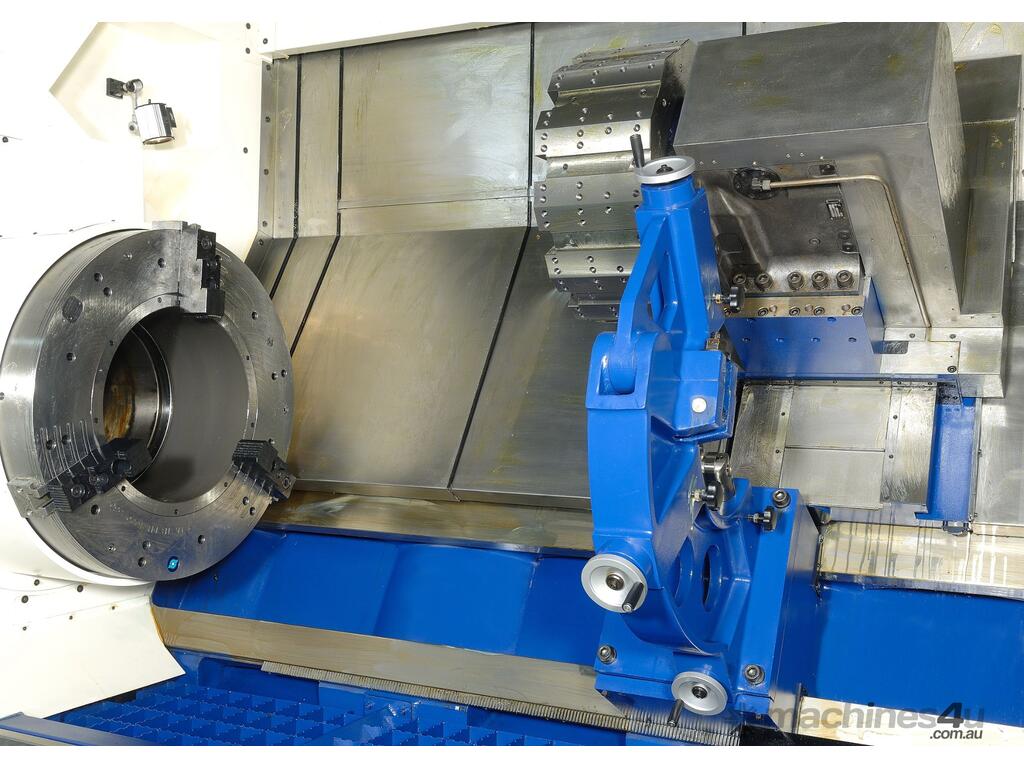

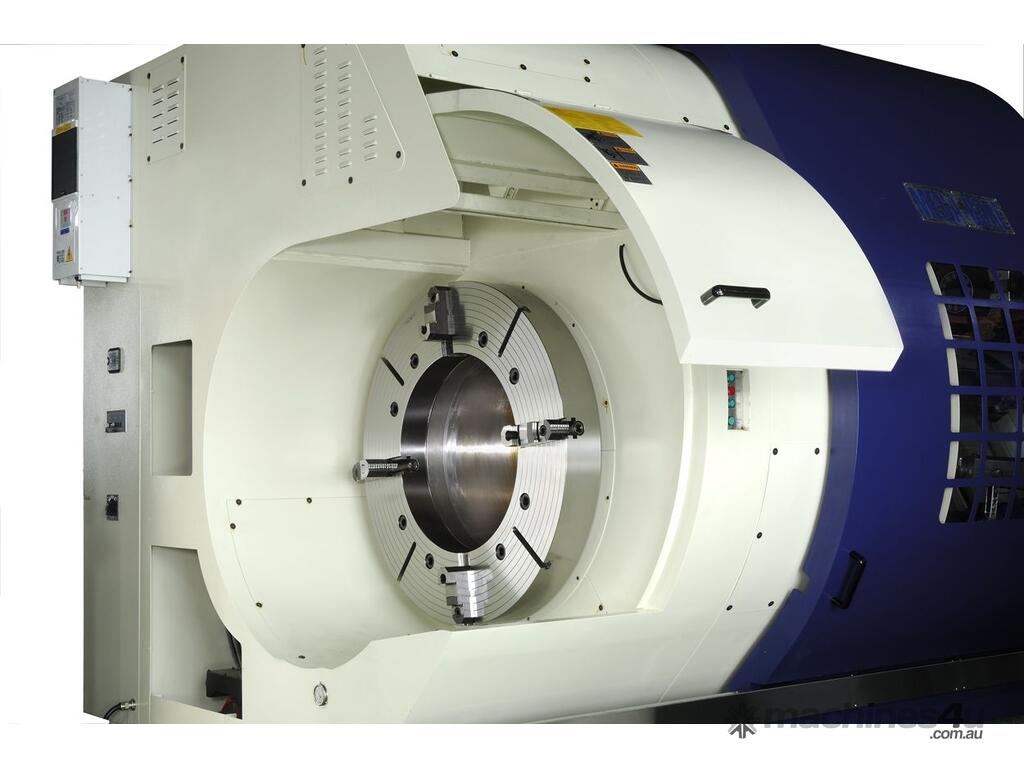

The SB series is a heavy duty slant bed lathe. Hollow spindles available from 9 to 30 inch. Between centers from 40 - 204 inches. Outstanding Features. * One piece bed, 60° slant bed construction ensures maximum stability and convenient chip disposal. * Alloy steel spindle with opposed taper roller bearings. * All gears in the headstock are hardened and precisely ground. * Automatic ranges of spindle speed through pneumatic gear shift. * Spindle speed ranges are automatically changed by M code. * Infinitely variable speed are commanded by S code. * Tool change are commanded by T code. * Auto lubrication system is equipped for headstock, carriage, and cross-slide. * Precision tapered roller bearings are equipped on the spindle and the quill. * The quill is heat treated and precisely ground. * Internal taper of quill to suit MT#6 dead center or live centre. * Turcite B anti friction material is applied on cross slide and carriage for reduce friction. * X and Z axis ballscrews are protected by covers to prevent ingress of swarf / chips and coolant.

Specifications:

Swing 50"
Spindle Bore 21"
Power 50 hp
Control CNC (Fanuc)

ITEM UNIT:.....................................................SB-50, SB-55, SB-60
CAPACITY

Centre height mm (in.)
(SB-50):................................................................765 (30.11)
(SB-55):................................................................845 (33.26)
(SB-60):................................................................925 (36.41)

Swing over bed mm (in.)
(SB-50):...............................................................1095 (43.11)
(SB-55):...............................................................1180 (46.45)
(SB-60):................................................................1265 (49.8)

Swing over cross slide mm (in.)
(SB-50):...............................................................1025 (40.35)
(SB-55):................................................................1110 (43.7)
(SB-60):...............................................................1195 (47.04)

Distance between centres mm (in.)
700 (27), 1200 (47), 1700 (67), 2200 (86) 3200 (126), 4200 (166), 5200 (206)

BED
Width / Slant angle mm (in.) / deg...............................1730 (68.11) / 60°

CARRIAGE
Width of cross slide...........................................mm (in.) 600 (23.62)

TURRET
Standard tool post.........................................Polygon Disc / VDI disc
No. of tool stations..................................................V12 / V8;V12
Turning Tool Size...........................................mm (in.) 32 x 32 (1.25)
Boring Tool Size(max.)............................................mm (in.) 63 (2.5)

TRAVEL
Cross slide (X axis) travel.....................................mm (in.) 630 (24.8)
Longitudinal(Z axis) travel mm (in.)
700 (27), 1200 (47), 1700 (67), 2200 (86) 3200 (126), 4200 (166), 5200 (206)
Cutting feed rate mm(in.)/rev
X axis: 0.001~250(0.00004~9.84); Z axis: 0.001~400(0.00004~15.75)
Rapid travel.........................M.(Ft.)/min X axis: 6(19.68); Z axis: 6(19.68)
Ballscrew diameter......................mm (in.) X axis: 50(1.96); Z axis: 80(3.14)

TAILSTOCK
Quill type.................................Built-in type, Rotating tailstock quill
Quill diameter...................................................mm (in.) 235(9.25)
Quill travel.....................................................mm (in.) 200(7.87)
Internal taper of quill.......................................................MT#6

MOTOR
Headstock oil refrigerator.....................................18,000BTU(4,500Kcal)
Main spindle..........................KW(HP) 30/37(40/50)-STD.; 37.5/45(50/60)-OPT.
Axis servo................................KW(HP) X axis: 7(9.387); Z axis: 7(9.387)
Hydraulic tank........................................................KW(HP) 3.7(5)
Coolant pump.......................................................KW(HP) 1.05(1.4)
Controller........FANUC 0i-TF series-STD ; FANUC 31i-B series / Other required-OPT.

Note:
(1) X and Z axes actual cutting diameter will change when equipped with different
turrets.
(2) Specifications are subject to change without notice for improvement.
Spindle nose...........................................................A2-15~A2-40
Spindle bore.................................................................9"~30"
Spindle motor...........................................Standard-40HP; Option-50HP


Equipped With:

* V12 turret.
* Rotating tailstock quill with 235mm diameter.
* Motorized tailstock body and quill movement.
* FANUC 0i-TF series complete with manual guide and thread repair.
* Front chip conveyor.
