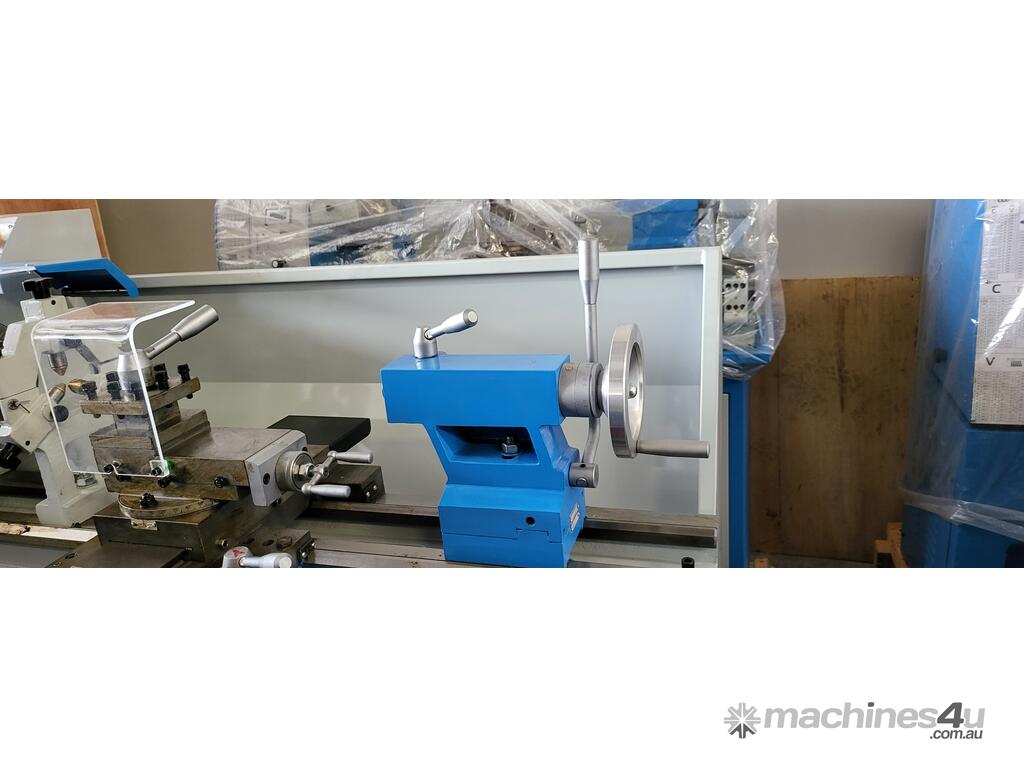

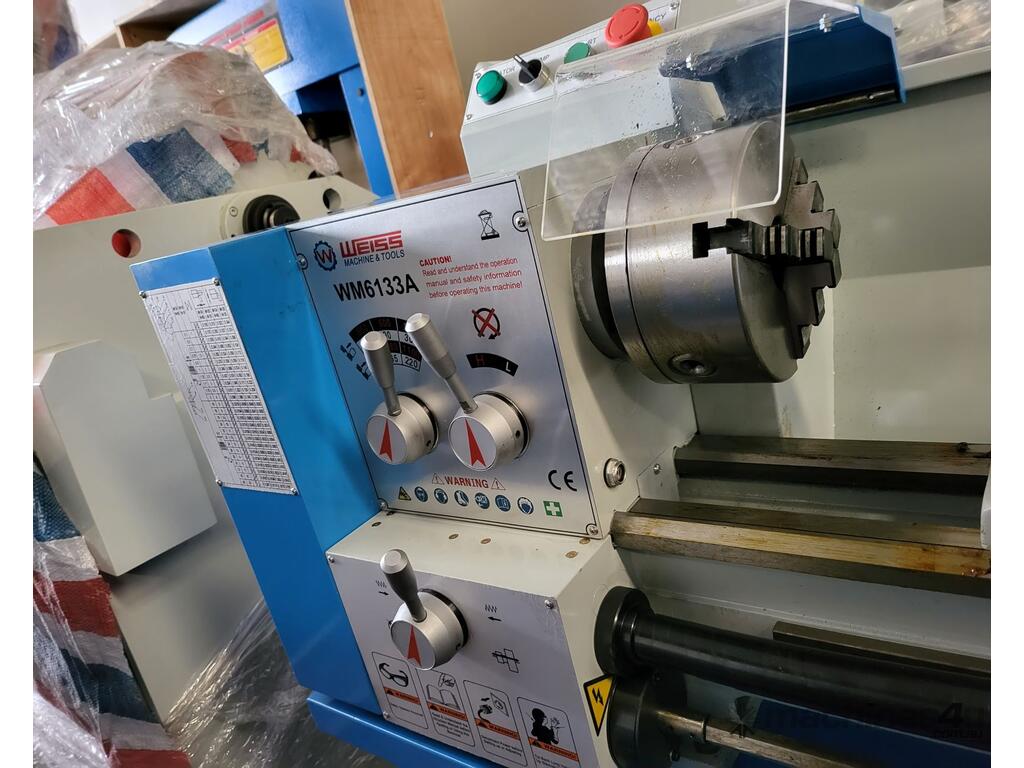

LATHE CQ6133 330X700MM B/C

ACCESSORIES:
Floor stand, 3 & 4 Jaw chuck, Face plate, Steadies,Centres

OPTIONAL ACCESSORIES:
Coolant system, Quick Change tool post, Work light,Leadscrew cover,revolving centre,Drill chuck, Turning Tools

FEATURES:Small, but heavy duty lathe with big spindle bore. Induction Hardened & precision Ground bedways. Gap bed provides larger diameter swing

Parameters of Category: Machine Tools
Swing Over Bed 330mm
Swing Over XSlide 210mm
Swing Over Gap 476mm
Distance Btw Centres 700mm
Bed Width 160mm
Tool Size 16.0mm Shank
Spindle Nose Threaded Mount

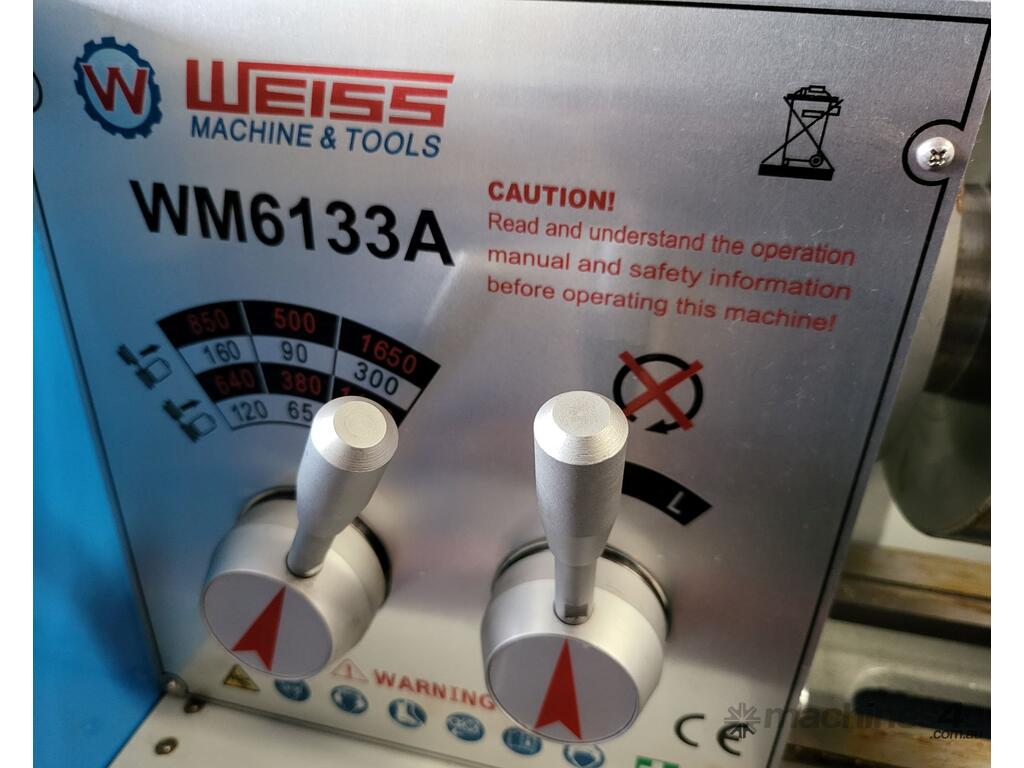

Spindle Speeds 12 Steps
Speed Range 60-1650rpm
Spindle Bore 38mm
Spindle Taper MT5

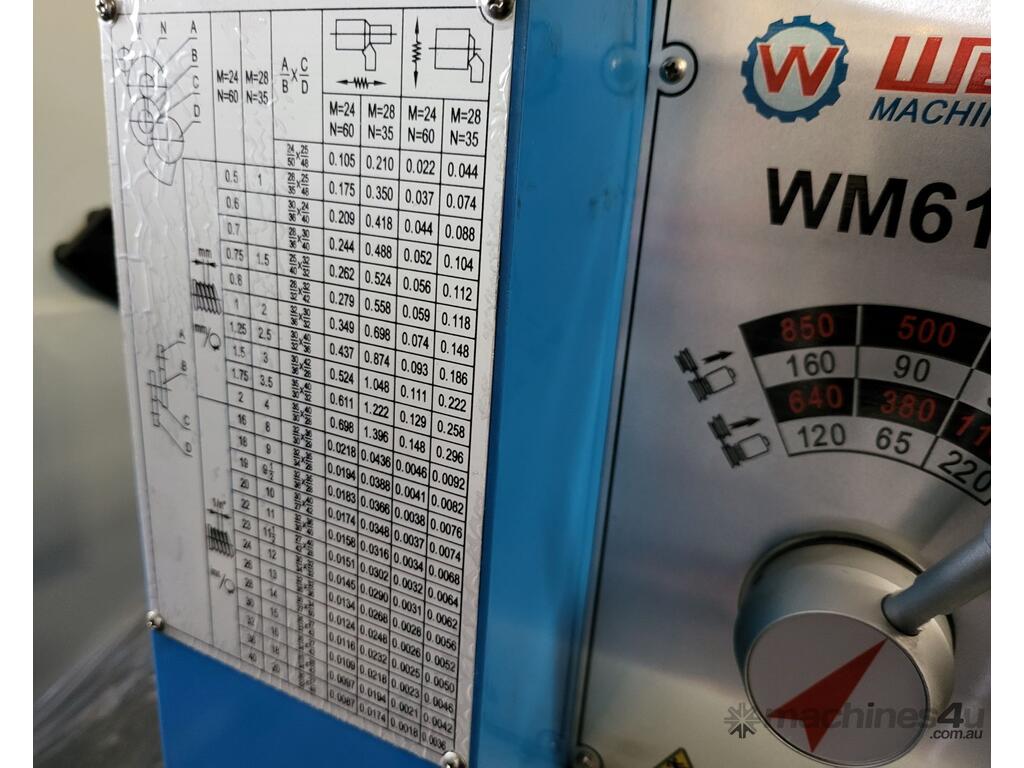

Threading Metric 0.5-4mm (17)
Threading Imperial 40-9TPI(20)
Tailstock Taper MT3
Motor 1.1Kw
Weight Nett/Gross 260.000/280
Volume .83545
