ACCESSORIES:

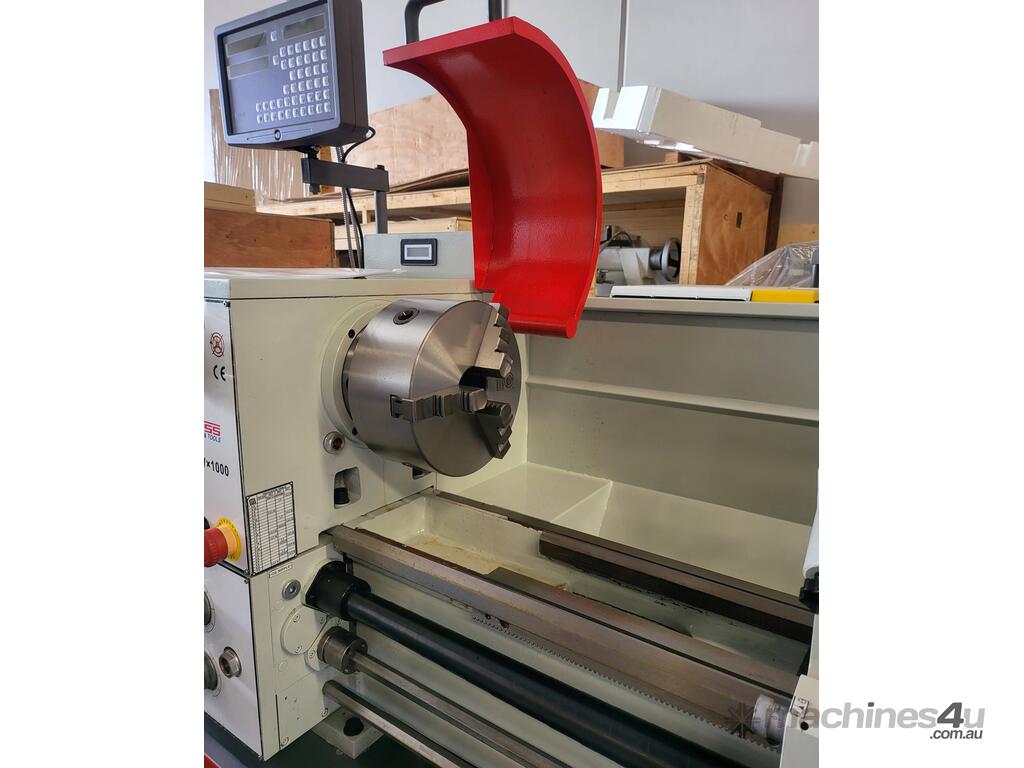

3&4 Jaw chucks,Face plate,Steadies,Splash guard,Stand,Foot brake,Coolant,Work lamp.
OPTIONAL ACCESSORIES:
Quick change tool post, Digital read out, Taper turning attach, lathe tools,Leadscrew cover.
FEATURES:* The WM330AV-B lathe is fitted with the Delta Inverter for reliable speed control under all conditions * Induction hardened and precision ground bedways * Large 51mm bore size * DI-5 spindle is supported by quality taper roller bearings * Fitted with lathe chuck, emergency stop button and foot brake for added safety *
Parameters of Category: Machine Tools
Swing Over Bed 360mm
Swing Over XSlide 225mm
Swing Over Gap 580mm
Distance Btw Centres 1000mm
Bed Width 187mm
Tool Size 16.0mm Shank
Spindle Nose D1-5
Spindle Speeds Variable
Speed Range 90-2000rpm
Spindle Bore 51mm
Spindle Taper MT5

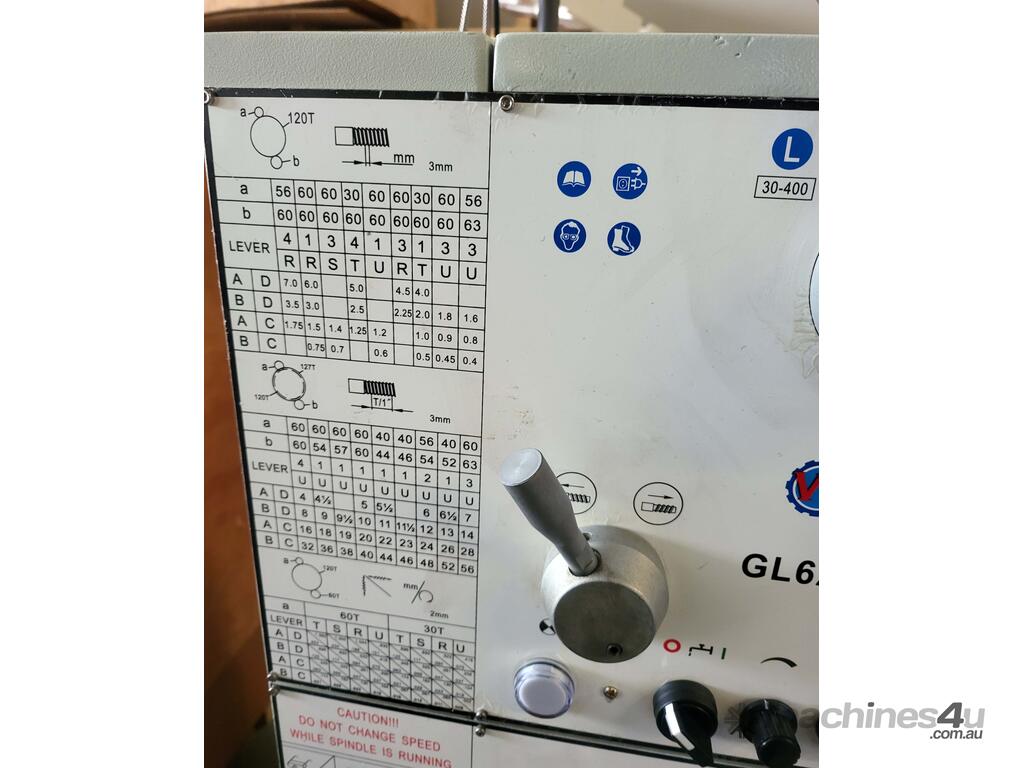

Threading Metric 0.45-10mm
Threading Imperial 2-1/4 - 40tpi

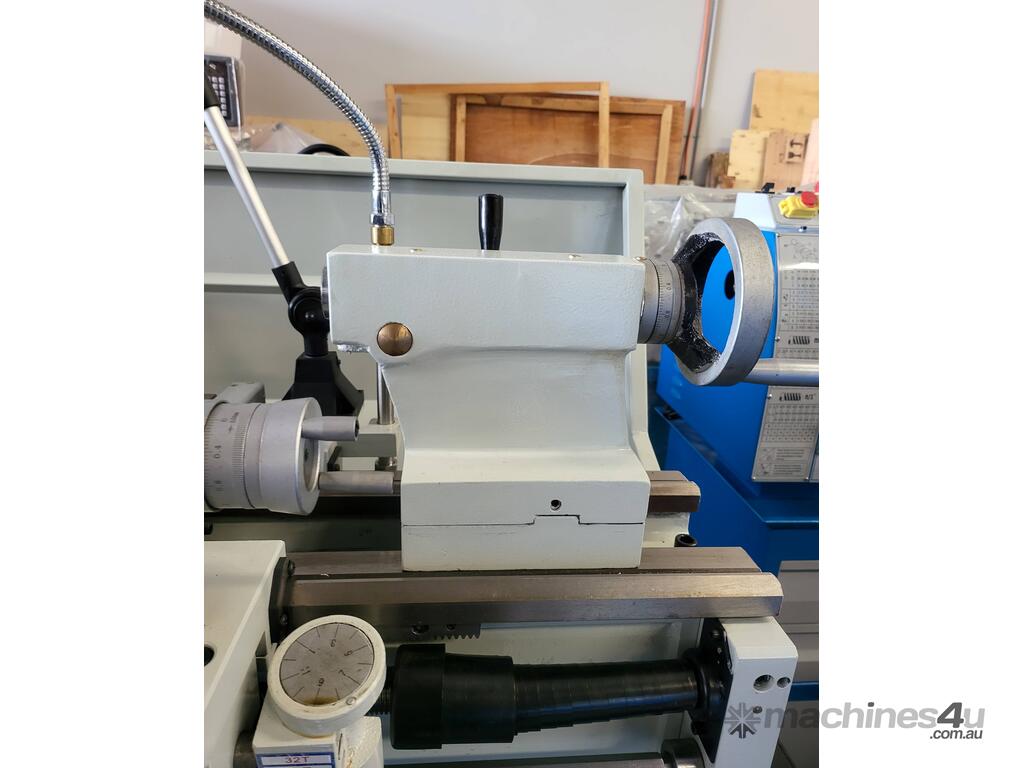

Tailstock Taper MT4
Motor 1.5kw
Weight Nett/Gross 540.000/560
Volume 2.16
