LATHE/MILL WBP-290F 1PH VSPEED

ACCESSORIES:
3 & 4 Jaw chucks,Steadies,F/plate,Chip tray,Splash Guard,Stand.

OPTIONAL ACCESSORIES:
Tooling,Coolant.

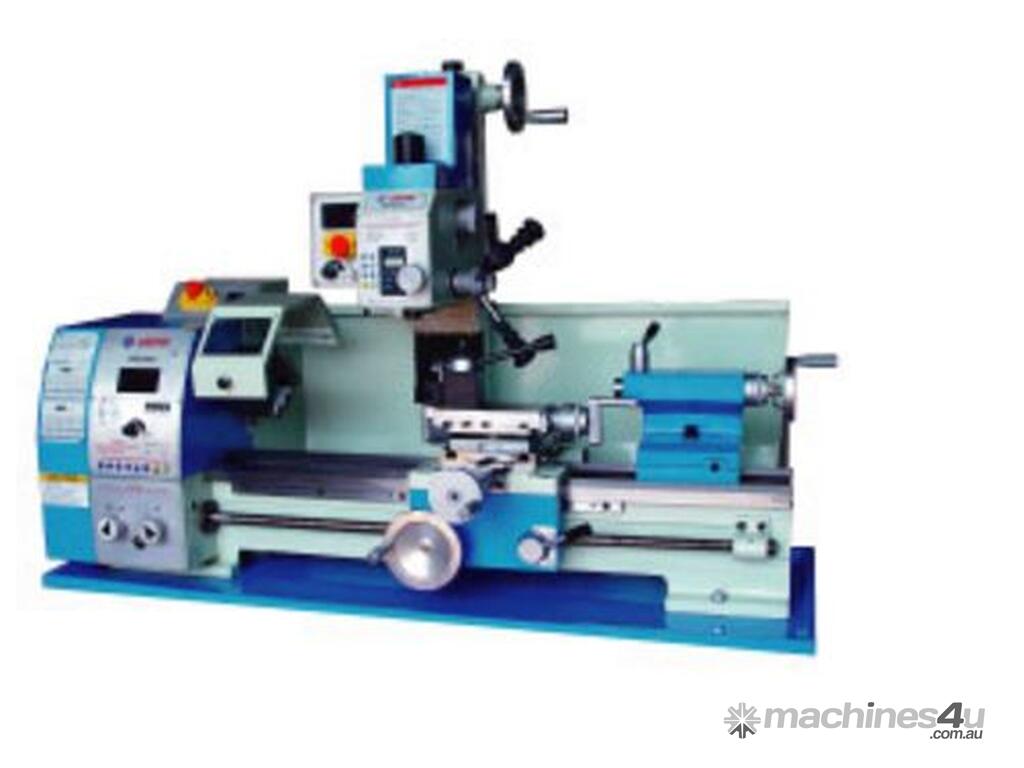

FEATURES:* This combination machine features a variable speed lathe with 280mm swing and a milling attachment for overhead milling which is also variable speed * Mill quill has a MT2 taper and a 600w motor with a speed range of 50-2250rpm * Compact unit and ideal for home workshop or model making * Takes 12mm shank tooling * Packing sixe does not include stand *

Parameters of Category: Machine Tools
Swing Over Bed 290mm
Swing Over XSlide 165mm
Swing Over Gap No Gap
Distance Btw Centres 650mm
Bed Width 180mm
Tool Size 12.0mm Shank
Spindle Nose Flanged
Spindle Speeds Variable, Brushless Motor
Speed Range 50-2000rpm
Spindle Bore 38mm
Spindle Taper MT4
Threading Metric 0.4-3.5mm
Threading Imperial 8-56tpi
Tailstock Taper MT3
Motor 900w
Weight Nett/Gross 240.00/260
Volume 1.16844
