LATHE WBL250F 10 X 22" V/SPD

ACCESSORIES:
3&4 Jaw chucks,Steadies,Chip tray,Splash guard,Face plate,Stand.

OPTIONAL ACCESSORIES:
Quick change tool post, Turning tools.

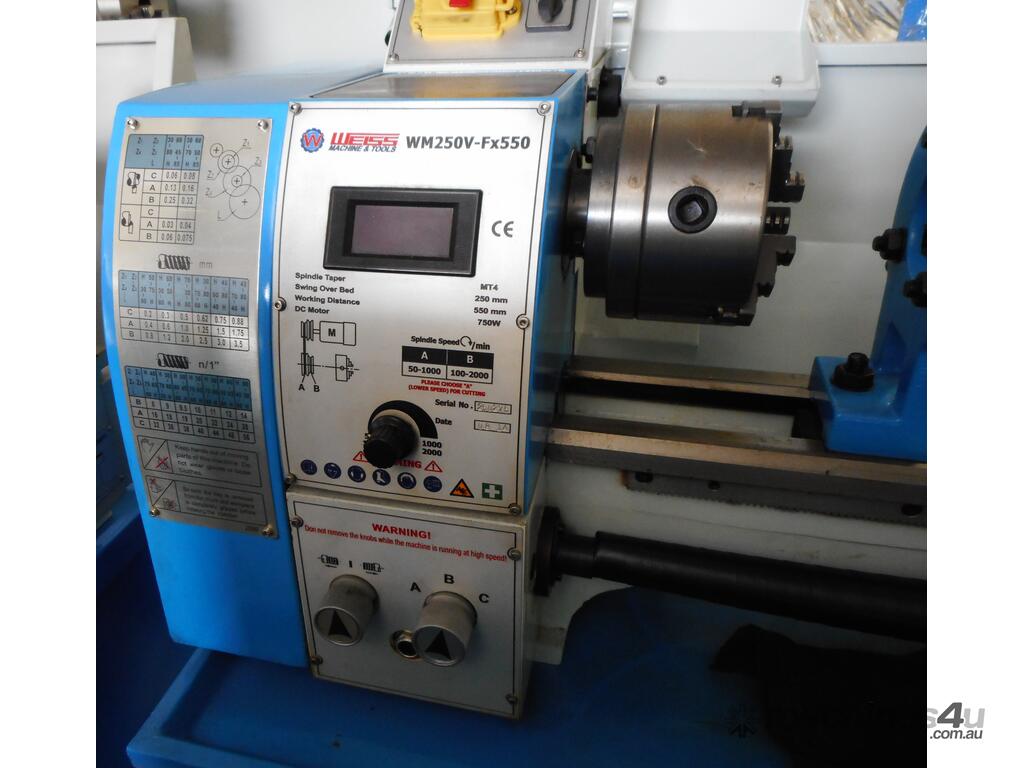

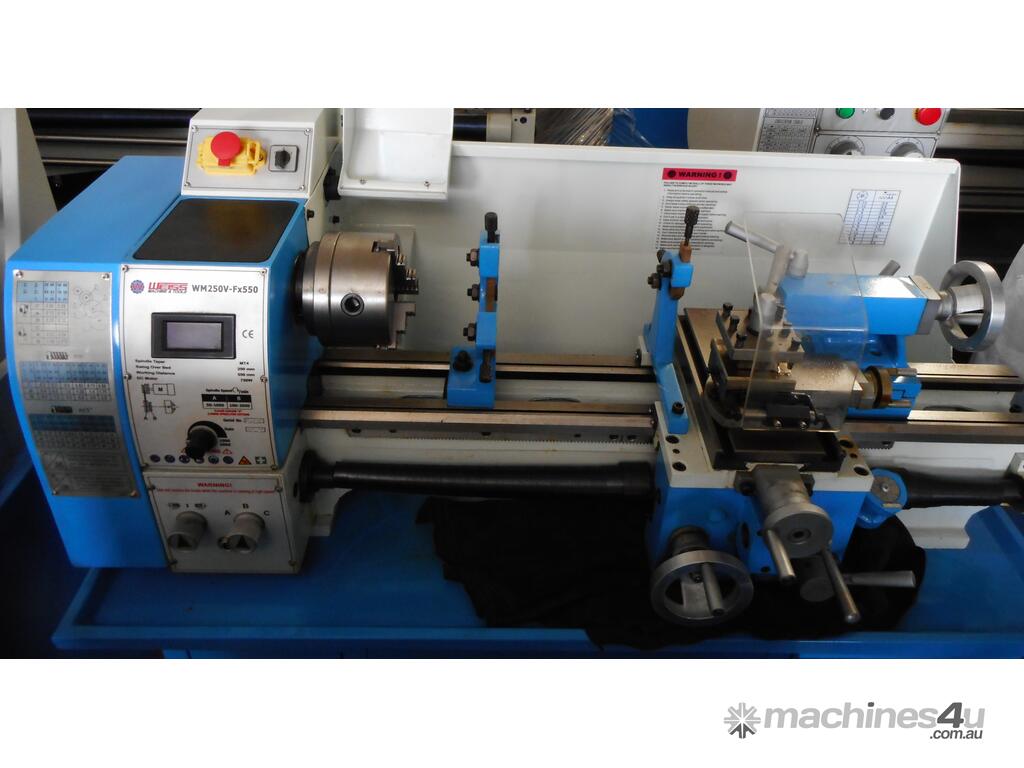

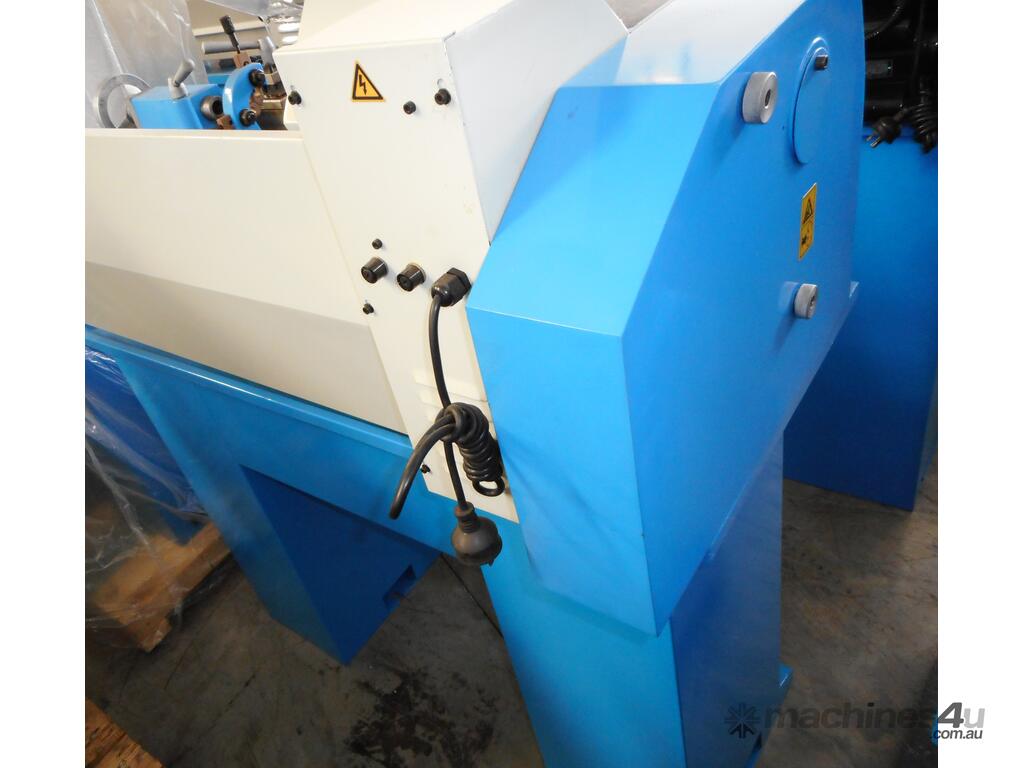

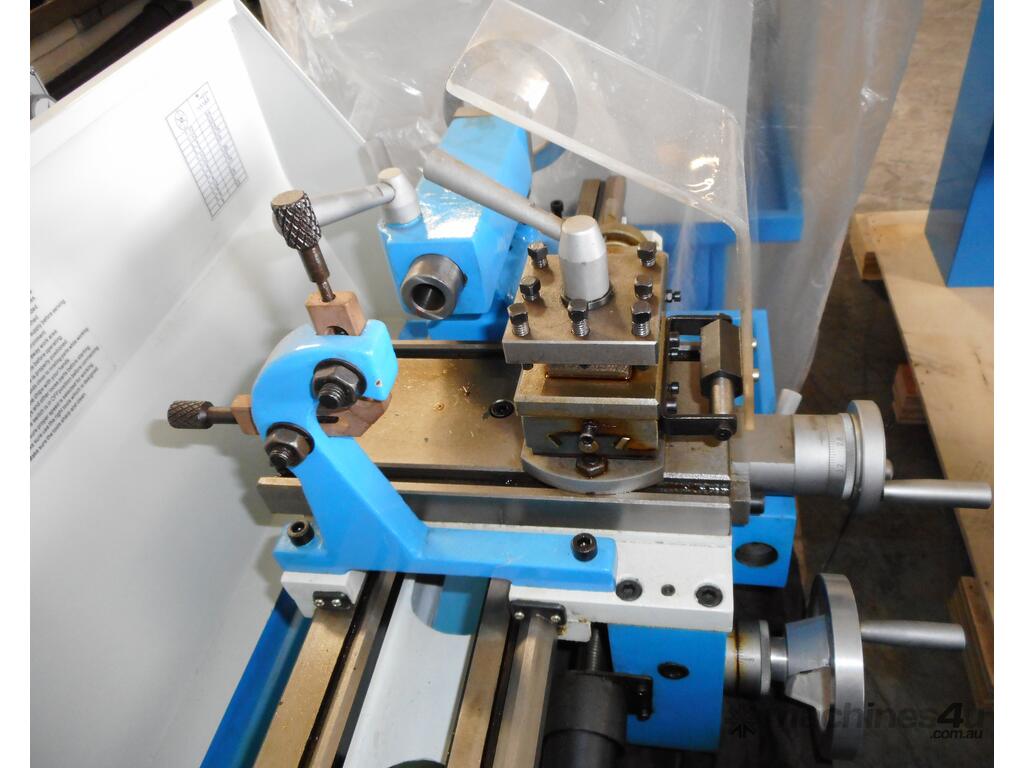

FEATURES:The Weiss WM250V-F is a popular small workshop or home lathe * V-bed hardened & precision ground * Spindle mounted on Taper Roller bearings * MT4 spindle Taper * Power Longitudinal and Cross feeds * Adjustable Gib for Slideways * Tailstock can be offset for taper Turning * Complete with fabricated, rigid Floor Stand * Takes 10mm tooling * Packing size does not include stand *

Parameters of Category: Machine Tools
Swing Over Bed 250mm
Swing Over XSlide 140mm
Swing Over Gap Nil
Distance Btw Centres 550mm
Bed Width 135mm
Tool Size 12.0mm Shank
Spindle Nose Threaded Type
Spindle Speeds Variable
Speed Range 100-2000rpm
Spindle Bore 20mm
Spindle Taper MT4
Threading Metric 0.1-2.5mm
Threading Imperial 8-56tpi
Tailstock Taper MT2
Motor 750W (1hp) DC Drive
Weight Nett/Gross 145.000/160
Volume .43092
