LATHES 35 - 50 INCH SWING

Condition:
New - Build-To-Order

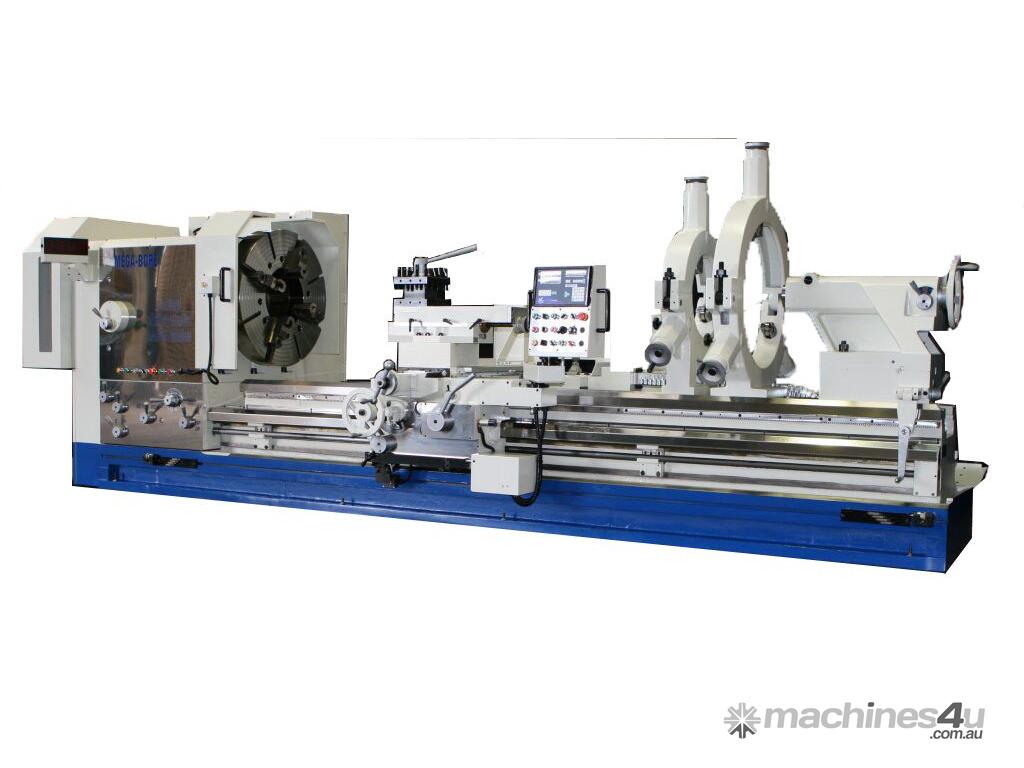

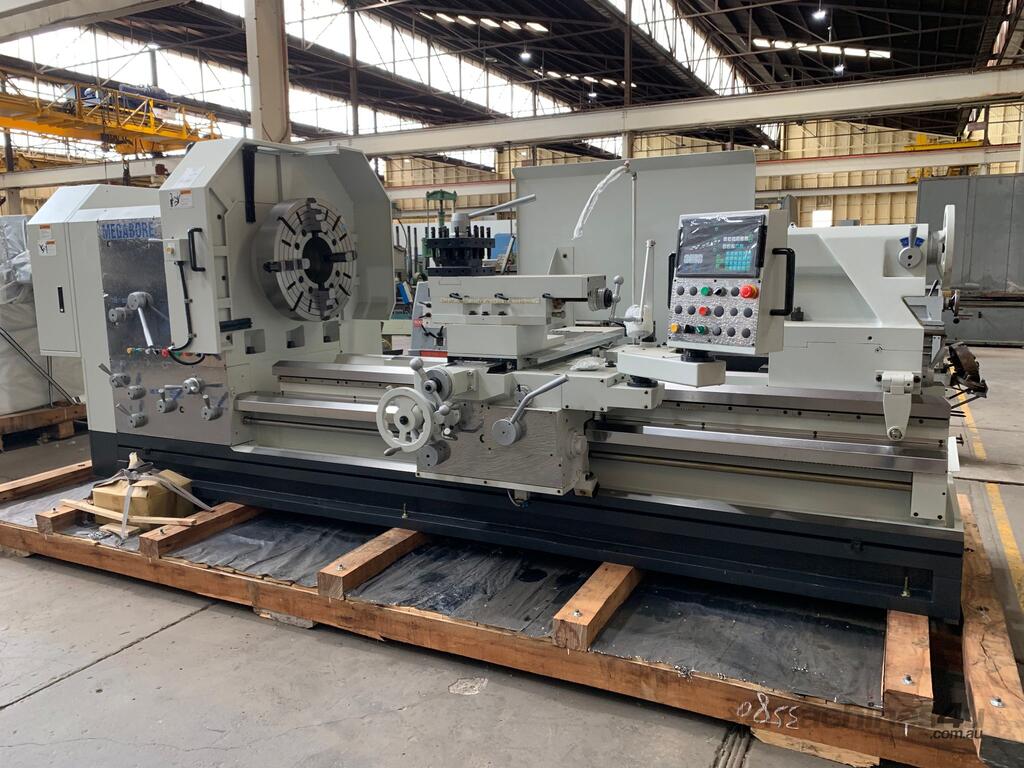

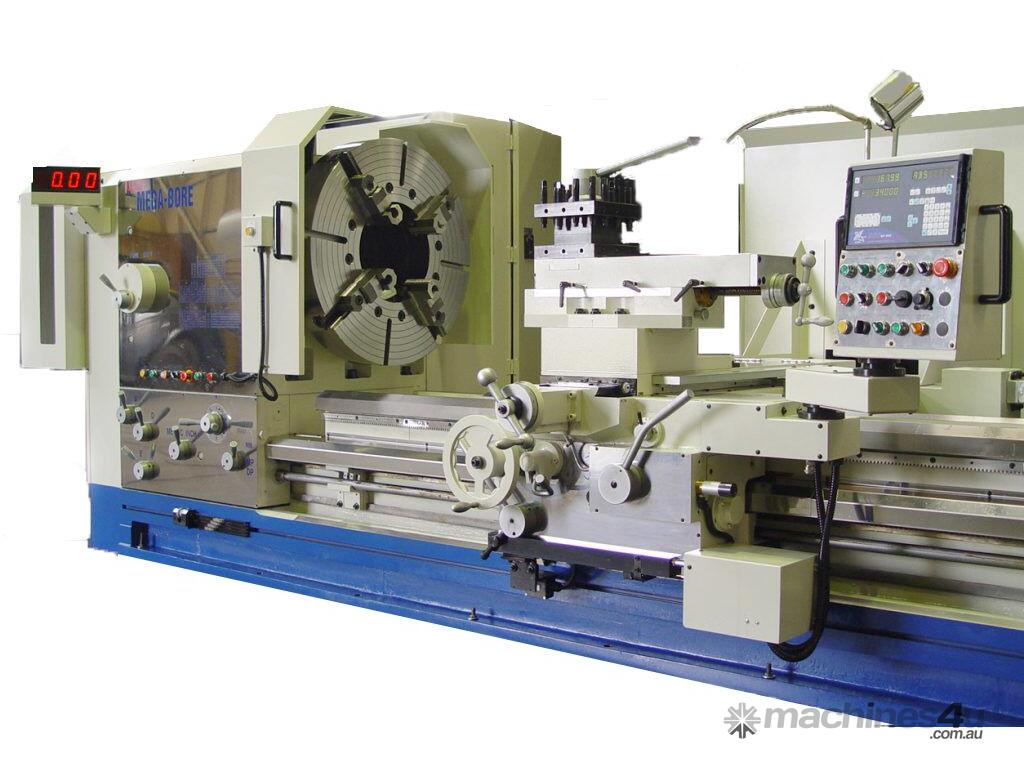

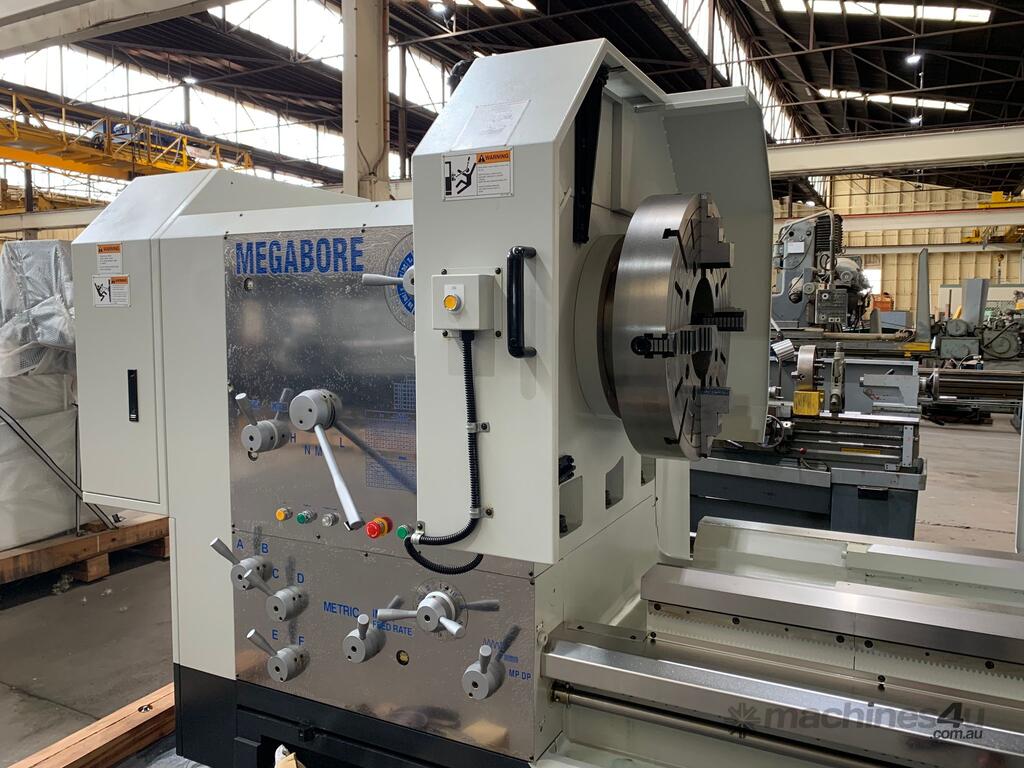

The Megabore PA series is a versatile lathe for those who require an easy to operate heavy machine offering versatility and rigidity. The machine is available in a variety of swing diameters, center distances and hollow spindles. Please send your enquiry for an immediate quote. Model Designation PA-35 to PA-50 FEATURES * One piece bed, floor type casting. * 2 shear bed way with extra way supporting the apron. * All ways are hardened and ground. * Alloy steel spindle with opposed taper roller bearings. * Hardened and ground gears, shafts. * Electromagnetic spindle brake. * 18-speed geared headstock. * 6-way rapid traverse and power feed to top slide. * Totally enclosed universal inch / metric gear box. * Carriage position device. * Dual voltage spindle motor, 20 to 50 HP. * Pressurized one shot lube system for cross slide and carriage.

SPECIFICATIONS:
Swing 35"
Swing Options 35"- 50"
Swing Over Cross Slide 24"
Swing Over Cross Slide Options 24 in - 40 in
Centers 60"
Center Options 1500 mm - 12,000 mm (5 ft - 40 ft)
Spindle Bore 10"
Spindle Bore Options 6"- 22"
Power 0 hp

SPECIFICATIONS
Swing over bed.....................................................880 mm (35 inch)
Swing over cross slide.............................................615 mm (24 inch)
Distance between centers.........................1500 mm (5 ft) to 12000 mm (40 ft)
Hollow spindles........................................................6-14 inches
BED
Width (W/O auxiliary guide)....................................mm (in.) 560 (22.04)
Width (W auxiliary guide)......................................mm (in.) 660 (25.98)
CARRIAGE
Cross slide travel.............................................mm (in.) 670 (26.37)
Compound tool post travel......................................mm (in.) 450 (17.71)

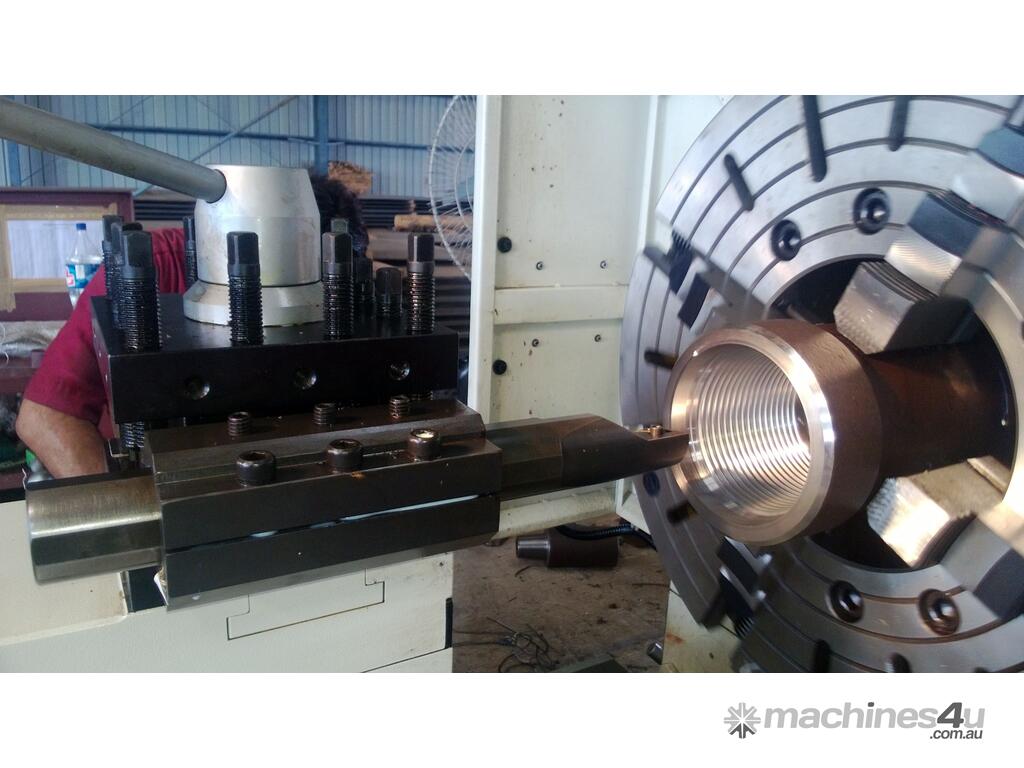

4-way tool post width...........................................mm (in.) 205 (8.07)
THREAD FEED RANGE
Longitudinal feed...........................mm/rev (in.rev) 0.045~2.55 (0.0018~0.1)
Cross feed.................................mm/rev (in.rev) 0.023~1.28 (0.0009~0.05)
Longitudinal rapid feed................................mm/rev (in.rev) 2000 (78.74)
Cross rapid feed.......................................mm/min (in/min) 1270 (50.00)
Metric thread..................................................mm (kinds) 1~56 (60)
Inch thread TPI.................................................(kinds) 1/2~28 (60)
Module thread MOD..............................................(kinds) 0.25~14 (60)
Diametral pitch thread DP........................................(kinds) 2~112 (60)
Pitch of leadscrew..................................................mm (TPI) 12 (2)

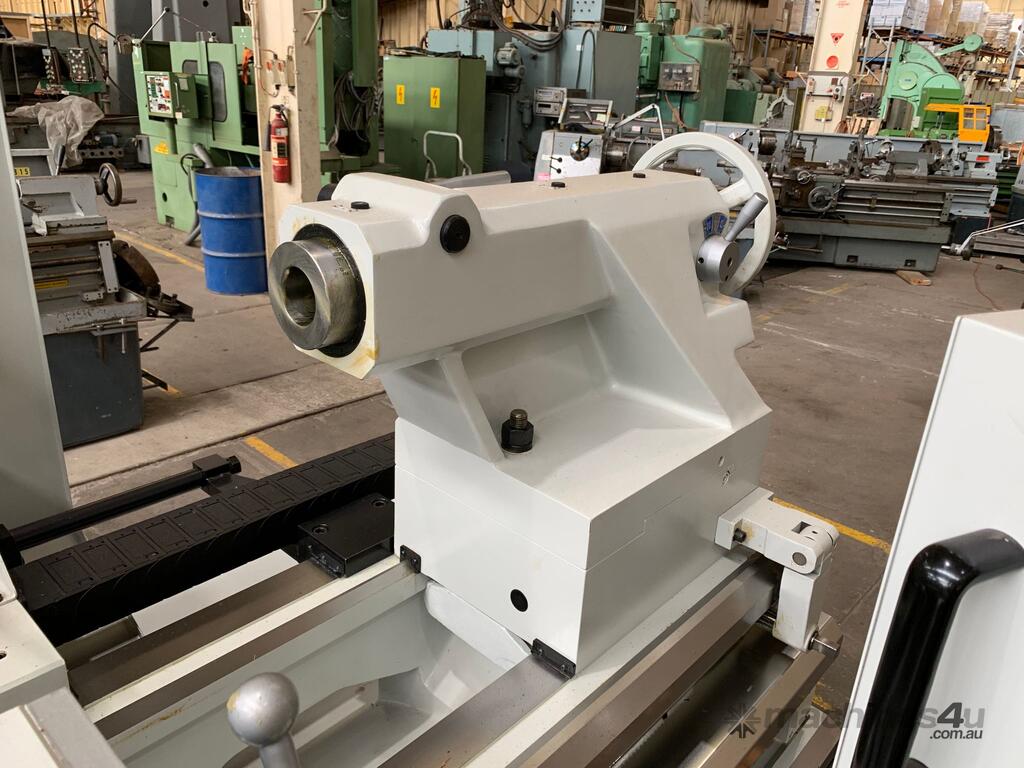

TAILSTOCK
Quill diameter..................................................mm (in.) 115 (4.52)
Quill travel....................................................mm (in.) 200 (7.87)
Inner taper of quill..........................................................MT#6
Bearing surface on the bed ways................................mm (in.) 500 (19.68)
MOTOR
Main spindle motor.......KW (HP) 14(20)-STD. 18(25) / 22(30) / 29(40) / 37(50)-OPT
Coolant pump motor..............................................KW (HP) 0.1 (0.125)



Equipped With:
Standard.
* 1 dead centre, MT #6.
* 2-speed tailstock quill (manual).
* One piece stainless steel leadscrew cover.
* Coolant pump.
* Follow type splash guard.
* Rear side chip and water collect plate.
* Thread chasing dial.
* Water and oil collect plate under apron.
* Work lamp.
