A fantastic combination of performance, features and price that puts your business at the head of the cue for production efficiency.
The LTC-25iLM offer a versatile lathe with milling so 2 operations can be done on a single machine. An array of controllers are available (Fanuc, Siemens and Mitsubishi). An extensive list of options can be chosen to further enhance the machines usability.
Leadwell is part of one of the biggest machine tool groups in the world with multiple companies in Europe and Asia.
Leadwell machines offer value for money and fantastic reliability!

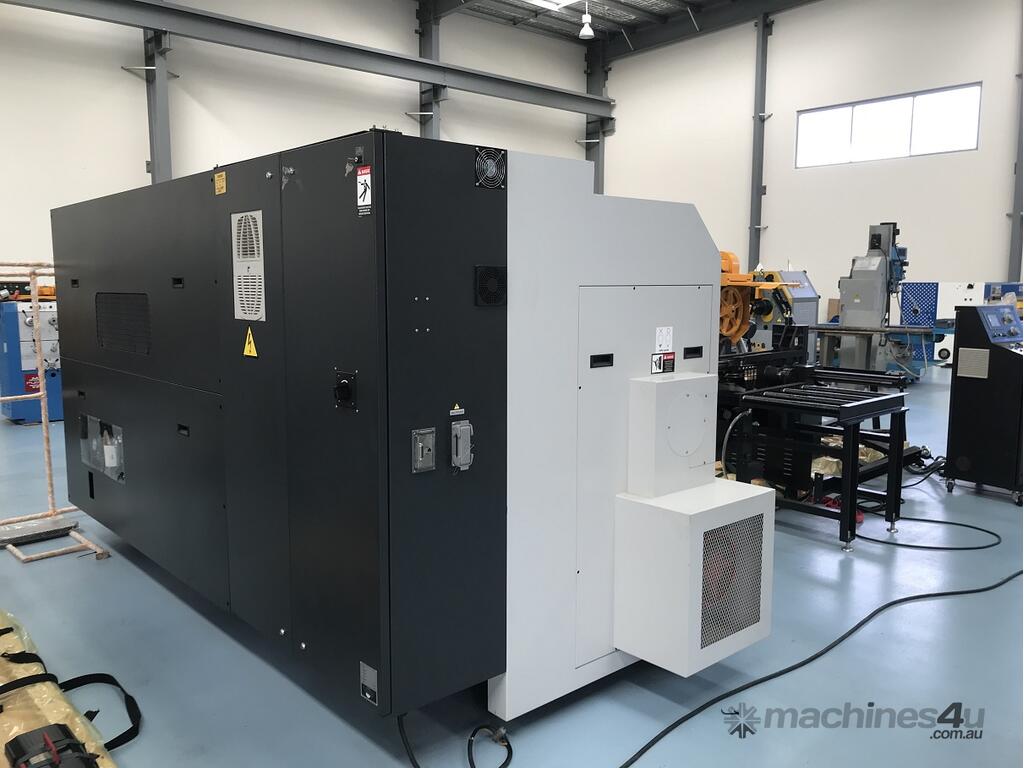

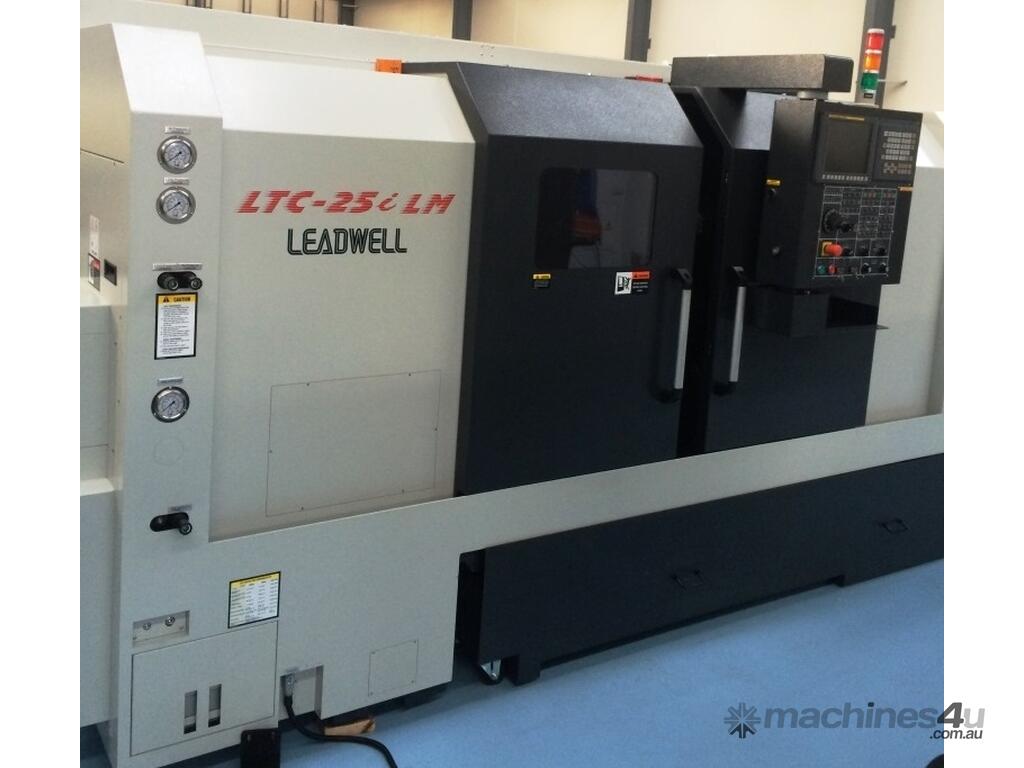

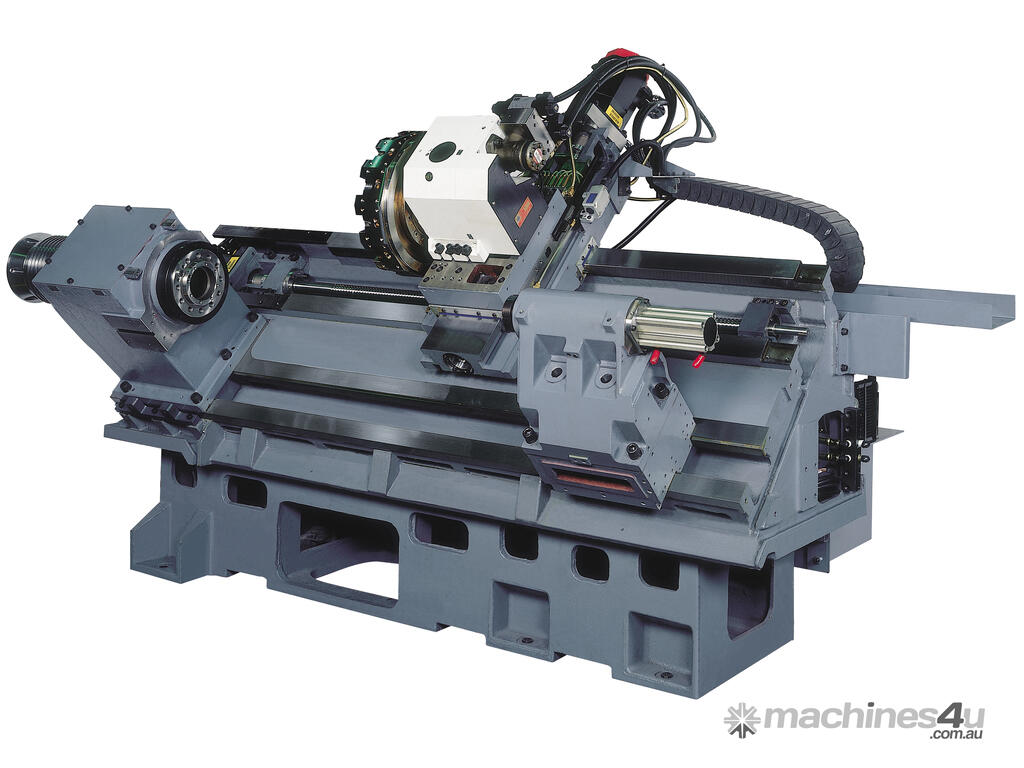

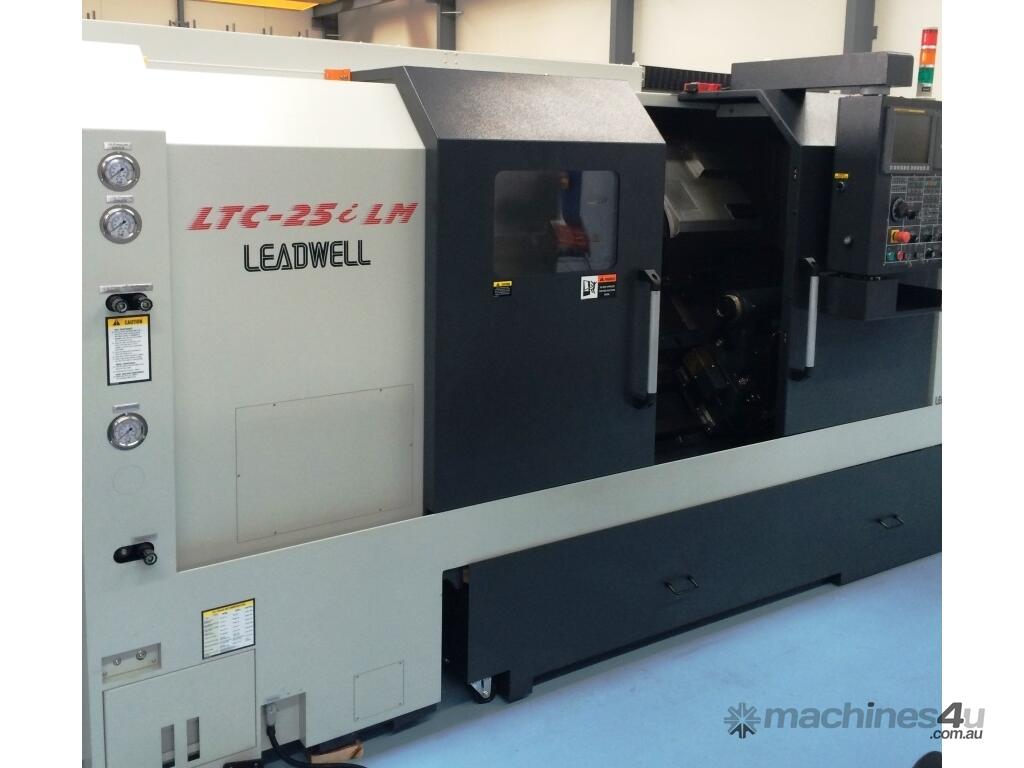

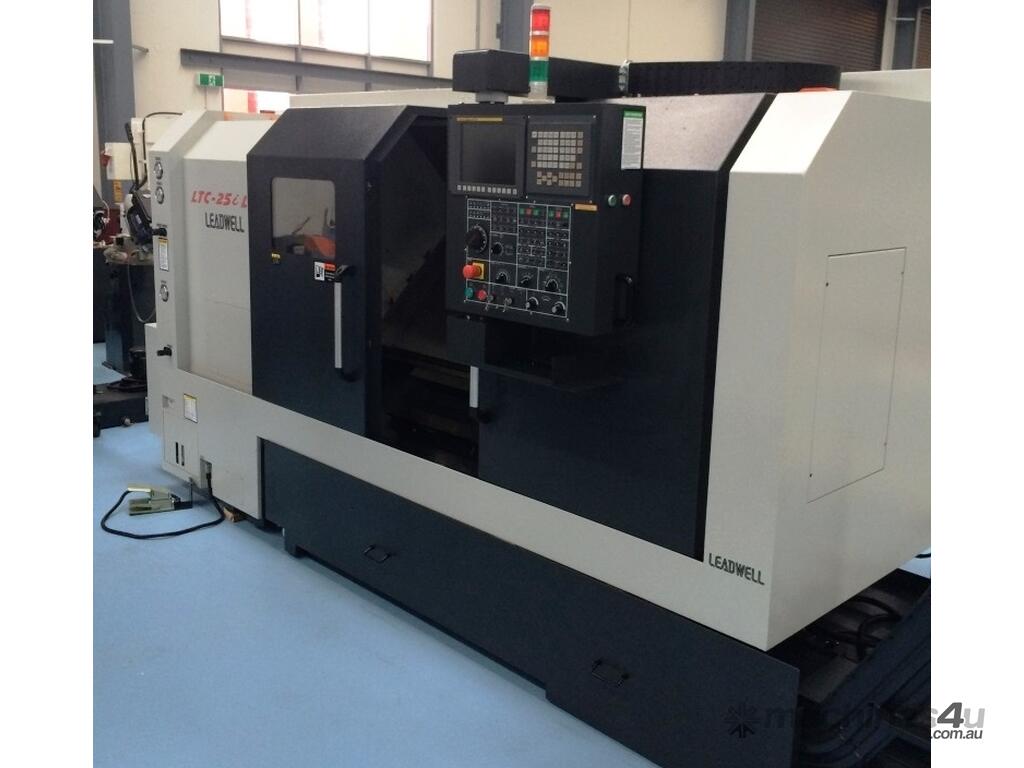

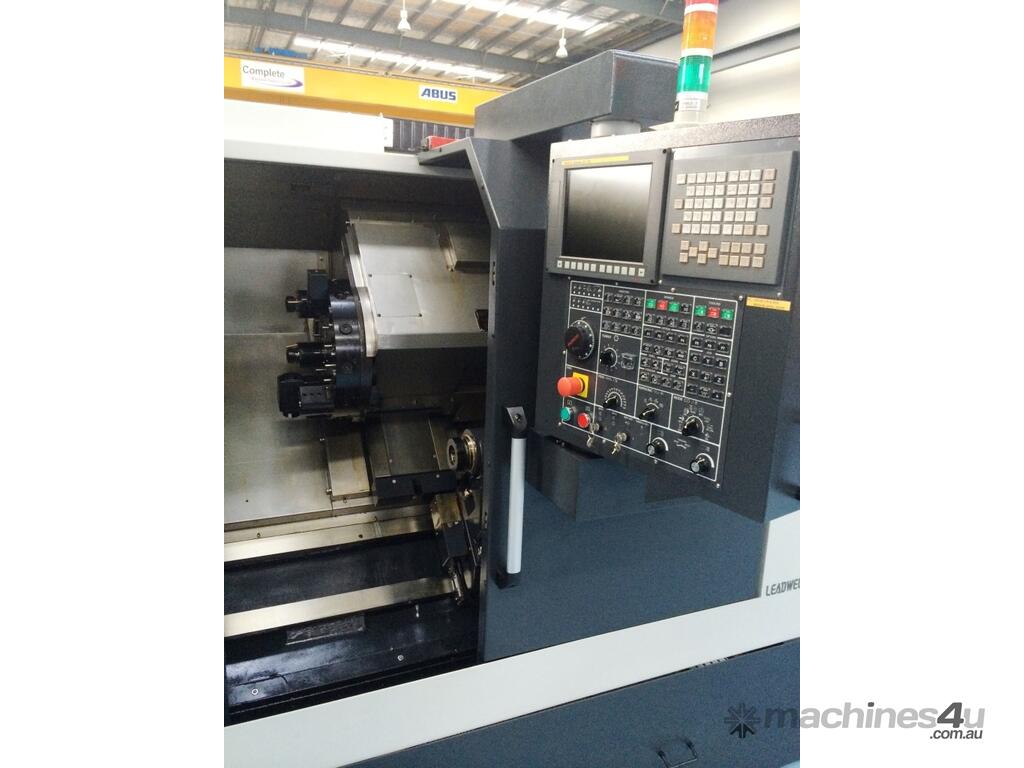

LEADWELL LTC-25iLM

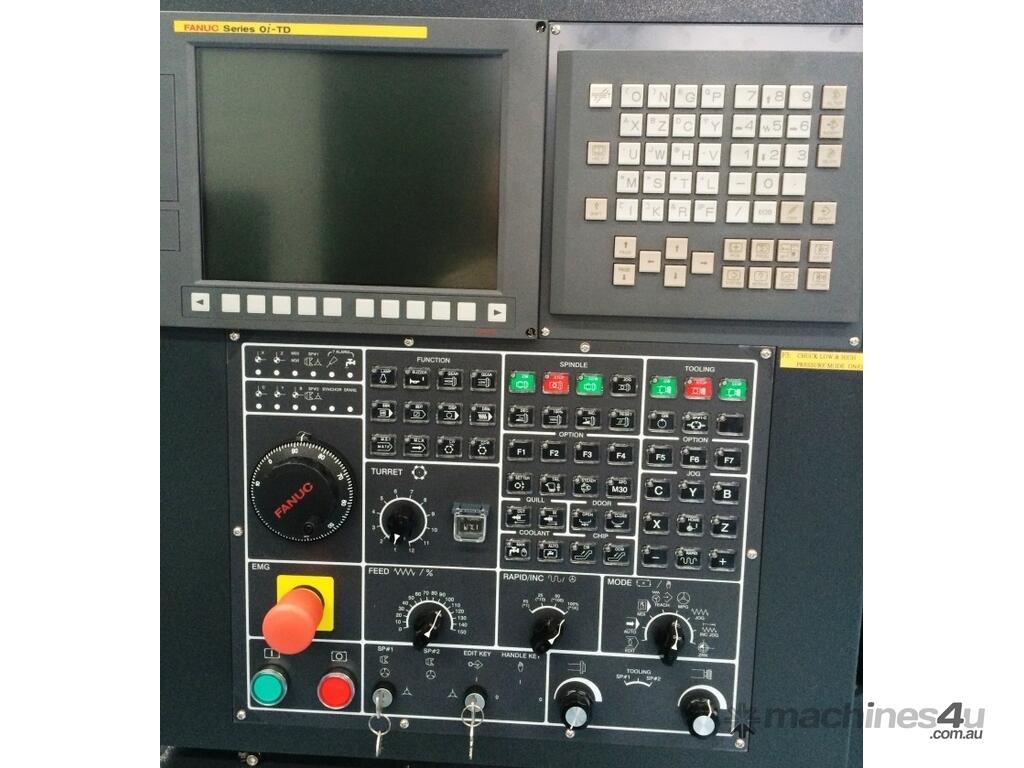

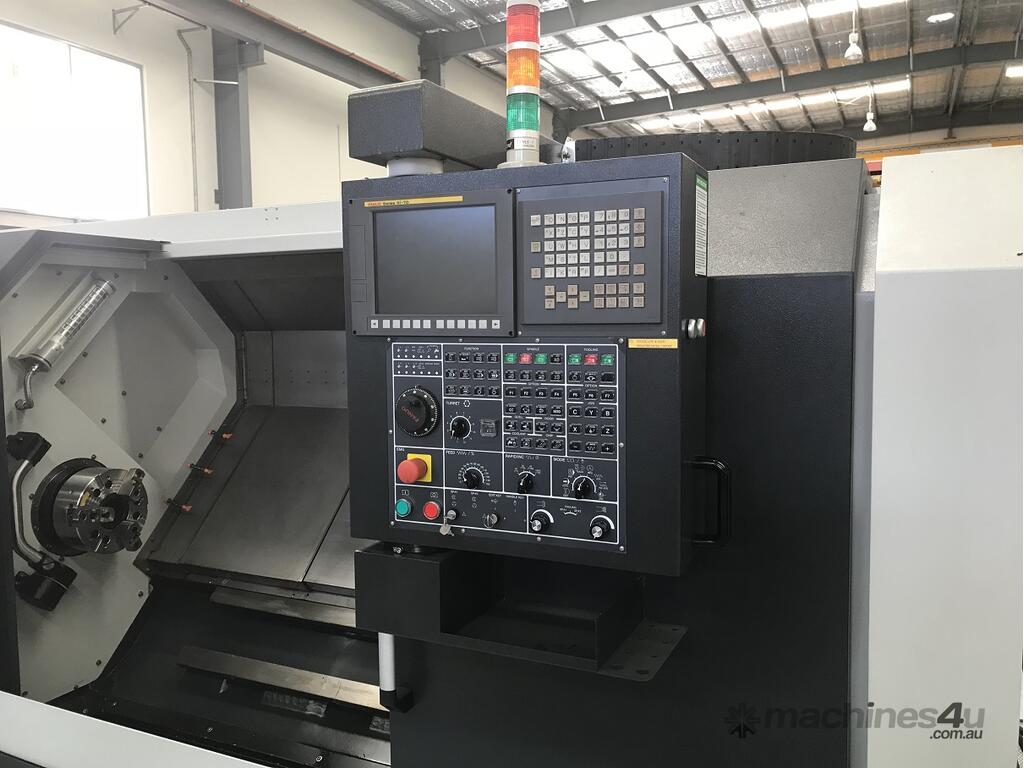

FANUC OI-TD WITH 10.4" LCD
MANUAL GUIDE I

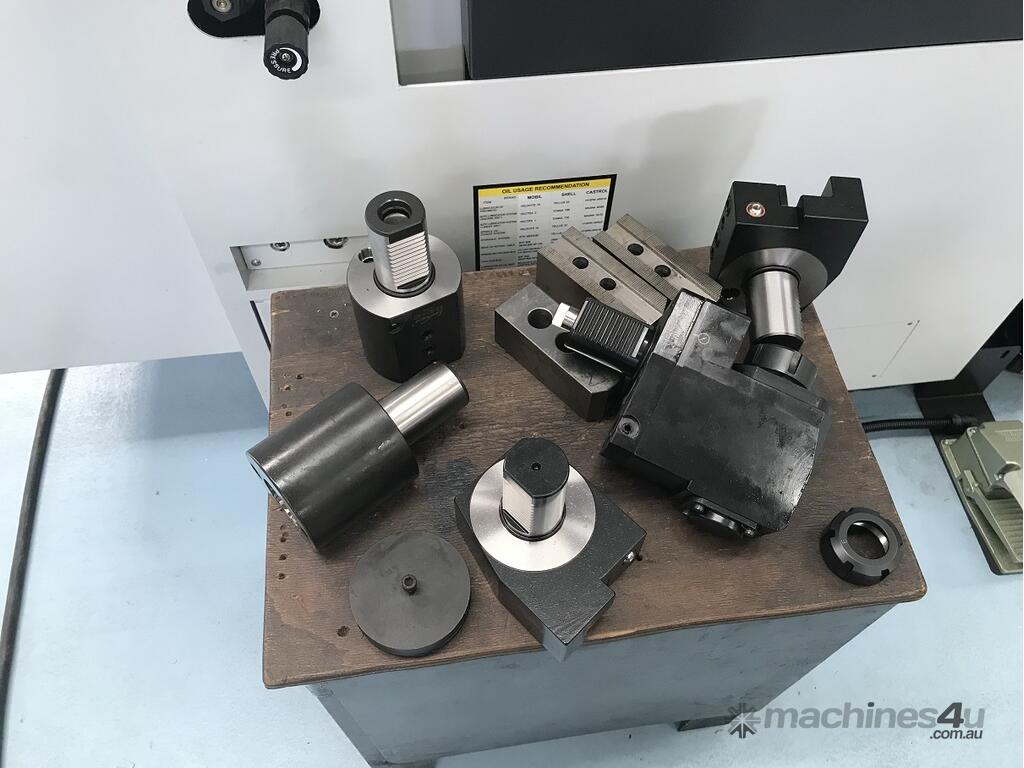

3 X OUTER DIAMETER TOOL HOLDER(LONG) B5-40X25
3 X BORING TOOL HOLDER E2-40X40
MAX SWING - 637 MM
MAX TURNING DIAMETER - 285 MM
MAX TURNING LENGTH - 1005 MM
BAR CAPACITY - 77 MM
X AXIS TRAVEL - 225 + 15 MM
Z AXIS TRAVEL - 1050 MM
SPINDLE SPEED RANGE - 35 - 3500 RPM
CHUCK SIZE - 254 MM
SPINDLE NOSE - A2-8
SPINDLE MOTOR - 18.5 KW
NUMBER OF TOOL STATIONS - 12
SHANK HEIGHT FOR SQUARE TOOL - BMT65 MM
SHANK DIAMETER FOR BORING BAR - BMT65 MM
X AXIS RAPID TRAVERSE - 15000 M/MIN
Z AXIS RAPID TRAVERSE - 20000 M/MIN
TAILSTOCK QUILL DIAMETER - 100 MM
TAILSTOCK QUILL INSIDE TAPER - MT5
TOOL SETTER
FULLY ENCLOSED GUARDING
METRIC DISC
HEAT EXCHANGER
BUZZER
3” JAW OPEN CENTRE CHUCK
FOOT SWITCH

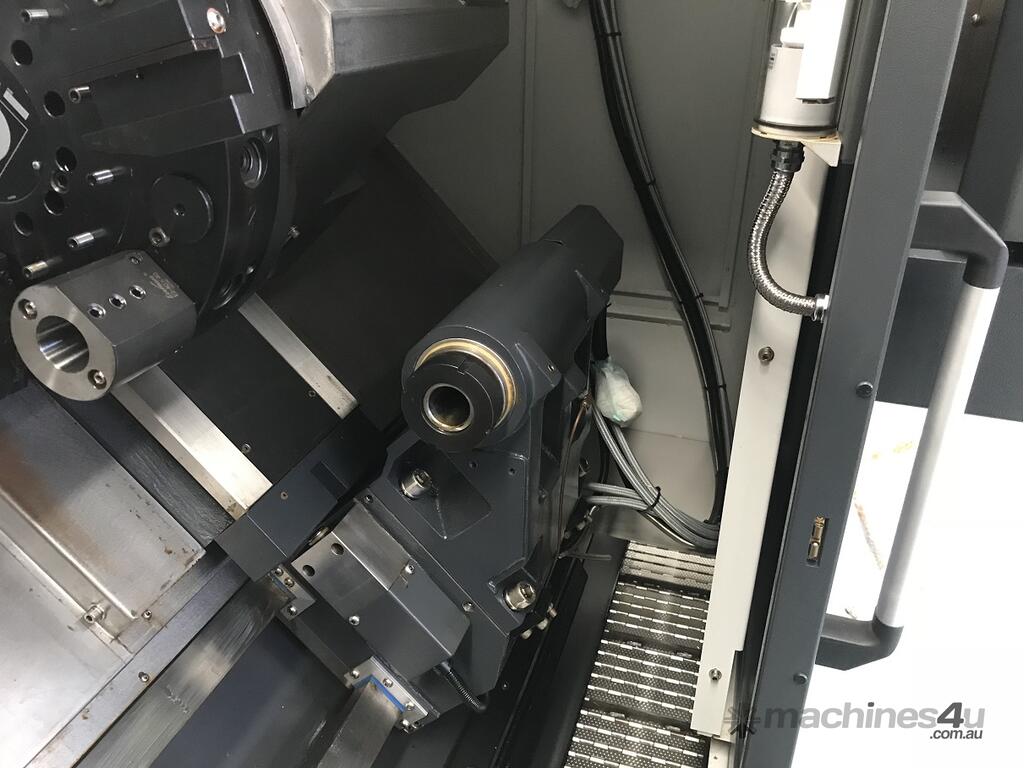

PROGRAMMABLE TAILSTOCK
WIDE ANGLE V-BELT
HIGH/LOW PRESSURE OF CHUCK
X/Z ALPHA 12BI / ALPHA 22I
BARFEEDER INTERFACE PREPARATION
ALARM LAMP
TOOL LIFE MANAGEMENT

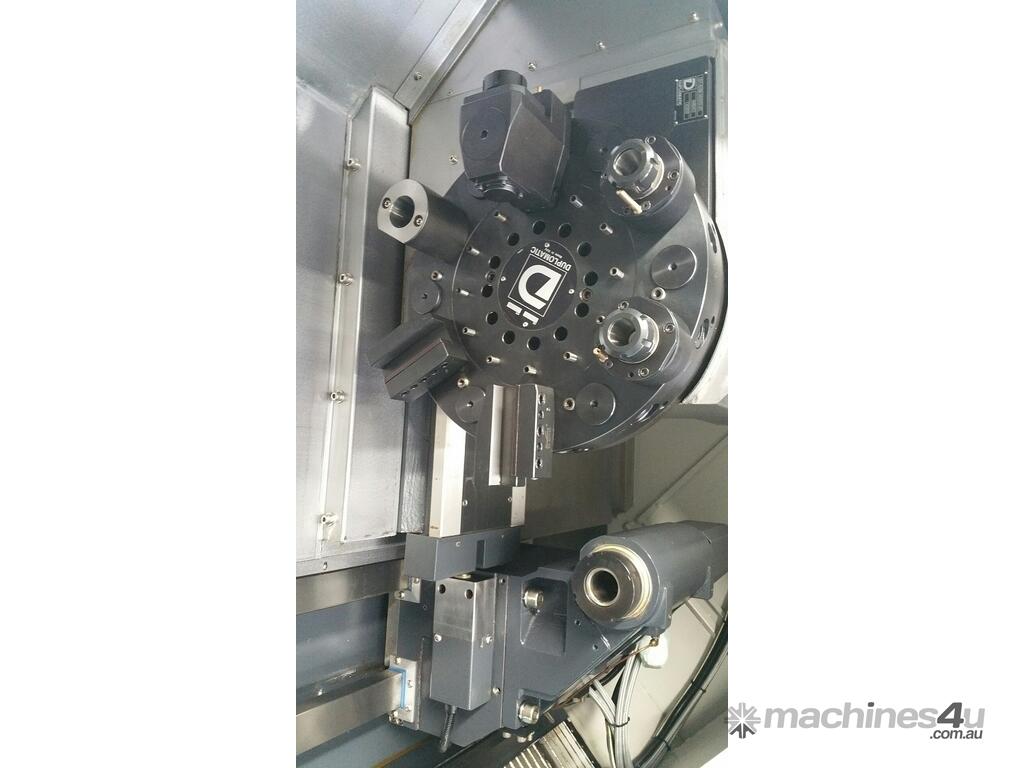

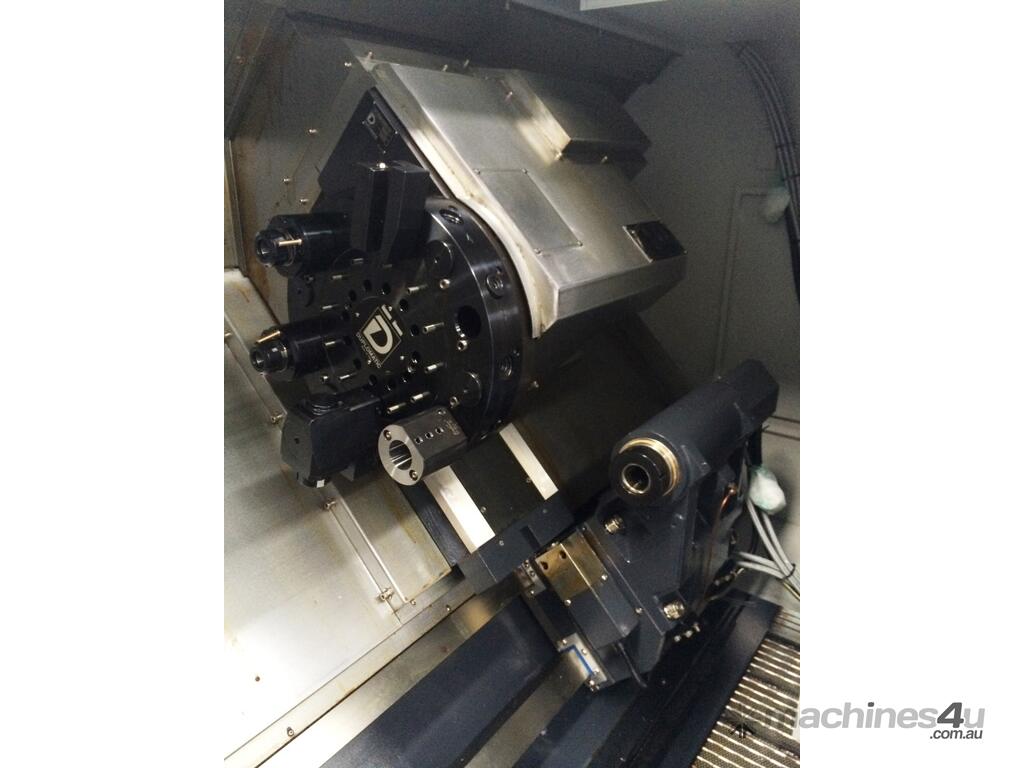

VDI-40 TOOLING SYSTEM WITH C AXIS

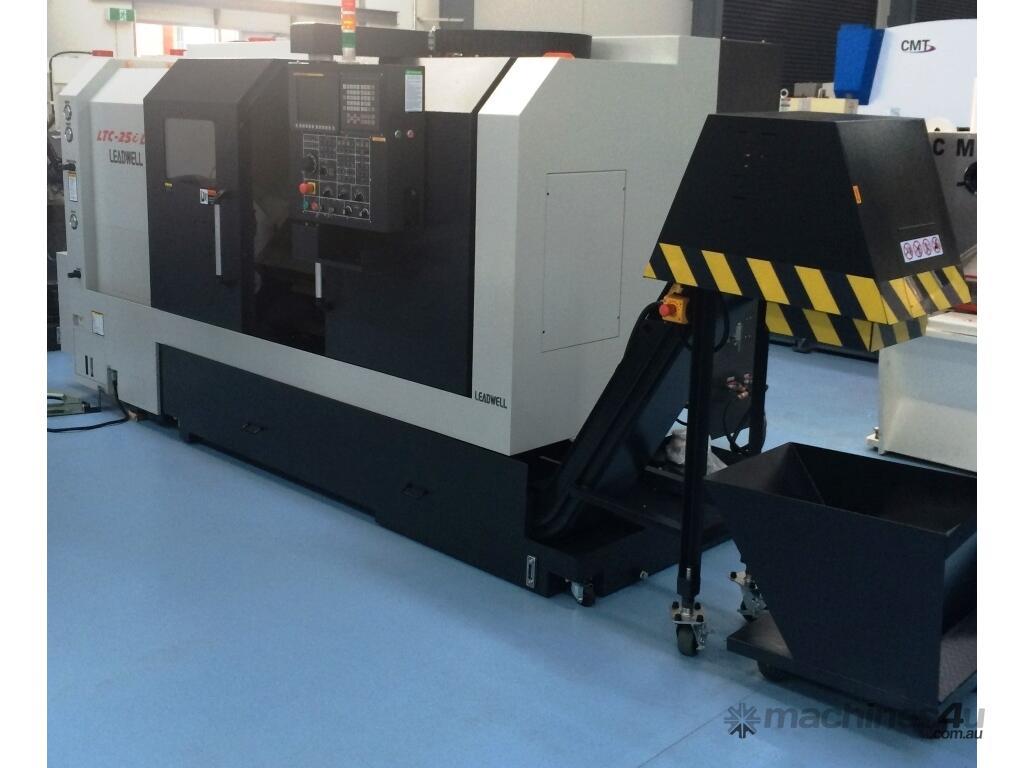

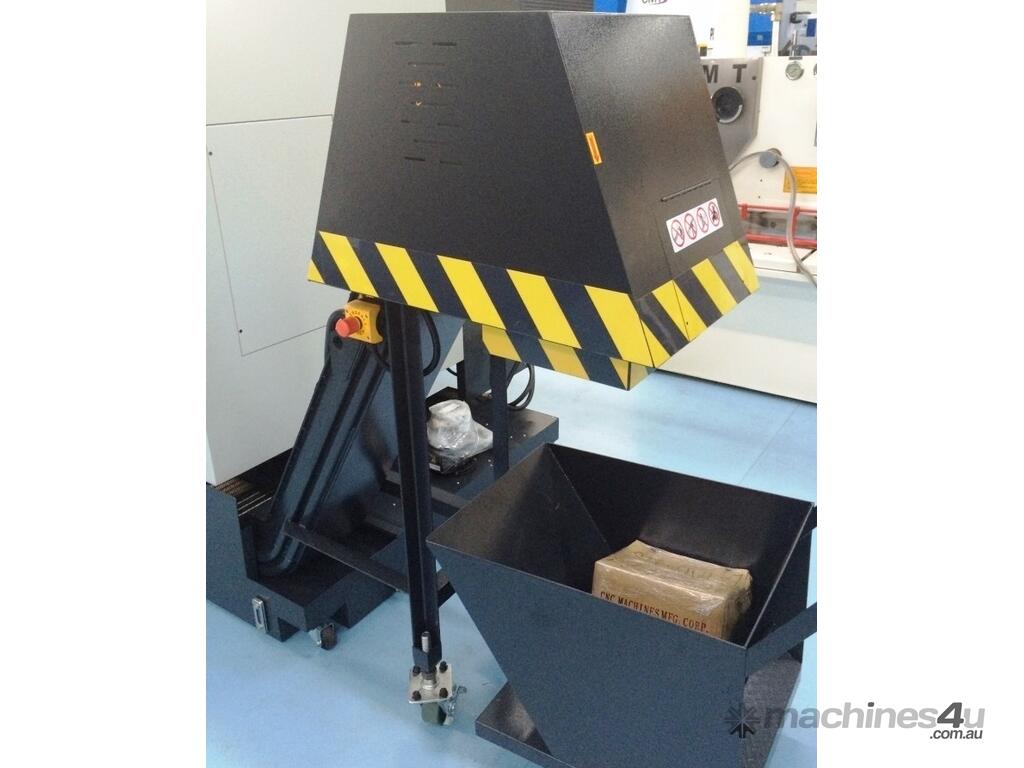

CHIP CONVEYOR & BUCKET (HORN TYPE)

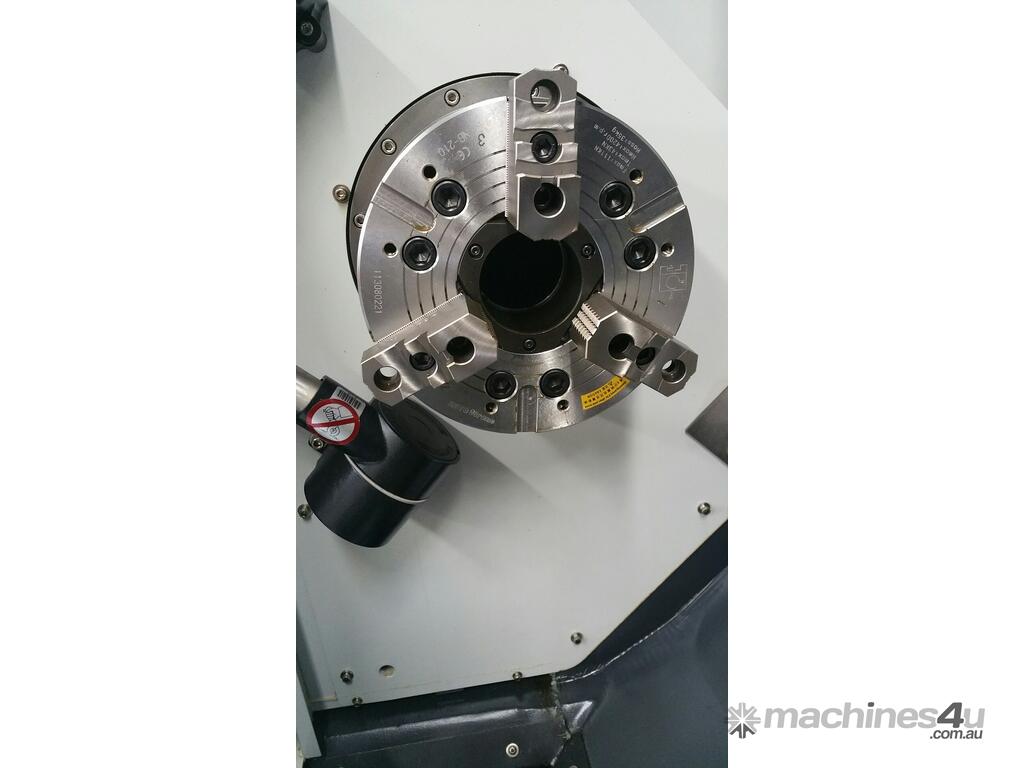

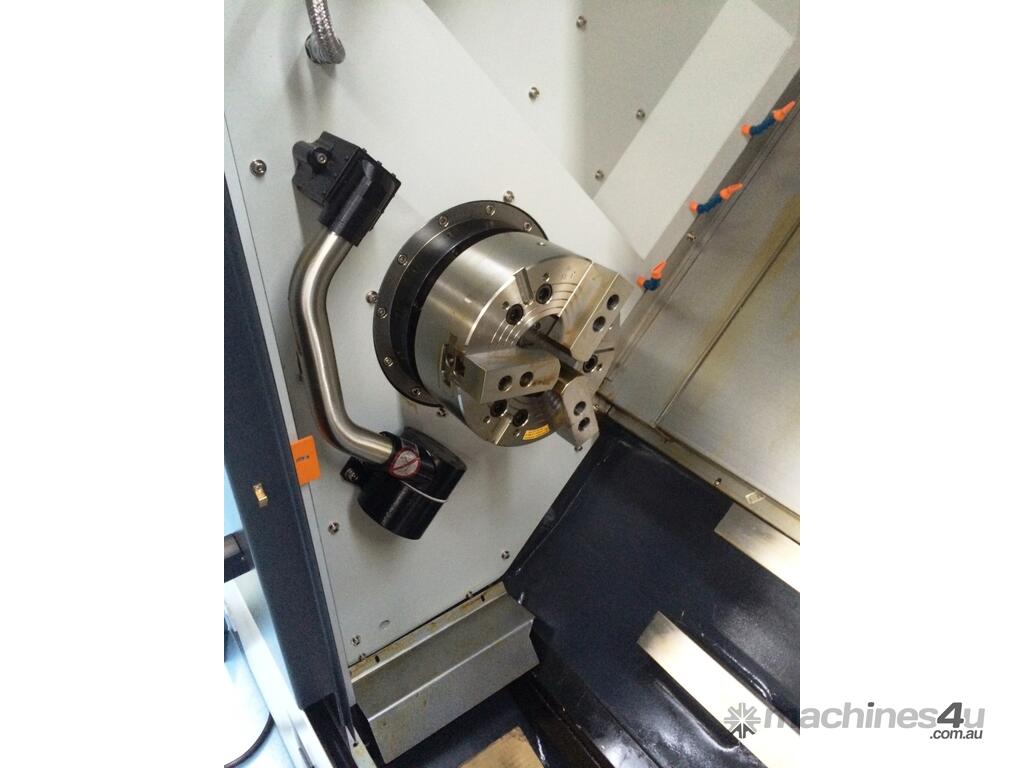

HYDRAULIC 10" CHUCK
ALPHA P30 - 6000I SPINDLE MOTOR
TRANSFORMER
DIMENSIONS - 3759 X 1930 X 2030 (LXWXH)
