LEADWELL V-50L HEAVY DUTY MACHINING CENTRE | FANUC | X -1270MM | CTS | 4TH AXIS READY

A fantastic combination of performance, features and price that puts your business at the head of the cue for production efficiency.

The Leadwell V-50L offers a versatile machining centre that's heavily optioned up for those companies who not only need a solid well built machine but production enhancing features as well. A Fanuc controller is fitted on the machine with a 2 year warranty which is well supported by local Fanuc employed techs.

The machine to name a few features has coolant through spindle, Reninshaw tool setter, flood base wash system, 24 tool changer, specific Leadwell tool management software, tool overload detection and a chip conveyor. The 4th axis preparation includes the wiring from the electrical cabinet to the machine and also a amplifier to run the 4th axis. Only item required is the 4th axis which will be a plug and play scenario (specific 4th axis required for compatibility reasons)

Leadwell is part of one of the biggest machine tool groups in the world with multiple companies in Europe and Asia so you know you dealing with a company that not only has a solid reputation world wide but the backing of a global powerhouse and shared knowledge across companies ensuring the latest technology is utilized across the Leadwell range of machines.

Leadwell machines offer value for money and fantastic reliability and a solid build using the latest CAD systems.

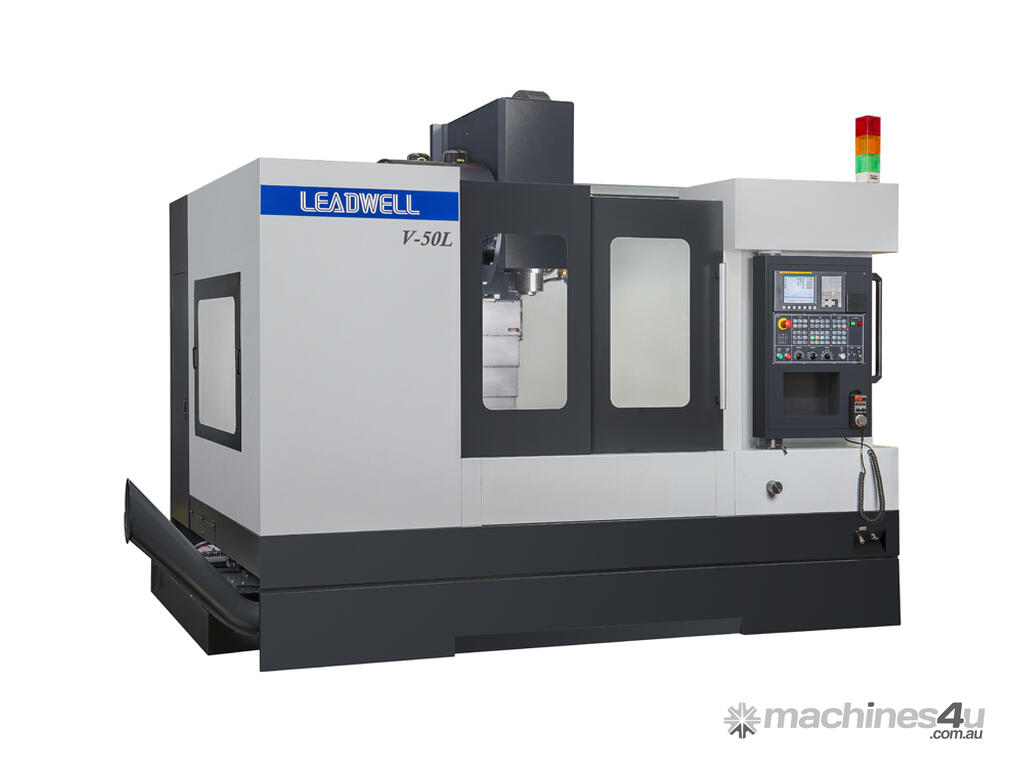

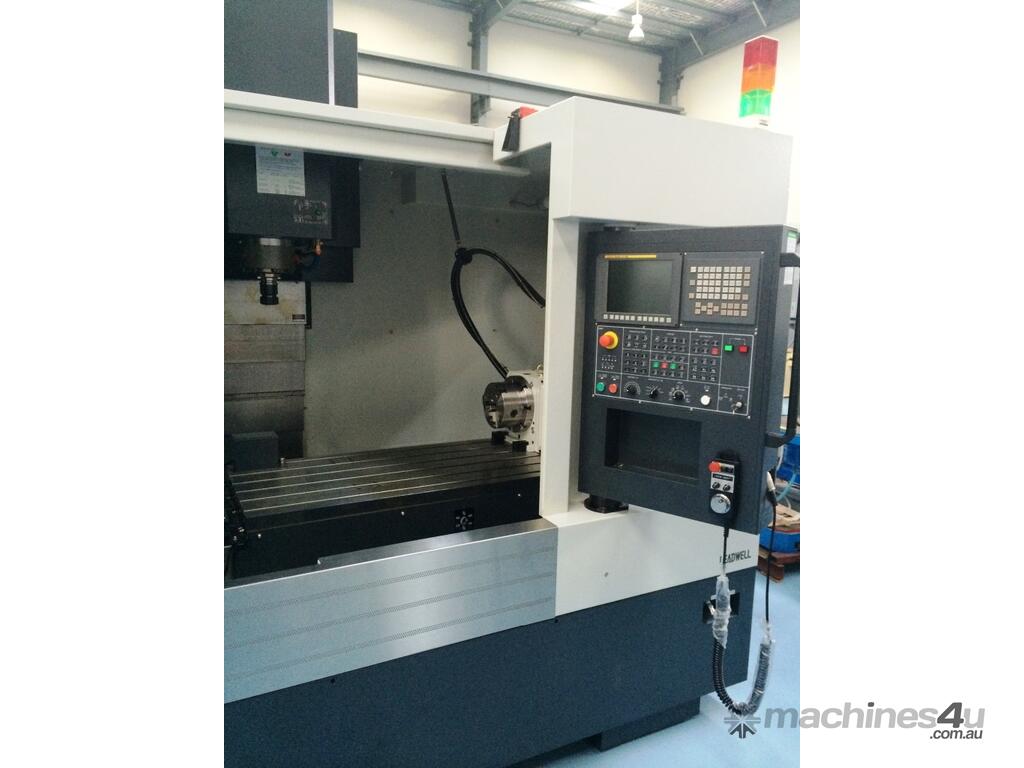

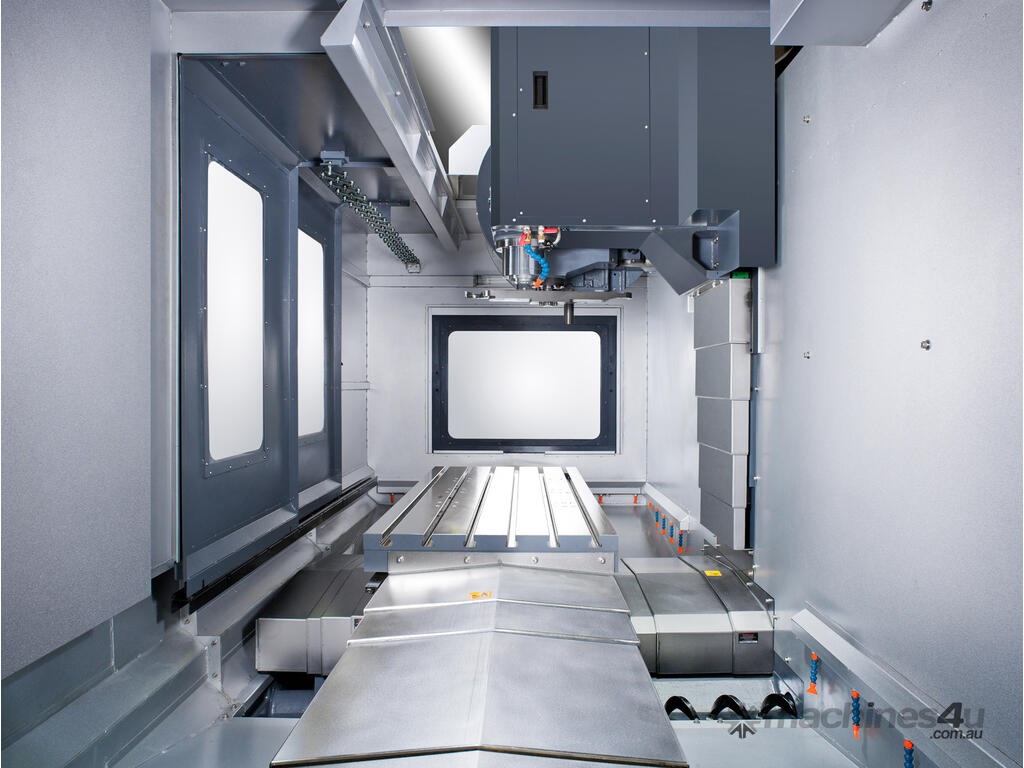

Leadwell V-50L Vertical Machining Centre

X axis travel:1270mm
Y axis travel:630mm
Z axis travel:610mm

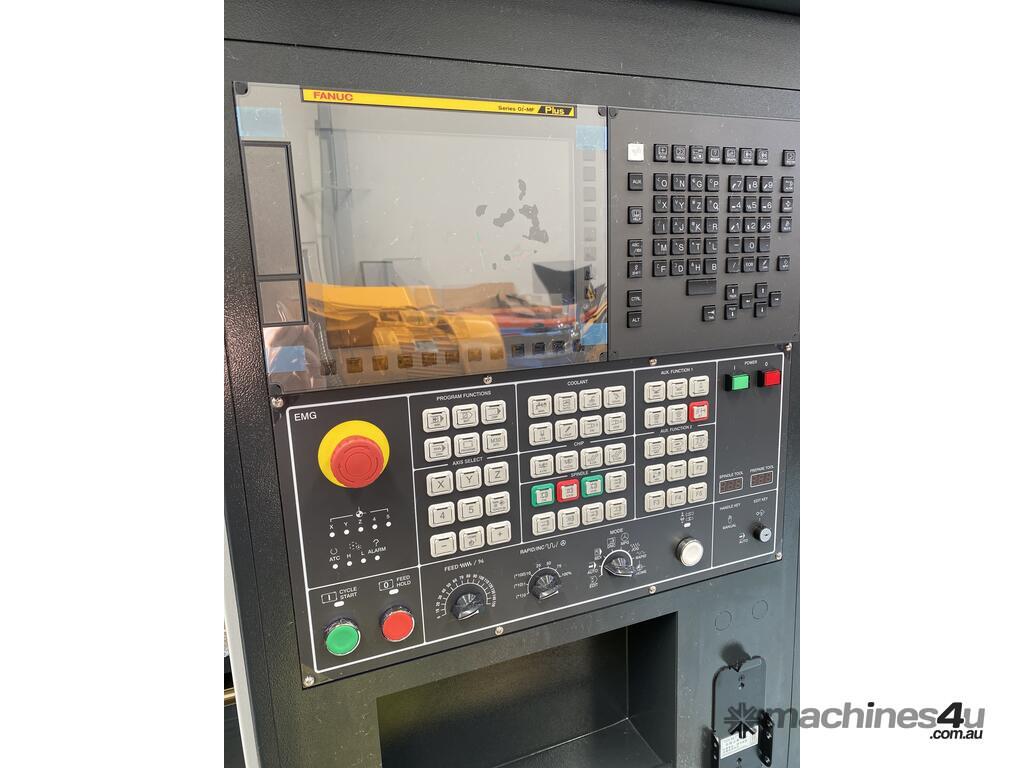

- Fanuc Oi-MF PLUS with 10.4' LCD & manual guide I
- Coolant gun
- Spindle air purge with valve
- Spindle coolant ring / Spindle coolant jet 8 nozzles
- Base Wash
- CTS 20 BAR
- Top cover (guarding) / Full enclosed guarding

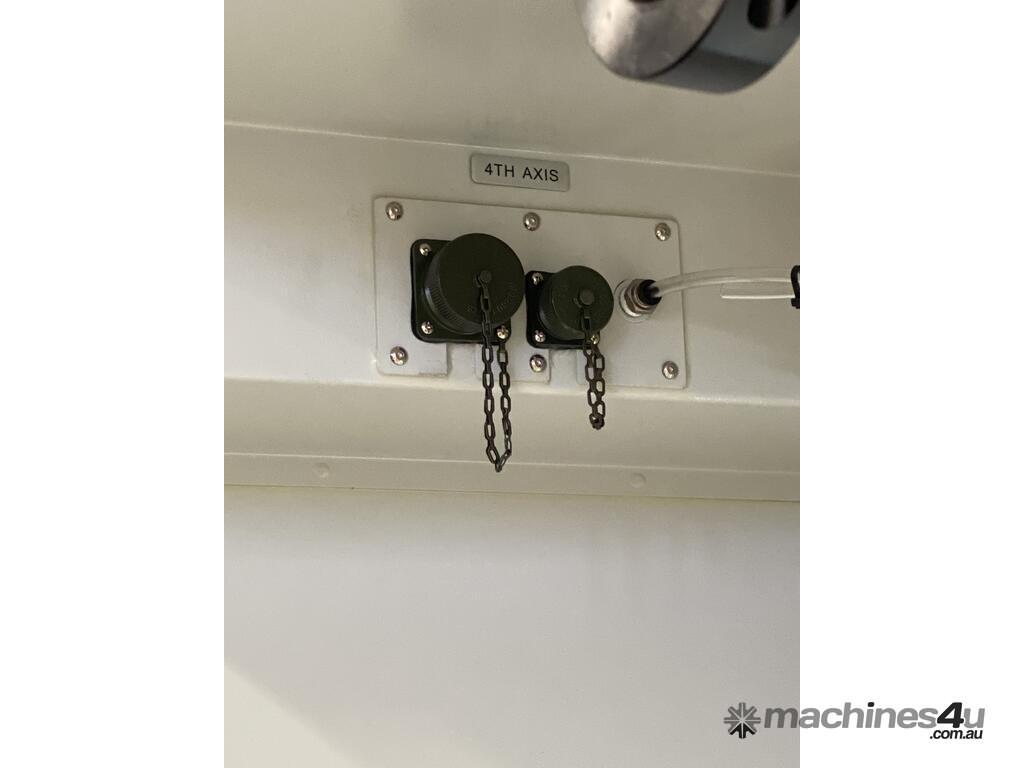

- 4th axis preparation
- M30 Auto power off
- 8m functions
- Tool overload detection

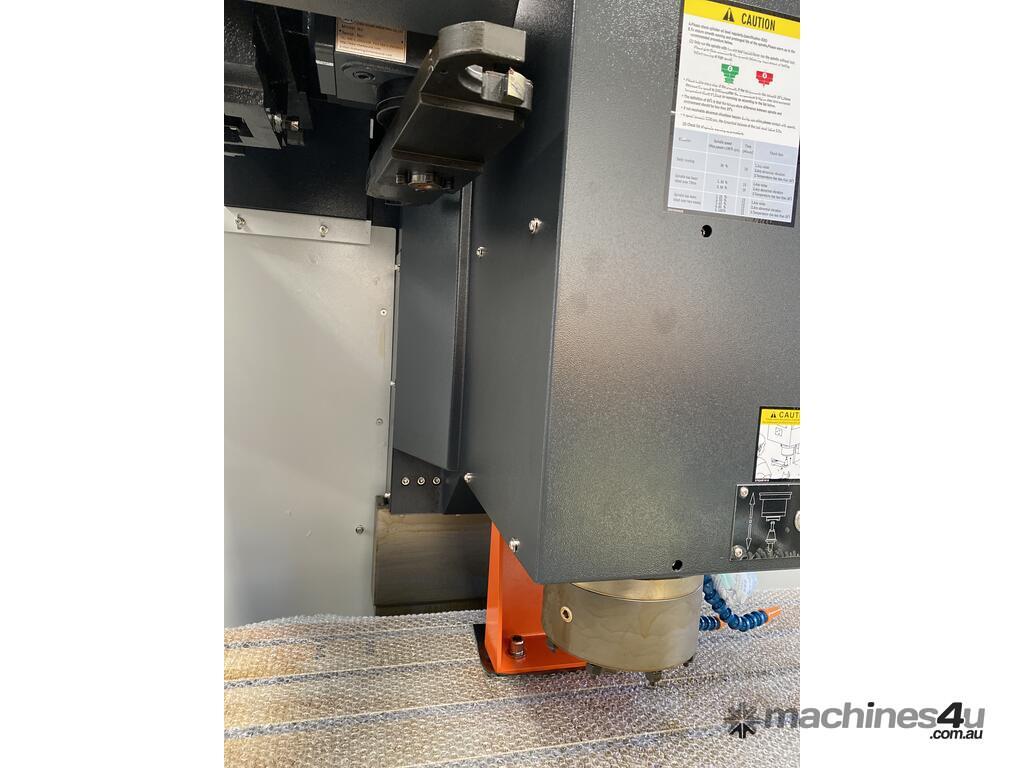

- Auto tool length measurement (Renishaw TS-27)
- Transformer
- Tool life management
- Simple CE Interlock switch for front door
- Fluoro lighting both sides of machine
- Power: 415V - 50HZ - 3PH
- Colour: Standard
- Filtrating system & 20 bar pump system

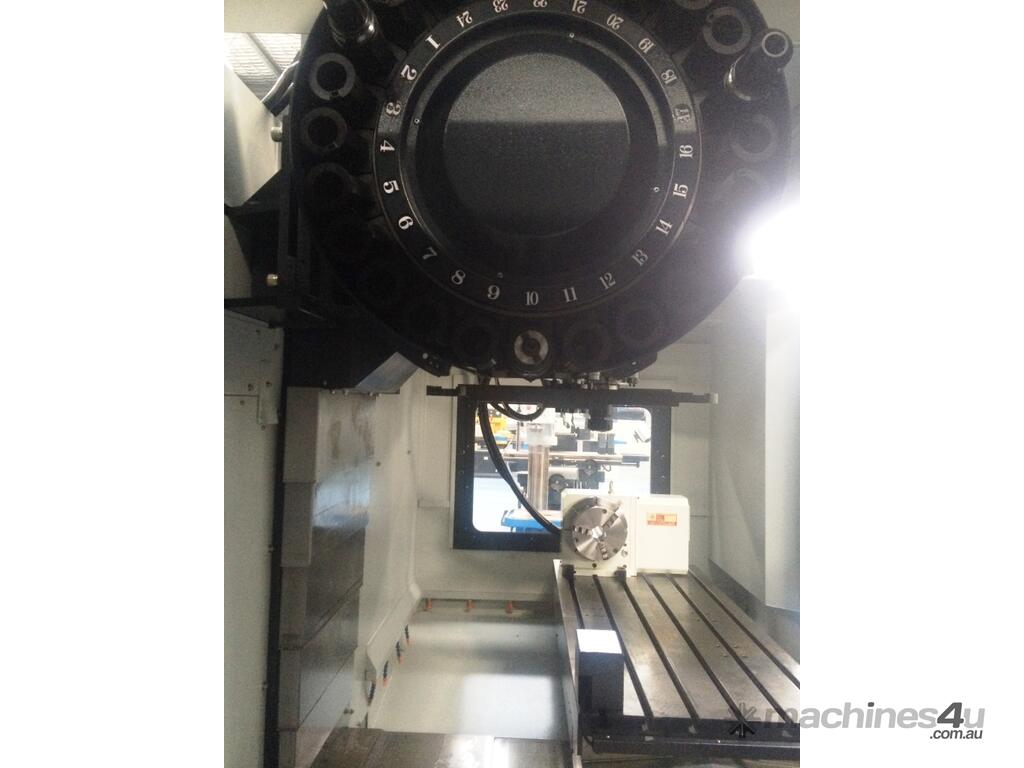

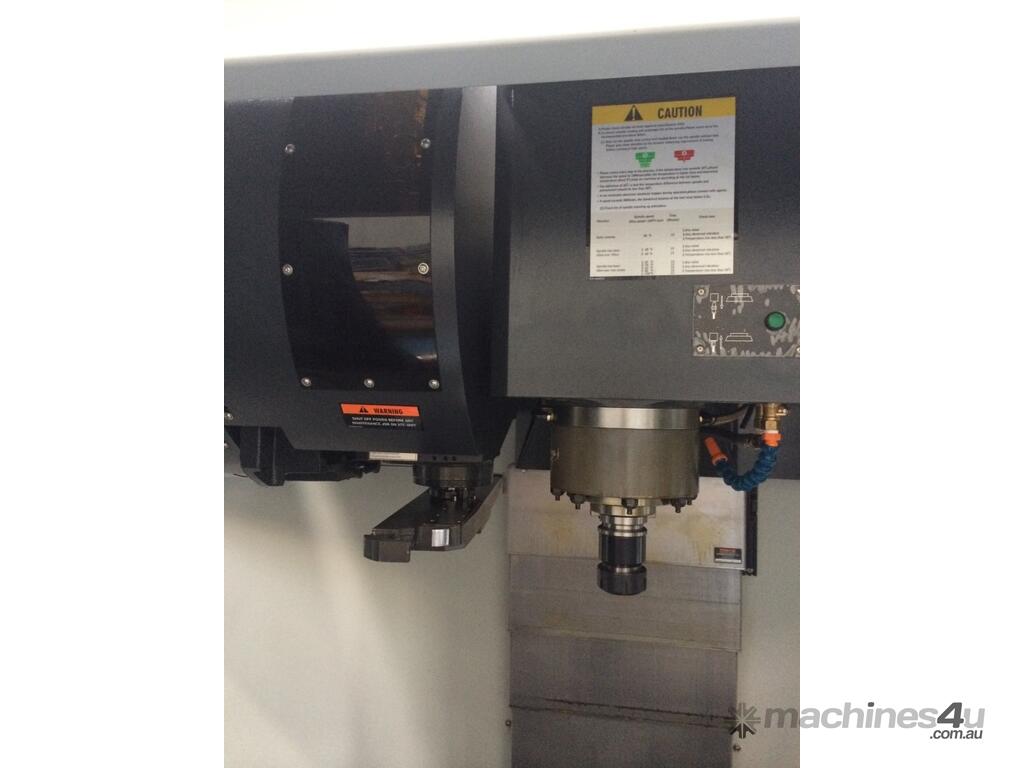

- BT40 Arm type tool changer with 24T ATC

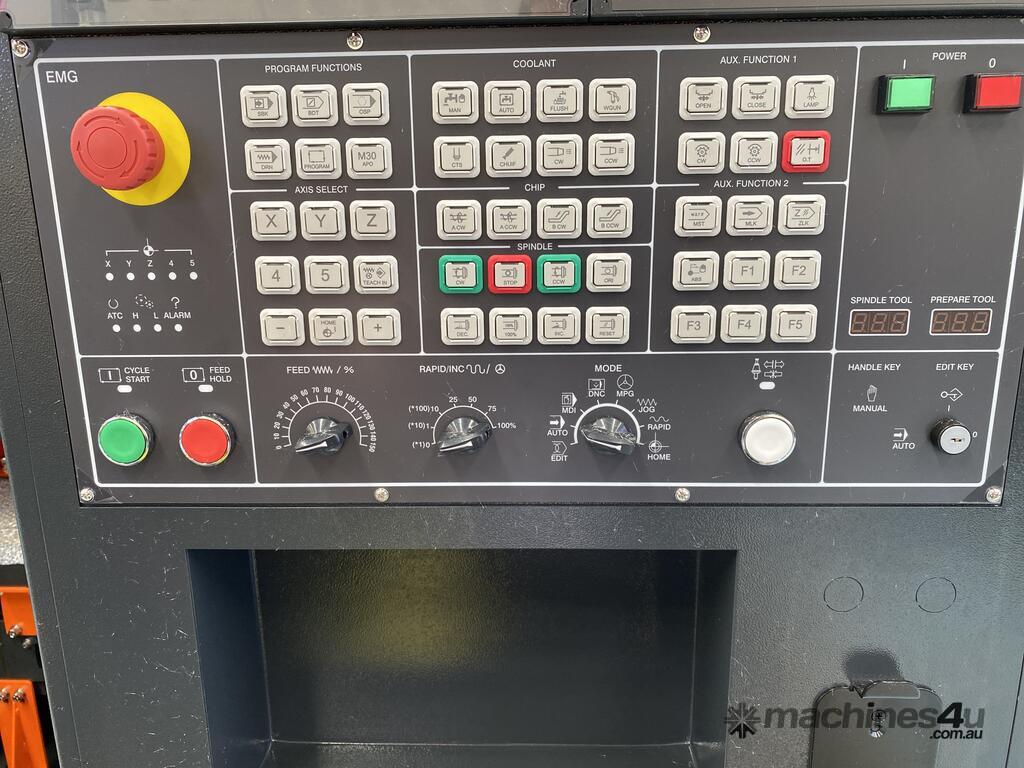

- MPG remote control box
- Chip Conveyor (screw type)
- Rigid Tapping
- Circular interpolation
- Work light
- Alarm lamp
- Heat exchanger
- Auto counter for work piece

Optional -

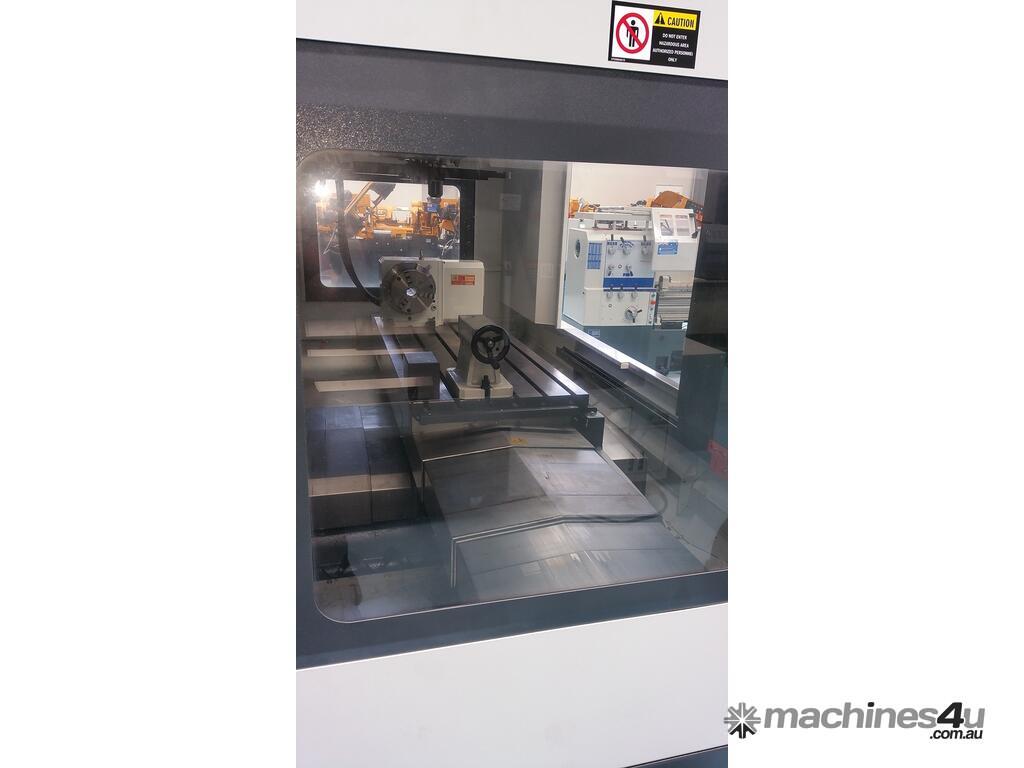

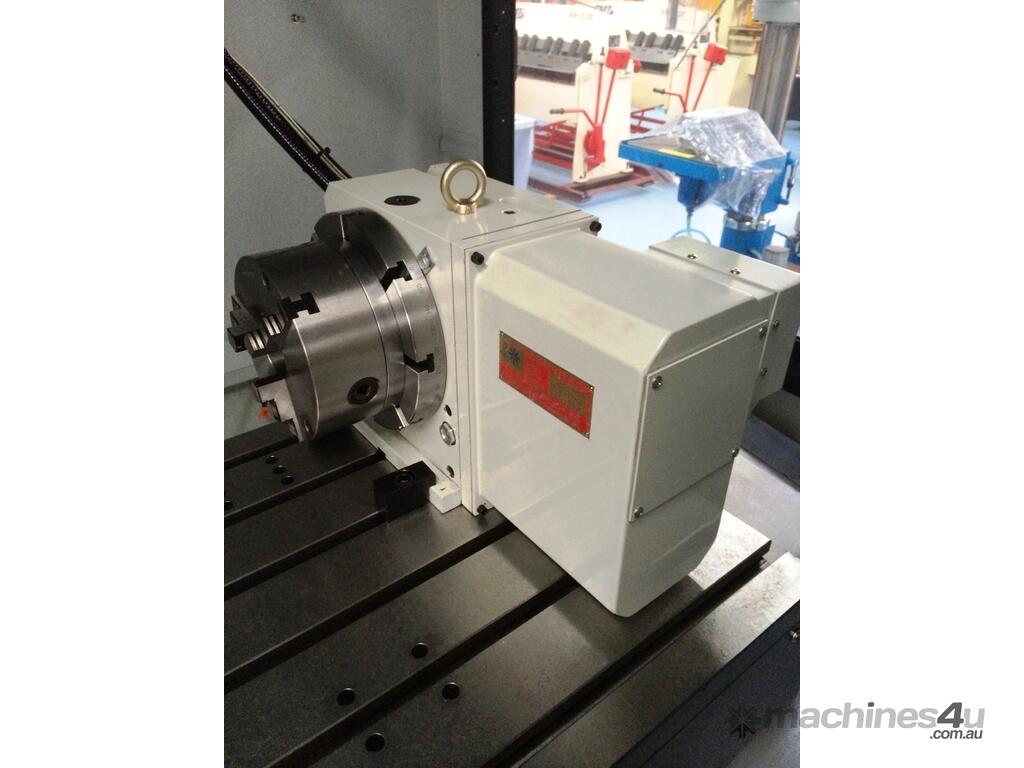

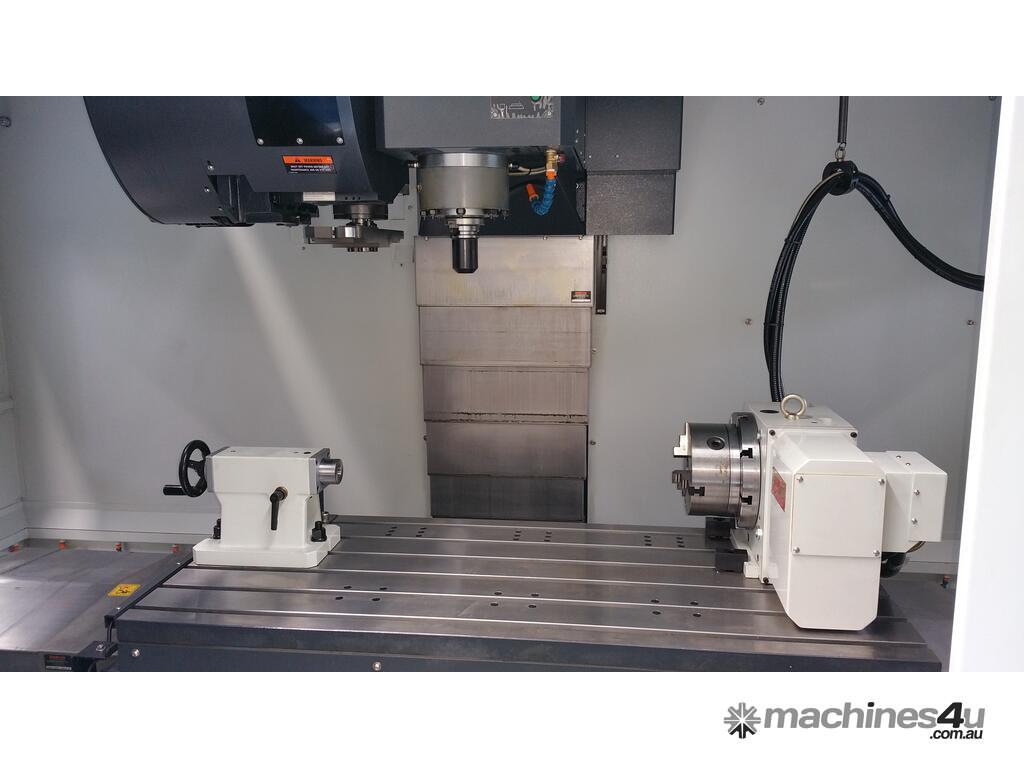

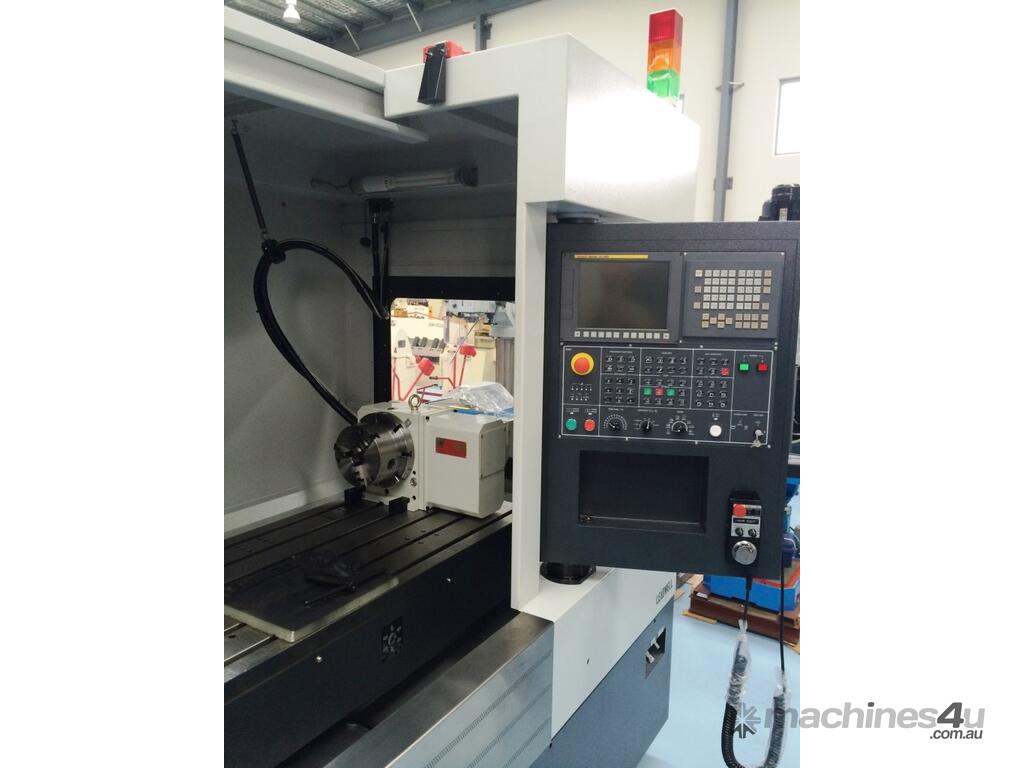

GS rotary table: CNC-250R (a4i servo motor, driver, tailstock & chuck)

Including:

- Manual tailstock TS-B185 for CNC-250R
- Manual chuck with connecting plate for CNC-250R/SC-8"


DISTANCE FROM SPINDLE NOSE TO TABLE SURFACE - 100 – 710 MM
DISTANCE FROM SPINDLE NOSE TO COLUMN - 635 MM
SIZE OF WORK SURFACE - 610 X 1420 MM
T-SLOT SIZE - 18 T X 6 X P100
MAX TABLE LOAD - 1000 KG
SPINDLE SPEEDS - 8000 RPM
SPINDLE BEARING INNER DIA’ - 70 MM
SPINDLE NOSE - TAPER # 40
RAPID TRANSVERSE X/Y/Z - 36 M/MIN
MAX CUTTING FEED RATE - 10 M/MIN
TOOL STORAGE CAPACITY - 24 PCS
MAX TOOL LENGTH - 250 MM
MAX TOOL DIAMETER (WITH ADJACENT TOOLS) - 80 MM
TOOL CHANGE TIME T-T (C-C) - 3 SEC (6)
SPINDLE MOTOR (30MIN) FANUC - 18.5 KW
X/Y/Z AXIS MOTOR - 3/3/4 KW

SHIPPING DIMENSIONS

Machine: 3300 x 2200 x 2690mm
Coolant tray: 800 x 1700 x 300mm
Chip conveyor: 500 x 3000 x 350mm
Pallet w/coolant pump: 1100 x 1100
Total weight is around 8000 kg
