LEADWELL V-60S HEAVY DUTY MACHINING CENTRE | FANUC | X -1530MM | CTS | 4TH AXIS READY

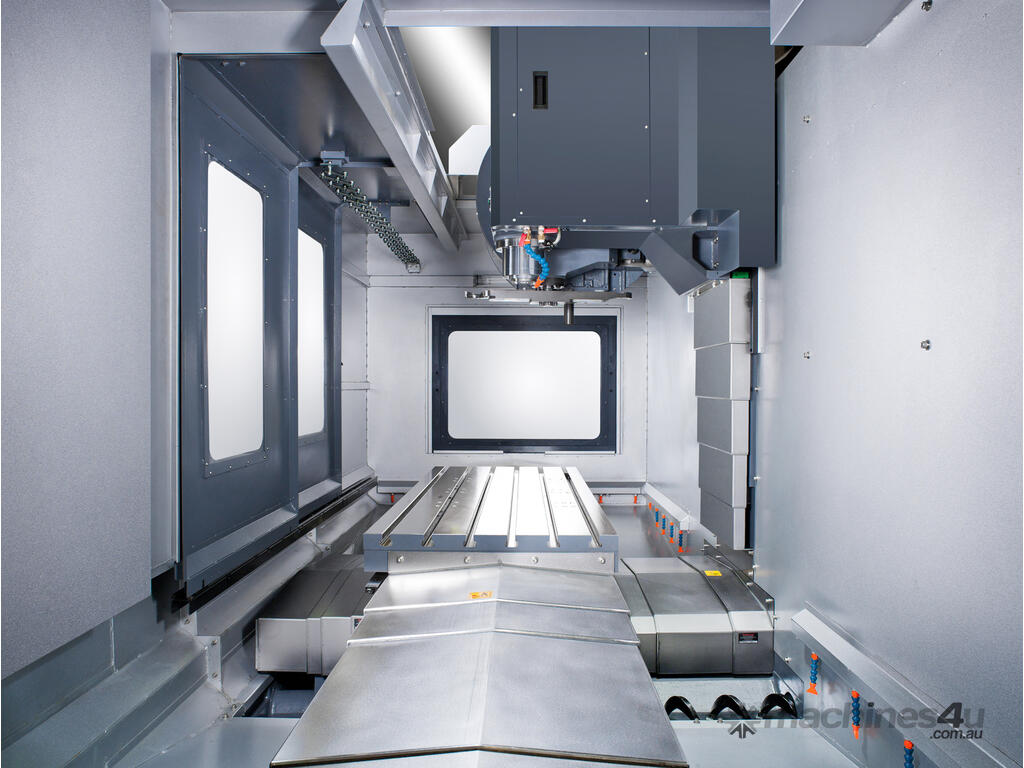

LEADWELL V-60S HEAVY DUTY VERTICAL MACHINING CENTRE

A fantastic combination of performance, features and price that puts your business at the head of the cue for production efficiency.

The Leadwell V-60S offers a versatile machining centre that's heavily optioned up for those companies who not only need a solid well built machine but production enhancing features as well. A Fanuc controller is fitted on the machine with a 2 year warranty which is well supported by local Fanuc employed techs.

The machine to name a few features has coolant through spindle, Reninshaw tool setter, flood base wash system, 24 tool changer, specific Leadwell tool management software, tool overload detection and a chip conveyor.

Leadwell is part of one of the biggest machine tool groups in the world with multiple companies in Europe and Asia.

Leadwell machines offer value for money and fantastic reliability!

CHECK THESE FEATURES:
FANUC OI-MD WITH 10.4' LCD & MANUAL GUIDE I
M30 AUTO POWER OFF
SPINDLE COOLANT RING
COOLANT THROUGH SPINDLE PREPARATION
FILTRATING SYSTEM & 20 BAR PUMP SYSTEM
TOP COVER (GUARDING)
COOLANT GUN
4TH AXIS PREPARATION
TOOL LIFE MANAGEMENT
BASE WASH

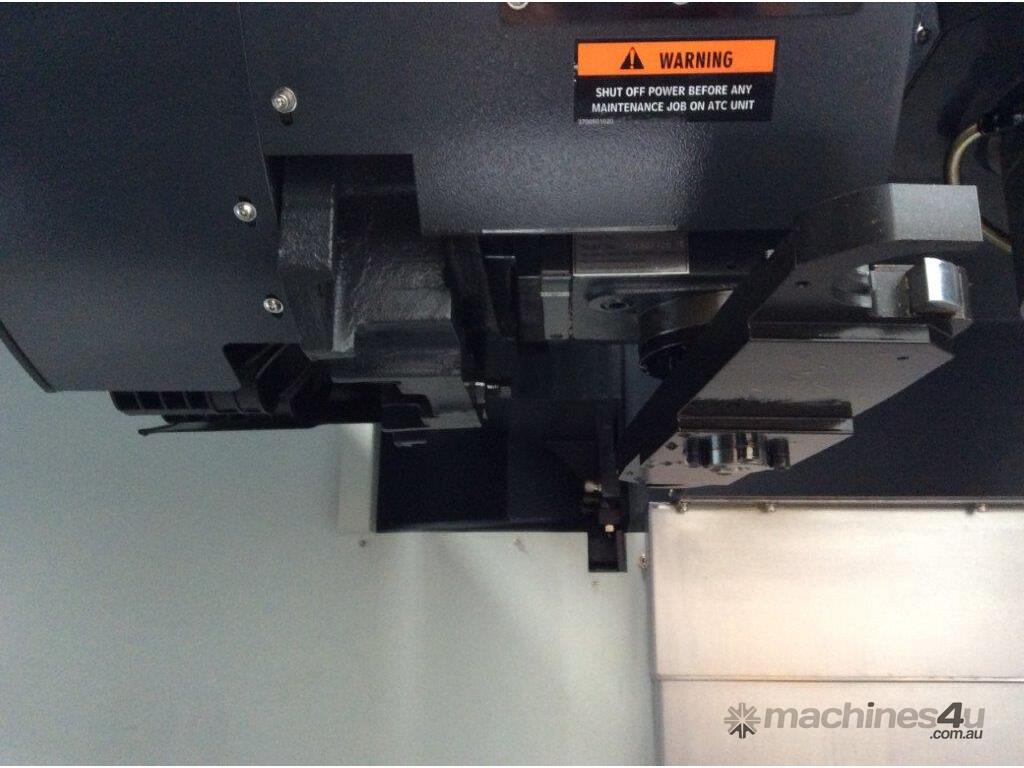

BT40 ARM TYPE TOOL CHANGER WITH 24T ATC
AUTO TOOL LENGTH MEASUREMENT (RENISHAW TS-27)
FLUORO LIGHTING BOTH SIDES OF MACHINE
MPG REMOTE CONTROL BOX
SPINDLE AIR PURGE WITH VALVE
8M FUNCTIONS
TOOL OVERLOAD DETECTION
SPINDLE MOTOR - ALPHA 15 - 7000I
CROSS ROLLER LINEAR WAYS
TRANSFORMER

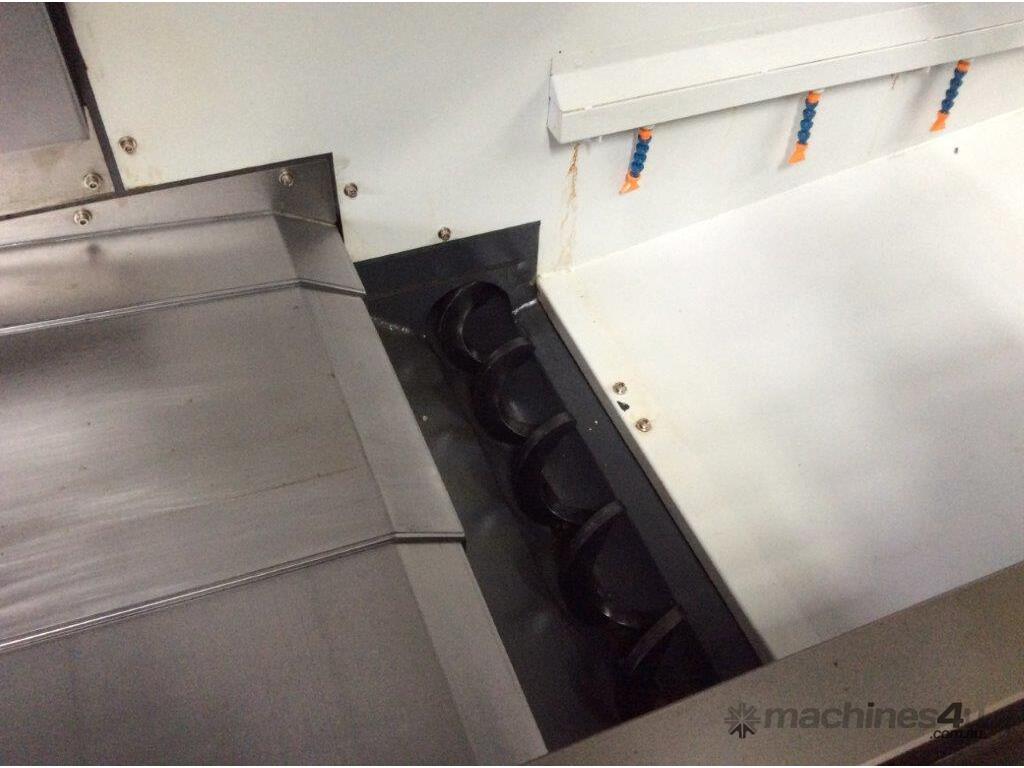

CHIP CONVEYOR (SCREW TYPE)
RIGID TAPPING
CIRCULAR INTERPOLATION
WORK LIGHT
ALARM LAMP
HEAT EXCHANGER
AUTO COUNTER FOR WORK PIECE
FULL ENCLOSED GUARDING
INTERLOCK SWITCH FOR FRONT DOOR
SIMPLE CE
DISTANCE FROM SPINDLE NOSE TO TABLE SURFACE - 100 – 710 MM
DISTANCE FROM SPINDLE NOSE TO COLUMN - 635 MM
X AXIS TRAVEL - 1520 MM
Y AXIS TRAVEL - 635 MM
Z AXIS TRAVEL - 610 MM
SIZE OF WORK SURFACE - 610 X 1550 MM
T-SLOT SIZE - 18 T X 6 X P100
MAX TABLE LOAD - 1000 KG
SPINDLE SPEEDS - 8000 RPM
SPINDLE BEARING INNER DIA’ - 70 MM
SPINDLE NOSE - TAPER # 40
RAPID TRANSVERSE X/Y/Z - 36 M/MIN
MAX CUTTING FEED RATE - 10 M/MIN
TOOL STORAGE CAPACITY - 24 PCS
MAX TOOL LENGTH - 250 MM
MAX TOOL DIAMETER (WITH ADJACENT TOOLS) - 80 MM
TOOL CHANGE TIME T-T (C-C) - 3 SEC (6)

OPTIONAL EQUIPMENT AVAILABLE WITH THE MACHINE FOR ADDITIONAL COST:
CNC-250R ROTARY TABLE, TAILSTOCK & CHUCK OPTION
