LED-6 High-Performance Tower - 8m Mast Elevation, 6 x 400W LED Lights, Extra-Low Fuel Consumption

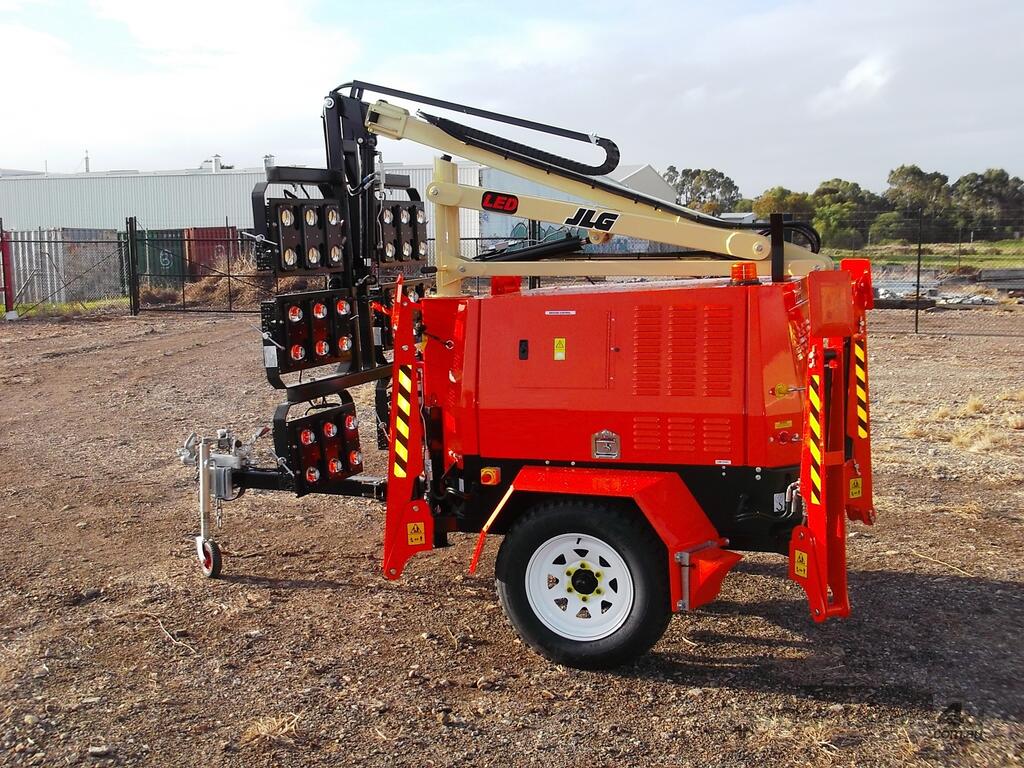

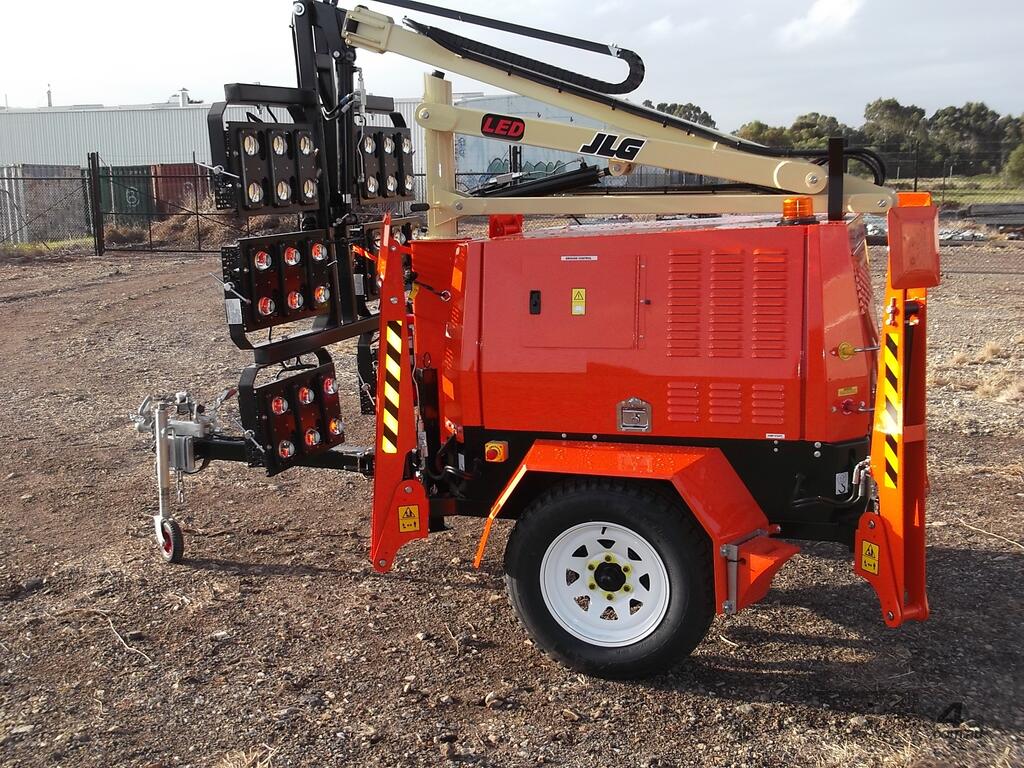

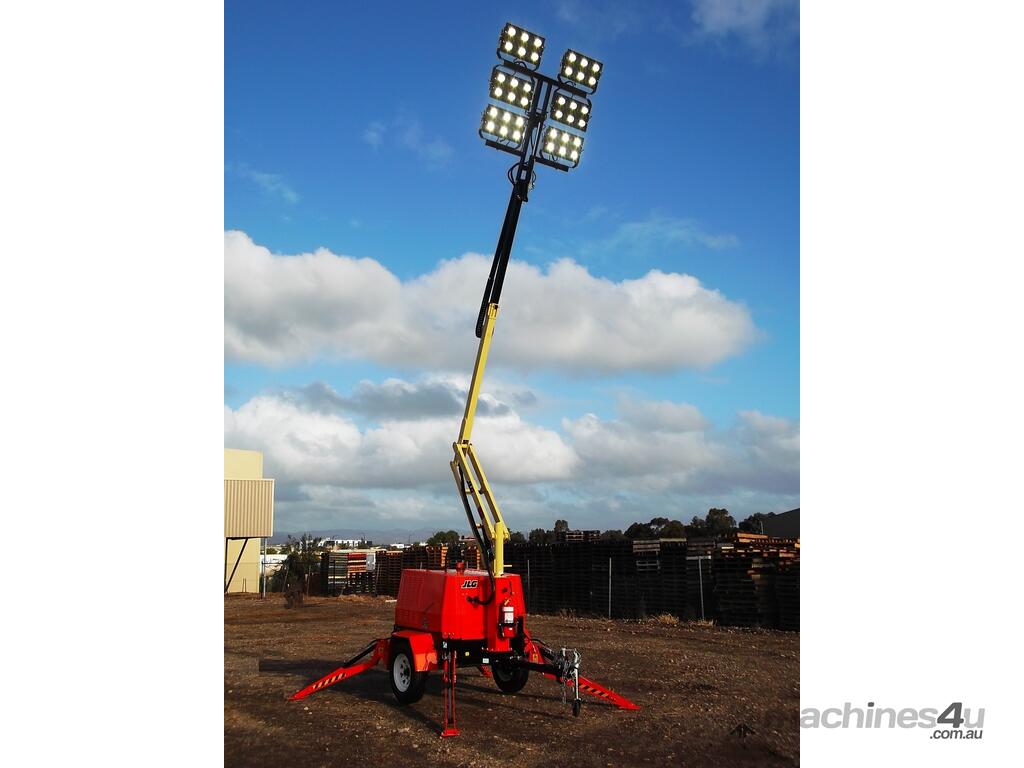

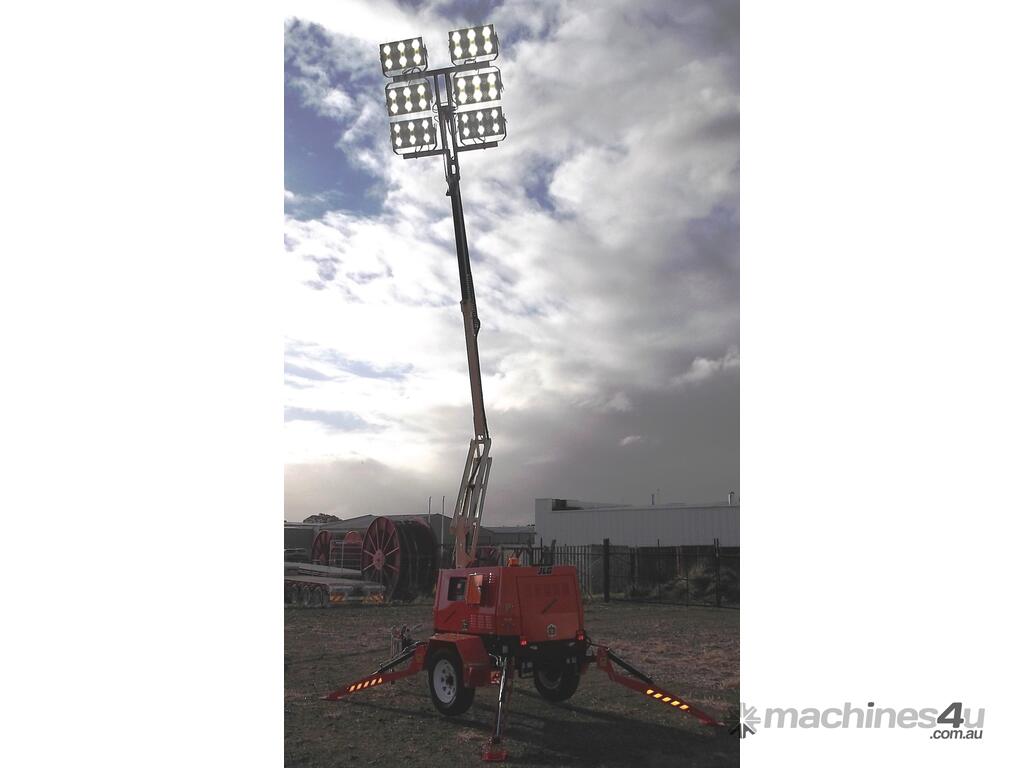

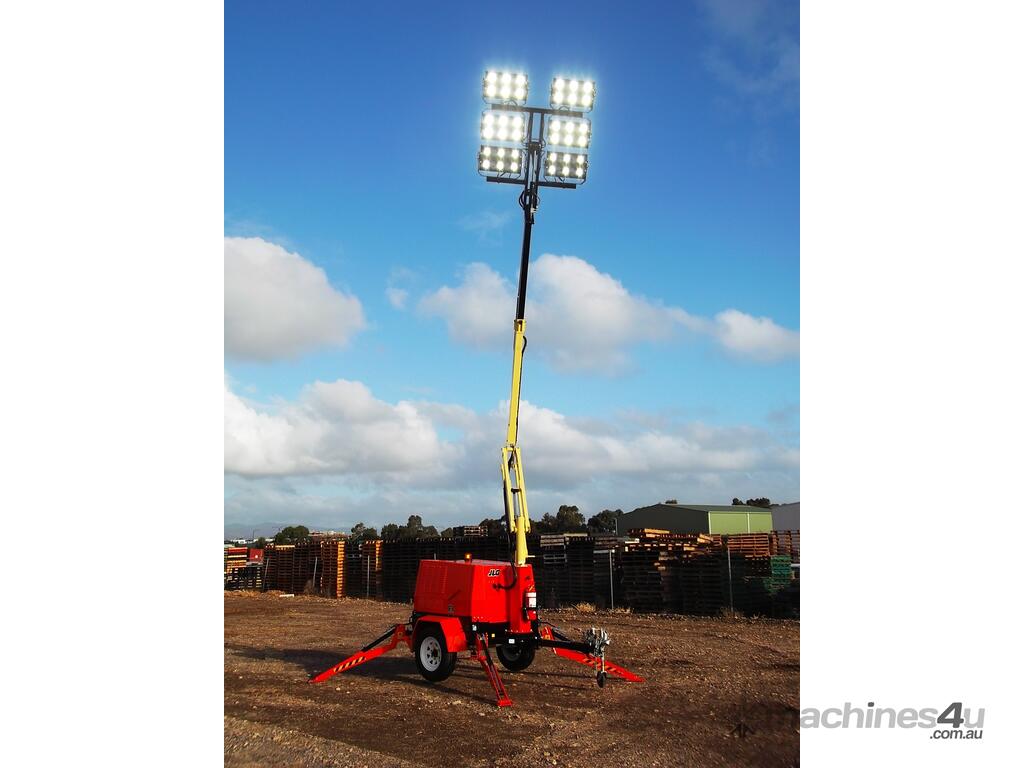

This high performance 8m tower features 6 x LED lights on a 48V ‘extra low voltage’ system . Designed and manufactured in Australia (ISO 9001) the LED-6 low fuel consumption allows for longer run times between re-fueling and are designed for side-by-side loading on a transport tray allowing up to 7 units on a semi-trailer and 11 units on a B-Double. The LED-6 provides the power and performance you can rely on.

Specifications
Dimensions:
Height Stowed 2.40 m
Length Stowed (Towbar inTransport Position) 2.32 m
Length Stowed (Towbar inTowing Position) 3.50 m
Stowed Width 1.80 m
Weight GVM 1520 kg
Length with Outriggers extended (Man/Hyd) 2.65 m / 3.6 m
Width with Outriggers extended (Man/Hyd) 2.1m / 3.1 m
Mast Max. Elevation 8.0 m
Wind Speed Rating 100km/hr
Power:
Engine Kubota D905BG
Fuel Type Diesel
Fuel Consumption 1.1 Litres/Hour
Running Time (per tank of fuel) approx. 154 hrs
Generator 48V DC
Lights LED

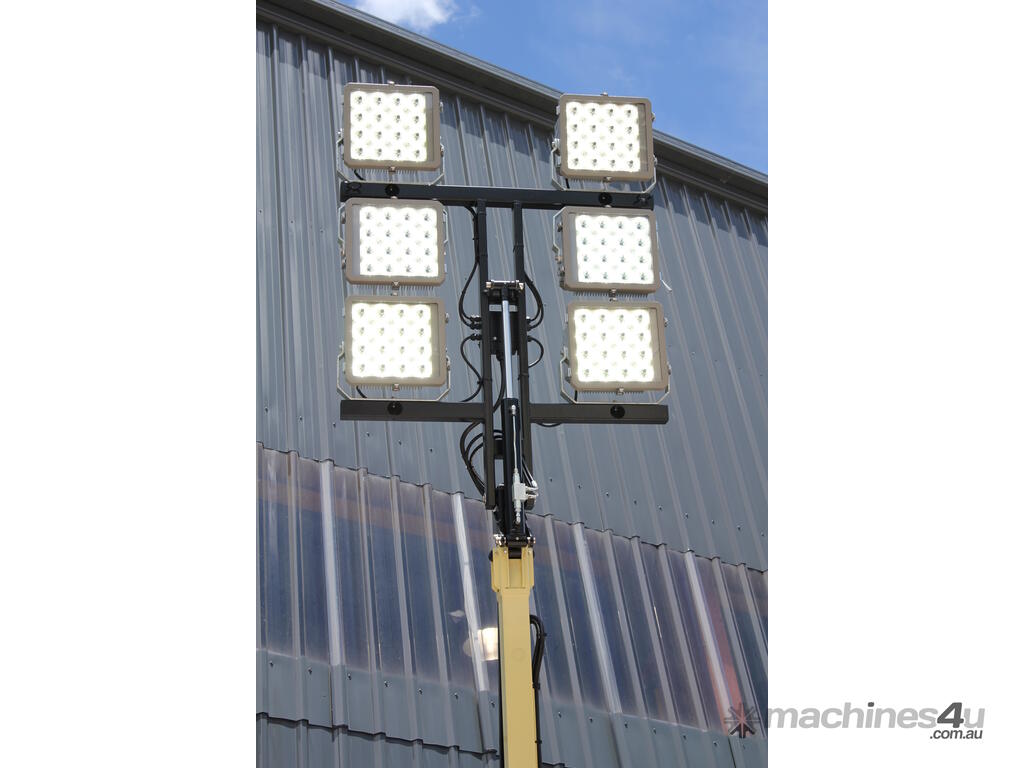

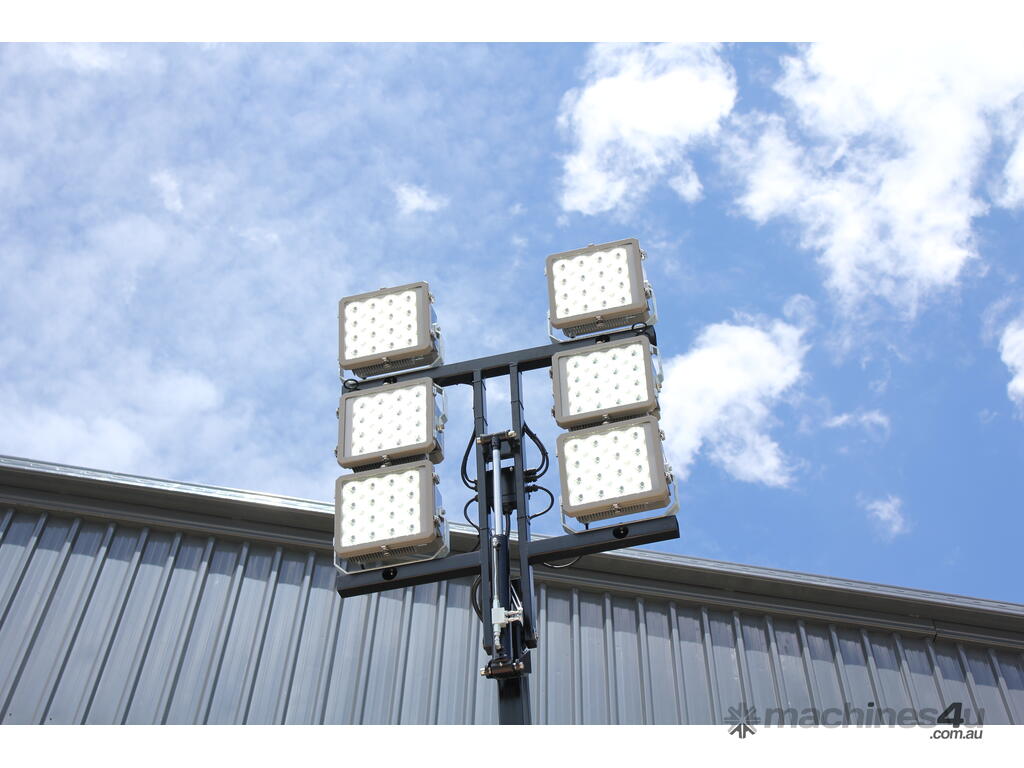

Light Power 6 x 400W
Control System Electronic Control
Noise Level 7m radius TBC
Fuel Tank Capacity 170L
Travel:
Wheels 16’x6J
Tyres 105/80 x 16”
Towing Speed (maximum) 80km/hr
Mast System:
Lift Hydraulic
Mast Lift Time 110 seconds
Mast Lower Time 90 seconds
Tilt Hydraulic
Rotate 350° Manual
Hydraulic System Pump 12V DC 240 bar (3500psi) 0.78cm3/rev
Function Control Electric over Hydraulic

Standard Features:
Bunding for all onboard fluids
External emergency stop
Steel hoods
Forklift pockets (if applicable)
Crane lifting points (if applicable)
Folding drawbar
Long extension wind-down outriggers
Hydraulic light head tilt
350° rotation of light head
Torsion independent axle
Hydraulic over-ride brakes
LED trailer lights for a tidy appearance
