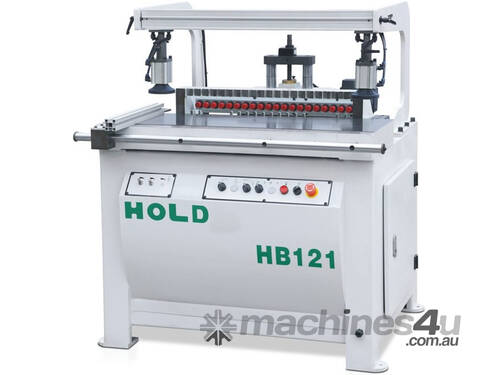

LEDA BM21S VERTICAL/ Horizontal 21 spindle multi

HOLD MODEL HB-121 MULTI BORING MACHINE



Specifications

Boring head with 21 in line spindles 32mm centres, each with quick release chucks to hold drill bits..
Boring head operates vertically, horizontally or at any angle in between.
Pneumatic tilting of the boring head.
Pneumatic clamping of workpieces.
Pneumatic operation of the boring head stroke.
Cast iron machined work table.
Sheet steel cabinet style base.
Digital readout for accurate settings of boring head.
Aluminium guide fences to align workpieces.


Technical Data

Working width – 1st to 21st spindle 640 mm

Three phase boring head motor 1.5 kw (2 hp)

Horizontal boring stroke 40 mm

Vertical boring stroke 70 mm

Dimensions of machine 1200 x 1000 x 1250 mm


Pricing is ex the LEDA Warehouse / stock location and excludes delivery from there to your factory, Commissioning costs and GST

TRADE INS WELCOME and COMPETITIVE Finance options available T.A.P.
Contact us for details
