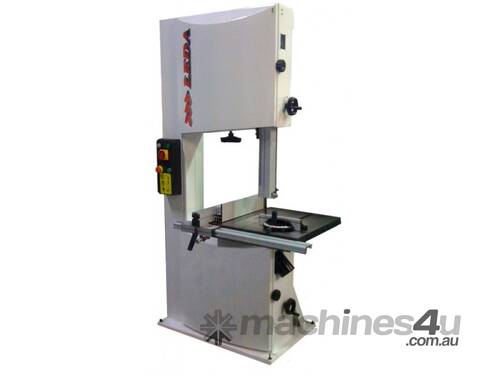

LEDA BS-600 HEAVY DUTY BANDSAW 24" (600mm) WHEELS
Specifications:
§ 610mm (24”) cast iron wheels with rubber on rims.
§ 5.3hp three phase motor with magnetic switch, overload and no-volt protection.
§ Top and bottom precision Italian style saw blade guides.
§ Top saw guide assembly adjusted up and down by handwheel.
§ Cast iron, ground finish work table – tilts to 45 degrees on cast iron trunnions.
§ Mitre gauge and rip fence plus one saw blade.
§ Handwheel adjustment of top wheel to tension blade.
§ Fabricated steel frame and body of machine.
§ Top and bottom front doors for easy blade changing.
§ Dust extraction outlet on right side below table.
§ Safety guarding covers blade except where wood is cut.
Technical Data:
Saw blade dimensions 4590mm long x 38mm wide max
Size of work table 610mm x 700mm
Cutting capacity 600mm wide x 430mm high
Packing size of machine 1030mm x 730mm x 2240mm
Nett weight of machine 330kgs
