HOT DEAL - CURRENT STOCK ONLY -PRICE REDUCED BY $1140 + GST!

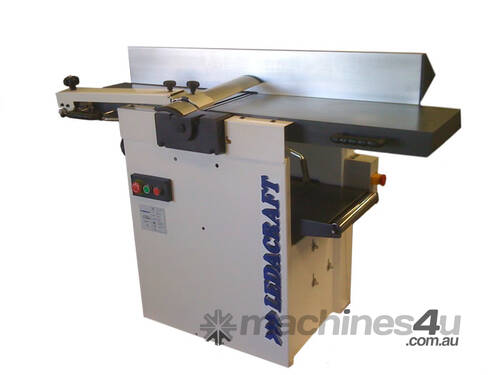

LEDACRAFT MODEL PT-129 COMBINATION 310mm (12”) SURFACE PLANER & THICKNESSER
Specifications
Ground cast iron work tables for accurate work.
Large 3 knife block
Large aluminium surface planer guide fence.
Fence quickly removed when thicknessing is required.
Work tables tilt up to allow access to thicknesser.
Dust chute for surface planer swings easily over top of cutterhead into position for thicknessing and becomes the safety guard as well.
Safety limit switch allows machine to start only if guard is in correct position.
Sheet steel machine body provides stable base for work tables.
Optional:

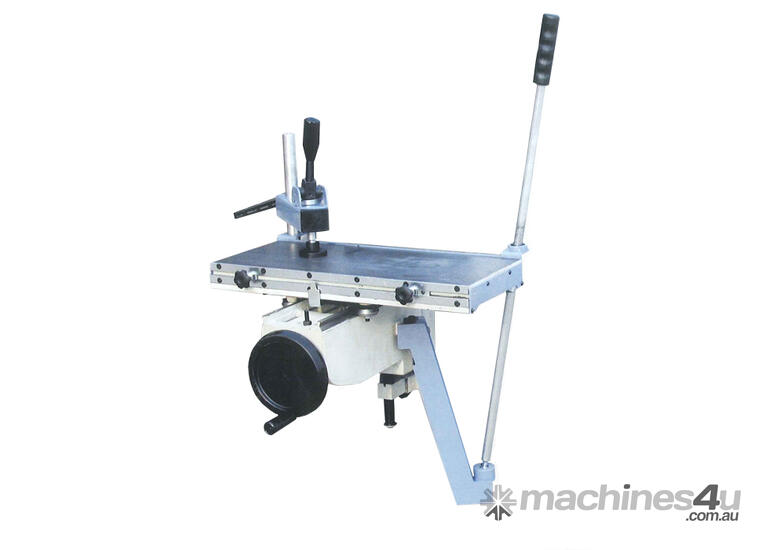

Slot mortising attachment which mounts on front of machine with single ‘joystick’ control of table – extra price of $352.00 including gst.
Pricing is ex our Adelaide HO Warehouse excluding delivery and assembly
Technical Data
Maximum planing width - surface planer 310 mm
Maximum planing width - thicknesser 305 mm
Maximum depth of thicknesser 225 mm
Maximum cutting depth in one pass – surface planer 4 mm
Maximum cutting depth in one pass – thicknesser 2 mm
Feed speed of thicknesser 6 metres / min
Overall length of surface planer tables 1380 mm
Diameter of circular cutterblock 70 mm
Diameter of dust exhaust hood 100 mm
Single phase drive motor 3 hp
Nett weight of machine 272 kgs
Optional Slot Mortising Attachment complete - $396.00 inc gst
(mounts on front of machine with single 'joystick' control of table)
