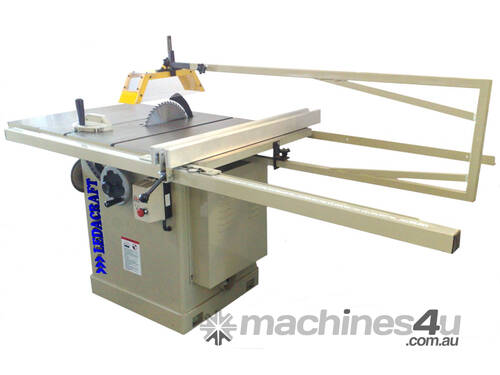

LEDA TC16 400mm professional table saw

LEDA MODEL TC-16 THREE PHASE TABLE SAW

With the following features:

Heavy cast iron interior housing supporting sealed saw arbor bearings.
Heavy sheet steel machine body with ground cast iron table.
Handwheel blade rise and fall to adjust cutting height.
Handwheel blade tilting from vertical to 45° angle.
Mitre gauge sliding in table slots either side of blade.
Excellent rip fence, with positive locking, square every time.
Magnifying glass to easily read measuring tape for accuracy.
Magnetic electrical switch gear with protruding stop button, overload protection and no-volt release.
Overhead SUVA type safety guard on tube-steel frame, to comply with relevant safety standards.
Riving knife behind blade rises and falls and tilts with the blade to comply with relevant safety standards.
An accurate, powerful, reliable table saw with a proven record of performance all over Australia.
Specifications

Maximum diameter of saw blade 406mm (16”)
Maximum depth of cut 90° 152mm (6”)
Maximum depth of cut 45° 108mm (4.25”)
Diameter of saw blade arbor 30mm
Size of cast iron work table 1220 x 965mm
Height of work table from floor 857mm
Maximum ripping capacity to right of blade 1270mm
Power of three phase blade motor 7.5hp
Nett weight of machine 395kg
OPTIONAL EXTRA $1199.00 inc gst

Precision sliding crosscutting table assembly with 1250mm cutting stroke and aluminium measuring fence.
