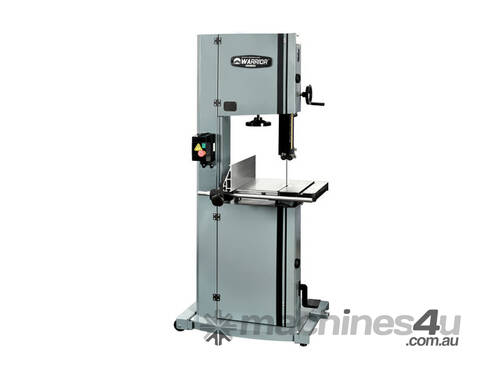

LEDACRAFT MODEL BS-400 BANDSAW
Specifications

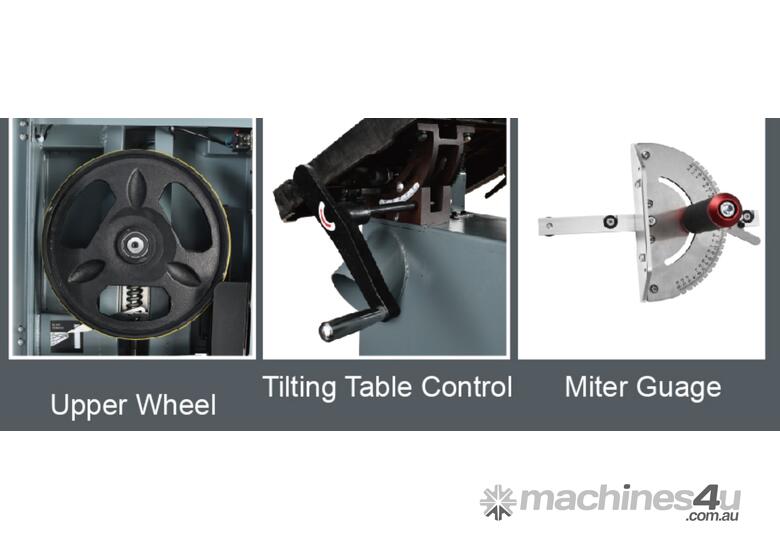

400mm (16”) Cast alloy wheels with rubber on rims.
3hp Single phase motor with push button switch.
Top and bottom precision Italian style saw blade guides.
Top saw guide assembly adjusted up and down by handwheel.
Cast iron, ground finish work table – tilts to 45°.
Mitre gauge, rip fence and one saw blade provided.

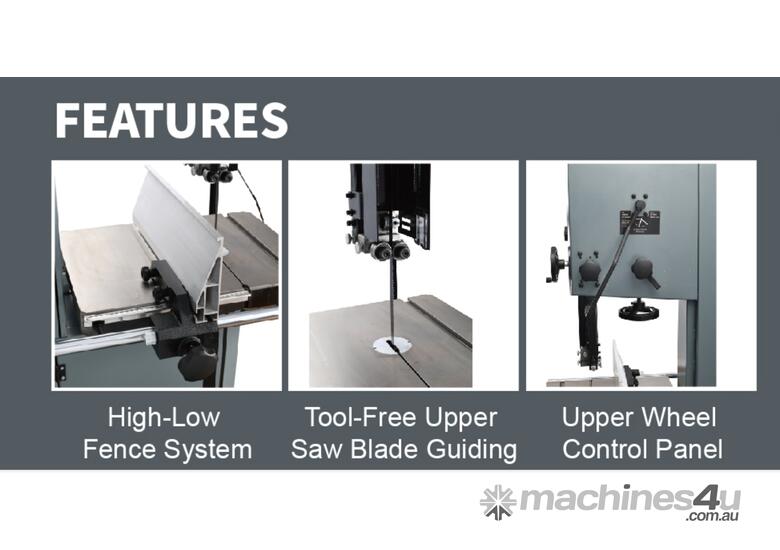

Aluminium precision rip fence with positive locking.
Fabricated steel frame and body of machine – European styling.
Top and bottom front doors for easy blade changing.
Dust extraction outlet on right side of machine.
Safety guarding covers saw blade except where wood is cut.
Blade width capacity from 6mm to 37mm for ripping.
Pricing is ex our Adelaide HO Warehouse and excludes freight, assembly
Technical Data
Size of work table 560 mm x 450 mm
Cutting capacity 410 mm wide x 250 mm high
Machine nett weight 126 kgs
Size of bandsaw blades 3345 long x 6 to 37 mm wide
Two blade speeds 840 or 420 metres /min
Overall size of machine packaging 720 x 530 x 1900 mm
