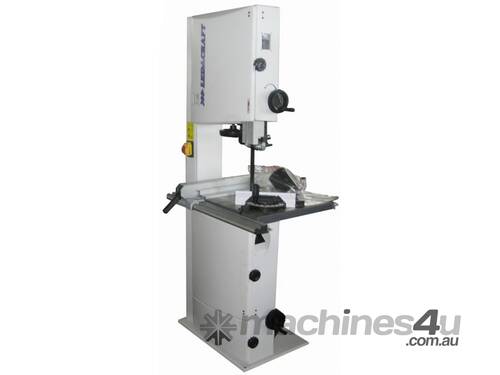

LEDACRAFT BS-470 BANDSAW
Specifications
§ 470mm (18"") Cast alloy wheels with rubber on rims.
§ 3hp Single or three phase motor with push button switch.
§ Top and bottom precision Italian style saw blade guides.
§ Top saw guide assembly adjusted up and down by handwheel.
§ Cast iron, ground finish work table – tilts to 45°.
§ Mitre gauge, rip fence and one saw blade provided.
§ Aluminium precision rip fence with positive locking.
§ Fabricated steel frame and body of machine - European styling.
§ Top and bottom front doors for easy blade changing.
§ Dust extraction outlet on right side of machine.
§ Safety guarding covers saw blade except where wood is cut.
Technical Data
Size of work table 630 mm x 480 mm
Cutting capacity 465 mm wide x 280 mm high
Size of bandsaw blades 3607 long x 6 to 37 mm wide
Two blade speeds 840 or 420 metres / min
Machine nett weight 162 kgs
Overall size of machine packaging 826 x 545 x 2070 mm
