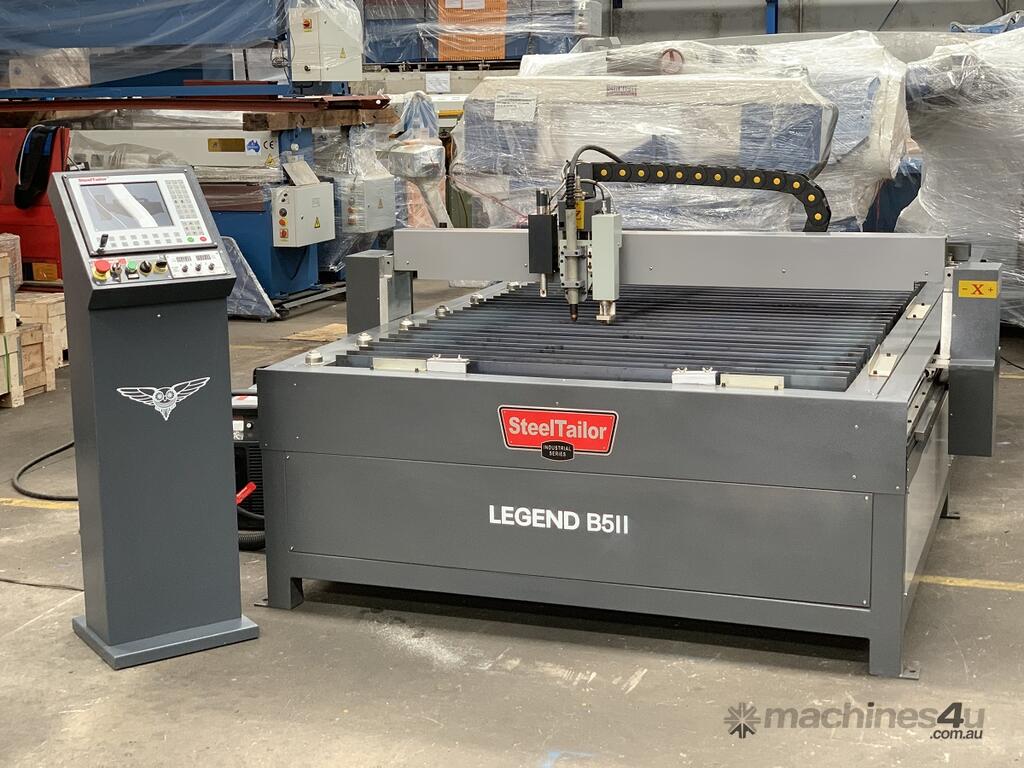

LEGEND B52 Combination CNC Plasma Etching Head with 100Amp Power Source Included

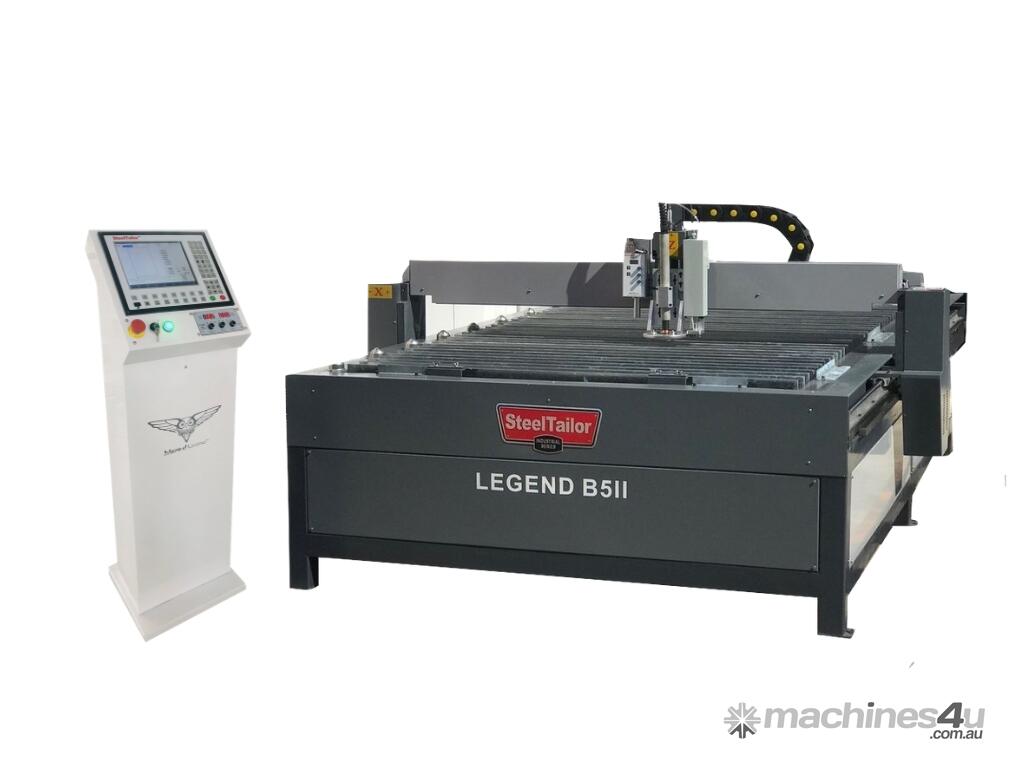

Plasma CNC – STEELTAILOR LEGEND B52E - 1500mm x 3000mm Table, Plasma Power Source Included, Engraver Head,
Fastcam Software, 10.3” Screen, Torch Height Control (THC), Anti Collision, 3 Cutting Heads Included

Australian supported Fastcam CNC operating system!
Australian supported back up service and parts!

Description

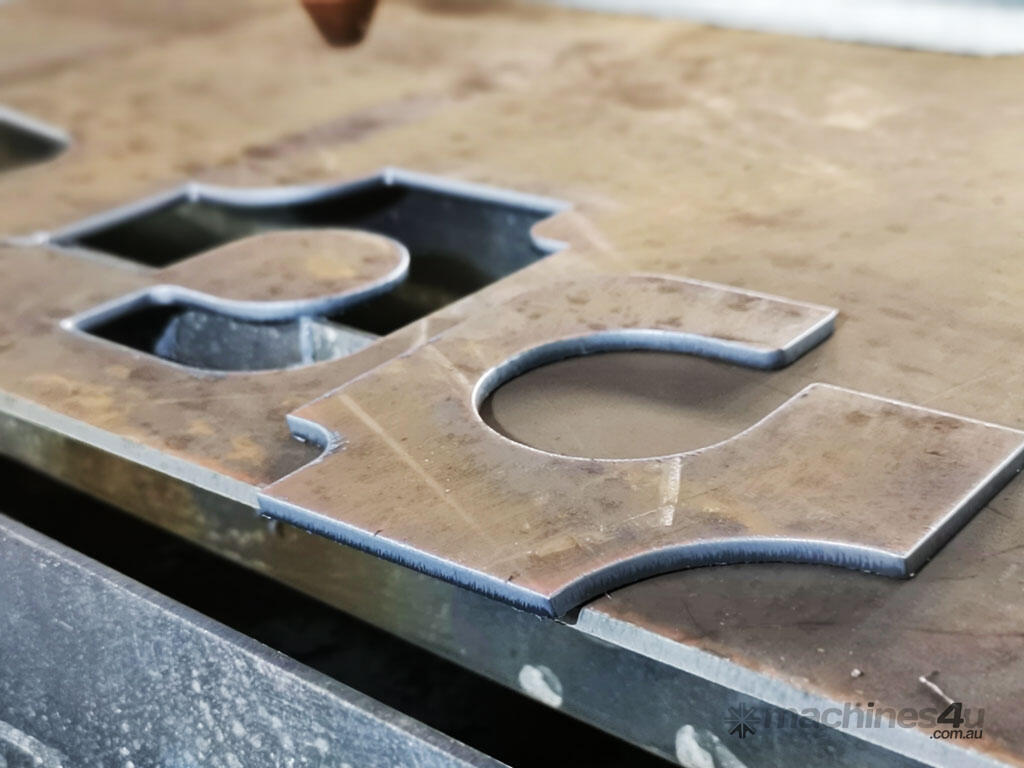

If you have been waiting for the all in one plasma - look no further - No wonder its called the LEGEND B52 - One Machine Works As Two! Cut as thin as 0.5mm and as thick as the power source we hook up to our machine. Your call! Not to mentioned the added etching engraving head (FREE) for all basic numbering, fold lines and more.
Three modes of cutting:

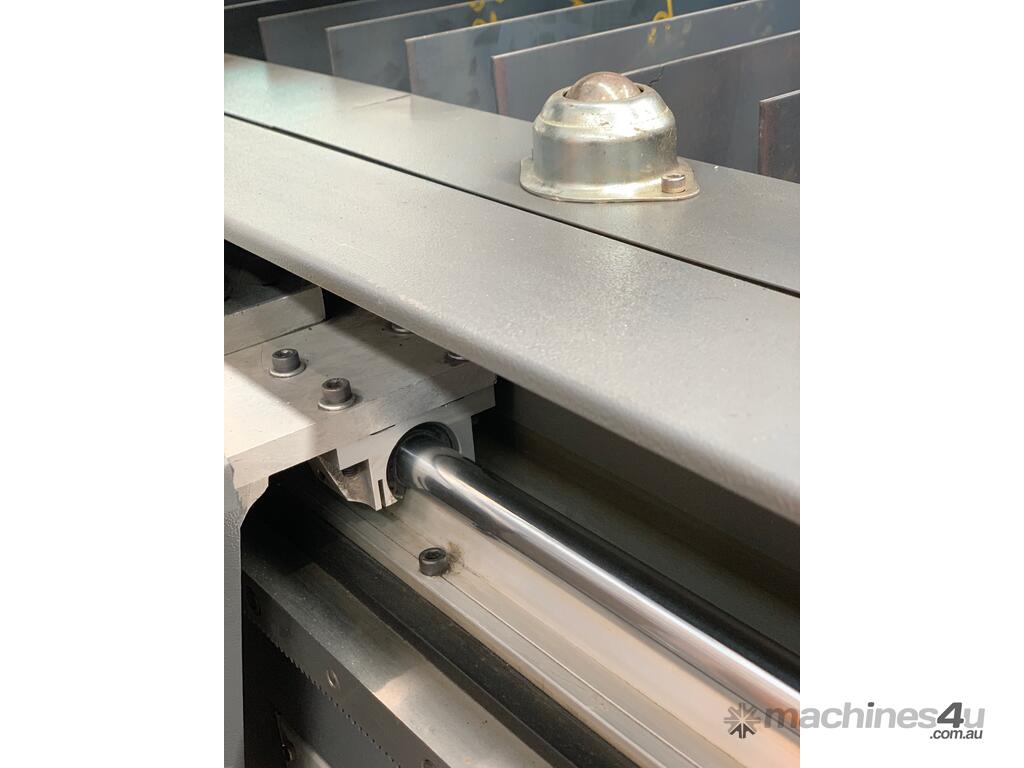

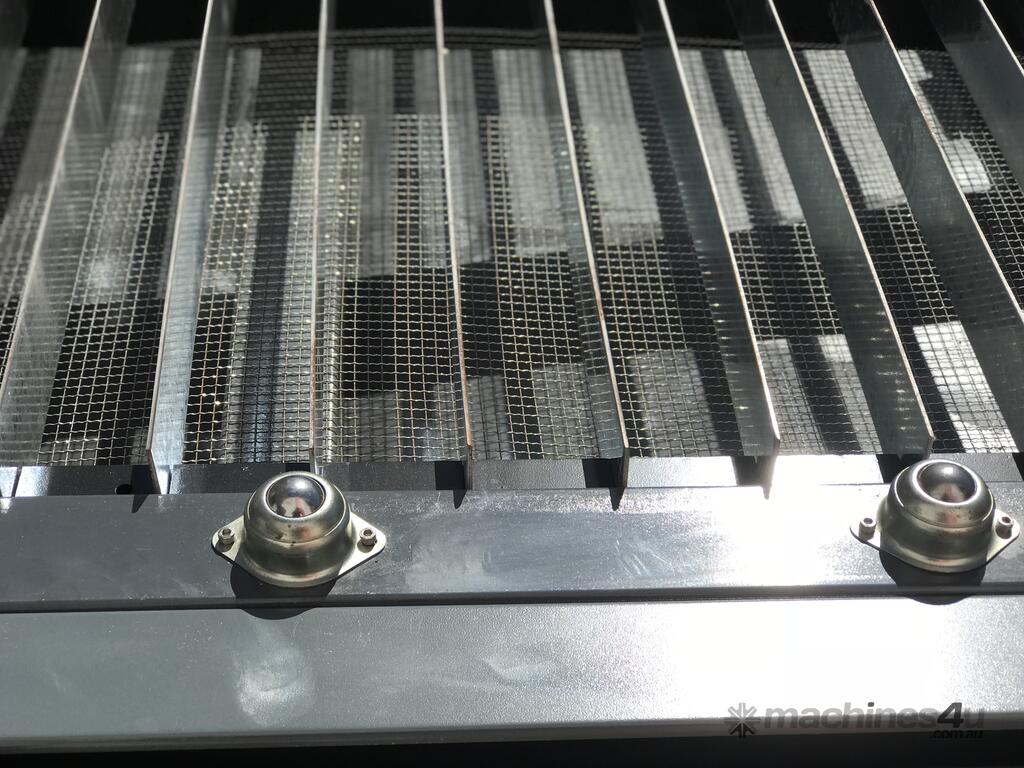

Water jacket, Platen, Arc voltage sensing THC. This Plasma cutting machine table offers ball design, cutting material loading/unloading easier.
Offering Arc voltage sensing THC, fine plasma cutting performance along with simple design, cutting mode switching very easy.

Features

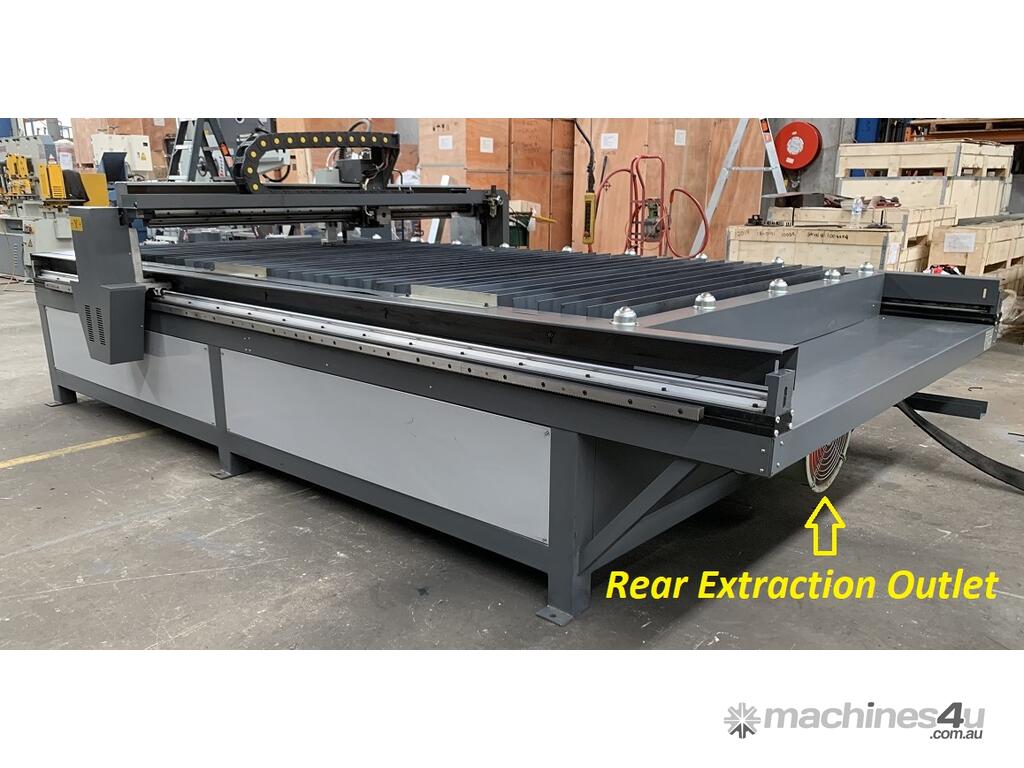

? 1500mm x 3000mm cutting table

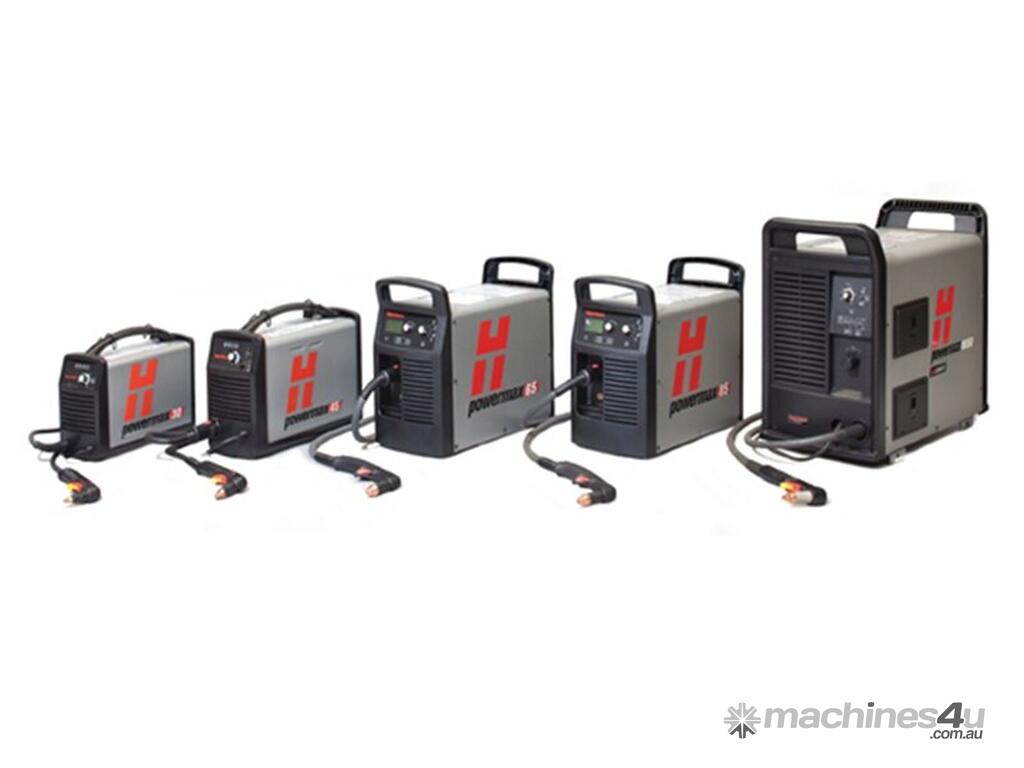

? Hypertherm PMX45 Power Source Included with Package

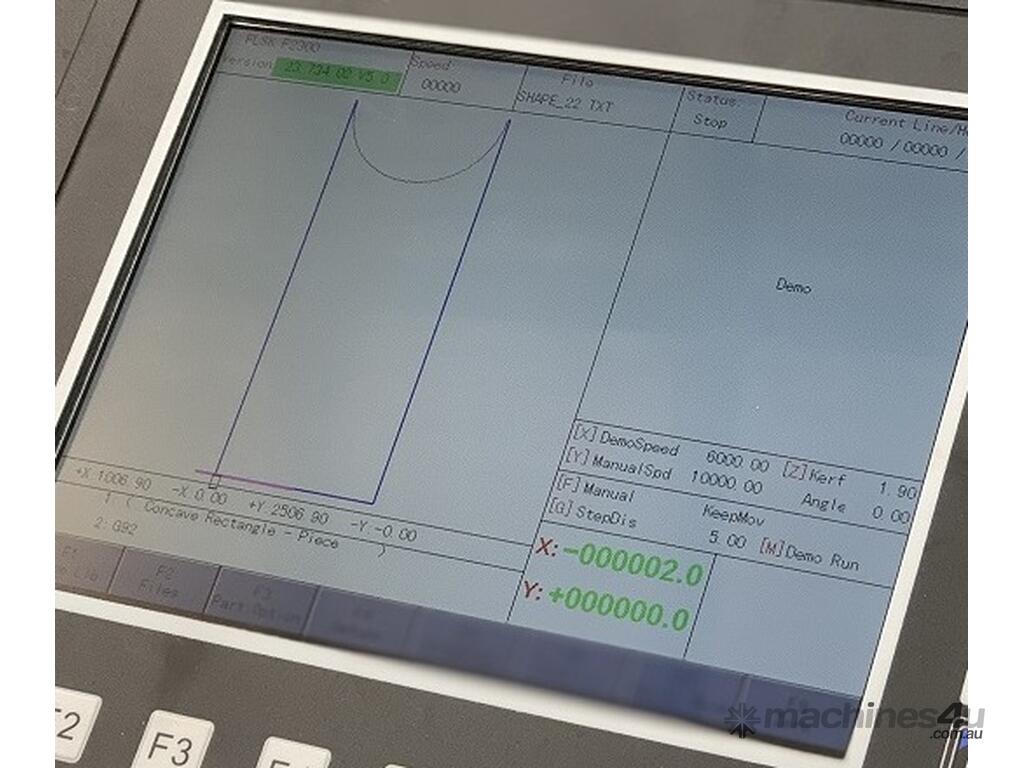

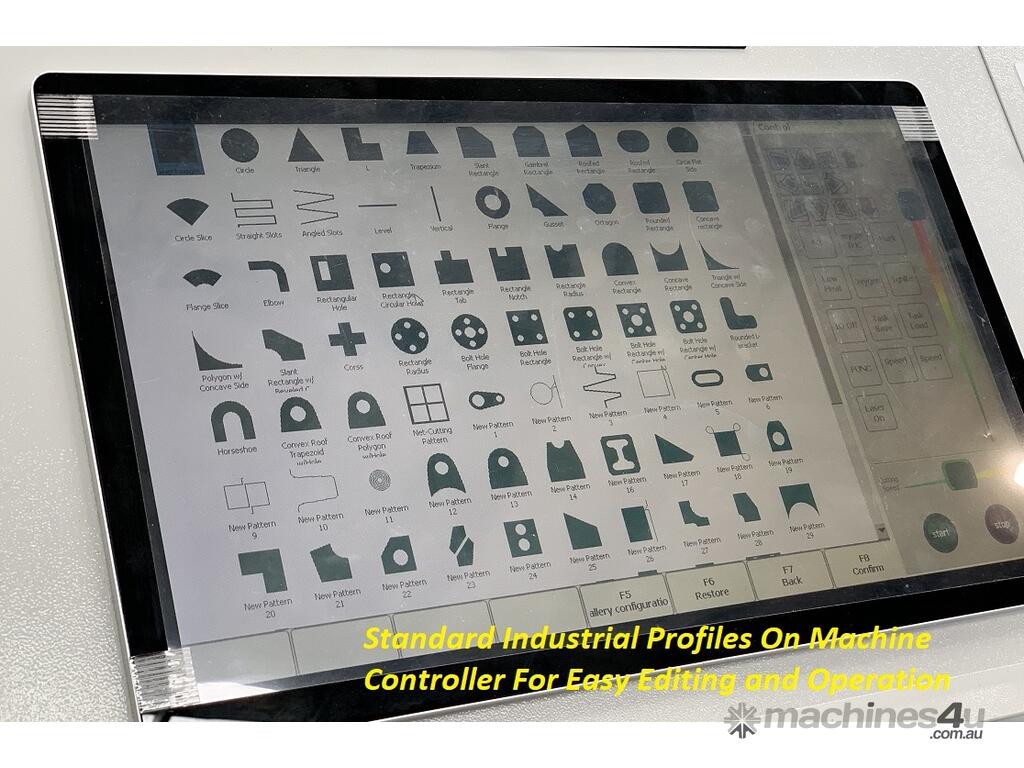

? Large 10.3” LCD Screen

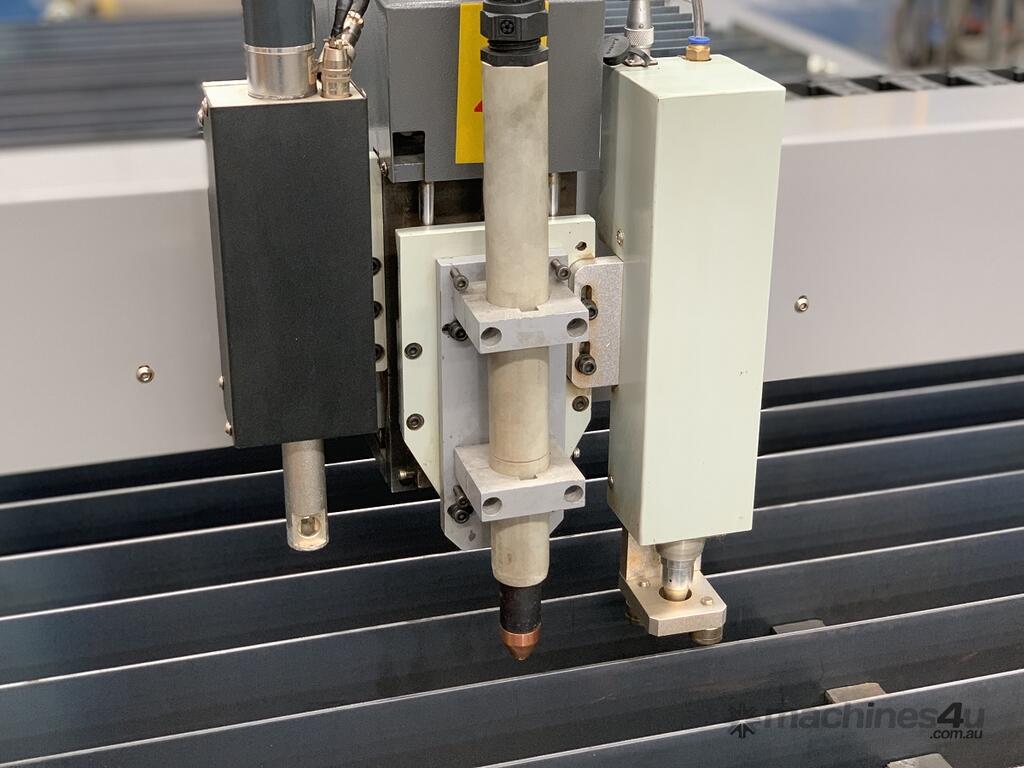

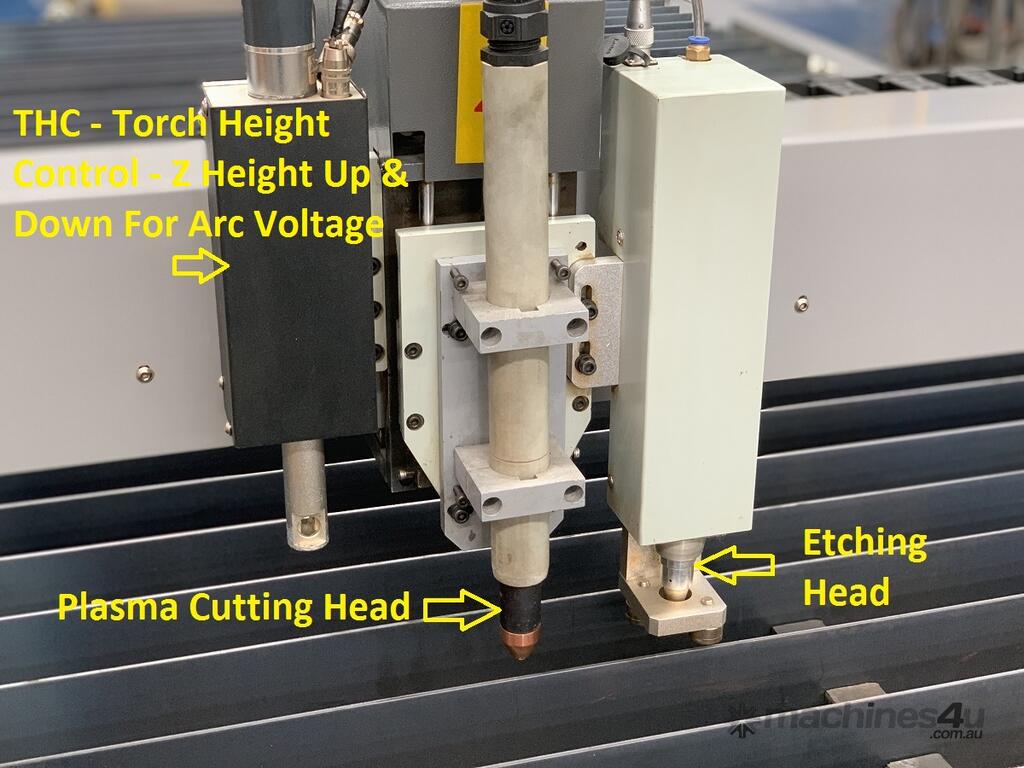

? Etching engraving head fitted

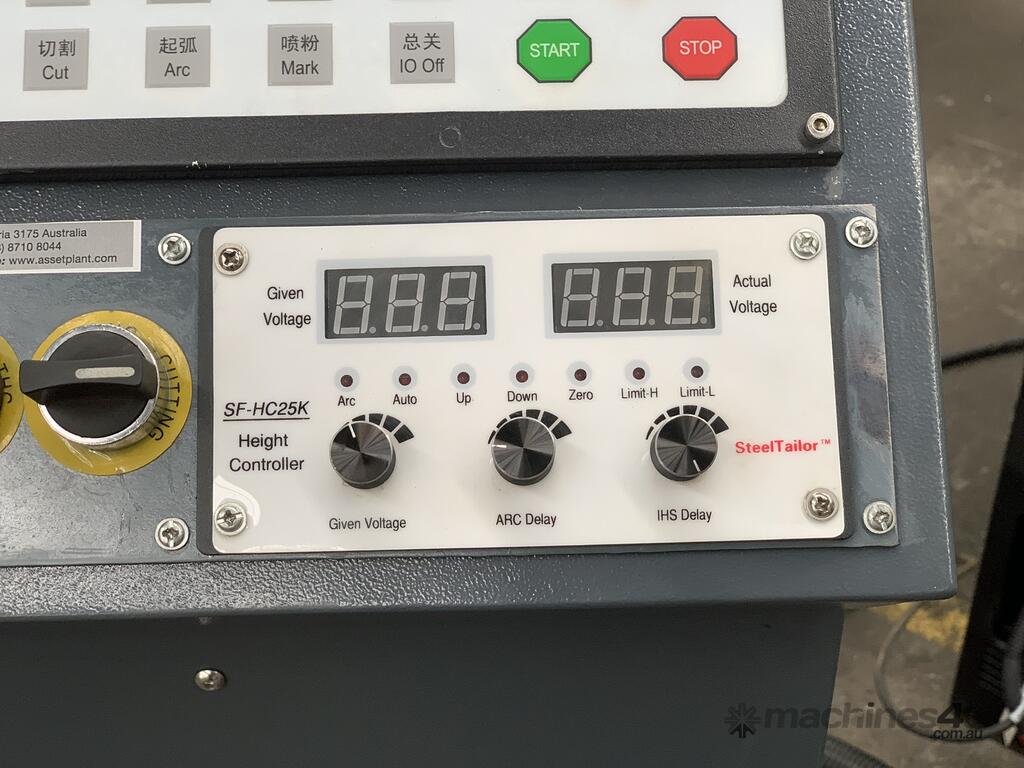

? THC torch height control fitted
? Anti-collision device fitted
? Water jacket supplied also for thin sheet cutting
? superior cut speed, quality and stability
? optimum track speed. even for fine contours and tight radii
? FastCam Professional Offline Software Included FREE with every machine purchase.

Technical data
? cutting area – 1500mm x 3000mm
? bed area – mm x 3300mm
? Z travel - 80mm
? Hypertherm PMX45 Included – Blind Pierce & Cut 12mm, Side Cut 14mm
? Large 10.3” LCD Screen
? larger engineered tables available to suit thicker plate
? cutting speed - 0 ~ 8000mm / min
? Rapid approach speed – 12,000mm / min
? accuracy – 0.2mm
? dimensions - 3400mm x 1900mm
? crate shipping dimensions - 3600mm x 2100mm x 1600mm x Kg
? weight – 1680Kg
? table power source – 240volt
? plasma power source – 32amp - volt
? 12 month warranty

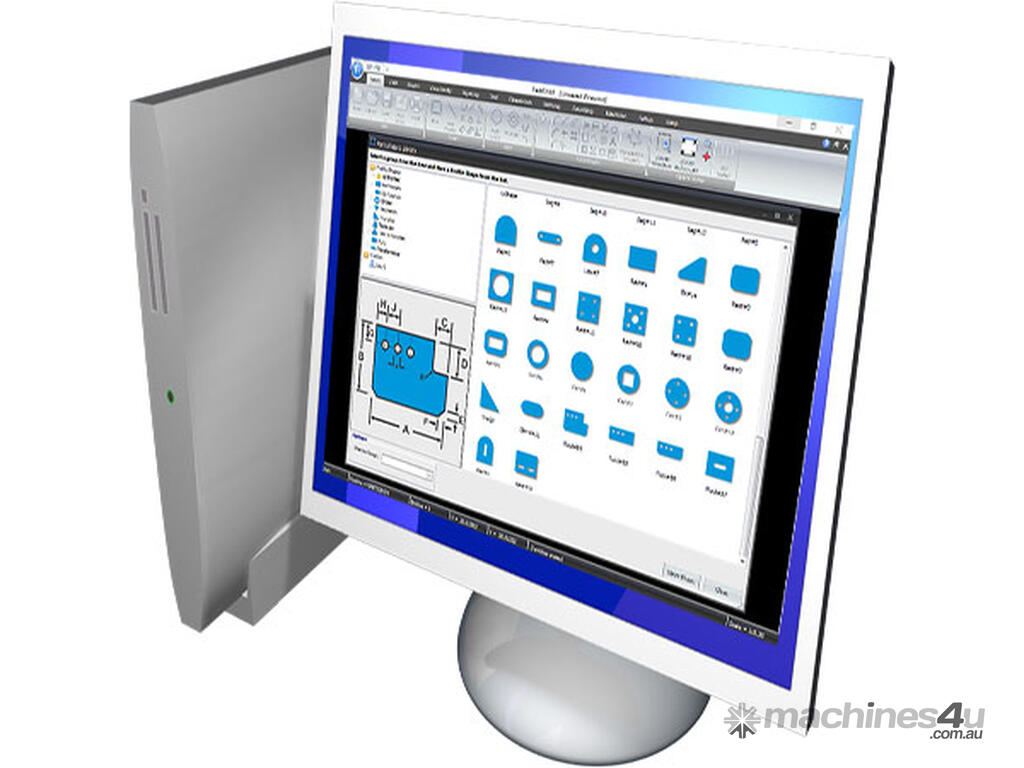

CNC Software

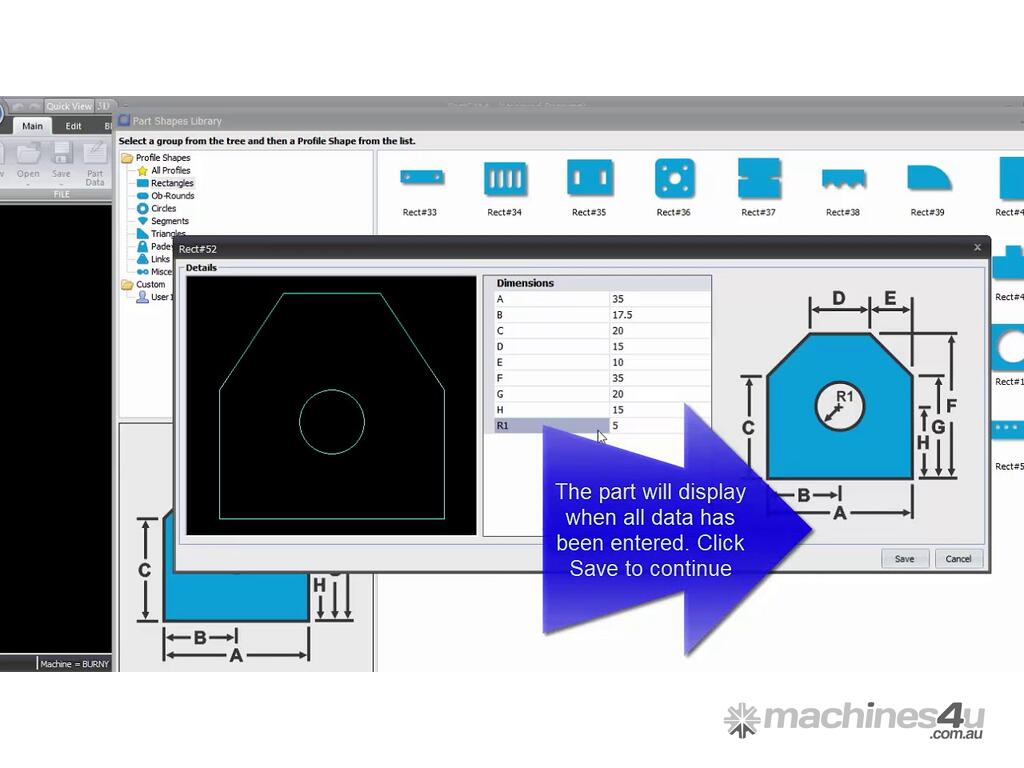

? Fastcam Professional (Auto-Nesting)
? Save drawings to USB
? All popular DXF and DWG files supported

Webpage:
.fastcam/fastcam.html

FastCAM 7 Information:
You can read all about the upgrades and changes in FastCAM in the links below, together with the FastCAM Brochure:
.fastcam/fastcam.htm

Services required to be provided by customer
? electrical connection.
? compressed air.
? fume extraction provisions.
? Asset can offer you the above additional items on request.

Recommended Add On Accessories
PMX Nozzles, Shields, Electrodes, Swirl Rings, Allowance Based on General day to Day Cutting
?25-0258 - Air Dryer – Power System – Model: PSD-5N, 20 cfm, 16 Bar 2~3 Degree Dew Point, – 240V
?25+0258 - Filtration – HYPERTHERM – Model: 128647 Micron Eliminizer Filter To Be Fitted To The PMX
?25+0259 - Filtration – Power System – Model: PSF12F, Purity – 0.01 Micron, 54CFM Volume, Auto Drain.
?21+0805 - CLEARMASTER SM-DR-3000 Laser / Plasma Fume Extraction System, 3000m/Hr. Anti-Spark Arrestor – Up to 1500mm x 3000mm Table
?21+0806 - CLEARMASTER SM-PA-6000CT Laser / Plasma Fume Extraction System, 6000m/Hr. Anti-Spark Arrestor Up to 2000mm x 4000mm Table
?25-0259 - Power System Model NB7/270 - 35 CFM Piston Compressor. 7.5 H.P- v
?25-0220 - AIRMASTER Rotary Screw Air Compressor & Air Dryer. Model: 11MK2, 58 cfm Capacity, 116 psi.
?50+0200 - Digital Thickness Gauge - 0mm ~ 15mm
?50+0112 - Digital LCD Vernier Calliper - 150mm Length.
?Full Range of Consumables Available In Store or Online


MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
