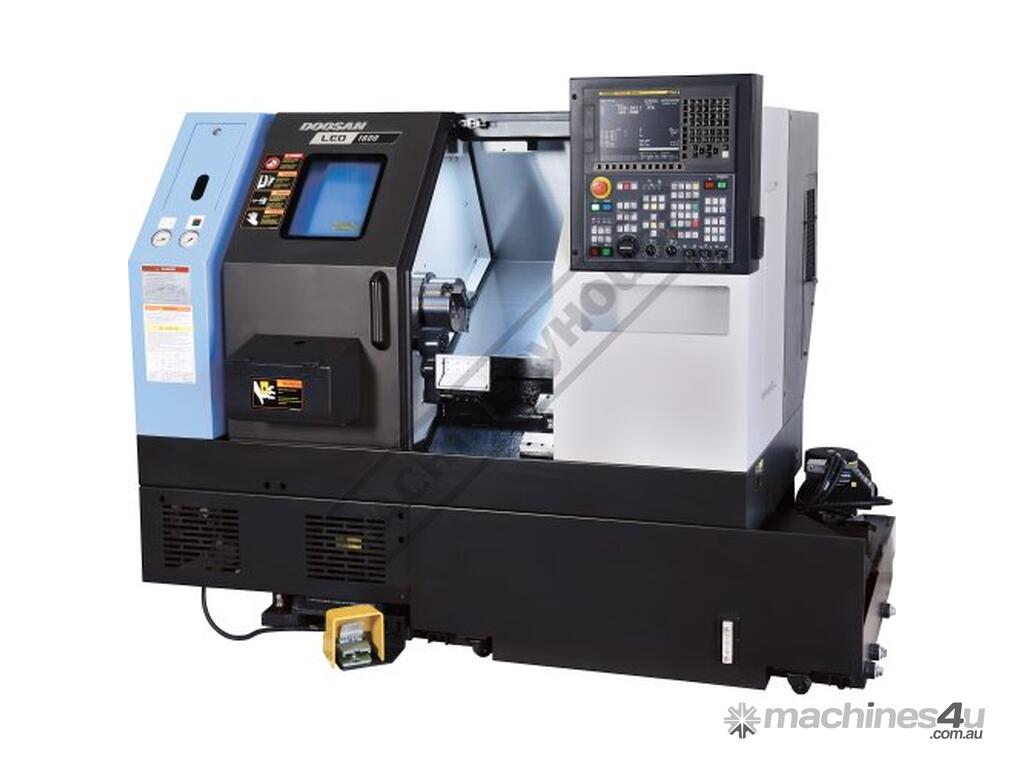

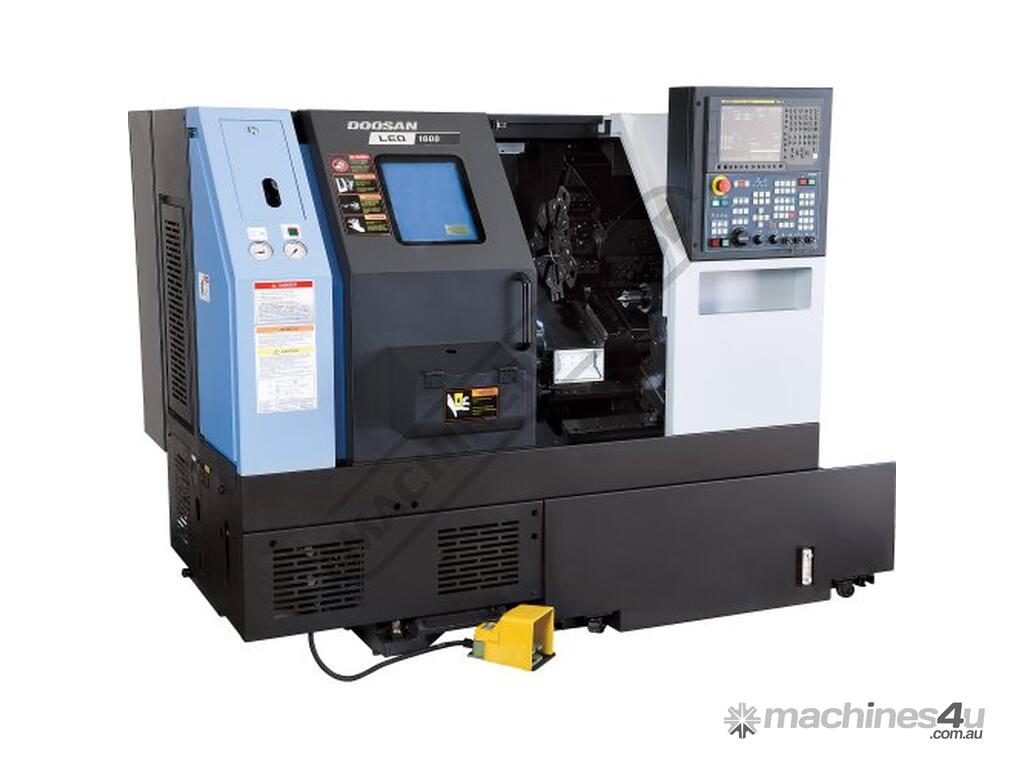

LEO 1600 CNC Turning Centre

DOOSAN MACHINE TOOLS LEO 1600 CNC Turning Centre
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L7131

Basic Specifications
• 470mm Swing Over Bed
• 300mm Swing Over Saddle
• 303mm Turning Length
• 320mm Turning Ø
• 70kg Main Spindle Capacity, 150kg Shaft Work Capacity

Main Spindle
• 45mm Bar Capacity

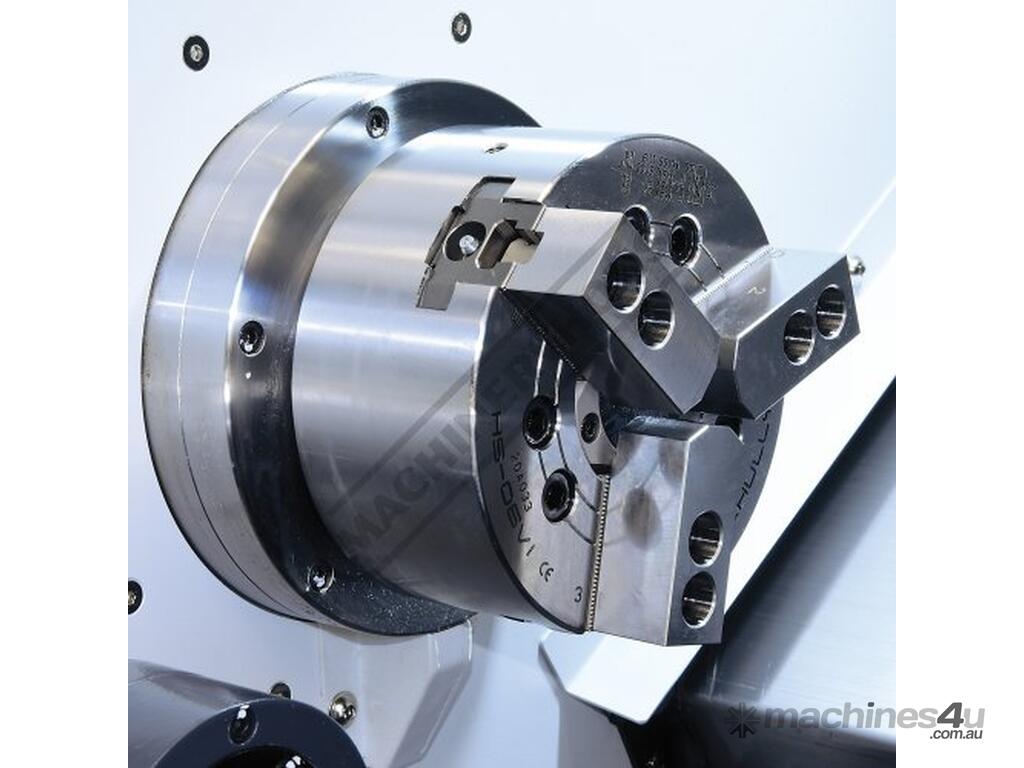

• 150mm Ø Hydraulic Chuck
• 4000RPM Spindle Speed
• 7.5kW Spindle Power
• 71Nm Spindle Torque

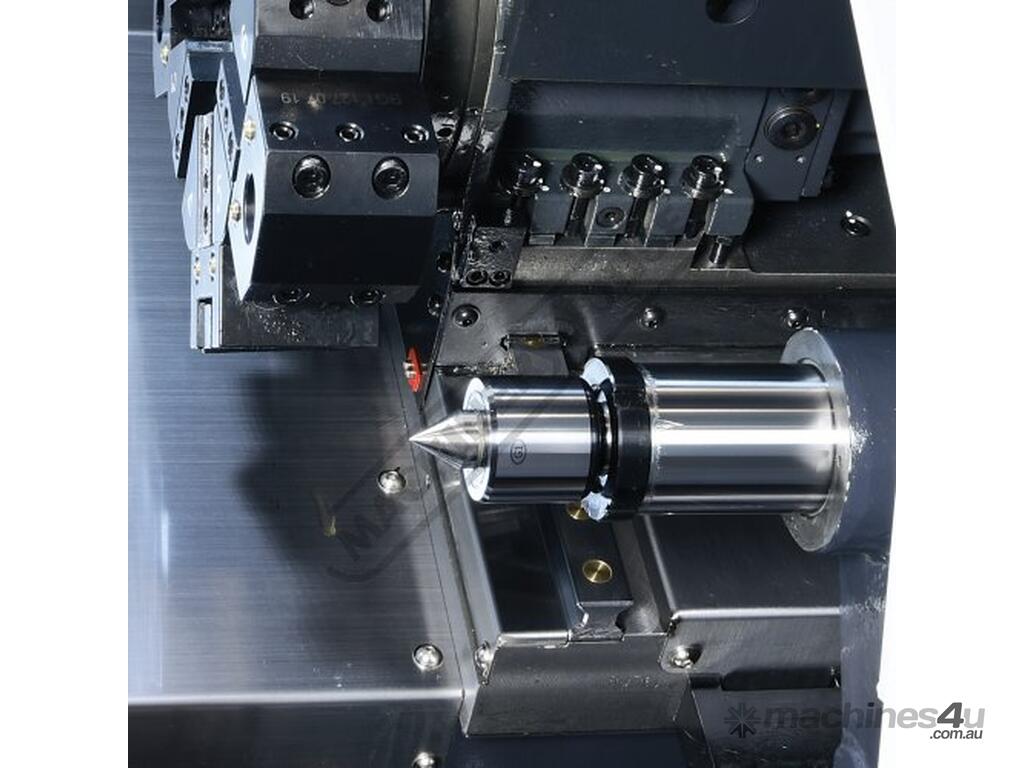

Tailstock
• MT4
• 65mm Quill Ø
• 80mm Quill Travel

Turret
• DI Base Holder Tool Mounting
• 12 Station Turret
• 25mm Square / 32mm Ø Tool Capacity

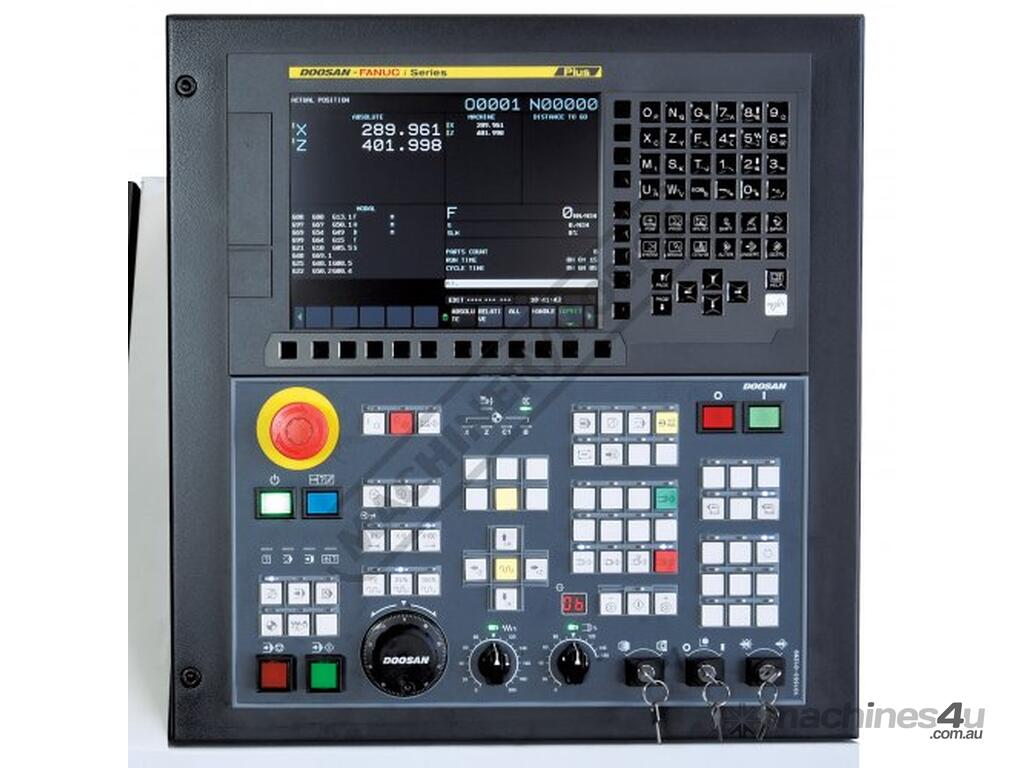

CNC Control
• Doosan Fanuc I Series CNC Controller
• 10.4” Colour LCD Monitor
• Rigid-synchronised tapping
• Custom Macro B
• Ethernet Interface
• RS232 Interface
• USB & PCMCIA Memory Card Slot
• Manual Guide “0i” Conversational software:
• Canned Turning Cycles
• Onboard G & M code assistance
• + more


Standard Equipment - Included
• 3 Jaw Hydraulic Power Chuck
• Coolant supply equipment
• Foot switches
• Transformer
• Full enclosure chip and coolant shield with front door interlock
• Hand tool kit
• Automatic lubrication equipment
• Comprehensive manuals incorporating, Operation, Maintenance, Programming, Spare Parts Diagrams, Hydraulic Schematics, Electrical Schematics and Ladder Diagrams.
• Safety name plates / tags where required
• Risk assessment
• Work light


Optional Equipment Included
• Chuck open close confirmation proximity switches
• Chip Conveyor (Side Discharge, Hinged Belt)
• Coolant Oil Skimmer
• High Pressure Coolant

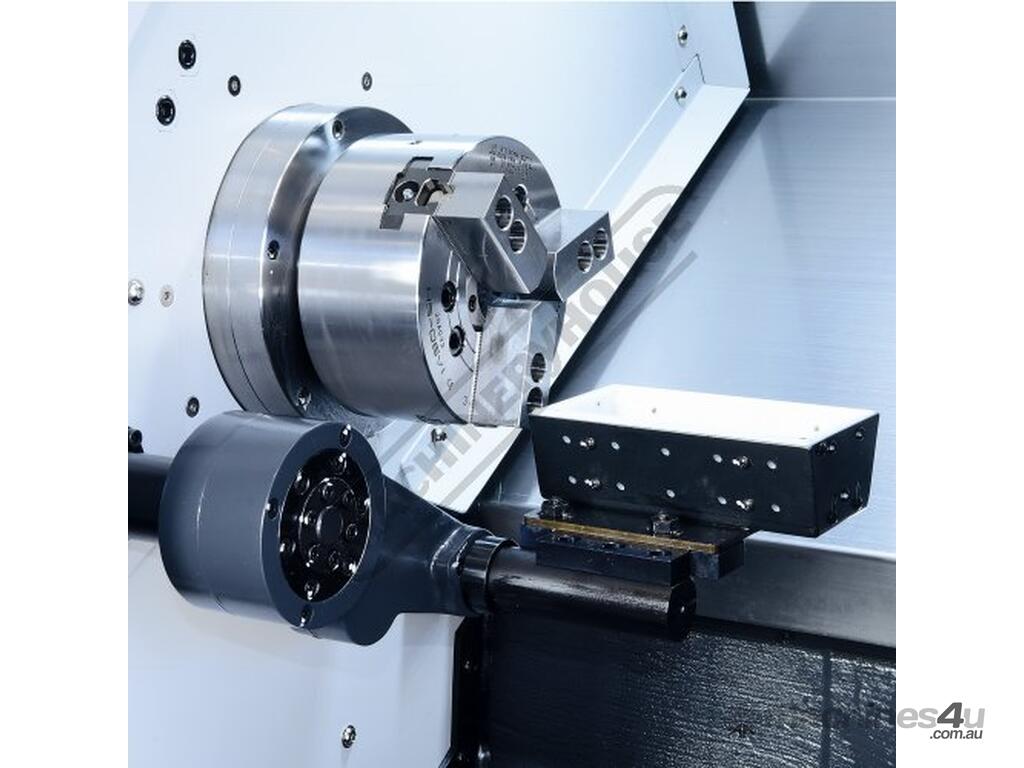

• Parts Catcher with Parts Box
• Barfeed Interface

Standard Turret Tool Holder Package Included
• 8 x OD Tool Holder
• 3 x ID Tool Holder
• 1 x Face Tool Holder
• 1 x Hard & Soft Jaws

Local Service and Support
• Commissioning & Testing Included
• Comprehensive Operator Training Included
• Hare and Forbes In House Service And Applications Staff
• Ongoing Support For Life Of The Machine

Features:
Doosan Machine Tools changes its name to DN Solutions
Read more at:


Specifications:
ORDER CODE: L7130
MODEL: LEO 1600
Swing (mm): 470
Max Turning Diameter (mm): 320
Turning Length (mm): 303
Chuck Diameter (mm): 150
Bar Diameter Capacity (mm): 45
Tool Stations (No): 12
Spindle Speed (rpm): 4000
Spindle Motor (kW): 7.5
Guideways (Type): LMG
Control (Type): Doosan Fanuc I Series
Programming: Manual Guide 0i
