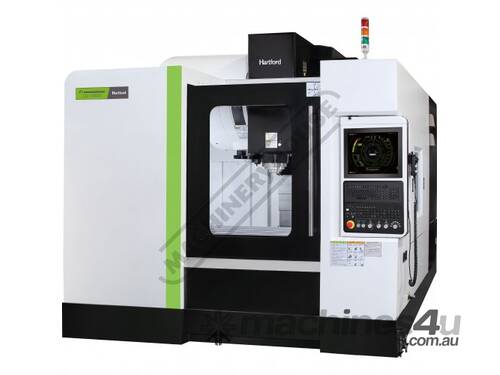

LG-1000AP CNC Vertical Machining Centre

HARTFORD LG-1000AP CNC Vertical Machining Centre
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M8795

Basic Specifications
• 1000, 510, 630mm X, Y, Z travels
• 1150 x 510mm table size
• 700kg table load capacity
• 30, 30, 24m/min X, Y, Z rapid feed rates
• 100 – 730mm spindle to table
• 10,000 rpm spindle speed
• 11kW spindle power
• 70Nm spindle torque
• BT40 spindle taper
• High precision wide span linear guide ways

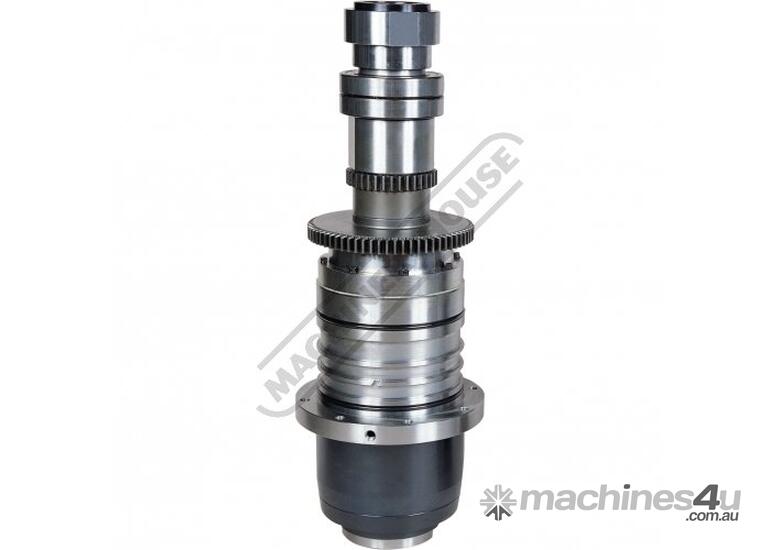

Main Spindle
• 10,000 rpm heavy duty spindle
• 11kW spindle motor
• Air blast through spindle

CNC Control
• Hartrol Premium 3 Control
• Hartcam 2.5 Conversational Software
• 15” Touch Screen Colour LCD
• Rigid-synchronised tapping
• Helical interpolation
• High Speed Machining Function
• Ethernet Interface
• USB Port
• RS232 Interface
• Hartrol Enhanced CNC Software
• Spindle Load Monitoring
• Advanced Tool Register
• Advanced Workpiece Co-ordinate System

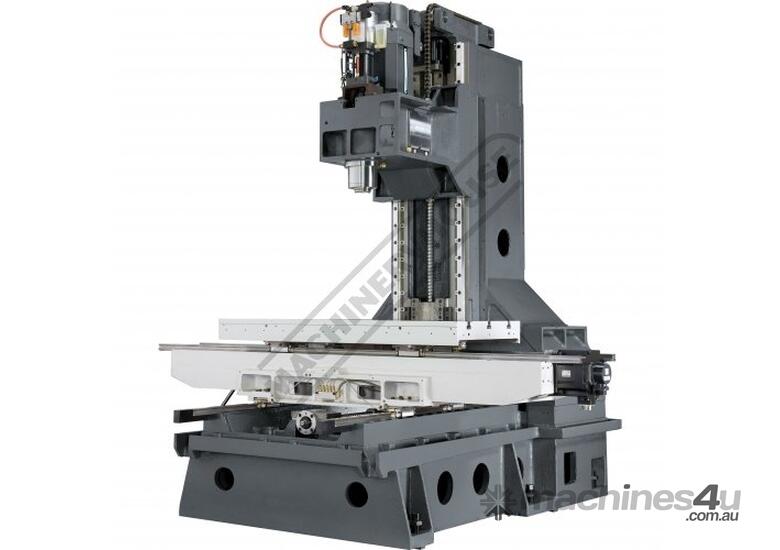

Axis Motors & Drives
• Mitsubishi servo drive amplifiers
• Mitsubishi high torque direct coupled AC digital servo motors
• Mitsubishi absolute position encoders (No Axes limit switches required)
• High precision, wide span linear guide ways
• Fully supported table eliminating overhang
• Large diameter pretensioned precision reciprocating ballscrews
• Automatic lubrication equipment

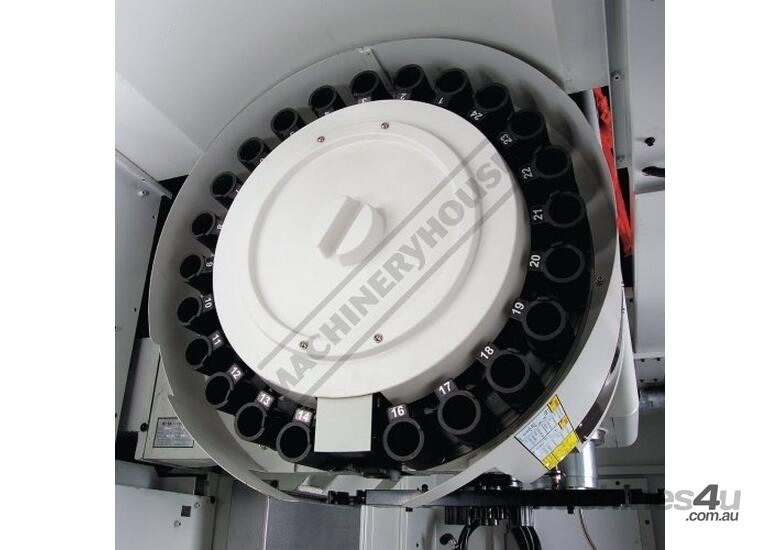

Tool Changer
• High-speed arm type automatic tool changer
• 24 tool bi-directional magazine
• Side mount fully enclosed tool magazine

Coolant System
• Flood coolant
• High pressure through spindle coolant 20 bar
• Fully enclosed chip & coolant shield
• Coolant Gun

Electrical
• Door safety interlock switch
• Heat exchanger for electrical cabinet
• Line filter
• Transformer

Swarf Removal
• Base chip flushing
• Screw type external chip conveyor

Operation
• Remote MPG (Portable Hand Wheel)
• Control panel with > 90° swivel
• 3 tier operation patrol lamp
• Work light
• Machine operating & maintenance manuals
• Controller manuals on CD
• Electrical schematics
• Tool box

Automation
• Control prepared to accept Rotary Table – 4th Axis

Specifications:
ORDER CODE: M8795
MODEL: LG1000AP
X Travel (mm): 1000
Y Travel (mm): 510
Z Travel (mm): 630
Table Size (mm): 1150 x 510
Table Size (mm): ~
Table Capacity (kg): 700
Spindle – Table (mm): 100 - 730
Spindle Taper: BT40
Spindle Speed (rpm): 10,000
Spindle Motor (kW): 11
Rapid Traverse (m/min): 30 / 30 / 24
Guideways: LMG
Tool Arm Type (No.): 24
Control: Hartrol Premium 3
Programming: Hartcam Conversational
Programming: ~
