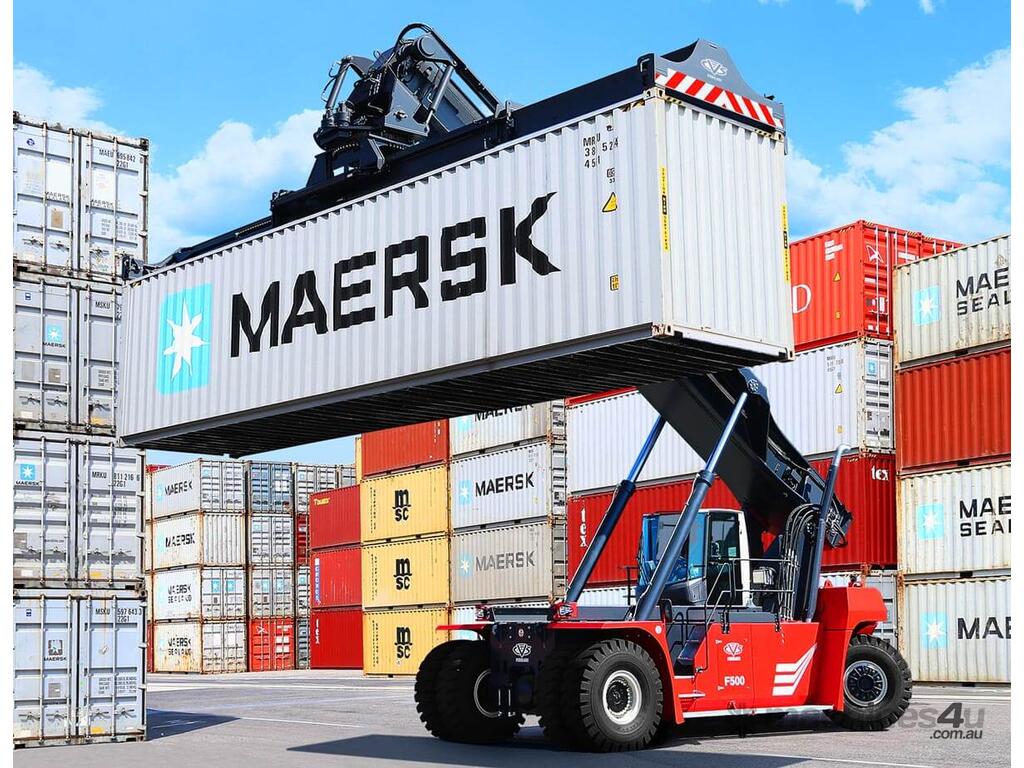

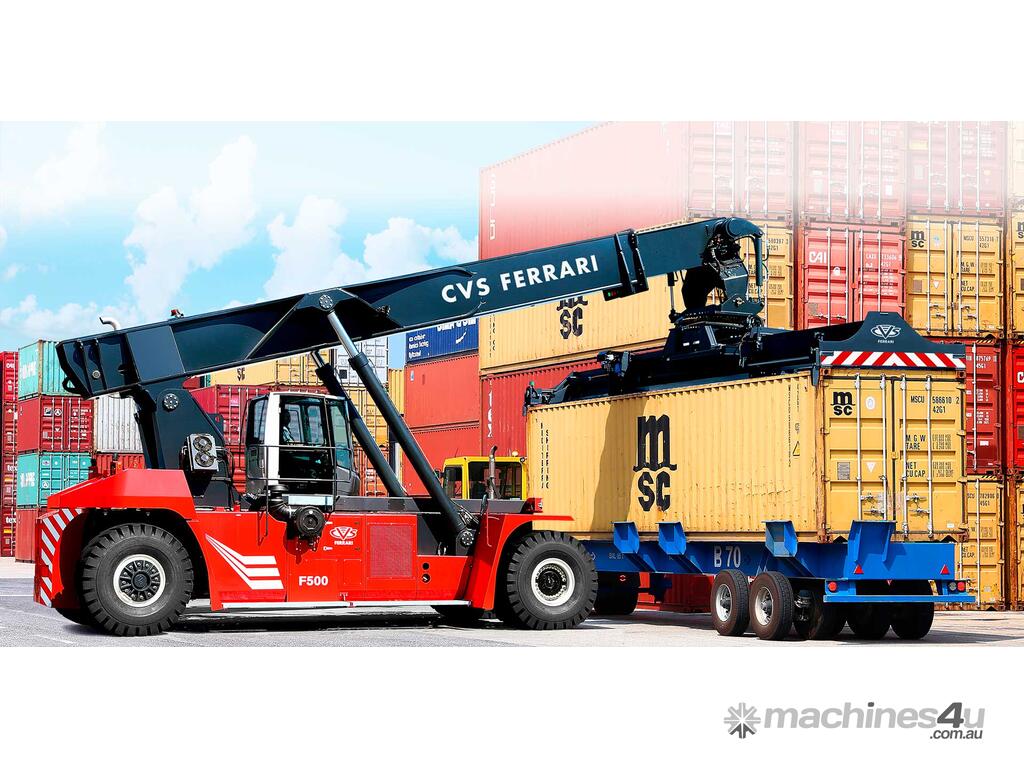

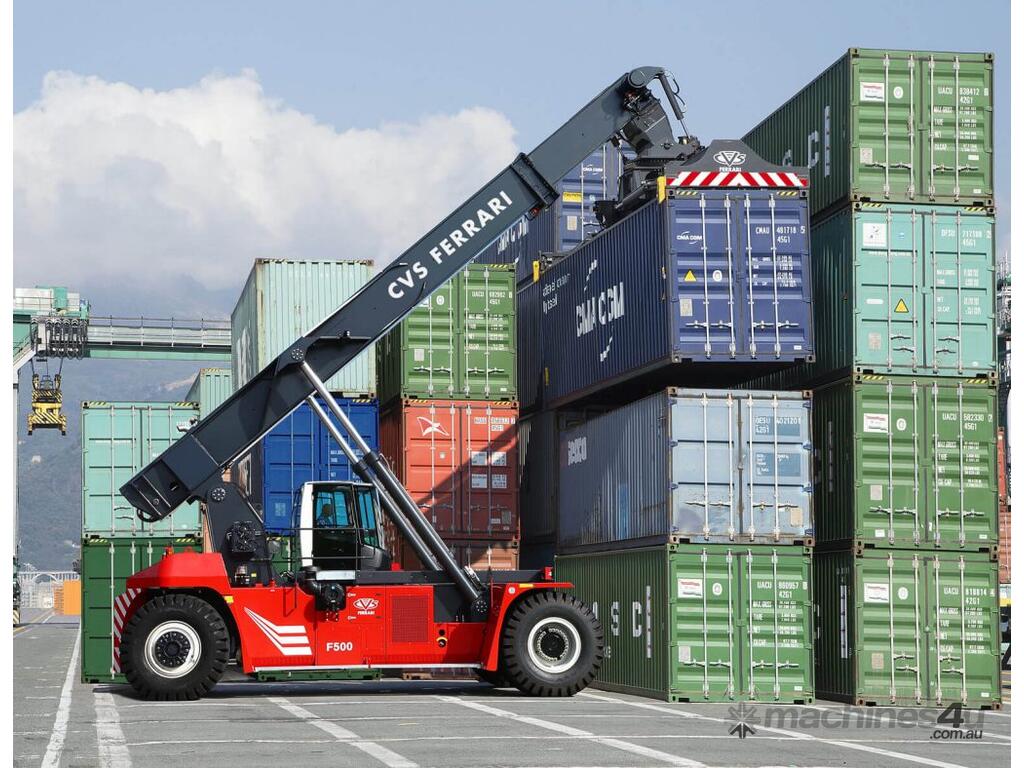

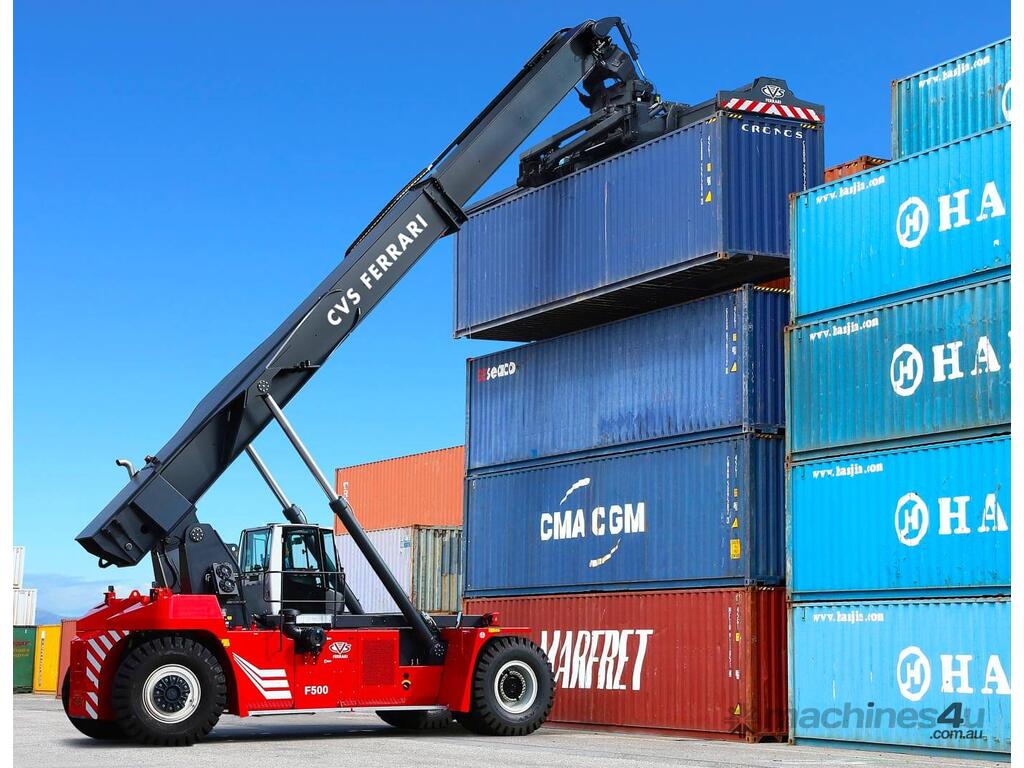

LIFT EQUIPT- CVS Ferrari F500.RS2 Reach Stacker

LADEN CONTAINER AND INTERMODAL HANDLING REACH STACKERS

Model F500.RS2
Attachment type 20’/40? Top Pick Spreader
Load capacity on tires at 1st/2nd/3rd row (no stab) kg 46.000 | 31.000 | 16.000
Load centre distance at 1st/2nd/3rd row mm 1.780 | 3.850 | 6.400
Load capacity on stabilizers at 1st/2nd/3rd row * kg Stabilizers not available
Load centre to front face of the truck mm 830
Lifting height under twist-lock mm 16.100
Stacking Ability – containers 1 over 5 = 6 x 8’6”
Wheelbase mm 6.500
Service weight – unladen kg 71.000
EU Stage 3a Engine make(Rated Power) (kw) CUMMINS QSM11 (250)
EU Stage 4 Engine make(Rated Power) (kw) SCANIA DC13 (257)
Transmission make&model DANA TE32
Service Brakes Wet Disk on front wheels
Tires size 18.00-25
Overall width – excluding Spreader mm 4.185
Overall length – including spreader mm 12.000
Overall height mm 4.800
Seat height mm 2.720
Spreader rotation – clockwise/anticlockwise deg -105 / +195
Spreader side-shift – left / right mm +800 / -800
Boom Angle (min / max) deg 0 /60
? optional




Lift Equipt, a trusted family-owned enterprise with over two decades of experience in materials handling equipment, specializes in forklifts, telehandlers, and access equipment. Our comprehensive services include hire, sales, and maintenance, catering to multiple industry needs. As the premier forklift dealership in Perth and honored as the Hyundai dealership of the year, we offer an extensive inventory of new and pre-owned forklifts, ensuring superior quality and performance.

Committed to excellence, Lift Equipt prioritize customer satisfaction and dependable machinery. Elevate your operations with Lift Equipt, the foremost forklift dealership in Perth, offering a diverse inventory tailored to various needs and budgets.

Go to the Lift Equipt showroom on Machines4u to view the range of machinery, send Lift Equipt a message about the item that you are interested in or give Lift Equipt a call, we are happy to answer any of your questions.

* CLICK ON THE PDF SPEC SHEET FOR MORE INFORMATION *
