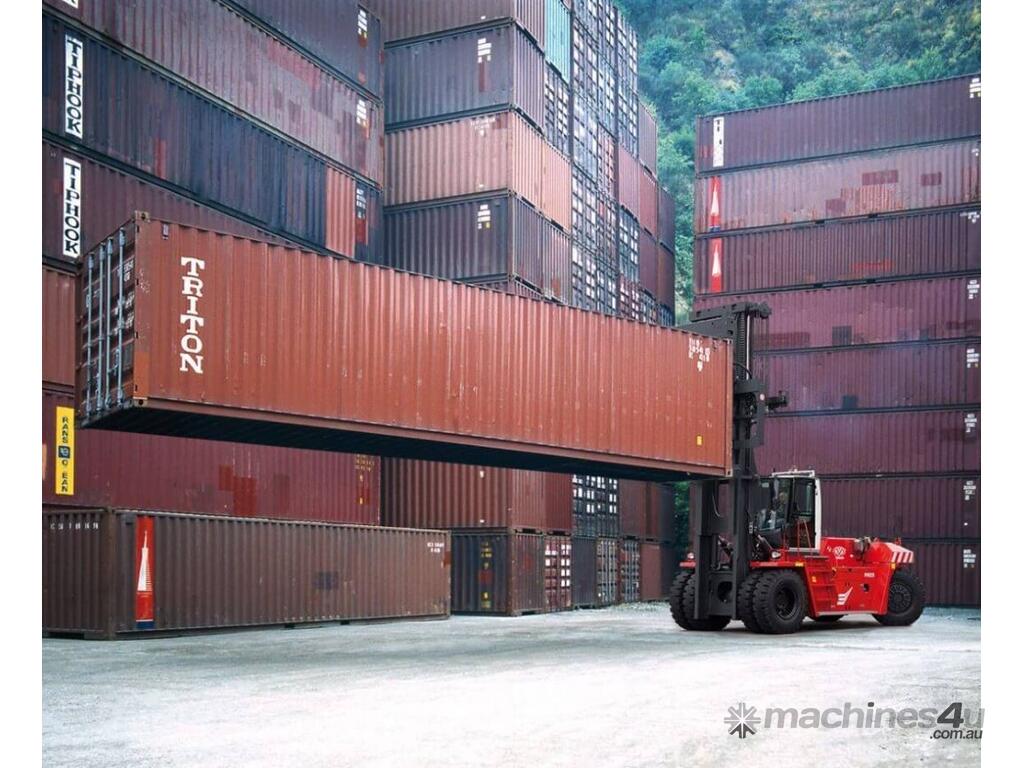

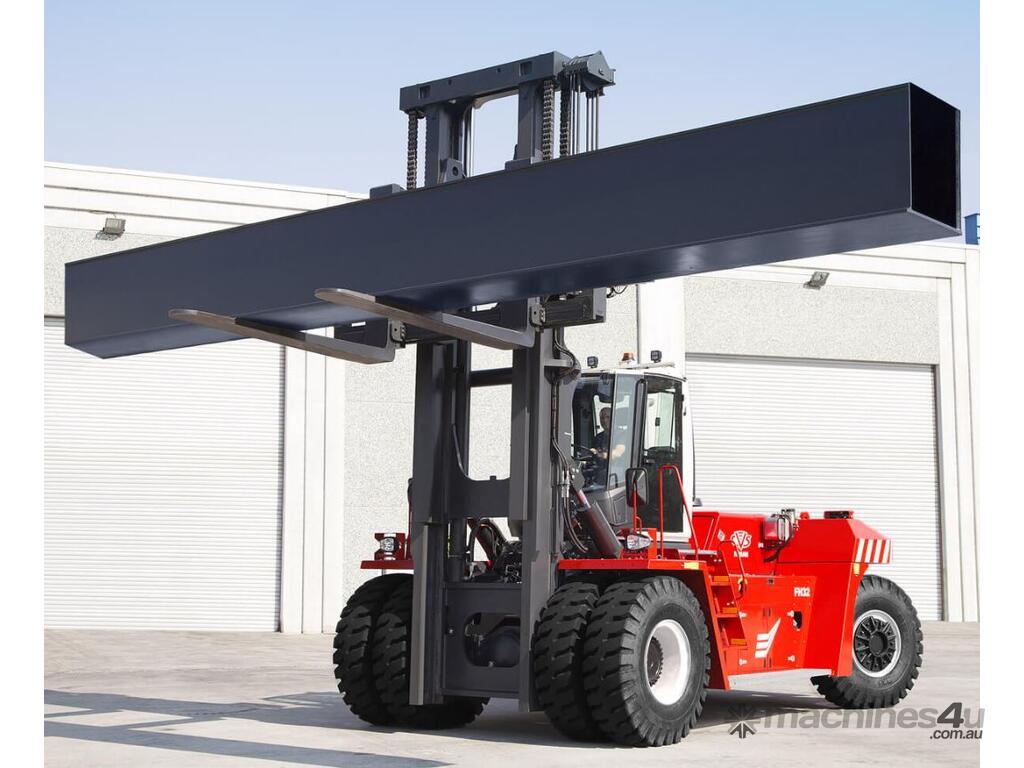

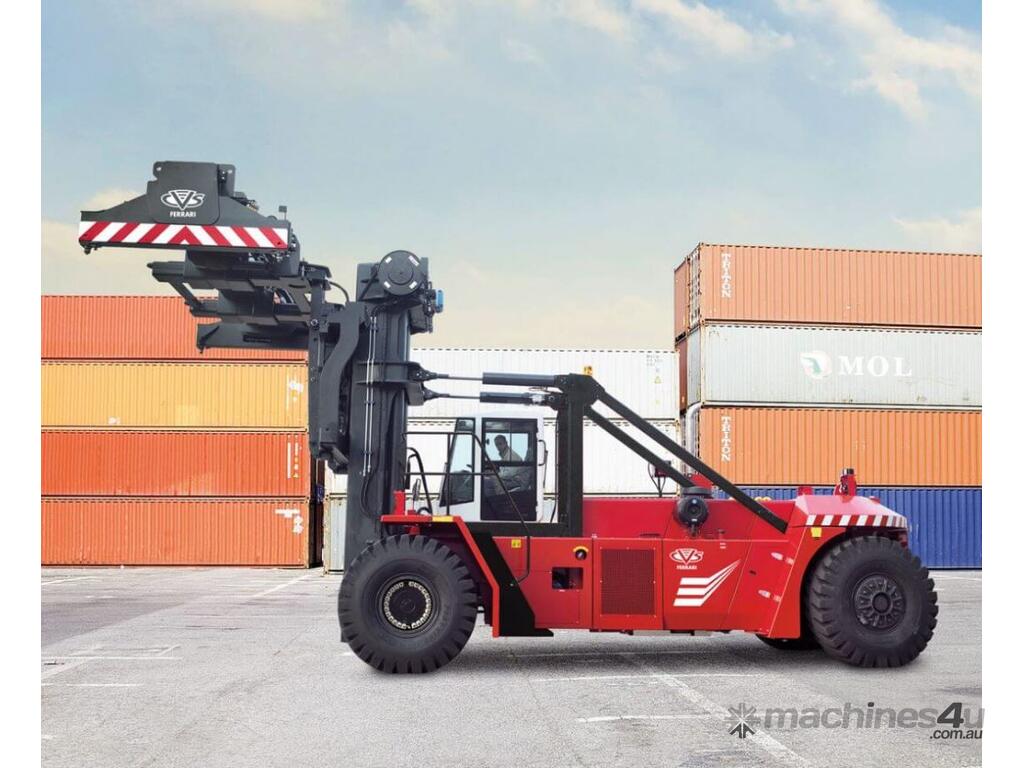

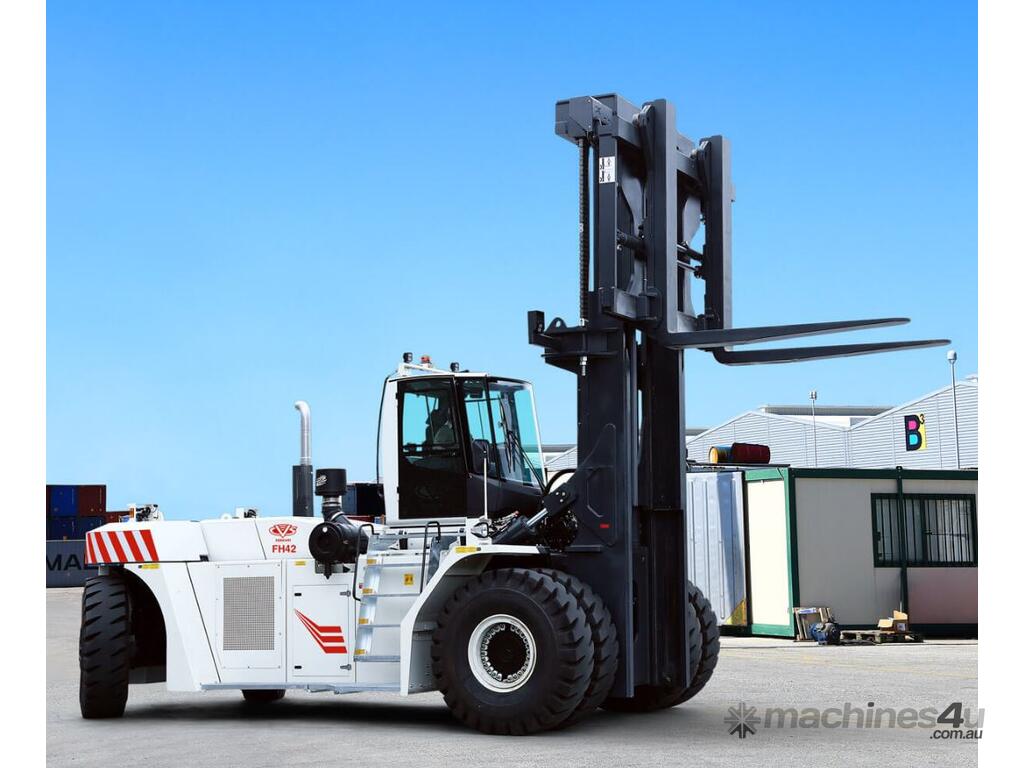

HEAVY DUTY FORK LIFT TRUCKS
Model FH45
Attachment type Forks
Load capacity on tires kg 45.000
Load centre distance (+/- out/in rach) mm 1.200
Load centre to centre of front axle mm 2.505
Standard lifting height on forks mm 4.000
Max available lift height on forks (option) mm 10.000
Wheelbase mm 5.750
Service weight (unladen) kg 51.500
EU Stage 3a Engine make(Rated Power) (kW) CUMMINS QSM 11 (250)
EU Stage 4 Engine make(Rated Power) (kW) SCANIA DC13 (257)
Transmission make&model DANA TE32
Service Brakes Wet Disk Brakes on front wheels
Tires size 18.00-25
Overall width mm 4.160
Overall length (including forks) mm 10.455
Overall height (mast lowered) mm 4.750
Seat height mm 2.400
Mast tilt, forward / backward deg 5 / 10
Forks side-shift mm +400 / -400
Forks size (L x W x T) mm 2400x310x135
Lift Equipt, a trusted family-owned enterprise with over two decades of experience in materials handling equipment, specializes in forklifts, telehandlers, and access equipment. Our comprehensive services include hire, sales, and maintenance, catering to multiple industry needs. As the premier forklift dealership in Perth and honored as the Hyundai dealership of the year, we offer an extensive inventory of new and pre-owned forklifts, ensuring superior quality and performance.
Committed to excellence, Lift Equipt prioritize customer satisfaction and dependable machinery. Elevate your operations with Lift Equipt, the foremost forklift dealership in Perth, offering a diverse inventory tailored to various needs and budgets.
Go to the Lift Equipt showroom on Machines4u to view the range of machinery, send Lift Equipt a message about the item that you are interested in or give Lift Equipt a call, we are happy to answer any of your questions.
* CLICK ON THE PDF SPEC SHEET FOR MORE INFORMATION *
