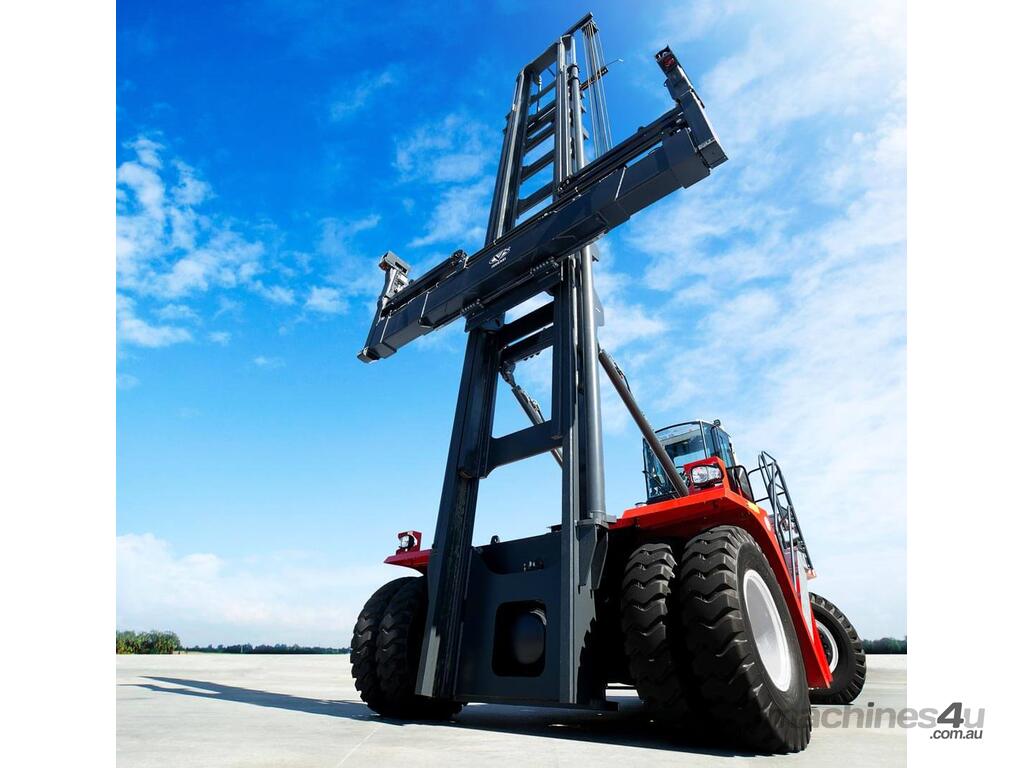

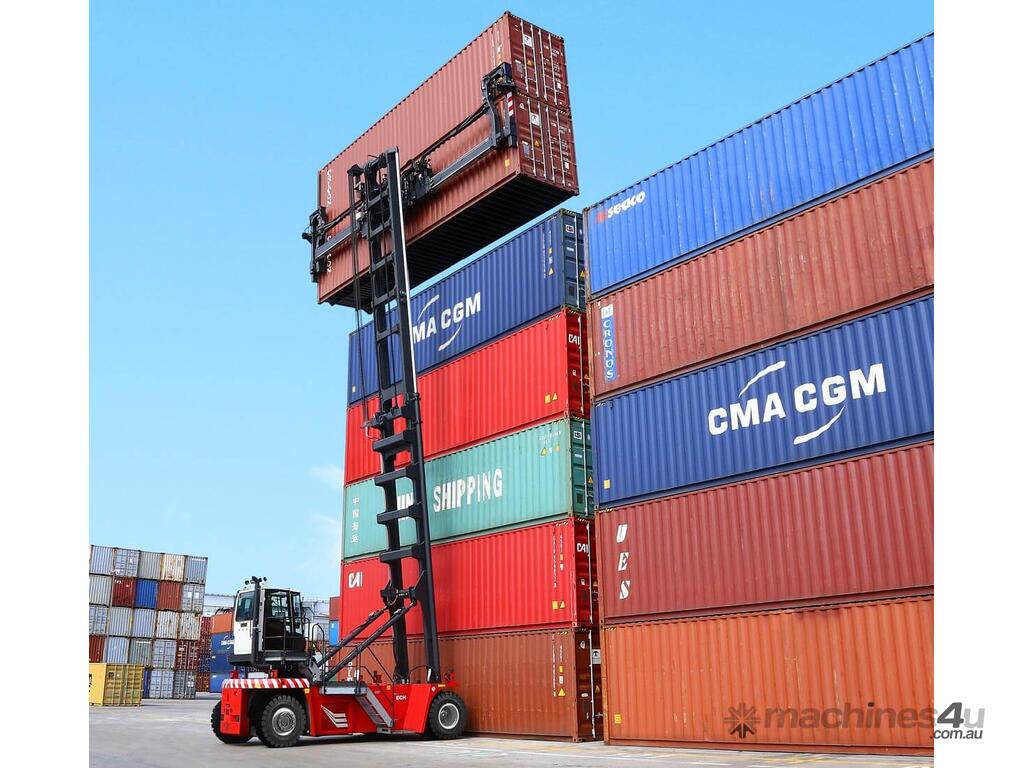

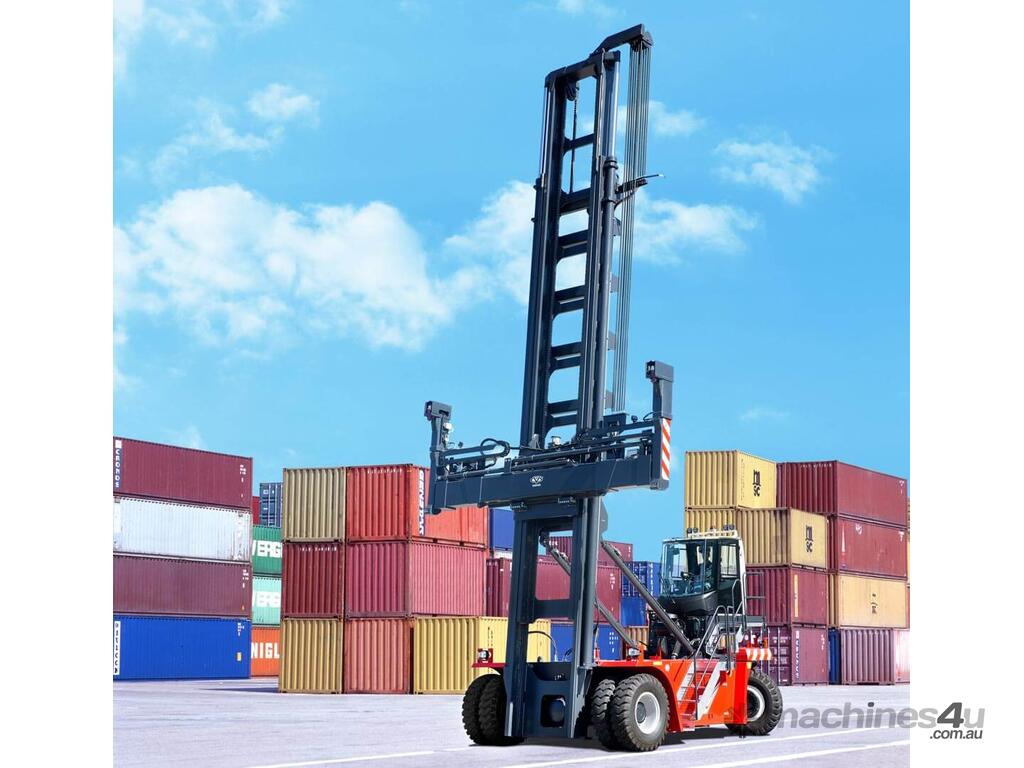

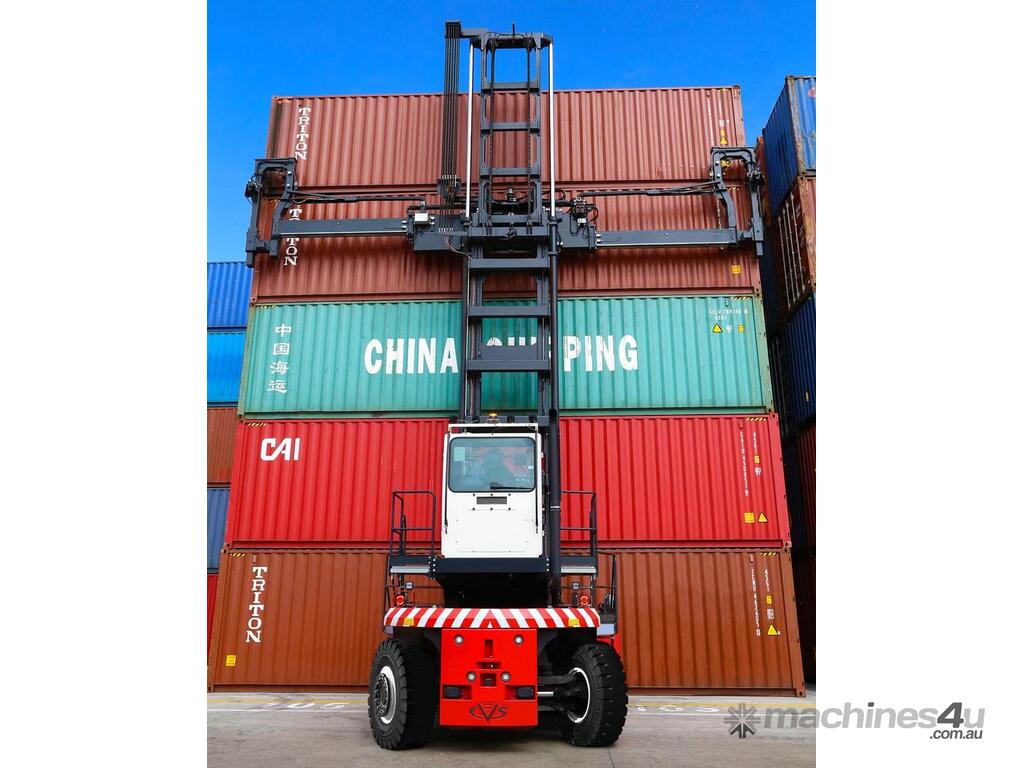

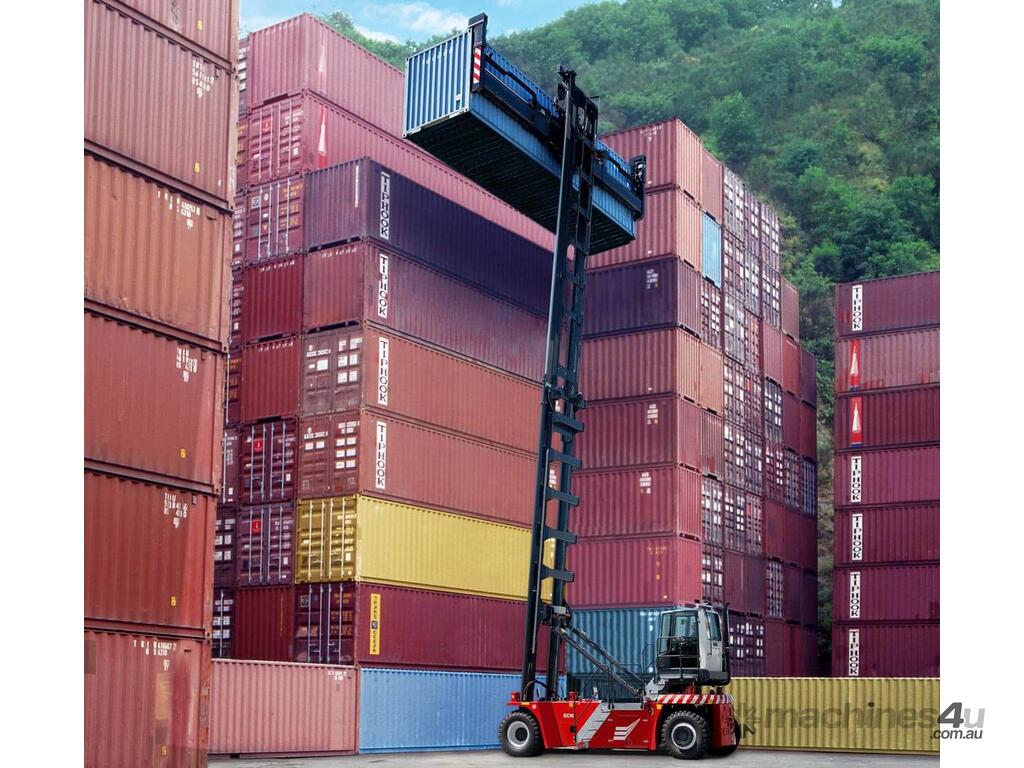

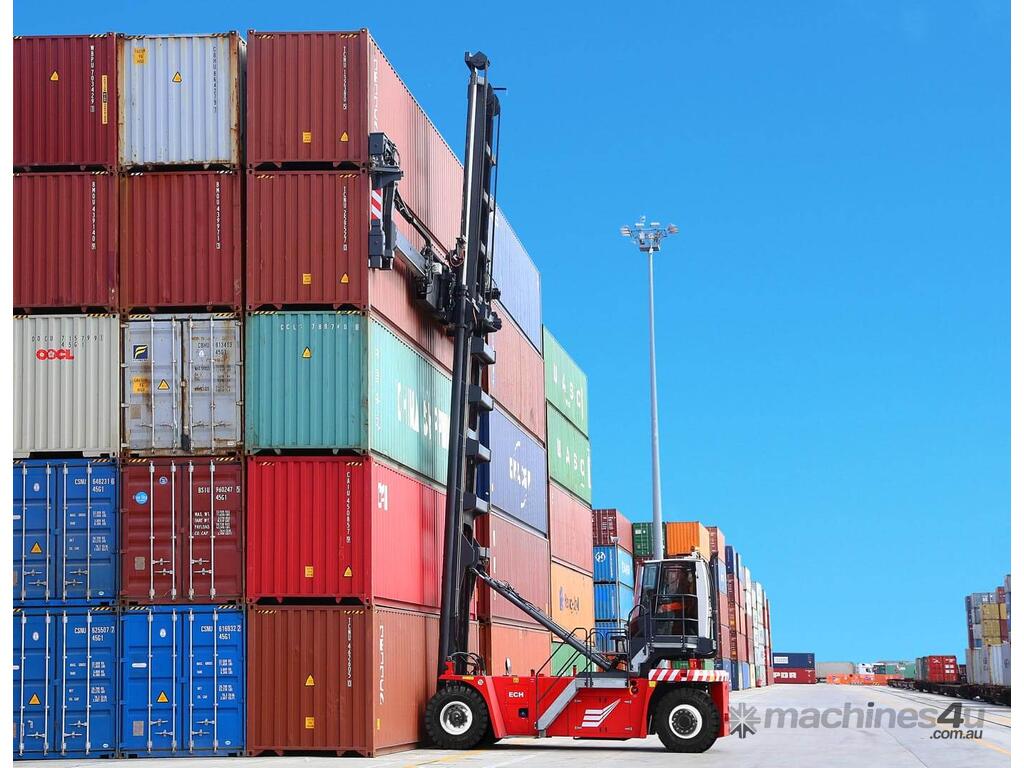

LIFT EQUIPT- ECH10.8 EMPTY CONTAINER HANDLING LIFT TRUCKS

Model ECH10.8
Attachment type 20’/40? Side Pick Spreader – Single Stack type
Capacity on tires kg 10.000
Load centre distance mm 1.200
Load centre to centre of front axle mm 2.425
Lifting height under twist-lock (hook) mm 850
Stacking Ability – containers 1 over 7 = 8 x 8’6”
Wheelbase mm 4.750
Service weight – unladen kg 40.800
EU Stage 3a Engine make(Rated Power) (kW) CUMMINS QSB6.7 (164)
EU Stage 4 Engine make(Rated Power) (kW) VOLVO TAD 871 VE (185)
Transmission make&model DANA TE17
Service Brakes Wet Disk on front wheels
Tires size 14.00-24
Overall width – excluding Spreader mm 4.143
Overall length – including spreader mm 6.860
Overall height – Mast lowered mm 19.100
Seat height mm 3.040
Mast tilt, forward / backward deg 3/5
Spreader side-shift mm +600 / -600
Spreader hydraulic deg (3/3)
? optional



Lift Equipt, a trusted family-owned enterprise with over two decades of experience in materials handling equipment, specializes in forklifts, telehandlers, and access equipment. Our comprehensive services include hire, sales, and maintenance, catering to multiple industry needs. As the premier forklift dealership in Perth and honored as the Hyundai dealership of the year, we offer an extensive inventory of new and pre-owned forklifts, ensuring superior quality and performance.

Committed to excellence, Lift Equipt prioritize customer satisfaction and dependable machinery. Elevate your operations with Lift Equipt, the foremost forklift dealership in Perth, offering a diverse inventory tailored to various needs and budgets.

Go to the Lift Equipt showroom on Machines4u to view the range of machinery, send Lift Equipt a message about the item that you are interested in or give Lift Equipt a call, we are happy to answer any of your questions.

* CLICK ON THE PDF SPEC SHEET FOR MORE INFORMATION *
