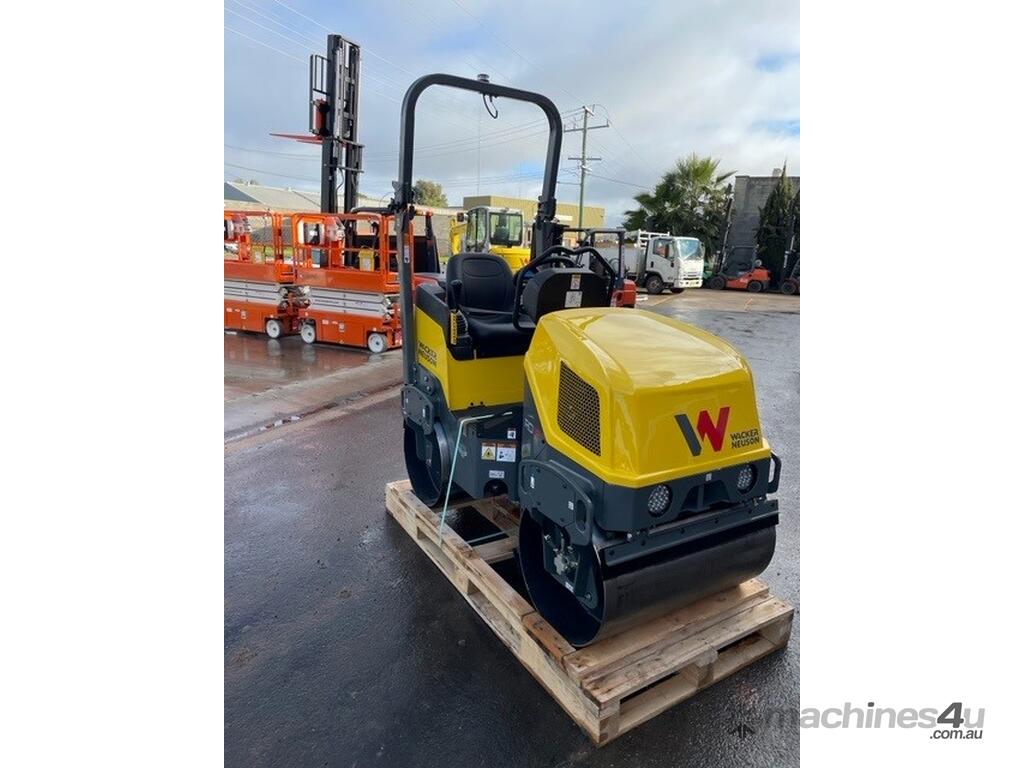

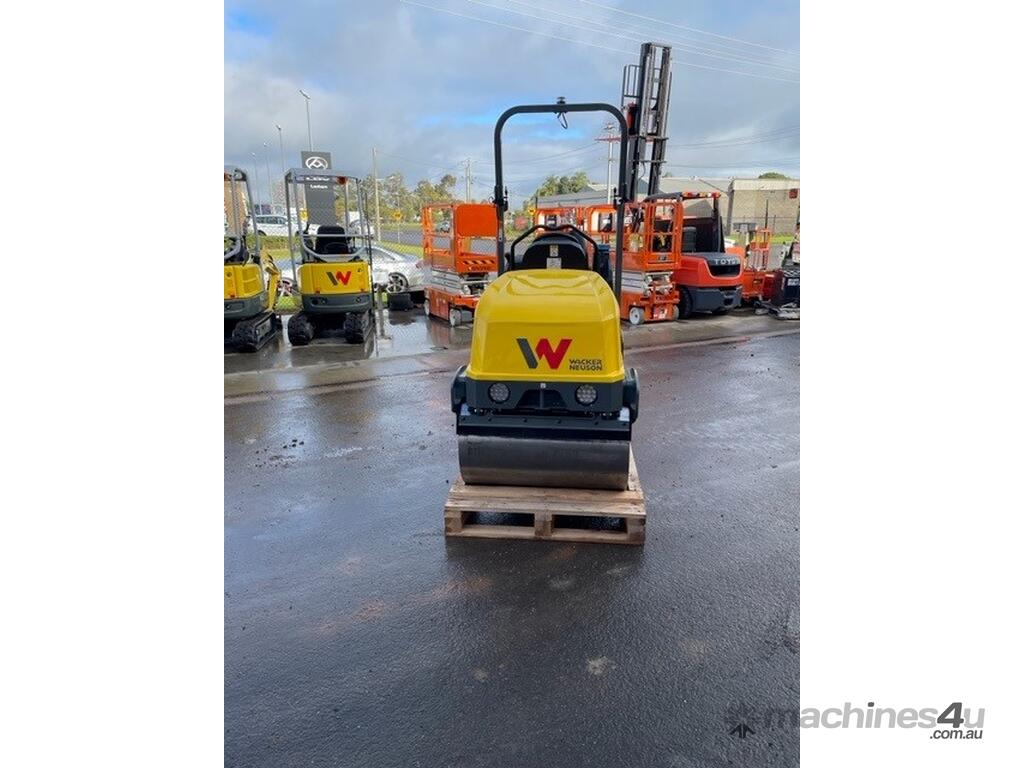

The RD12 tandem vibratory roller with a dual drum drive and articulated steering for excellent maneuverability. With a front vibrating drum and rear static drum it offers efficiency compaction results in a compact package. This machine is ideally suited for commercial and residential compaction of asphalt and granular subbase material. Primary applications include parking lots, driveways, secondary roads, repair work and nature trails. Additionally, the RD12 is utilized for turf rolling in the landscape and golf industry segments.
RD12A Roller
Operating data
Operating weight max. 1,344 kg
L x W x H 1,880 x 986 x 2,300 mm
Drum width 900 mm
Drum diameter 560 mm
Side clearance right 43 mm
Side clearance left 43 mm
Curb clearance right 400 mm
Curb clearance left 400 mm
Centrifugal force dynamic (front drum) 15.1 kN
Frequency 70 Hz
Amplitude 1.1 mm
Linear force - front / rear (static) 5.6 / 7.1 N/mm
Linear force dynamic (front) 16.7 N/mm
Travel speed forward 8 km/h
Travel speed reverse 8 km/h
Surface capacity area 7,246 m²/h
Gradeability max. 30 %
Turning radius outside 2,850 mm
Engine / Motor
Engine / Motor type air-cooled, 2-cylinder, gasoline engine
Engine / Motor manufacturer Honda GX630
Displacement 688 cm³
Operating performance max. rated at 3600 rpm 15.5 kW
RPM / speed operating speed 3,100 rpm
Fuel consumption 6 l/h
Filling capacities
Fuel tank capacity 23.8 l
Water tank capacity 131 l
