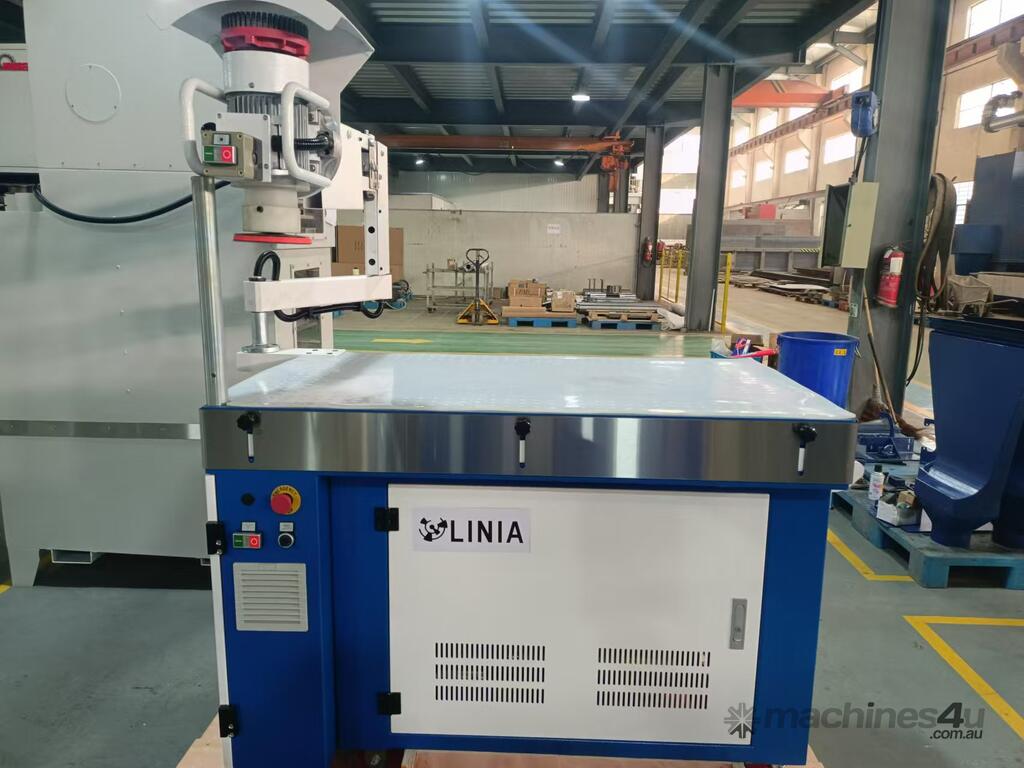

The Linia range of manual deburring and polishing machines offers a cost effective and time saving solution for those who have small batch deburring and polishing applications. The traditional way of hand grinders and orbital hand sanders is extremely time consuming, the SD-H series of deburring machines offer a quicker way to get those jobs out of the door with a end result that is far superior than those of hand held machines.
Applications: The Linia SD-H is suitable for small batch parts deburring and edge rounding. It has much better working efficiency and more consistent performance than traditional handheld angle grinder or orbital sanders. It does a fantastic job on deburring and edge rounding of laser cutting, punching, stamping, and some flat machined parts
Machine features

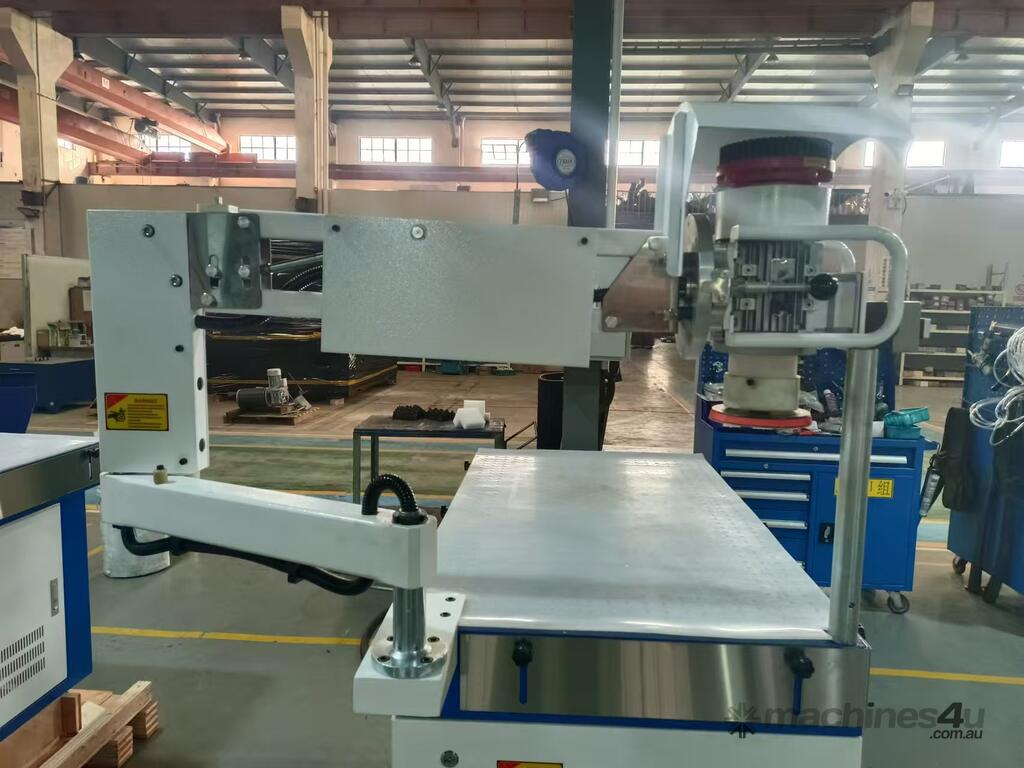

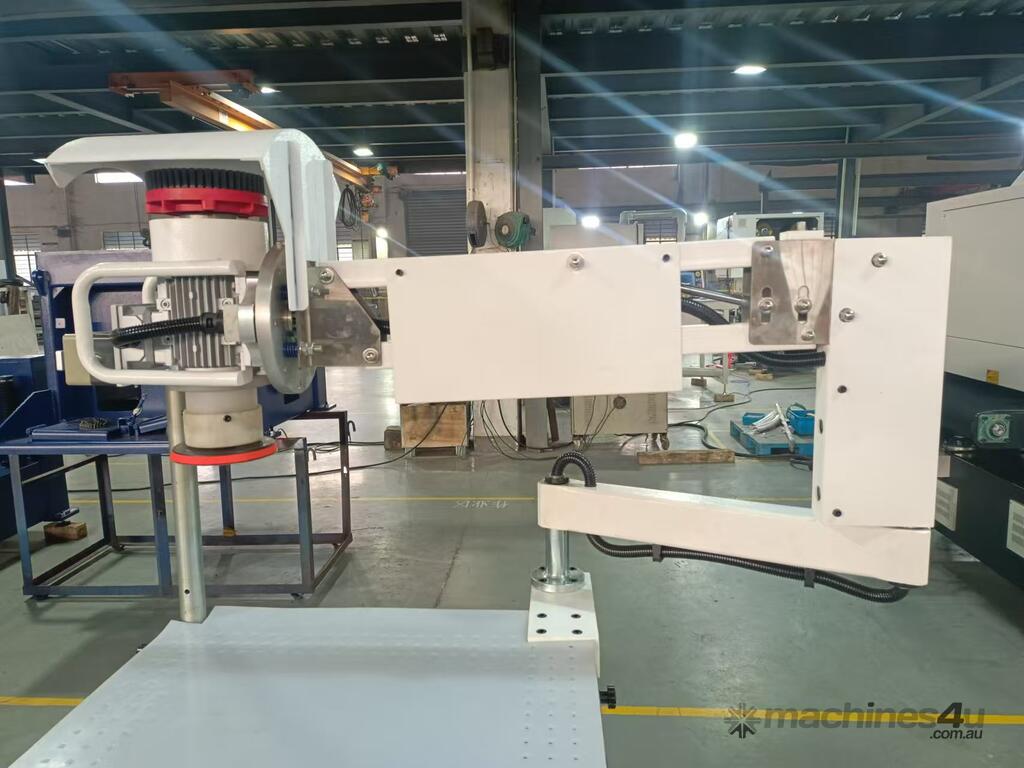

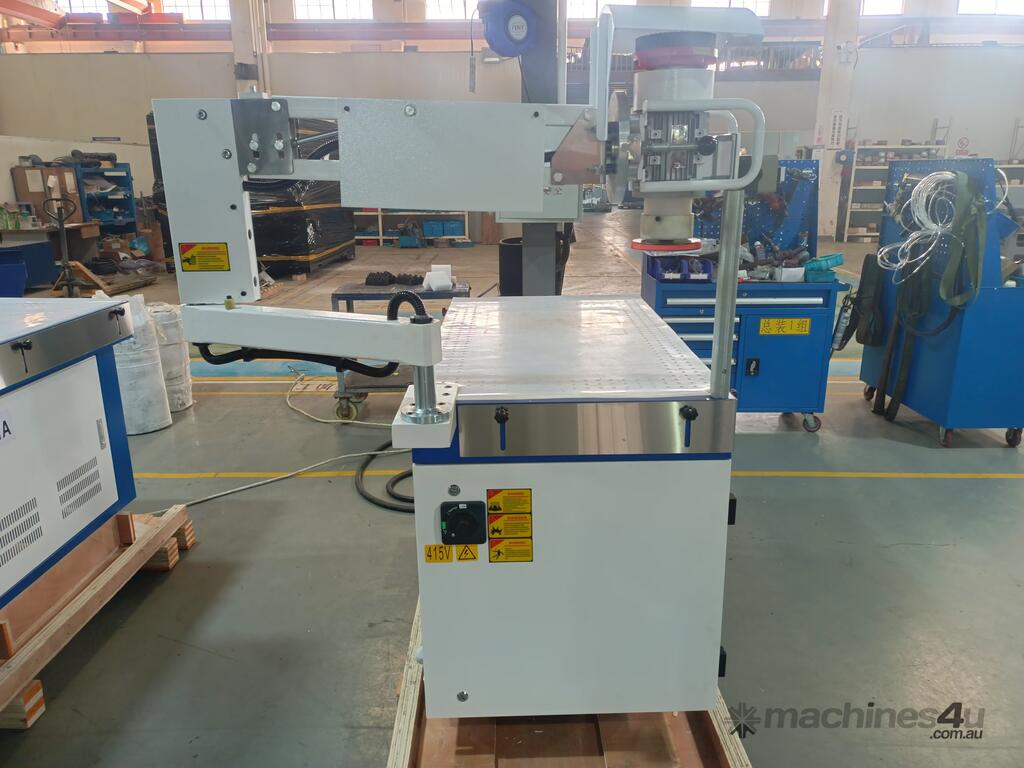

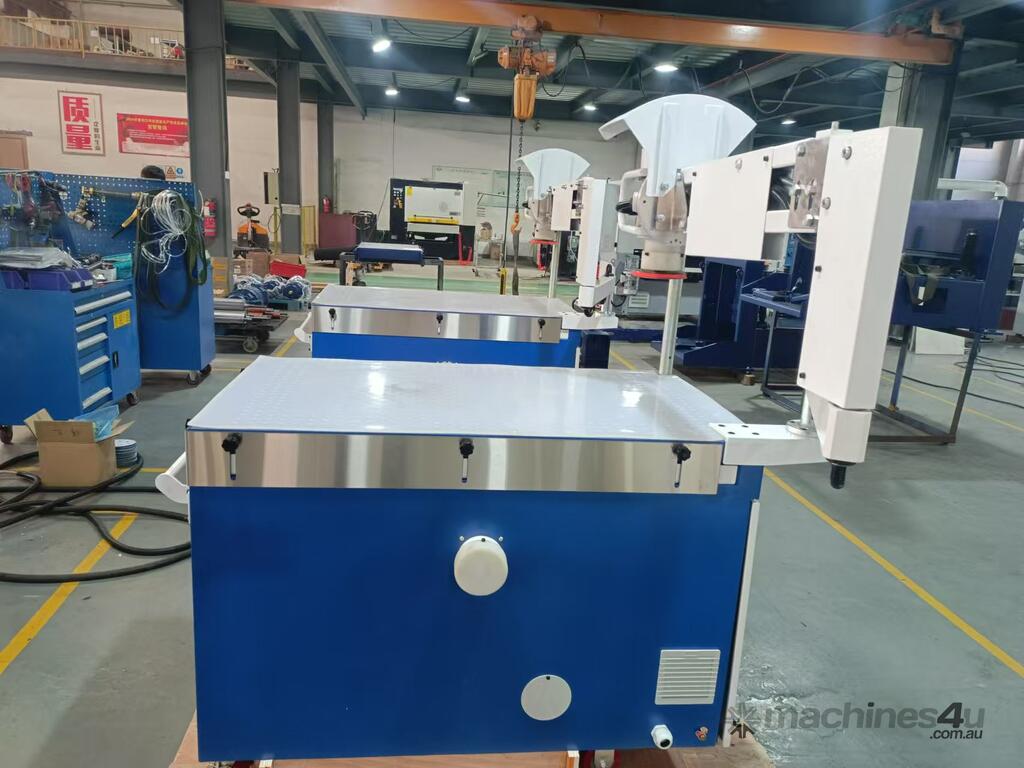

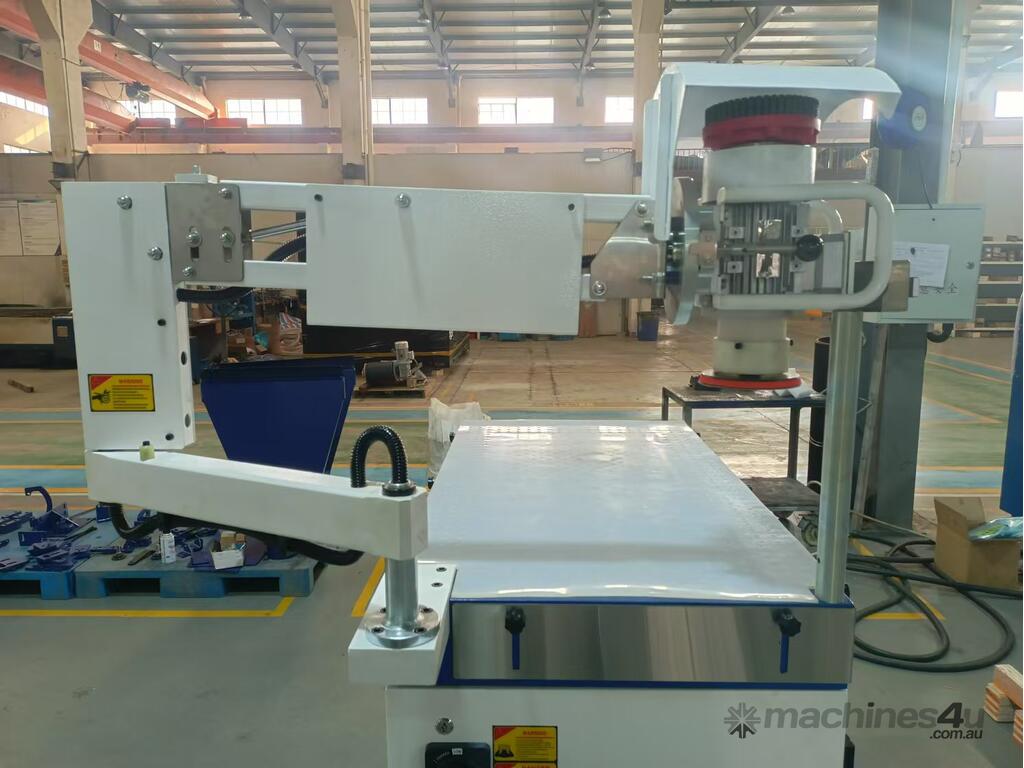

1.1 SD-H utilizes air spring support zero gravity swing arm design. The operator simply needs to grab the handles on the working head and apply certain pressure on the part to start deburring and edge rounding freely.

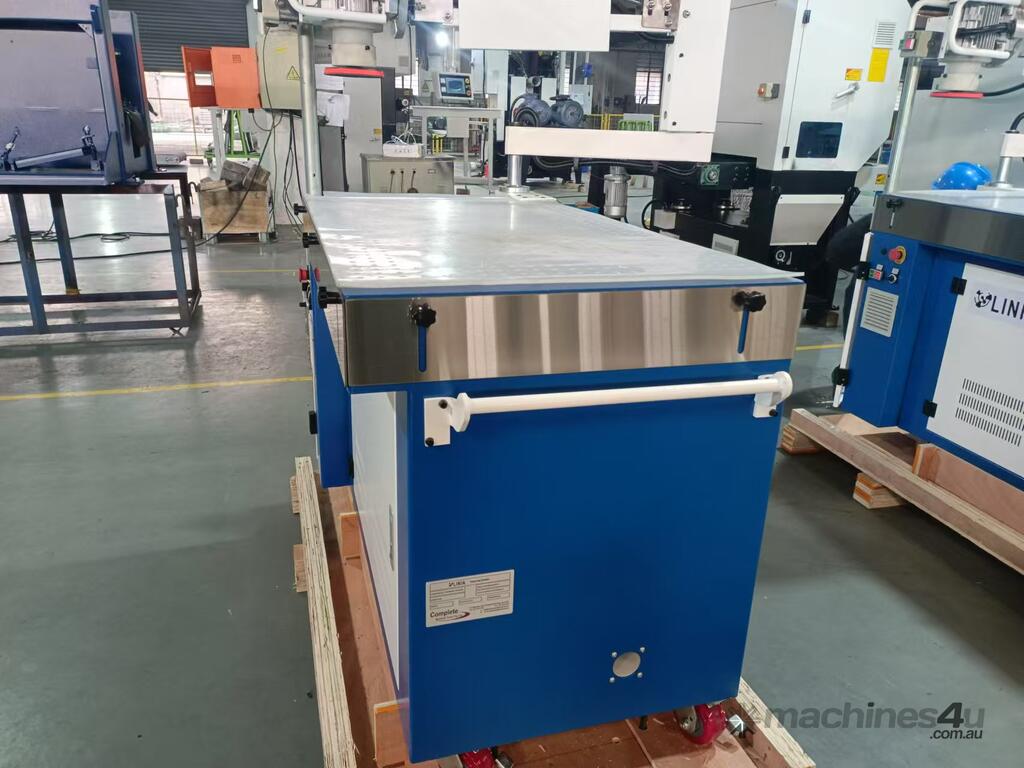

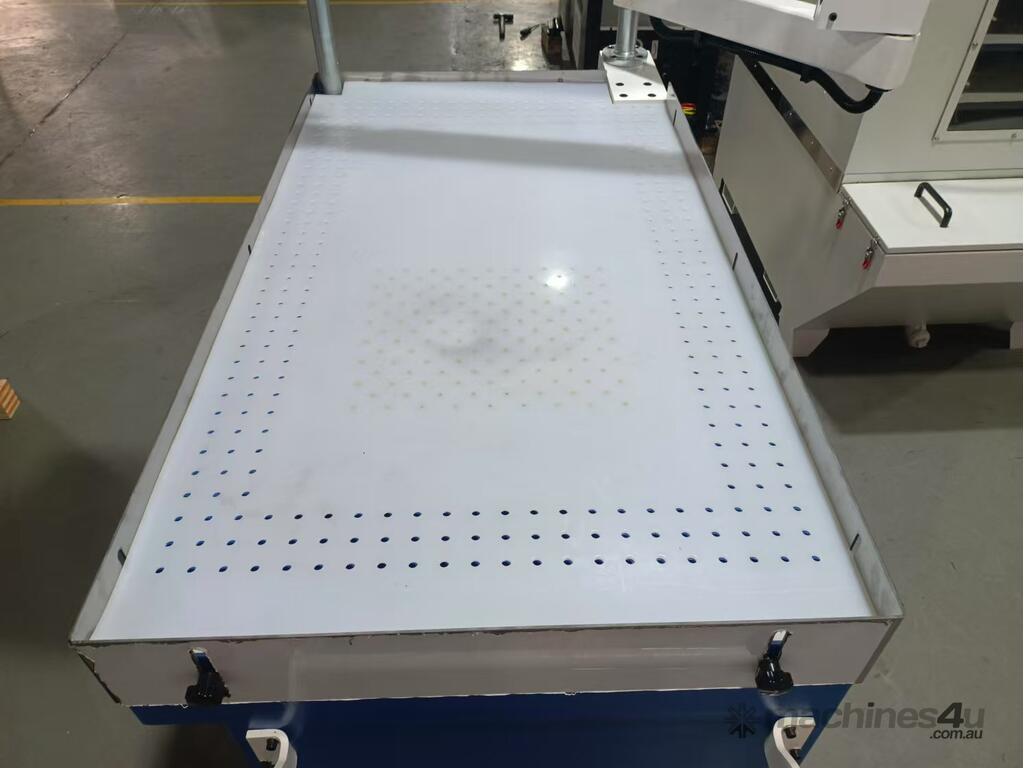

1.2 The working table also has partial vacuum area for accommodating small parts. Simply position the parts on the vacuum area, then the strong downdraft force will firmly hold the parts in place.

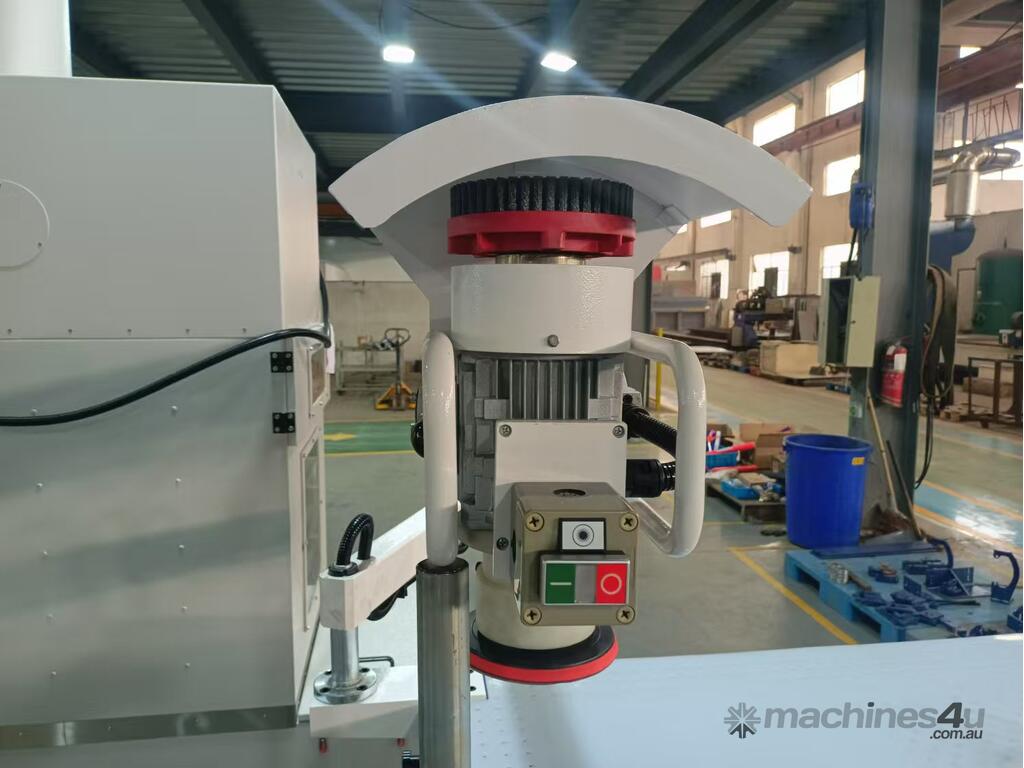

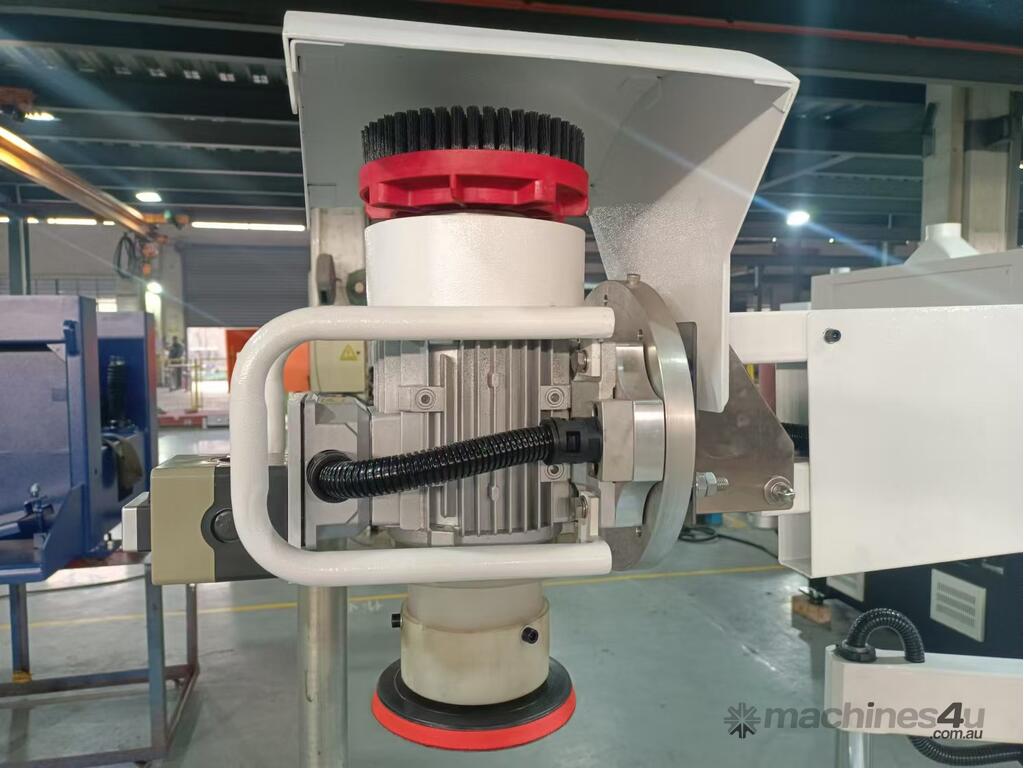

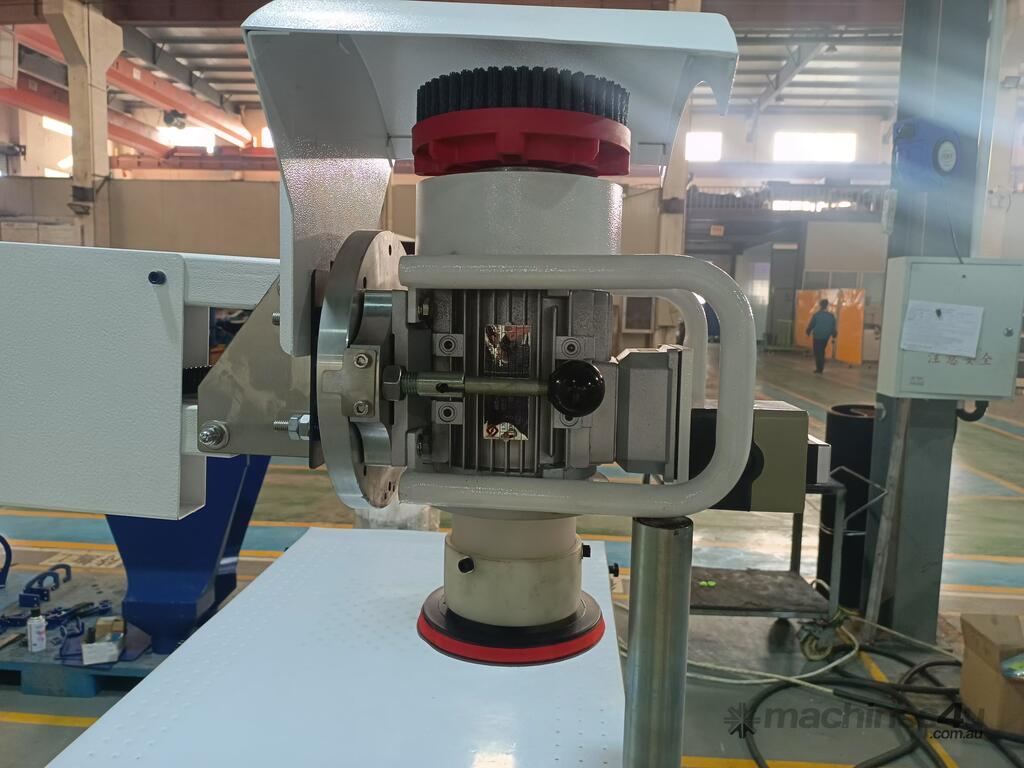

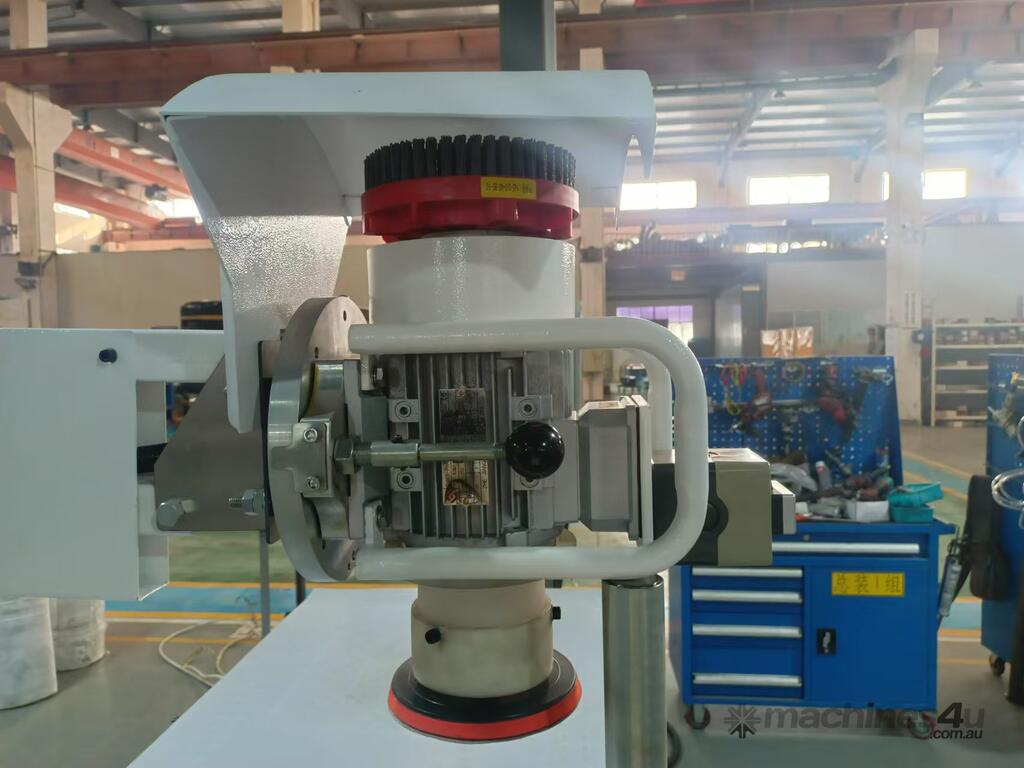

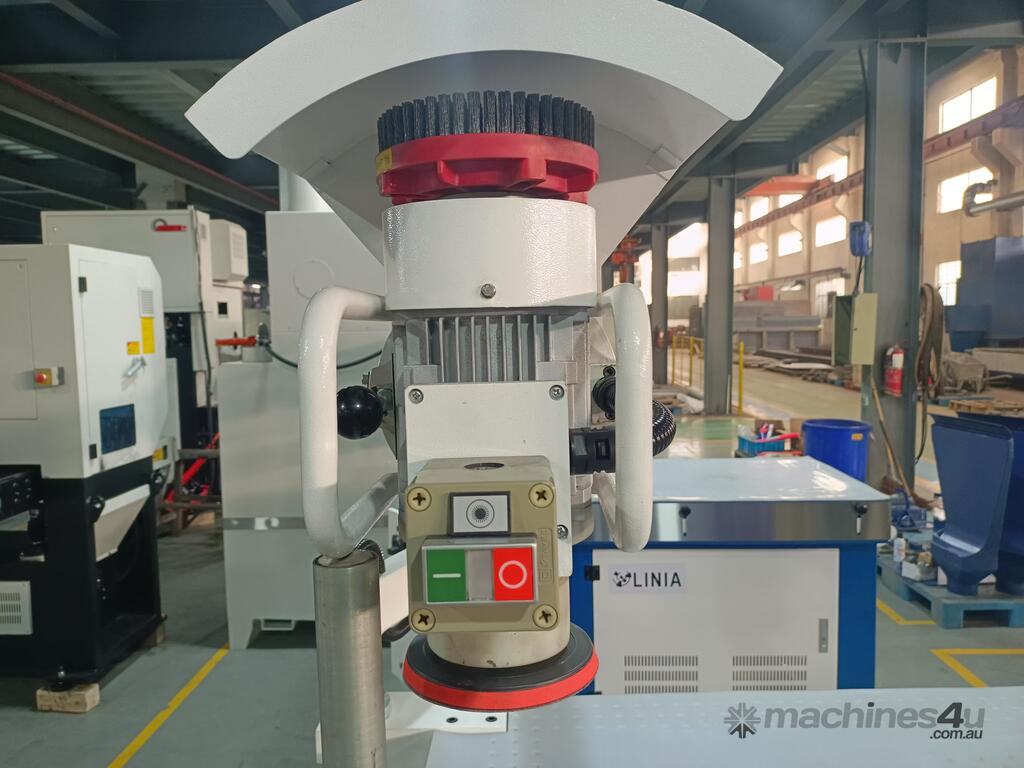

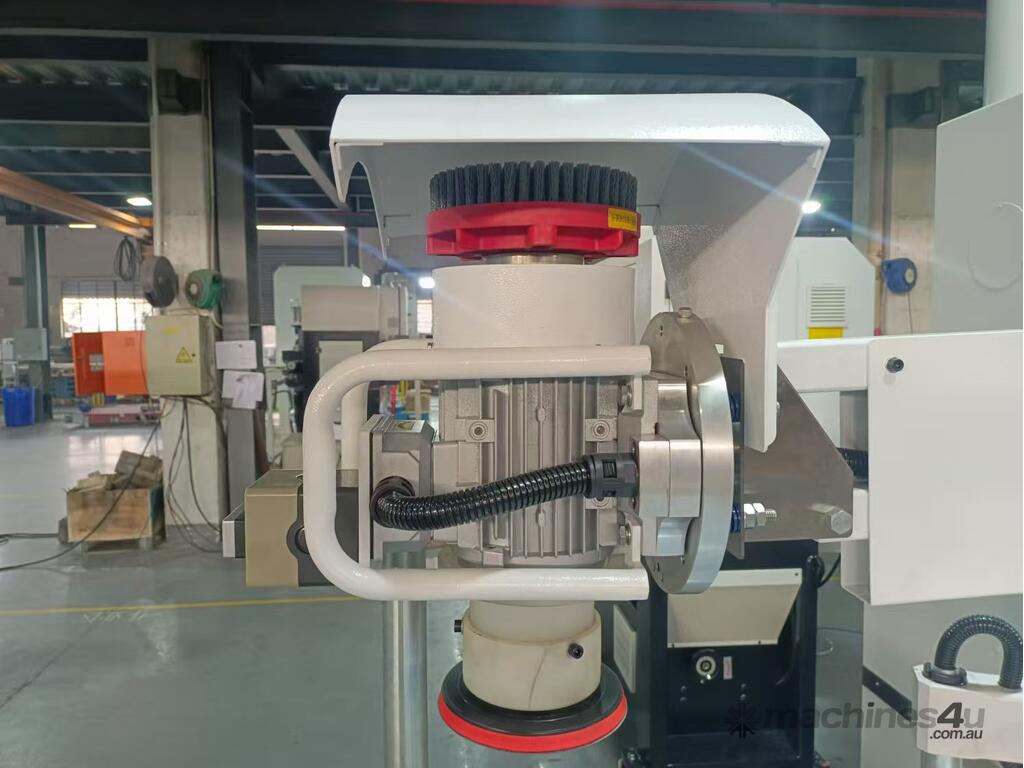

1.3 SD-H is equipped with dual abrasive disk and brush configuration which are driven by the same motor. Fast switching between the disk and brush, simply turn 180° and then lock it. Patented design of quick consumable change of the abrasive disk and brush ensures time is not wasted changing out brushes.

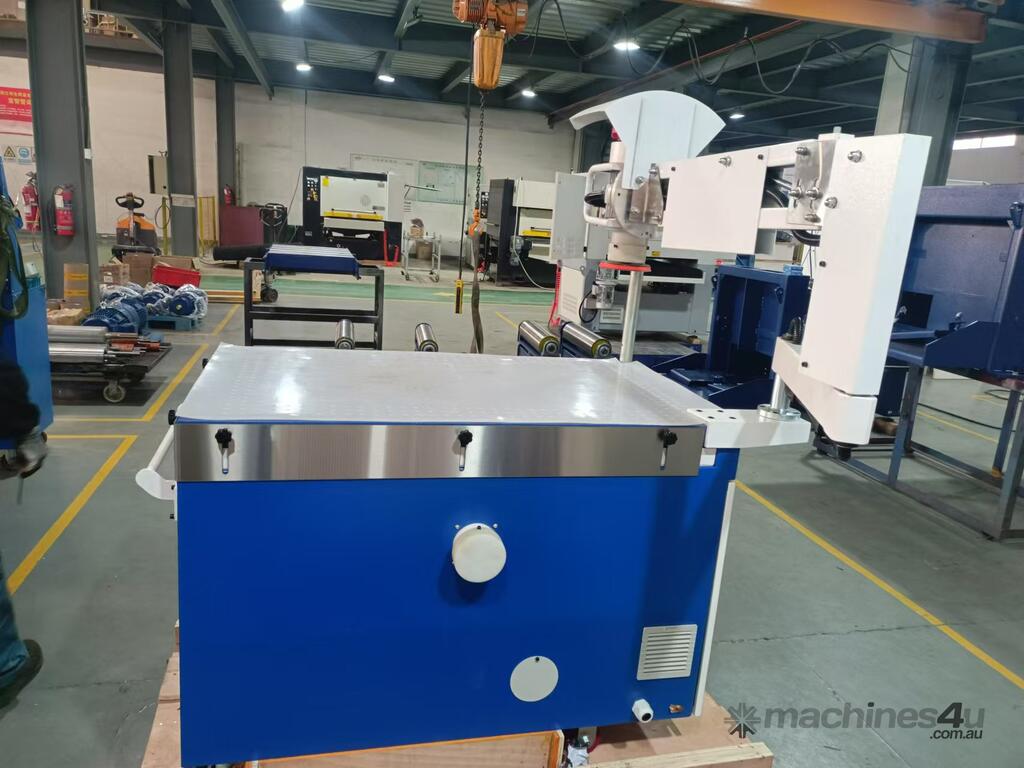

1.4 The SD-H is also capable of processing oversize parts (larger than the working table), if it is within the swing arm span. The safety rails can be lowered and the oversized part laid on the table with an over hang.

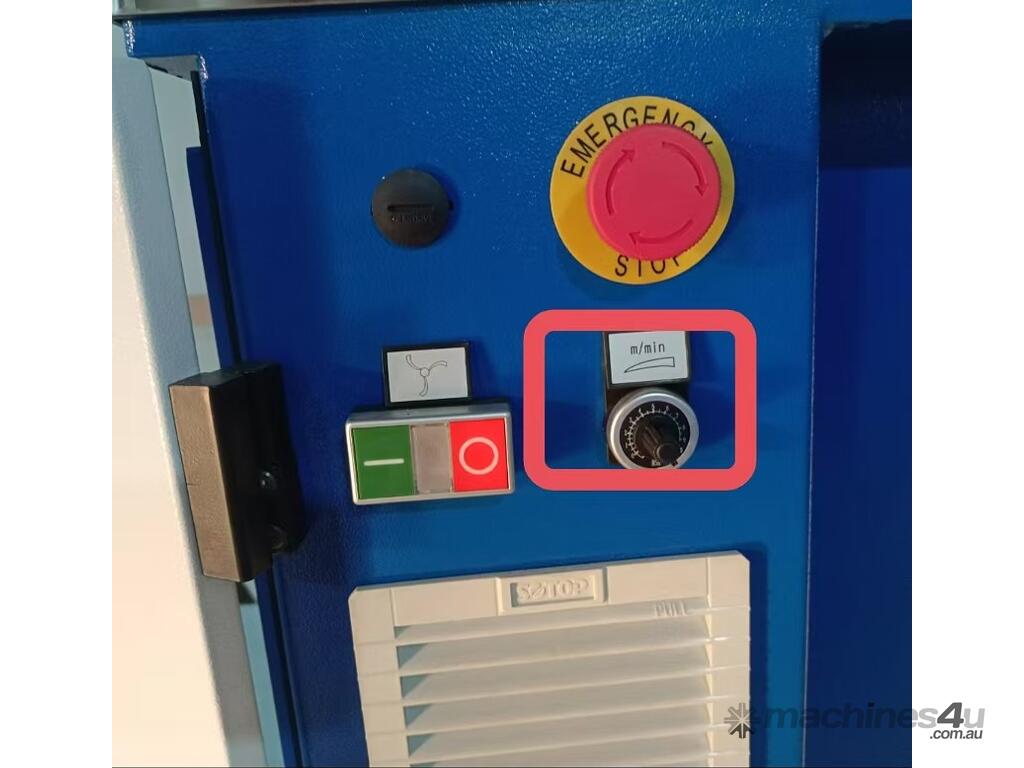

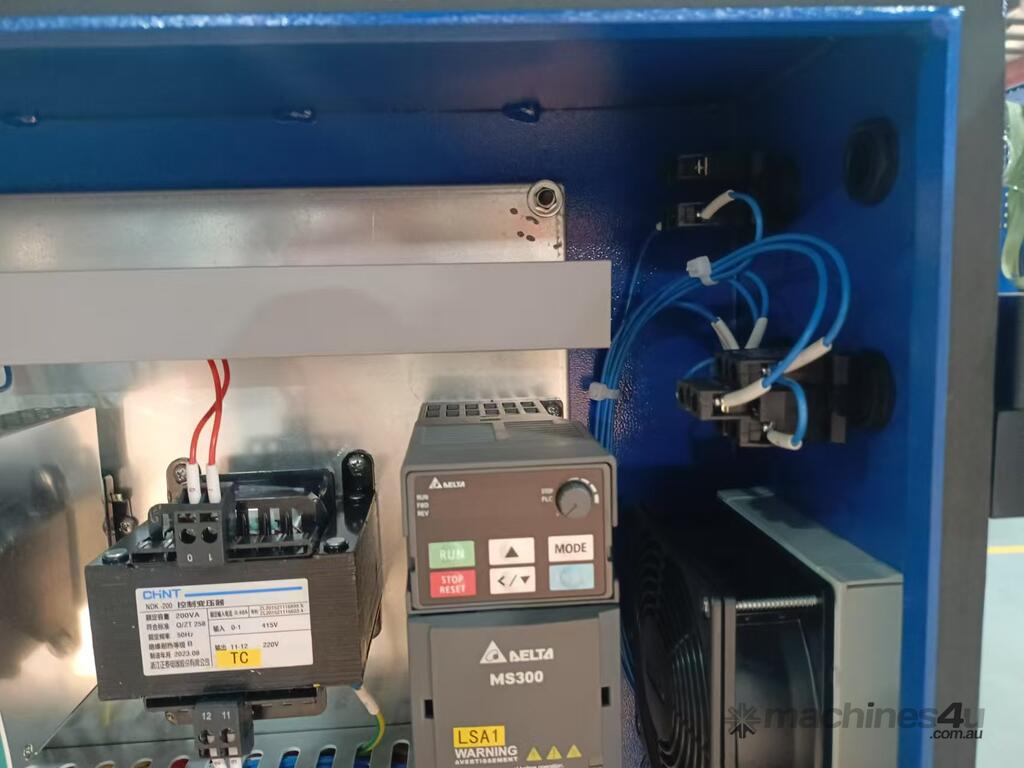

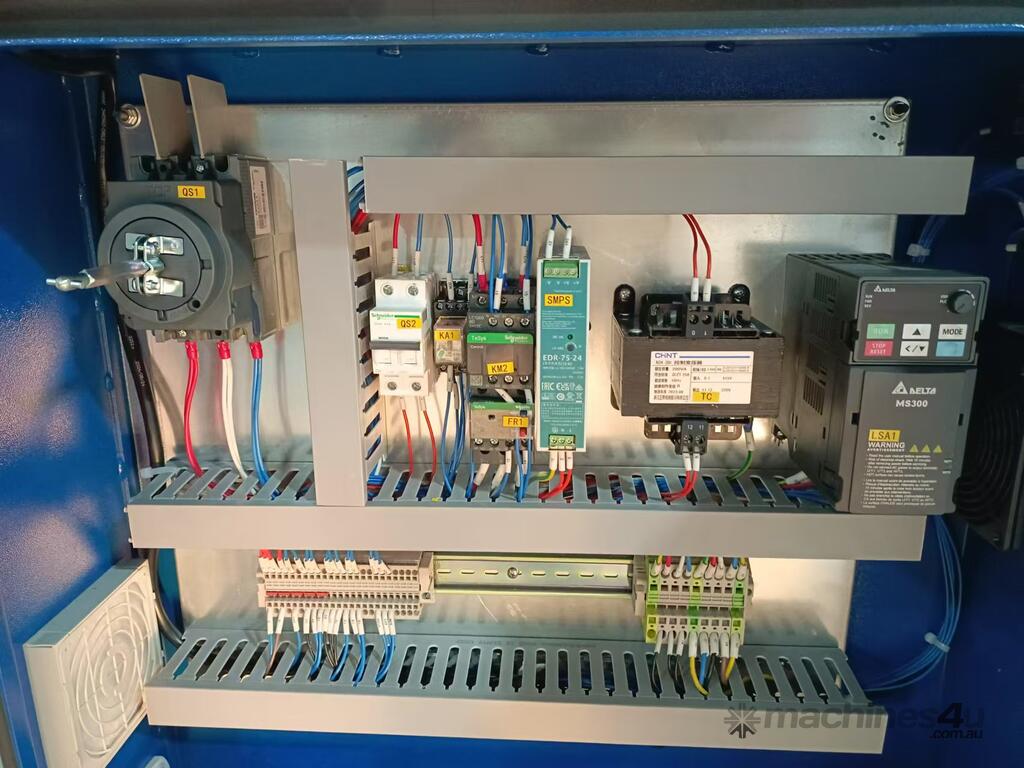

1.5 The motor uses an inverter which allows infinitely variable speed of the brush, there is a adjustment knob on the control cabinet that allows the user to change the brush speed depending on the application and allows better results.

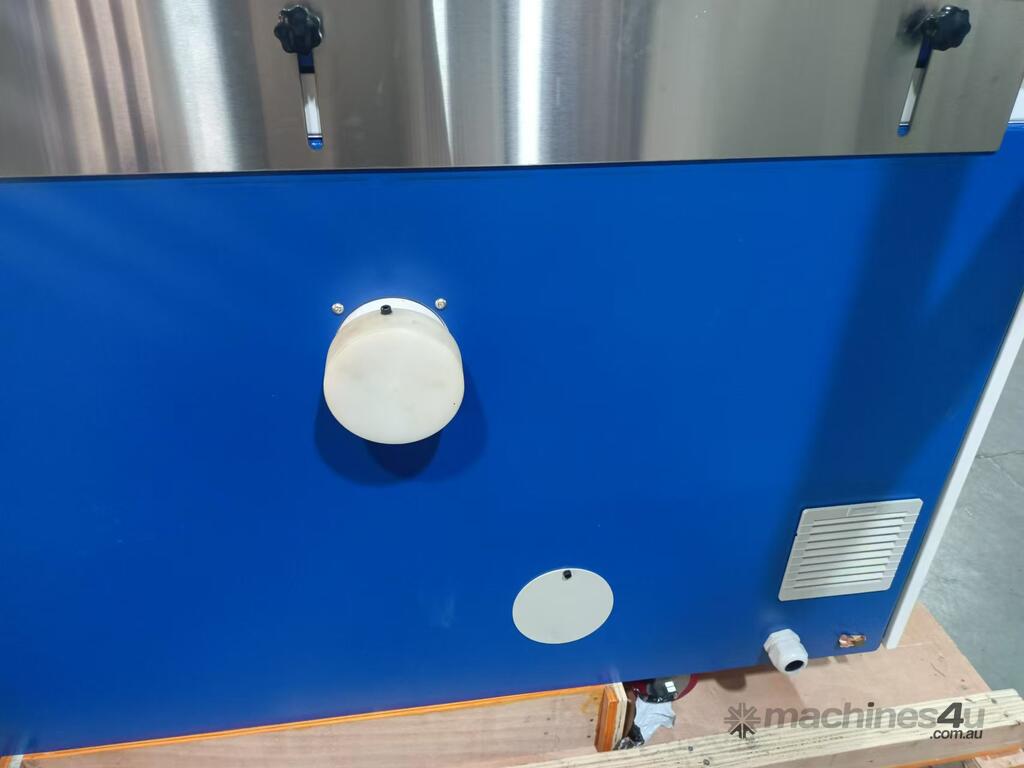

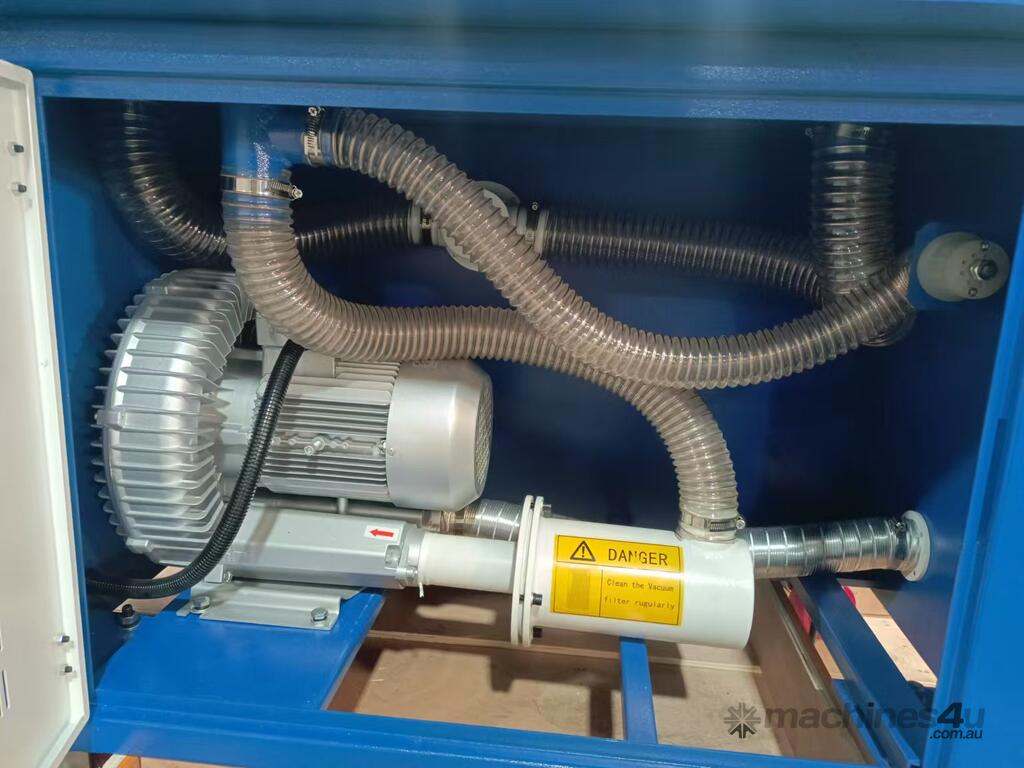

1.6 The vacuum table has a tray catchment under it so all the dust and debris will be collected and stored in this area so no other equipment is needed in order to contain the dust and debris.
1.7 Consumables included with the machine –
1x Abrasive flap plastic pallet
30 x abrasive flaps
2 x Dupont fiber brushes
1 x Scotch brite + sand paper brush
NB - If there is some work pieces’ size bigger than said working size, you still can process within the cantilever working range, size of workpiece cannot be larger than this.
Vacuum Area - 330 x 330mm
Working head power - 0.75KW
Max part dims (inside table) - 1150 x 700mm
Max part dims (outside table) - 1500 x 1500mm
Working heads - 2

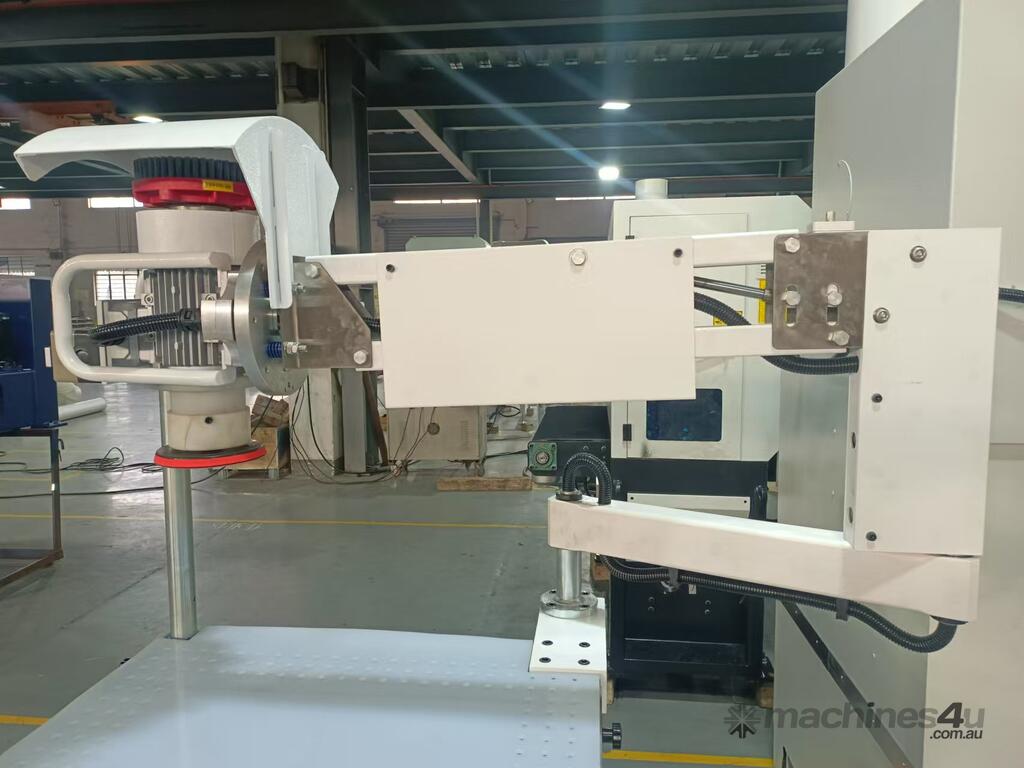

Swing arm span - 1500mm with a 360 degree rotation
Total power - 4kw
Part thickness range - 1 - 150mm
Machine dims - 1450 x 750 x 1700mm
